GRS202-AETUH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 3GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

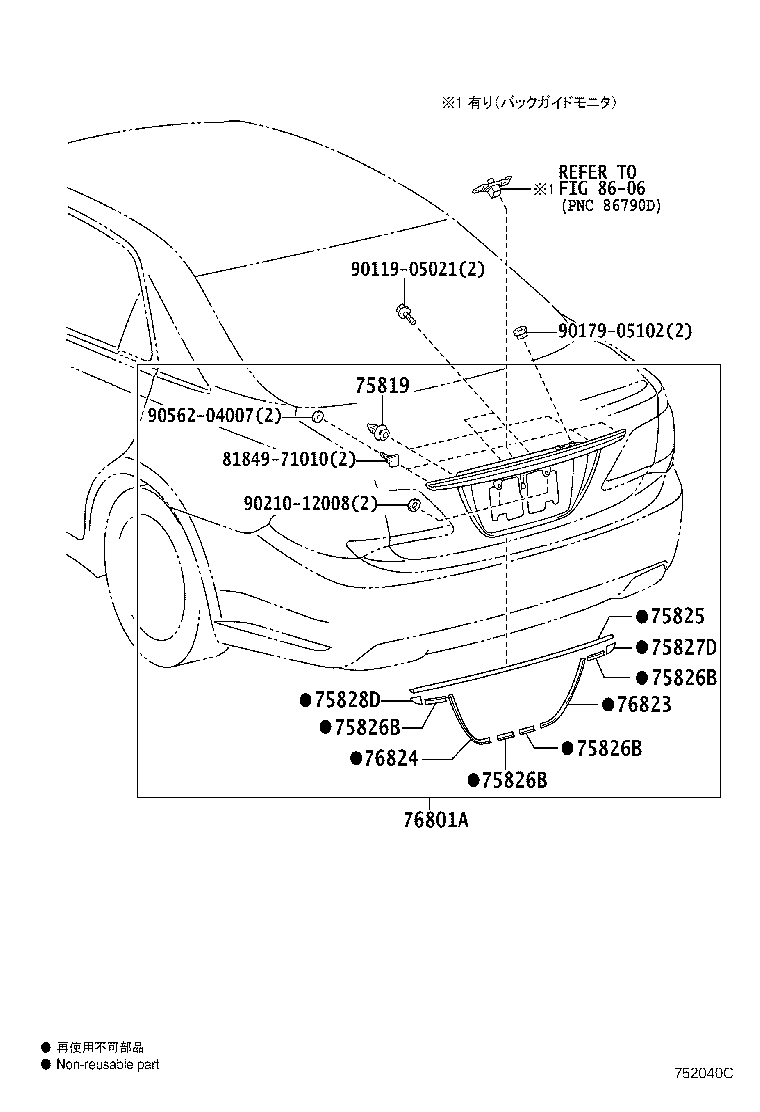

Click highlighted areas on diagram

diagram 75819 75825 75826B 75826B 75826B 75826B 75827D 75828D 76801A 76823 76824 8184971010 8606 9011905021 9017905102 9021012008 9056204007
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
90467-10162

GRS20#,GWS204

 8
75825 - PAD, LUGGAGE COMPARTMENT DOOR MOULDING
75825-30110

GRS20#,GWS204

 1
75826B - PAD, LUGGAGE COMPARTMENT DOOR MOULDING, NO.2
75826-30130

GRS20#,GWS204

 4
75826B - PAD, LUGGAGE COMPARTMENT DOOR MOULDING, NO.2
75826-30130

GRS20#,GWS204

 4
75826B - PAD, LUGGAGE COMPARTMENT DOOR MOULDING, NO.2
75826-30130

GRS20#,GWS204

 4
75826B - PAD, LUGGAGE COMPARTMENT DOOR MOULDING, NO.2
75826-30130

GRS20#,GWS204

 4
75827D - PAD, LUGGAGE COMPARTMENT DOOR MOULDING, RH
75827-30100

GRS20#,GWS204

 1
75828D - PAD, LUGGAGE COMPARTMENT DOOR MOULDING, LH
75828-30090

GRS20#,GWS204

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-30200B1

GRS202,203,204,GWS204..CBU

PREMIUM SILVER PEARL,1F3

 1
76801-30200D0

GRS202,203,204..CBU

BLACKISH RED MC.,3R0

 1
76801-30200C0

GRS202,203,204,GWS204..CBU

BLACK,202

 1
76801-30200G0

GRS202,203,204,GWS204..CBU

DK.GREEN MC.,6V4

 1
76801-30200B0

GRS202,203,204,GWS204..CBU

SILVER ME.,1F7

 1
76801-30200A1

GRS202,203,204,GWS204..CBU

WHITE PEARL CS.,062

 1
76801-30200J0

GRS202,203,204,GWS204..CBU

DK.BLUE MC.,8S6

 1
76801-30200A2

GRS202,203..ROY..CBU

VANILLA WHITE,067

 1
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
75826-30140

GRS20#,GWS204

 1
76823-30010

GRS20#,GWS204

 1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-30010

GRS20#,GWS204

 1
75826-30140

GRS20#,GWS204

 1
Common parts
81849-71010
90119-05021
90179-05102
90210-12008
90562-04007
Linked diagrams
8606
