GRS202-AETUH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
3GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

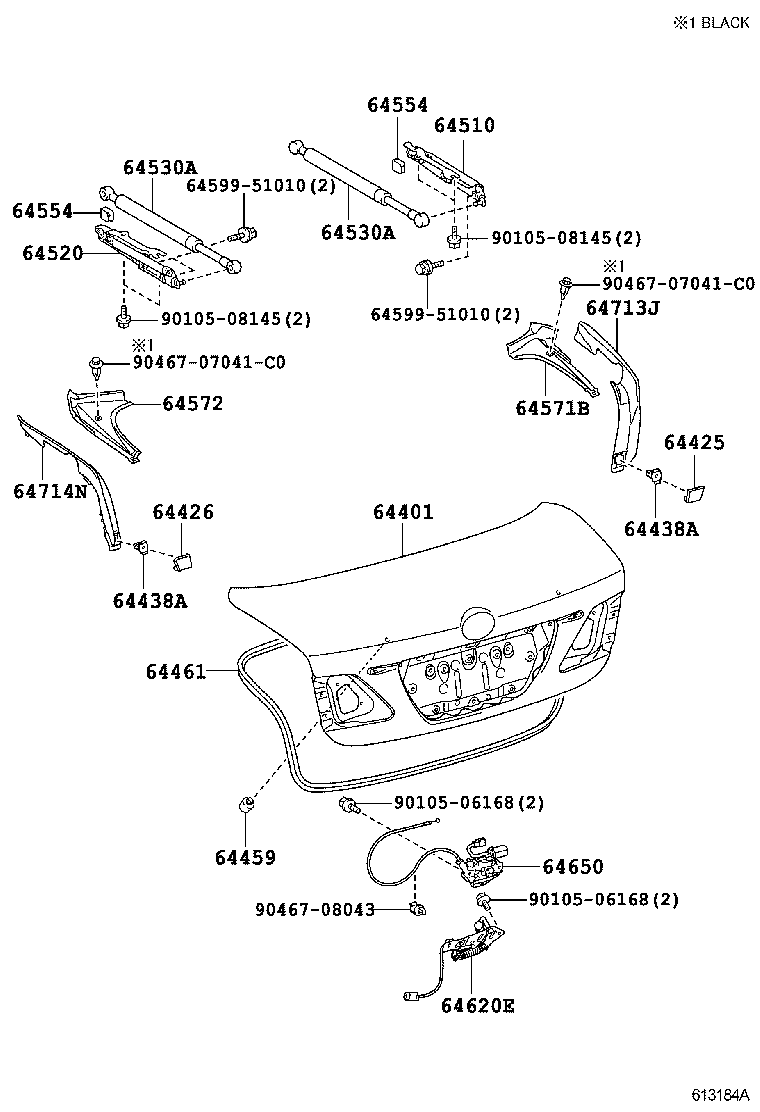

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-30C40 |
GRS202,203 |
1 | ||
| 64425 - PLUG, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64425-30040 |
GRS20#,GWS204 |
1 | ||
| 64426 - PLUG, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64426-30010 |
GRS20#,GWS204 |
1 | ||
| 64438A - CLAMP, LUGGAGE ROOM CARPET | ||||
| 64438-30010 |
GRS20#,GWS204 |
2 | ||
| 64438A - CLAMP, LUGGAGE ROOM CARPET | ||||
| 64438-30010 |
GRS20#,GWS204 |
2 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09116 |
GRS20#,GWS204 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-30320 |
GRS20#,GWS204 |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-30480 |
GRS20#,GWS204 |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-30250 |
GRS20#,GWS204 |
1 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64530-0W130 |
GRS20#,GWS204 字光式ﾅﾝﾊﾞｰ対応 |
2 | ||
| 64530-0W120 |
GRS20#,GWS204 |
2 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64530-0W130 |
GRS20#,GWS204 字光式ﾅﾝﾊﾞｰ対応 |
2 | ||
| 64530-0W120 |
GRS20#,GWS204 |
2 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| 64554-30050 |
GRS20#,GWS204 左側 |
1 | ||
| 64554-30040 |
GRS20#,GWS204 右側 |
1 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| 64554-30050 |
GRS20#,GWS204 左側 |
1 | ||
| 64554-30040 |
GRS20#,GWS204 右側 |
1 | ||
| 64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64571-30130 |
GRS20#,GWS204 |
1 | ||
| 64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64572-30080 |
GRS20#,GWS204 |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-50020 |
GRS20#,GWS204 |
1 | ||
| 64650 - CLOSER ASSY, LUGGAGE DOOR | ||||
| 64650-30041 |
GRS20#,GWS204 |
1 | ||
| 64650-30040 |
GRS20#,GWS204 |
1 | ||
| 64713J - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH | ||||
| 64713-30100 |
GRS20#,GWS204 |
1 | ||
| 64714N - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH | ||||
| 64714-30500 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 64599-51010 | ||||
| 90105-06168 | ||||
| 90105-08145 | ||||
| 90467-07041C0 | ||||
| 90467-08043 | ||||
