GRS202-AETQH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 3GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

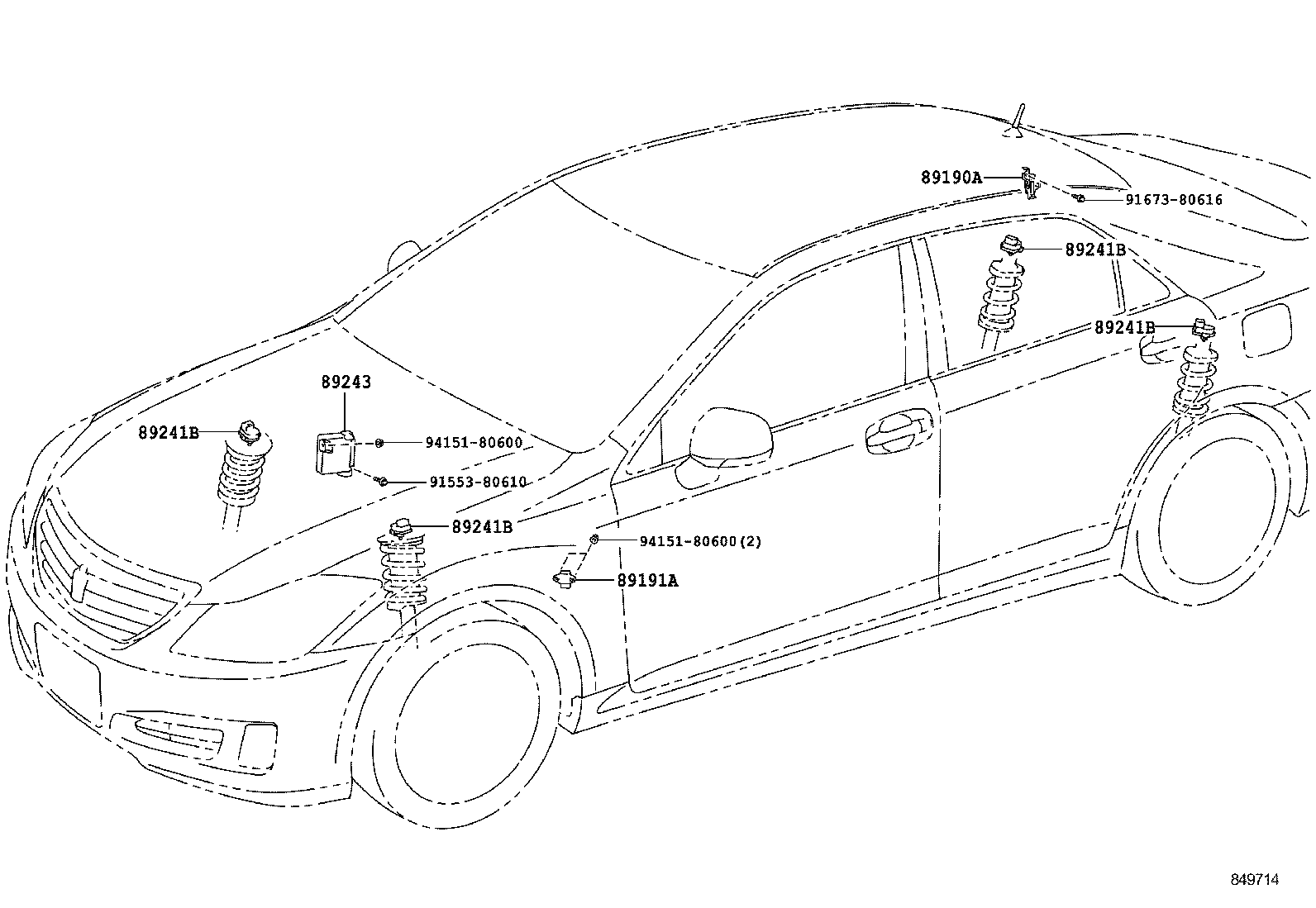

Click highlighted areas on diagram

diagram 89190A 89191A 89241B 89241B 89241B 89241B 89243 9155380610 9167380616 9415180600 9415180600
Part # Description Qty Price
89190A - SENSOR ASSY, ACCELERATION
89190-30050

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 1
89191A - SENSOR, ACCELERATION
89191-22020

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 1
89191-50020

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 1
89241B - ACTUATOR, ABSORBER CONTROL
89241-30040

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 4
89241B - ACTUATOR, ABSORBER CONTROL
89241-30040

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 4
89241B - ACTUATOR, ABSORBER CONTROL
89241-30040

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 4
89241B - ACTUATOR, ABSORBER CONTROL
89241-30040

GRS201,202,203;GRS200,204,GWS204..ATH,HBD

 4
89243 - COMPUTER, ABSORBER CONTROL
89243-30160

GRS201,202,203;GRS200,204..ATH

 1
Common parts
91553-80610
91673-80616
94151-80600
