GRS202-AETQH (2008)
Toyota Crown

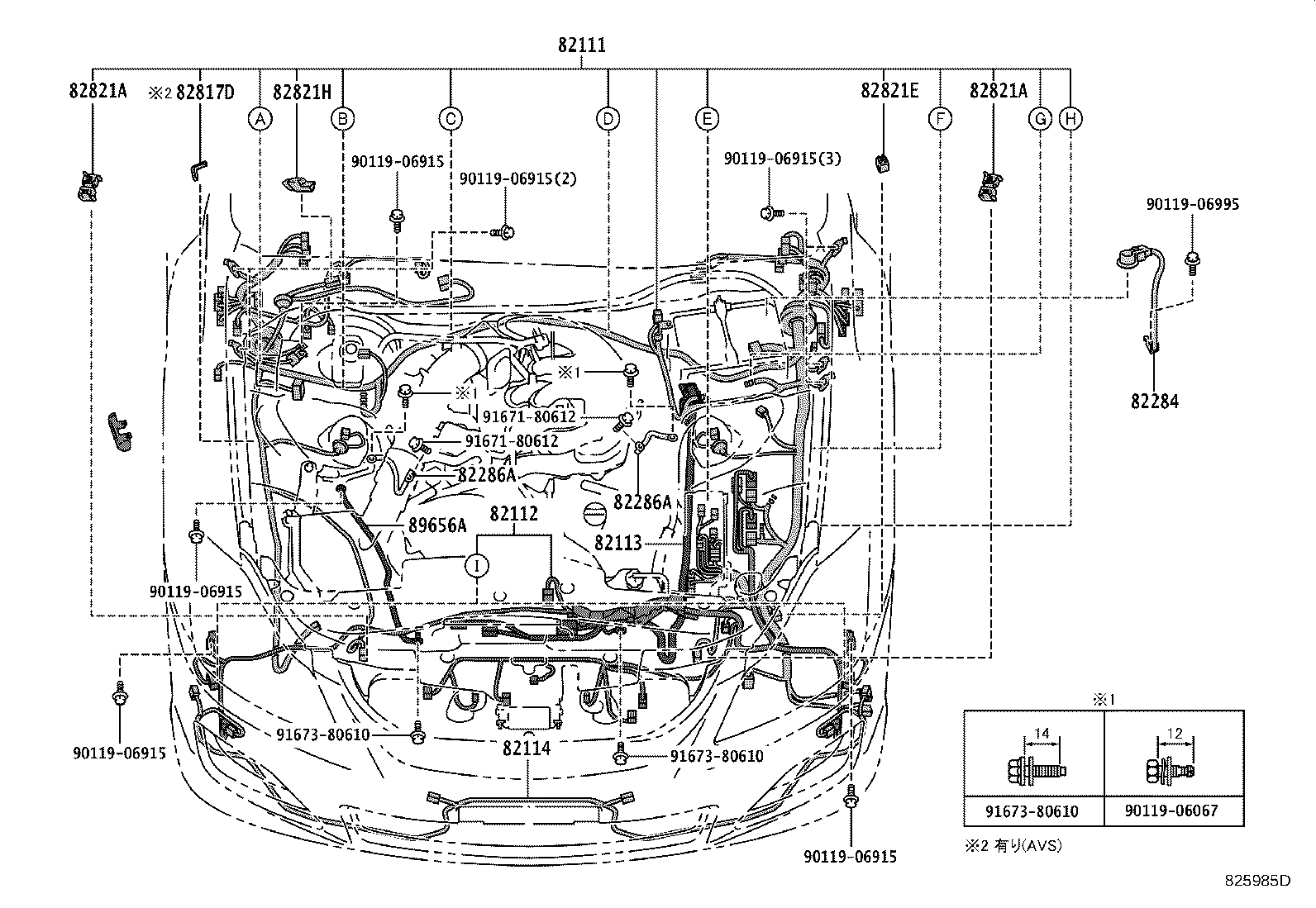

ILLUST NO. 1 OF15(0802- )GRS20#
ｴﾝｼﾞﾝ ﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-30T20 |
GRS202..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り,84−01参照:PNC 86516A |
1 | ||
| 82111-30T20 |
GRS200..ATH;GRS202..CBU 寒冷地仕様,84−01参照:PNC 86516A |
1 | ||
| 82111-30T30 |
GRS200..ATH;GRS202..CBU 84−01参照:PNC 86516A |
1 | ||
| 82111-30T40 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),W4−01参照:PNC 86516A |
1 | ||
| 82111-30T40 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),84−01参ﾆ:PNC 86516A |
1 | ||
| 82111-30T40 |
GRS202..ROY..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),84−01参照:PNC 86516A |
1 | ||
| 82111-30T40 |
GRS202..ROY..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),84−01参照:PNC 865P6A |
1 | ||
| 82111-30T20 |
GRS202..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り,84−01参照:PNC 86516A |
1 | ||
| 82111-30T31 |
GRS200..ATH;GRS202..CBU 84−01参照:PNC 86516A |
1 | ||
| 82111-30T21 |
GRS202..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り,84−01参照:PNC 86516A |
1 | ||
| 82111-30T21 |
GRS202..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り,84−01参照:PNC 86516A |
1 | ||
| 82111-30T41 |
GRS202..ROY..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),84−01参照:PNC 865P6A |
1 | ||
| 82111-30T21 |
GRS200..ATH;GRS202..CBU 寒冷地仕様,84−01参照:PNC 86516A |
1 | ||
| 82111-30T41 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),W4−01参照:PNC 86516A |
1 | ||
| 82111-30T41 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),84−01参ﾆ:PNC 86516A |
1 | ||
| 82111-30T41 |
GRS202..ROY..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式),84−01参照:PNC 86516A |
1 | ||
| 82111-30T21 |
GRS200..ATH;GRS202..CBU |
1 | ||
| 82111-30T40 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82111−30T40,84−01参照:PNC 86516A |
1 | ||
| 82111-30T20 |
GRS200..ATH;GRS202..CBU 品番ﾗﾍﾞﾙ=82111−30T20,84−01参照:PNC 86516A |
1 | ||
| 82111-30T30 |
GRS200..ATH;GRS202..CBU 品番ﾗﾍﾞﾙ=82111−30T30,84−01参照:PNC 86516A |
1 | ||
| 82111-30T31 |
GRS200..ATH;GRS202..CBU 品番ﾗﾍﾞﾙ=82111−30T31,84−01参照:PNC 86516A |
1 | ||
| 82111-30T20 |
GRS202..CBU 品番ﾗﾍﾞﾙ=82111−30T20,84−01参照:PNC 86516A |
1 | ||
| 82111-30T21 |
GRS202..CBU 品番ﾗﾍﾞﾙ=82111−30T21,84−01参照:PNC 86516A |
1 | ||
| 82111-30T21 |
GRS200..ATH;GRS202..CBU 品番ﾗﾍﾞﾙ=82111−30T21,84−01参照:PNC 86516A |
1 | ||
| 82111-30T41 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82111−30T41,84−01参照:PNC 86516A |
1 | ||
| 82111-30T21 |
GRS200..ATH;GRS202..CBU 品番ﾗﾍﾞﾙ=82111−30T21 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30A40 |
GRS202,203,204..CBU |
1 | ||
| 82112-30A50 |
GRS202,203,204..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30450 |
GRS200,202,204,GWS204..CBU |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-30100 |
GRS202..ROY..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30010 |
GRS20#..CBU |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30010 |
GRS20#..CBU |
2 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30010 |
GRS20#..CBU |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12860 |
GRS201,202,203..CBU;GRS200,204,GWS204..ATH,HBD |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
GRS20#,GWS204..CBU |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
GRS20#,GWS204..CBU |
2 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-35040 |
GRS20#,GWS204..CBU |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-22120 |
GRS202..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82821-22120 |
GRS200..ATH;GRS202..CBU 寒冷地仕様 |
1 | ||
| 82821-22120 |
GRS202..ROY..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82821-22120 |
GRS202..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82821-22120 |
GRS202..ROY..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82821-22120 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82821-22120 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 89656A - WIRE, POWER STEERING EARTH | ||||
| 89656-30010 |
GRS200,202,204,GWS204..CBU |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 91671-80612 | ||||
| 91673-80610 | ||||

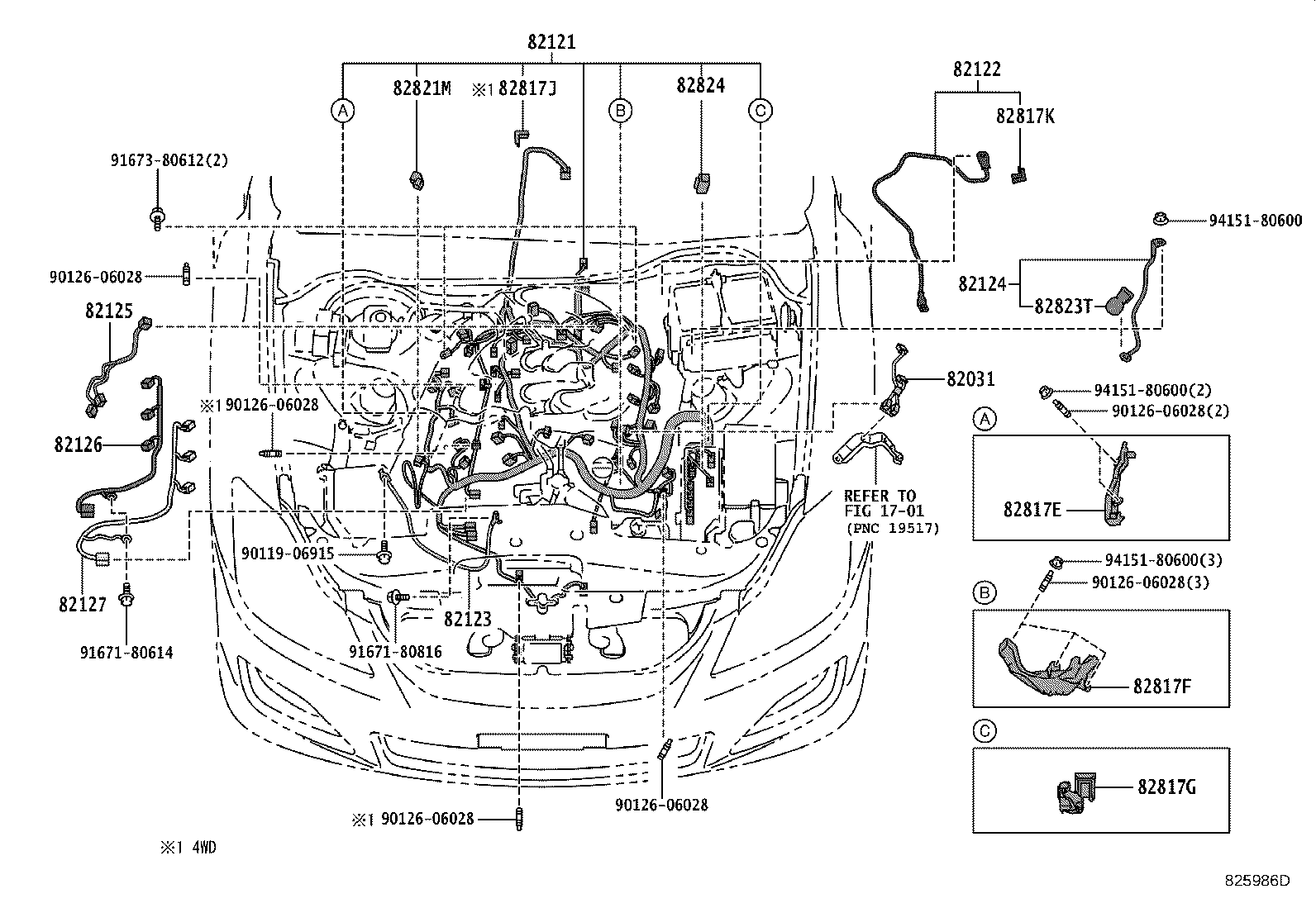

ILLUST NO. 3 OF15(0802- )GRS200,201,202,203
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-22150 |
GRS200,201,202,203..CBU |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30D60 |
GRS200,202..CBU |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-22570 |
GRS20#..CBU |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GRS20#..CBU |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-30290 |
GRS20#..CBU |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-30530 |
GRS202,203,204,GWS204..CBU |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-30040 |
GRS20#,GWS204..CBU |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-30040 |
GRS20#,GWS204..CBU |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2A730 |
GRS20#,GWS204..CBU |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-30A80 |
GRS20#..CBU |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30M90 |
GRS20#..CBU |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12860 |
GRS20#..CBU |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-50500 |
GRS20#..CBU |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GRS20#..CBU |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
GRS200,201,202,203..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90126-06028 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||

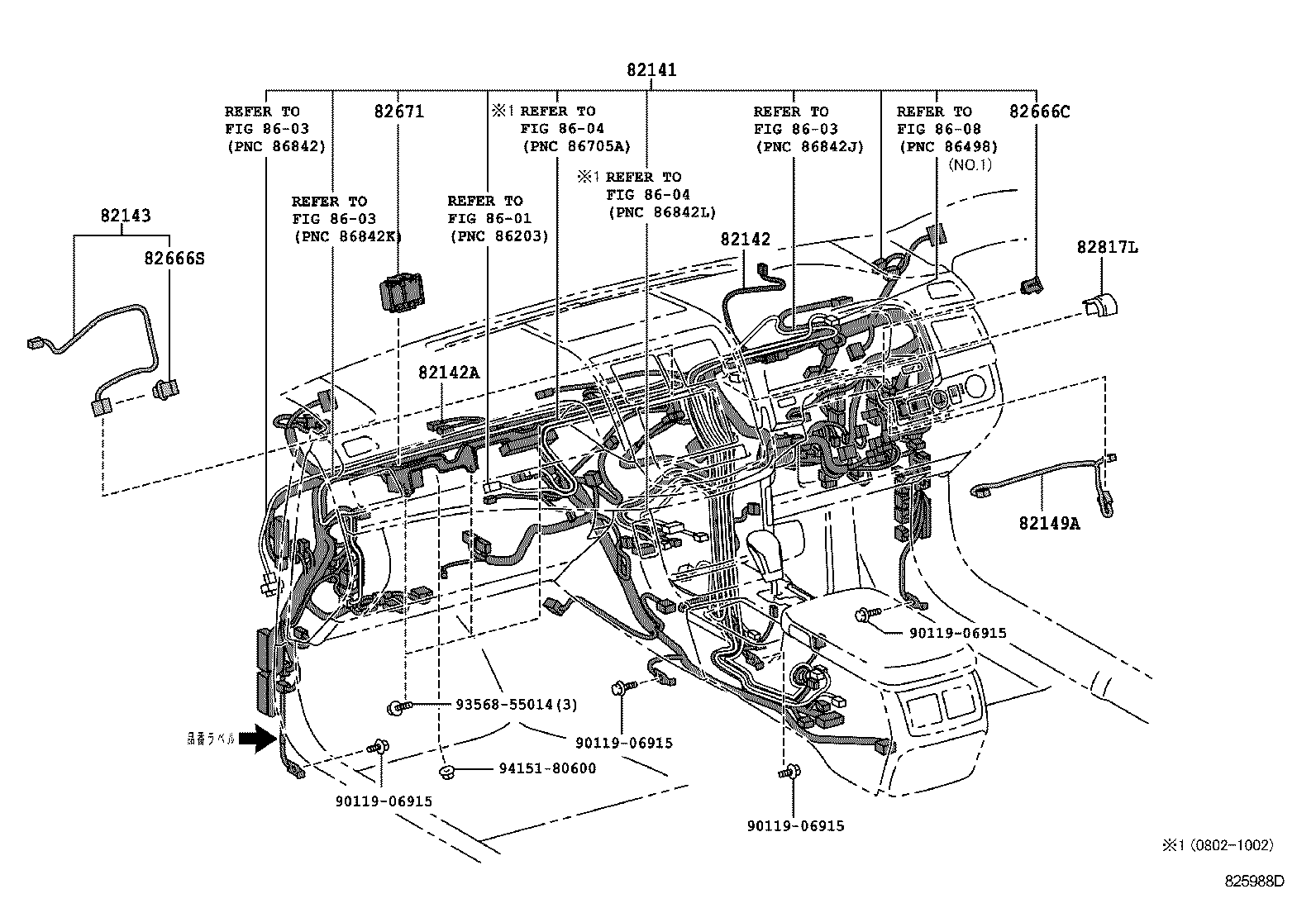

ILLUST NO. 4 OF15(0802- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-30T60 |
GRS202..ROY..CBU 寒冷地仕様 |
1 | ||
| 82141-30T70 |
GRS202..ROY..CBU |
1 | ||
| 82141-30T60 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30T80 |
GRS202,203..ROY..CBU GｰBOOK−有り |
1 | ||
| 82141-30T60 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30T60 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30T60 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 82141-30T60 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 寒冷地仕様&GｰBOOK−有り |
1 | ||
| 82141-30T60 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82141-30T90 |
GRS202..ROY..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30T90 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 82141-30T90 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30T90 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30T90 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30T90 |
GRS202..ROY..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30T90 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30T90 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U50 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82141-30U50 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 82141-30U50 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82141-30U50 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 82141-30U50 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U60 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&GｰBOOK−有り |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82141-30U50 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82141-30U50 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U70 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&GｰBOOK−有り |
1 | ||
| 82141-30U50 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U70 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U70 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82141-30U70 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U70 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U70 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U70 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U70 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式)&GｰBOOK−有り |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 寒冷地仕様 |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 82141-30U60 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾑｰﾝﾙｰﾌ−有り(電動)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82141-30Z60 |
GRS202..ROY..CBU |
1 | ||
| 82141-30T80 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30T80 |
1 | ||
| 82141-30T60 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30T60 |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30T80 |
1 | ||
| 82141-30T70 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30T70 |
1 | ||
| 82141-30U60 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U60 |
1 | ||
| 82141-30T90 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30T90 |
1 | ||
| 82141-30U70 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U70 |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U60 |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U00 |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U80 |
1 | ||
| 82141-30U50 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U50 |
1 | ||
| 82141-30U50 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U50 |
1 | ||
| 82141-30T80 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30T80 |
1 | ||
| 82141-30U00 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U00 |
1 | ||
| 82141-30U60 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U60 |
1 | ||
| 82141-30U80 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U80 |
1 | ||
| 82141-30Z60 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30Z60 |
1 | ||
| 82141-30U60 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82141−30U60 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-30070 |
GRS20#,GWS204..CBU |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-47010 |
GRS20#,GWS204..CBU |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-30040 |
GRS202,203,204,GWS204..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82143-30030 |
GRS202,203,204,GWS204..CBU |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-30020 |
GRS20#,GWS204..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82149-30010 |
GRS20#,GWS204..CBU |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-53060 |
GRS20#,GWS204..CBU |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-17090 |
GRS202,203,204,GWS204..CBU |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30400 |
GRS20#,GWS204..CBU |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-33820 |
GRS20#,GWS204..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8603 | ||||
| 8604 | ||||
| 8608 | ||||

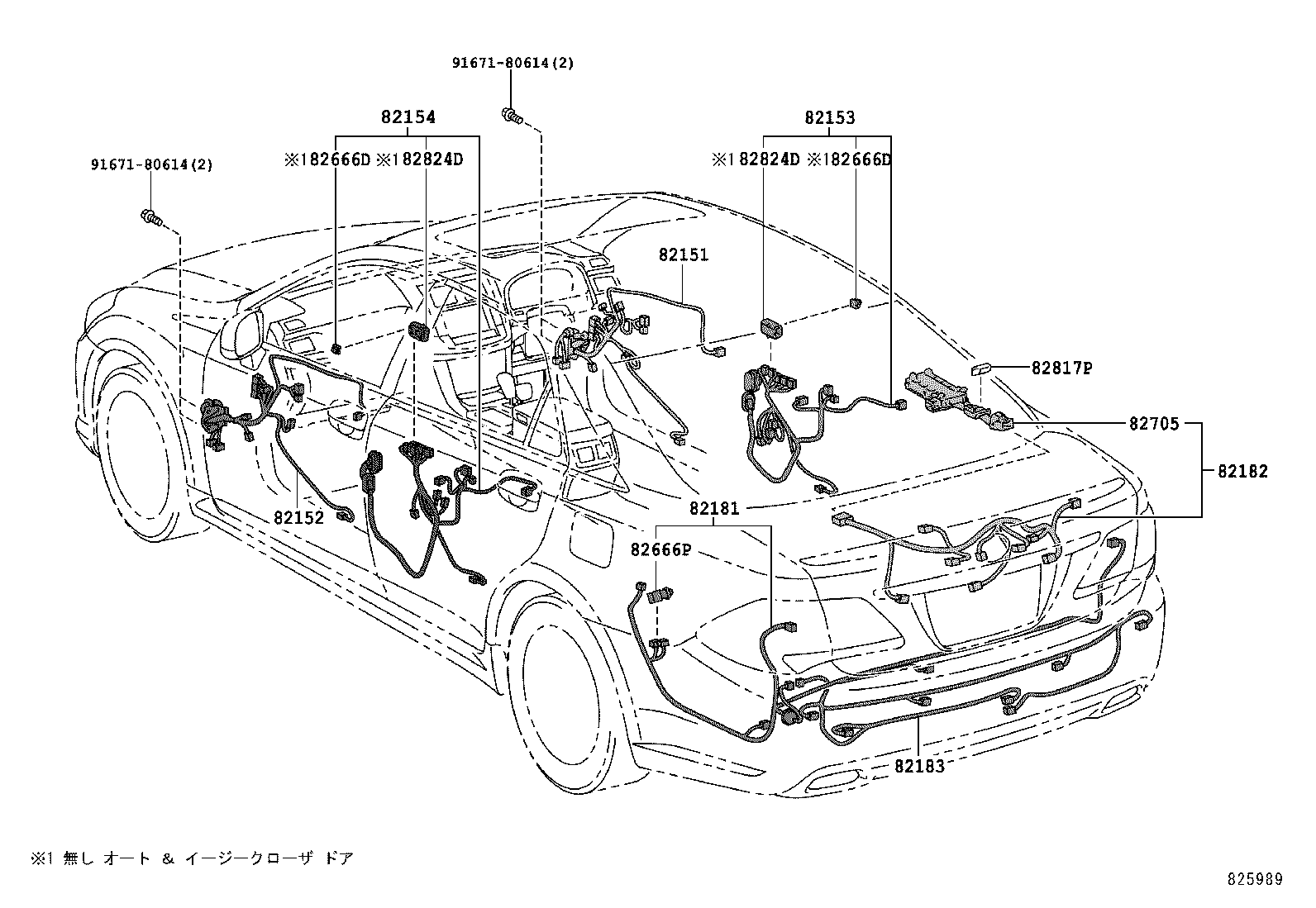

ILLUST NO. 5 OF15(0802- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-30C60 |
GRS202..ROY..CBU ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾄﾞｱ&ﾗｯｹﾞｰｼﾞﾄﾞｱ)&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82151-30C40 |
GRS202..ROY..CBU ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾄﾞｱ&ﾗｯｹﾞｰｼﾞﾄﾞｱ) |
1 | ||
| 82151-30C30 |
GRS200,201,202..(ATH,ROY)..CBU |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30B80 |
GRS202..ROY..CBU ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾄﾞｱ&ﾗｯｹﾞｰｼﾞﾄﾞｱ) |
1 | ||
| 82152-30B70 |
GRS202..ROY..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82152-30B60 |
GRS200,201,202..(ATH,ROY)..CBU |
1 | ||
| 82152-30B90 |
GRS202..ROY..CBU ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾄﾞｱ&ﾗｯｹﾞｰｼﾞﾄﾞｱ)&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30650 |
GRS200,201,202..(ATH,ROY)..CBU |
1 | ||
| 82153-30660 |
GRS202..ROY..CBU ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾄﾞｱ&ﾗｯｹﾞｰｼﾞﾄﾞｱ) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30570 |
GRS200,201,202..(ATH,ROY)..CBU |
1 | ||
| 82154-30580 |
GRS202..ROY..CBU ｲｰｼﾞｰｸﾛｰｻﾞﾄﾞｱ−有り(ﾄﾞｱ&ﾗｯｹﾞｰｼﾞﾄﾞｱ) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-30290 |
GRS20#..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82181-30280 |
GRS20#..CBU |
1 | ||
| 82181-30290 |
GRS20#..CBU 寒冷地仕様 |
1 | ||
| 82181-30290 |
GRS20#..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82181-30290 |
GRS20#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82181-30290 |
GRS20#..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-30210 |
GRS202,203,204,GWS204..CBU |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-30070 |
GRS20#,GWS204..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82183-30090 |
GRS20#,GWS204..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82183-30090 |
GRS20#,GWS204..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82183-30080 |
GRS20#,GWS204..CBU 寒冷地仕様 |
1 | ||
| 82183-30080 |
GRS20#,GWS204..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-30B10 |
GRS200,201,202..(ATH,ROY)..CBU |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-30B10 |
GRS200,201,202..(ATH,ROY)..CBU |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-20270 |
GRS20#,GWS204..CBU |
1 | ||
| 82705 - SPOOL SUB-ASSY, WIRING HARNESS | ||||
| 82705-30020 |
GRS202,203,204,GWS204..CBU |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-30L30 |
GRS20#,GWS204..CBU |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GRS200,201,202..(ATH,ROY)..CBU |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GRS200,201,202..(ATH,ROY)..CBU |
1 | ||
| Common parts | ||||
| 91671-80614 | ||||

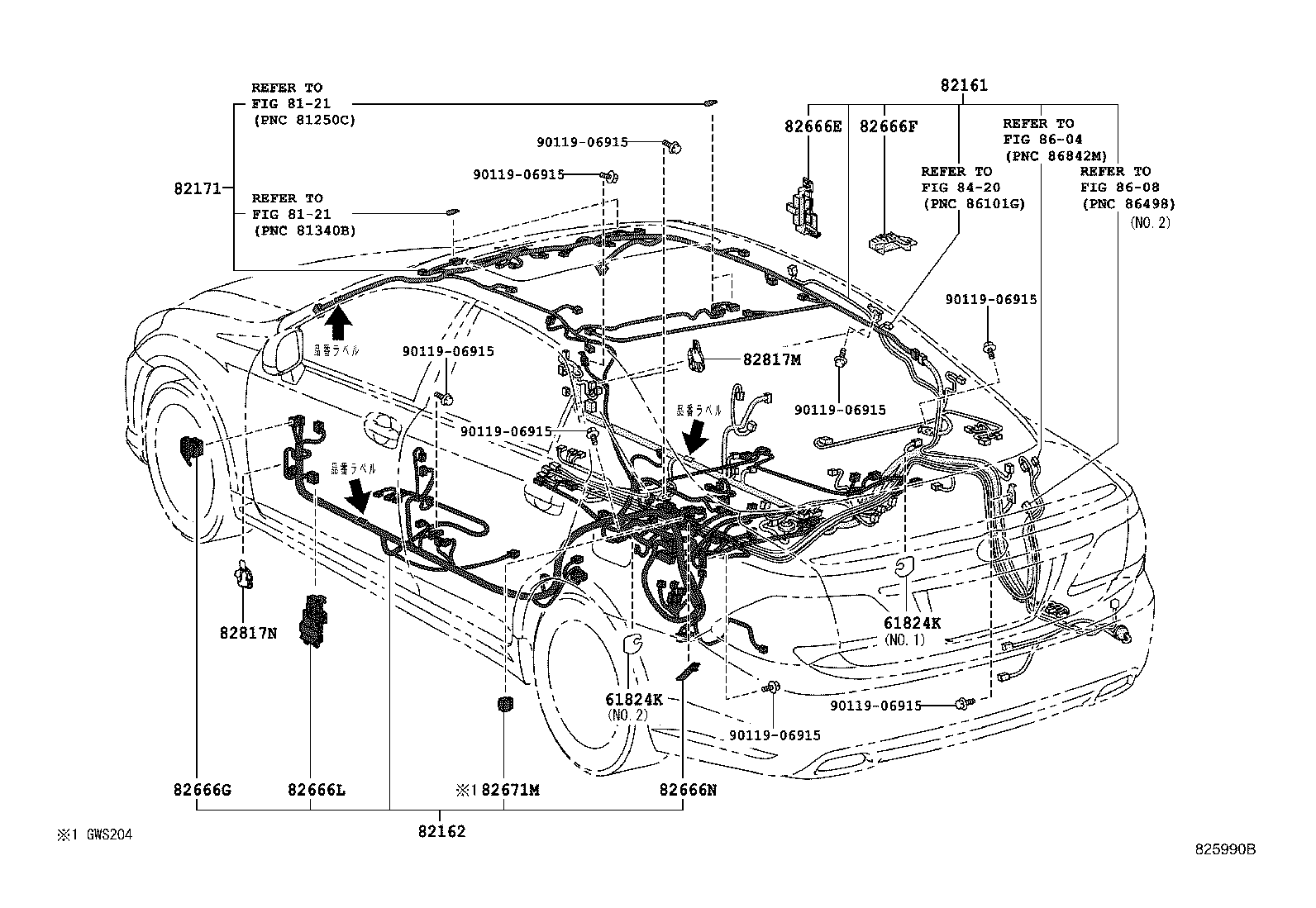

ILLUST NO. 6 OF15(0802- )
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824K - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30090 |
GRS20#,GWS204..CBU NO.1 |
1 | ||
| 61824-30140 |
GRS20#,GWS204..CBU NO.2 |
1 | ||
| 61824K - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30090 |
GRS20#,GWS204..CBU NO.1 |
1 | ||
| 61824-30140 |
GRS20#,GWS204..CBU NO.2 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-30M80 |
GRS202,203,204..(ATH,ROY)..CBU |
1 | ||
| 82161-30M90 |
GRS202,203,204..(ATH,ROY)..CBU GｰBOOK−有り |
1 | ||
| 82161-30M70 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82161-30N00 |
GRS202,203,204..(ATH,ROY)..CBU ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 82161-30N00 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 82161-30N10 |
GRS202,203,204..(ATH,ROY)..CBU ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&GｰBOOK−有り |
1 | ||
| 82161-30N30 |
GRS202,203,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82161-30M90 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82161-30N30 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82161-30N10 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&GｰBOOK−有り |
1 | ||
| 82161-30N40 |
GRS202,203,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&GｰBOOK−有り |
1 | ||
| 82161-30N60 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&GｰBOOK−有り |
1 | ||
| 82161-30N40 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&GｰBOOK−有り |
1 | ||
| 82161-30N60 |
GRS202,203,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&GｰBOOK−有り |
1 | ||
| 82161-30N70 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&GｰBOOK−有り |
1 | ||
| 82161-30N50 |
GRS202,203,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 82161-30N50 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 82161-30N20 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&GｰBOOK−有り |
1 | ||
| 82161-30N11 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82161-30N21 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82161-30N61 |
GRS202,203,204..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82161-30N61 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82161-30N21 |
GRS202,203,204..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82161-30N71 |
GRS202,203,204..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82161-30N71 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82161-30Q80 |
GRS202,203,204..(ATH,ROY)..CBU |
1 | ||
| 82161-30M70 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30M70 |
1 | ||
| 82161-30M80 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82161−30M80 |
1 | ||
| 82161-30M90 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82161−30M90 |
1 | ||
| 82161-30N00 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N00 |
1 | ||
| 82161-30N10 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N10 |
1 | ||
| 82161-30M90 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30M90 |
1 | ||
| 82161-30N10 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82161−30N10 |
1 | ||
| 82161-30N00 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82161−30N00 |
1 | ||
| 82161-30N40 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N40 |
1 | ||
| 82161-30N50 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82161−30N50 |
1 | ||
| 82161-30N30 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N30 |
1 | ||
| 82161-30N40 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82161−30N40 |
1 | ||
| 82161-30N30 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82161−30N30 |
1 | ||
| 82161-30N60 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N60 |
1 | ||
| 82161-30N60 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82161−30N60 |
1 | ||
| 82161-30N20 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N20 |
1 | ||
| 82161-30N50 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N50 |
1 | ||
| 82161-30N11 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N11 |
1 | ||
| 82161-30N21 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N21 |
1 | ||
| 82161-30N70 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N70 |
1 | ||
| 82161-30N71 |
GRS202,203,204..CBU 品番ﾗﾍﾞﾙ=82161−30N71 |
1 | ||
| 82161-30N21 |
GRS202,203,204..CBU 品番ﾗﾍﾞﾙ=82161−30N21 |
1 | ||
| 82161-30N61 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N61 |
1 | ||
| 82161-30N61 |
GRS202,203,204..CBU 品番ﾗﾍﾞﾙ=82161−30N61 |
1 | ||
| 82161-30N71 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82161−30N71 |
1 | ||
| 82161-30Q80 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82161−30Q80 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30F20 |
GRS202,204..(ATH,ROY)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F20 |
GRS202,204..(ATH,ROY)..CBU 寒冷地仕様 |
1 | ||
| 82162-30F20 |
GRS202,204..(ATH,ROY)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F30 |
GRS202,204..(ATH,ROY)..CBU |
1 | ||
| 82162-30F50 |
GRS202,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F50 |
GRS202,204..(ATH,ROY)..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F50 |
GRS202,203,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82162-30F50 |
GRS202,204..(ATH,ROY)..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82162-30F70 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82162-30F70 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82162-30F70 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F80 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F70 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F90 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82162-30F80 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F80 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F90 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F80 |
GRS202..ROY..CBU 寒冷地仕様&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30G00 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30G00 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F90 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82162-30G00 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F31 |
GRS202,204..(ATH,ROY)..CBU |
1 | ||
| 82162-30F90 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F21 |
GRS202,204..(ATH,ROY)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F21 |
GRS202,204..(ATH,ROY)..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30G00 |
GRS202..ROY..CBU 寒冷地仕様&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F21 |
GRS202,204..(ATH,ROY)..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82162-30F41 |
GRS202,204..(ATH,ROY)..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F51 |
GRS202,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F51 |
GRS202,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82162-30F41 |
GRS202,204..(ATH,ROY)..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F41 |
GRS200,201,204..ATH;GRS202,203..ROY..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F51 |
GRS202,203,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り |
1 | ||
| 82162-30F61 |
GRS202,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F41 |
GRS202,204..(ATH,ROY)..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F61 |
GRS202,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F51 |
GRS202,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F61 |
GRS202,203,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F61 |
GRS202,204..(ATH,ROY)..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F71 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F71 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82162-30F81 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F81 |
GRS202..ROY..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F81 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F81 |
GRS202..ROY..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F71 |
GRS202..ROY..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82162-30F91 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82162-30F71 |
GRS202..ROY..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F91 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82162-30F91 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30F91 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30G01 |
GRS202,203..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30G01 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30G01 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ−有り(舵角感応式) |
1 | ||
| 82162-30G01 |
GRS202..ROY..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82162-30F21 |
GRS202,204..(ATH,ROY)..CBU |
1 | ||
| 82162-30F20 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F20 |
1 | ||
| 82162-30F30 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F30 |
1 | ||
| 82162-30F50 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F50 |
1 | ||
| 82162-30F50 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F50 |
1 | ||
| 82162-30F80 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F80 |
1 | ||
| 82162-30F70 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F70 |
1 | ||
| 82162-30F90 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F90 |
1 | ||
| 82162-30G00 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30G00 |
1 | ||
| 82162-30F70 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F70 |
1 | ||
| 82162-30F90 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F90 |
1 | ||
| 82162-30F80 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F80 |
1 | ||
| 82162-30F21 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F21 |
1 | ||
| 82162-30G00 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30G00 |
1 | ||
| 82162-30F31 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F31 |
1 | ||
| 82162-30F41 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F41 |
1 | ||
| 82162-30F41 |
GRS200,201,204..ATH;GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F41 |
1 | ||
| 82162-30F51 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F51 |
1 | ||
| 82162-30F71 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F71 |
1 | ||
| 82162-30F51 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F51 |
1 | ||
| 82162-30F61 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F61 |
1 | ||
| 82162-30F61 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F61 |
1 | ||
| 82162-30F71 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F71 |
1 | ||
| 82162-30F81 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F81 |
1 | ||
| 82162-30G01 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30G01 |
1 | ||
| 82162-30F91 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F91 |
1 | ||
| 82162-30F91 |
GRS202,203..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F91 |
1 | ||
| 82162-30F81 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30F81 |
1 | ||
| 82162-30F21 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82162−30F21 |
1 | ||
| 82162-30G01 |
GRS202..ROY..CBU 品番ﾗﾍﾞﾙ=82162−30G01 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30E40 |
GRS202,203,204..(ATH,ROY)..CBU |
1 | ||
| 82171-30E30 |
GRS202,203,204..(ATH,ROY)..CBU GｰBOOK−有り |
1 | ||
| 82171-30E90 |
GRS202,203,204..(ATH,ROY)..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&GｰBOOK−有り |
1 | ||
| 82171-30E60 |
GRS202,203,204..(ATH,ROY)..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&GｰBOOK−有り |
1 | ||
| 82171-30F00 |
GRS202,204..(ATH,ROY)..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ&GｰBOOK−有り |
1 | ||
| 82171-30E90 |
GRS202,203,204..CBU ﾑｰﾝﾙｰﾌ−有り(電動) |
1 | ||
| 82171-30E60 |
GRS202,203,204..(ATH,ROY)..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82171-30F00 |
GRS202,203,204..(ATH,ROY)..CBU ﾑｰﾝﾙｰﾌ−有り(電動)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82171-30E30 |
GRS202,203,204..(ATH,ROY)..CBU |
1 | ||
| 82171-30E90 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82171−30E90 |
1 | ||
| 82171-30E30 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82171−30E30 |
1 | ||
| 82171-30E40 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82171−30E40 |
1 | ||
| 82171-30F00 |
GRS202,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82171−30F00 |
1 | ||
| 82171-30E60 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82171−30E60 |
1 | ||
| 82171-30E90 |
GRS202,203,204..CBU 品番ﾗﾍﾞﾙ=82171−30E90 |
1 | ||
| 82171-30E60 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82171−30E60 |
1 | ||
| 82171-30F00 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82171−30F00 |
1 | ||
| 82171-30E30 |
GRS202,203,204..(ATH,ROY)..CBU 品番ﾗﾍﾞﾙ=82171−30E30 |
1 | ||

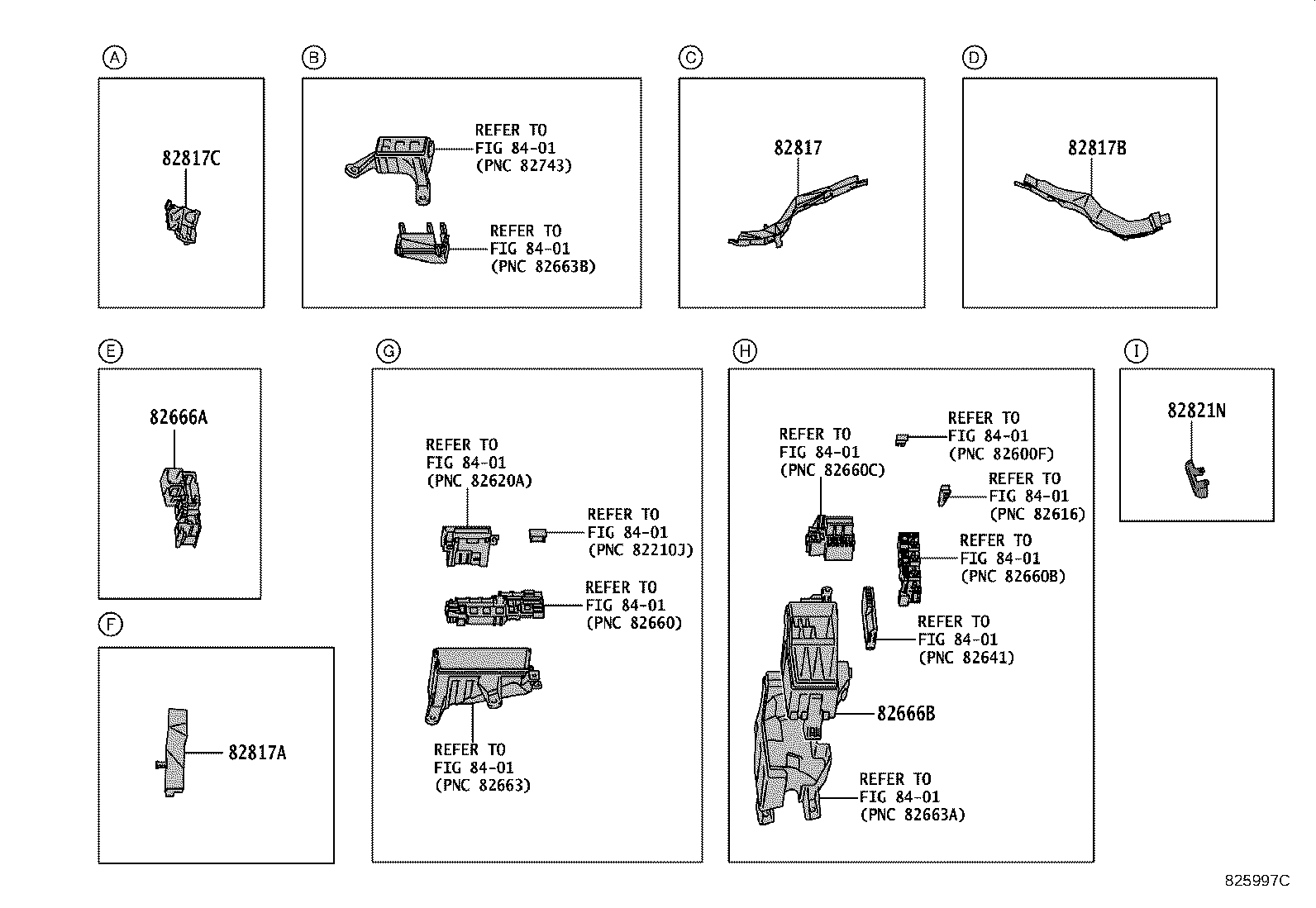

| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-30A10 |
GRS20#,GWS204..CBU |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-30A20 |
GRS20#,GWS204..CBU |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-30890 |
GRS20#,GWS204..CBU |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-30A00 |
GRS20#,GWS204..CBU |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-60310 |
GRS20#,GWS204..CBU |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-30N30 |
GRS20#,GWS204..CBU |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-30N40 |
GRS20#,GWS204..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8420 | ||||
| 8604 | ||||
| 8608 | ||||

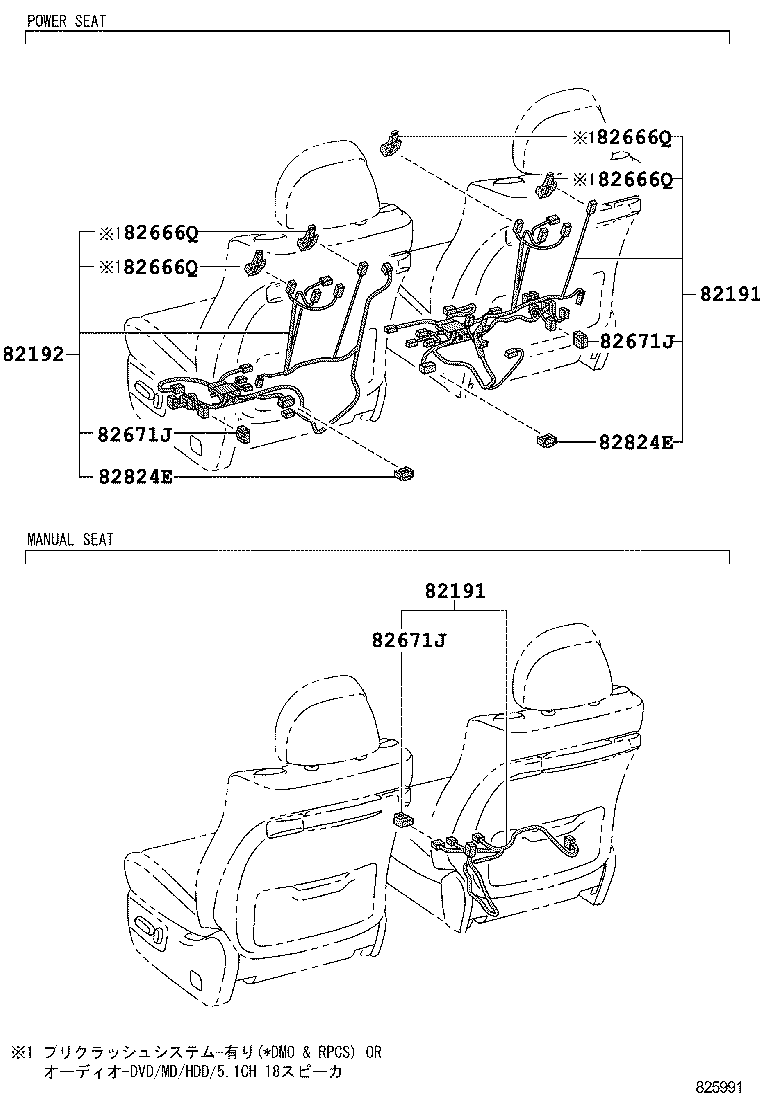

ILLUST NO. 9 OF15(0802- )
ｼｰﾄ (ﾌﾛﾝﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-30340 |
GRS20#..(ATH,ROY)..CBU |
1 | ||
| 82191-30390 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82191-30380 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||
| 82191-30360 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82191-30350 |
GRS202,203..ROY..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82191-30370 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-30340 |
GRS20#..(ATH,ROY)..CBU |
1 | ||
| 82191-30390 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82191-30380 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||
| 82191-30360 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82191-30350 |
GRS202,203..ROY..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82191-30370 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-30240 |
GRS20#..CBU |
1 | ||
| 82192-30280 |
GRS202,203,204..CBU ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82192-30240 |
GRS202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82192-30240 |
GRS200,202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 82192-30250 |
GRS202,203,204..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82192-30270 |
GRS202,204..CBU ｼｰﾄ表皮−本革 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-30A60 |
GRS202,203,204,GWS204..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203,204..CBU ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-30A60 |
GRS202,203,204,GWS204..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203,204..CBU ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-30A60 |
GRS202,203,204,GWS204..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203,204..CBU ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-30A60 |
GRS202,203,204,GWS204..CBU ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82666-30A60 |
GRS202,203,204..CBU ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
2 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30340 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82671-30340 |
GRS200,202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 82671-30340 |
GRS20#,GWS204..CBU |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30340 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82671-30340 |
GRS200,202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 82671-30340 |
GRS20#,GWS204..CBU |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30340 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82671-30340 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82671-30340 |
GRS200,202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 82671-30340 |
GRS20#,GWS204..CBU |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GRS20#,GWS204..CBU |
1 | ||
| 82824-22080 |
GRS200,202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 82824-22080 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82824-22080 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82824-22080 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82824-22080 |
GRS202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82824-22080 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GRS20#,GWS204..CBU |
1 | ||
| 82824-22080 |
GRS200,202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 82824-22080 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82824-22080 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82824-22080 |
GRS202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82824-22080 |
GRS202,203..ROY..CBU ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 18ｽﾋﾟｰｶ |
1 | ||
| 82824-22080 |
GRS202..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ&ｼｰﾄ表皮−本革 |
1 | ||

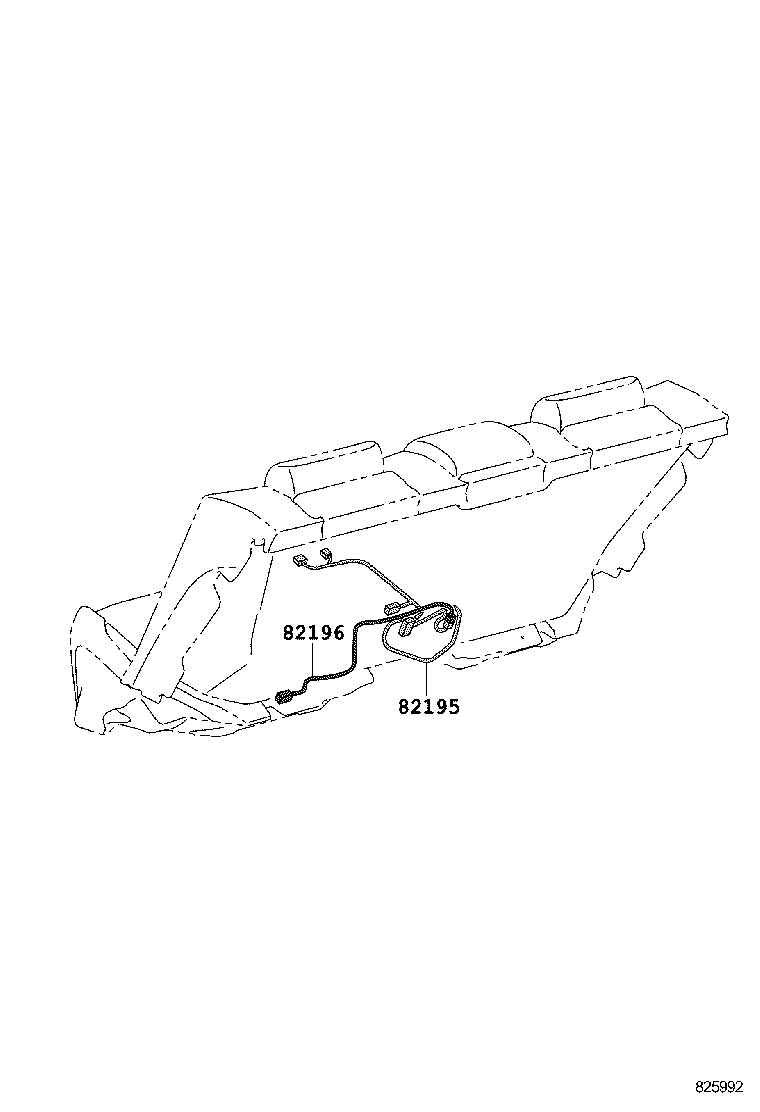

ILLUST NO.11 OF15(0802- )
ｼｰﾄ (ﾘﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82195-30060 |
GRS200,201,202,203..ROY..CBU ﾘﾔｼｰﾄ−40/20/40分割ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 82195-30050 |
GRS20#..(ATH,ROY)..CBU |
1 | ||
| 82196 - WIRE, REAR SEAT, LH NO.2 | ||||
| 82196-30080 |
GRS202,203..CBU ｼｰﾄ表皮−本革 |
1 | ||

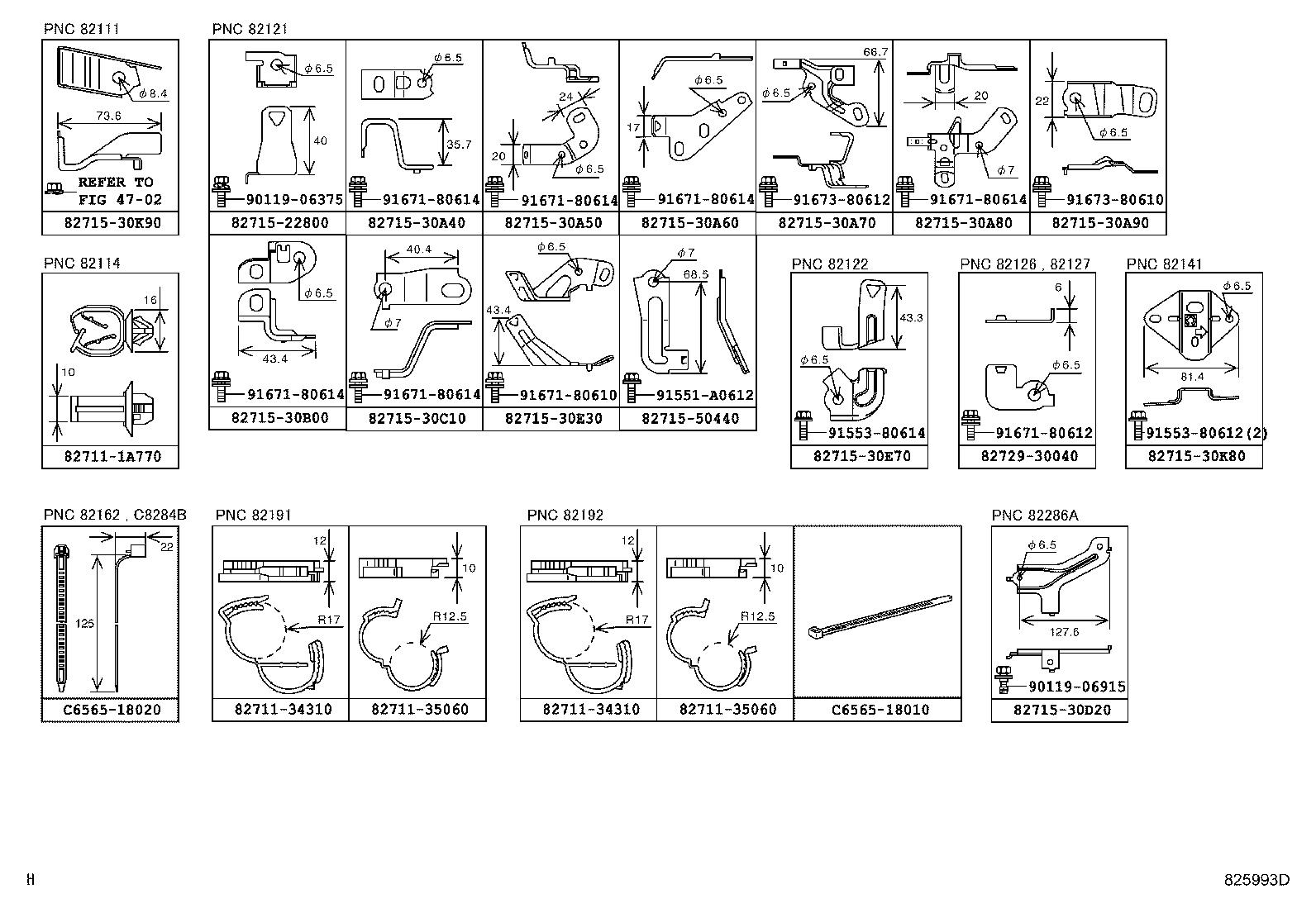

ILLUST NO.12 OF15(0802- )GRS200,202
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-34310 | ||||
| 82711-35060 | ||||
| 82715-22800 | ||||
| 82715-30A40 | ||||
| 82715-30A50 | ||||
| 82715-30A60 | ||||
| 82715-30A70 | ||||
| 82715-30A80 | ||||
| 82715-30A90 | ||||
| 82715-30B00 | ||||
| 82715-30C10 | ||||
| 82715-30D20 | ||||
| 82715-30E30 | ||||
| 82715-30E70 | ||||
| 82715-30K80 | ||||
| 82715-30K90 | ||||
| 82715-50440 | ||||
| 82729-30040 | ||||
| 90119-06375 | ||||
| 90119-06915 | ||||
| 91551-A0612 | ||||
| 91553-80612 | ||||
| 91553-80614 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-80610 | ||||
| 91673-80612 | ||||
| C6565-18010 | ||||
| C6565-18020 | ||||
| Linked diagrams | ||||
| 4702 | ||||

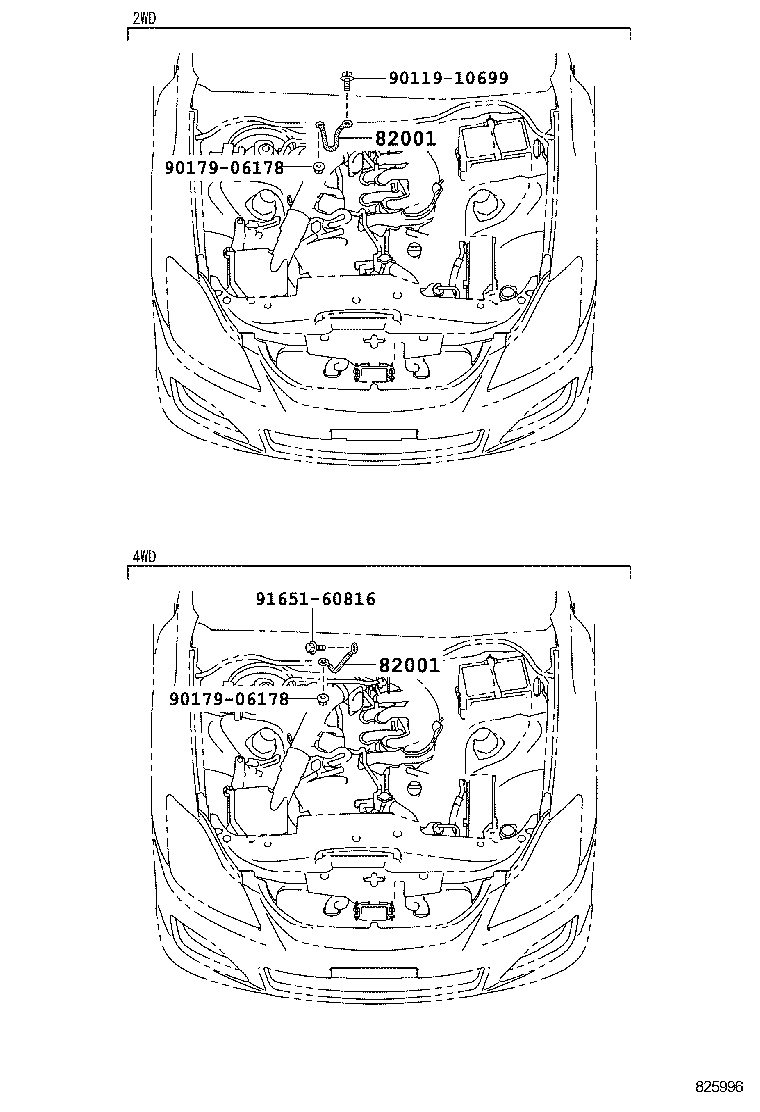

ILLUST NO.13 OF15(0802- )GRS20#
ｹｰﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07418 |
GRS20#..CBU |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07418 |
GRS20#..CBU |
1 | ||
| Common parts | ||||
| 90119-10699 | ||||
| 90179-06178 | ||||
| 91651-60816 | ||||
ILLUST NO. 2 OF15(0802- )GRS20#
ｴﾝｼﾞﾝ ﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-30B00 |
GRS20#..CBU |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-30880 |
GRS20#..CBU |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30A20 |
GRS20#,GWS204..CBU |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30A90 |
GRS20#..CBU |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-30B00 |
GRS20#,GWS204..CBU |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-30K20 |
GRS20#..CBU |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

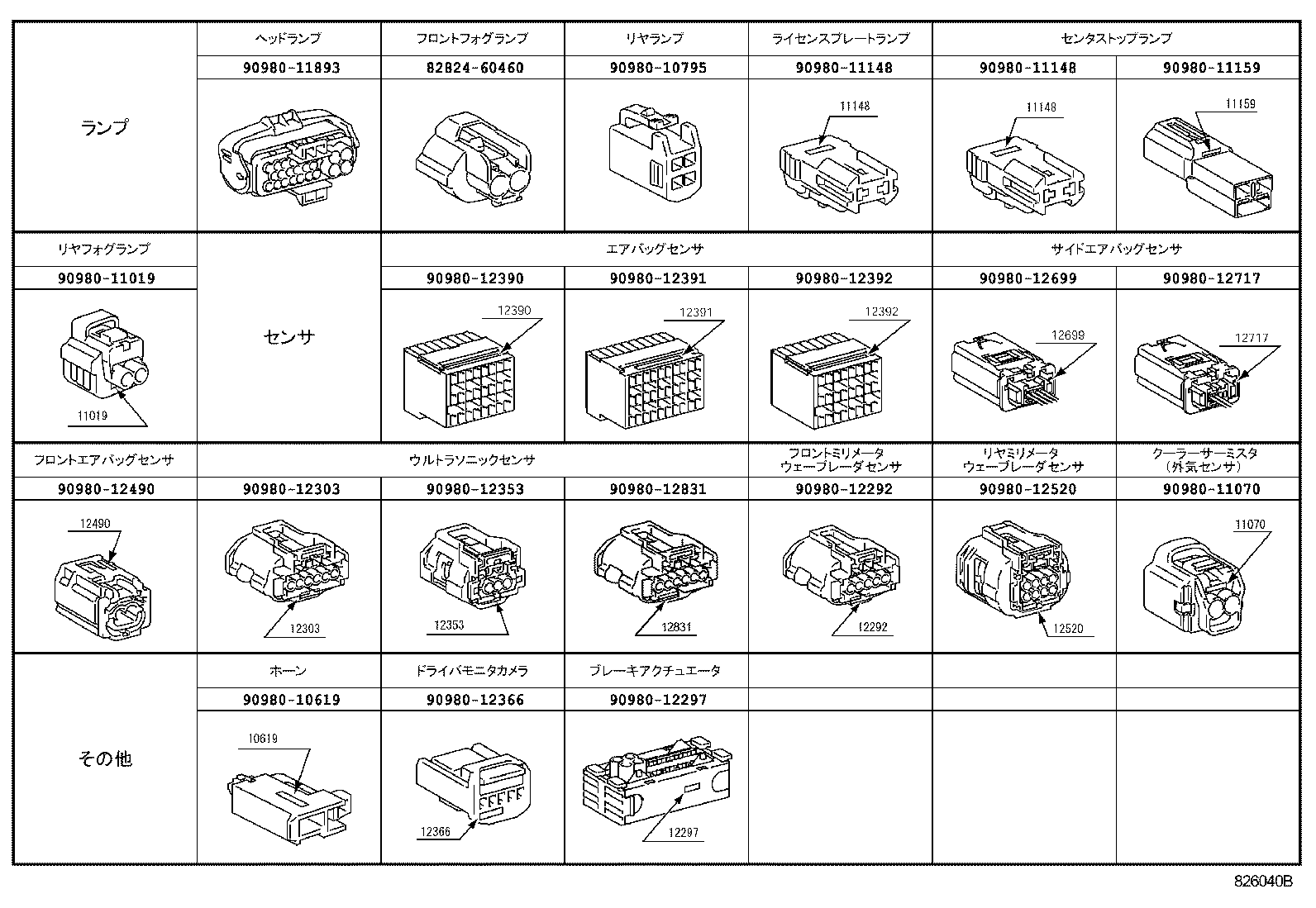

ILLUST NO.14 OF15(0802- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11159 | ||||
| 90980-11893 | ||||
| 90980-12292 | ||||
| 90980-12297 | ||||
| 90980-12303 | ||||
| 90980-12353 | ||||
| 90980-12366 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12717 | ||||
| 90980-12831 | ||||

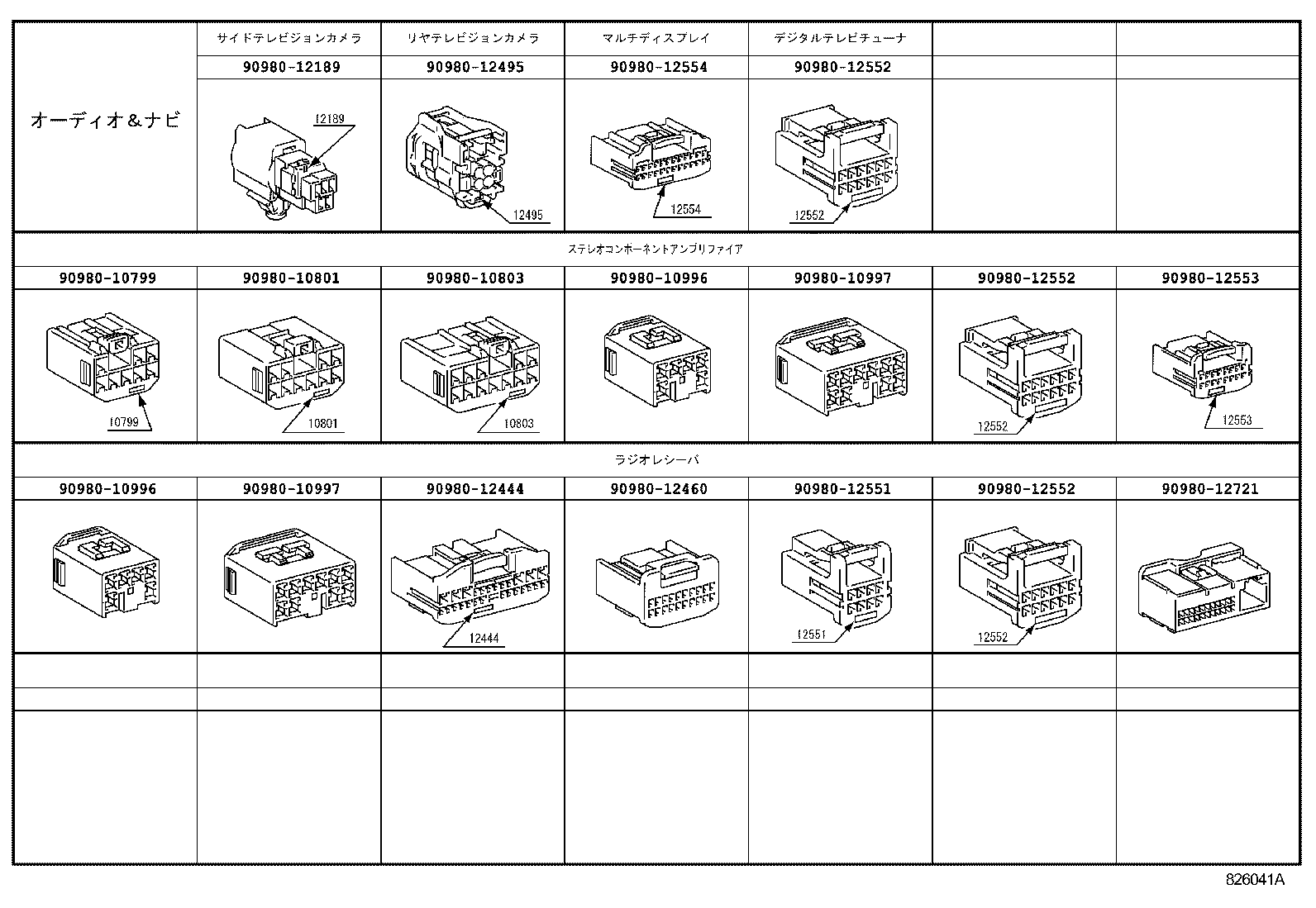

ILLUST NO.15 OF15(0802- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10799 | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12189 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12721 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
