GRS201-AETXH (2008)
Toyota Crown

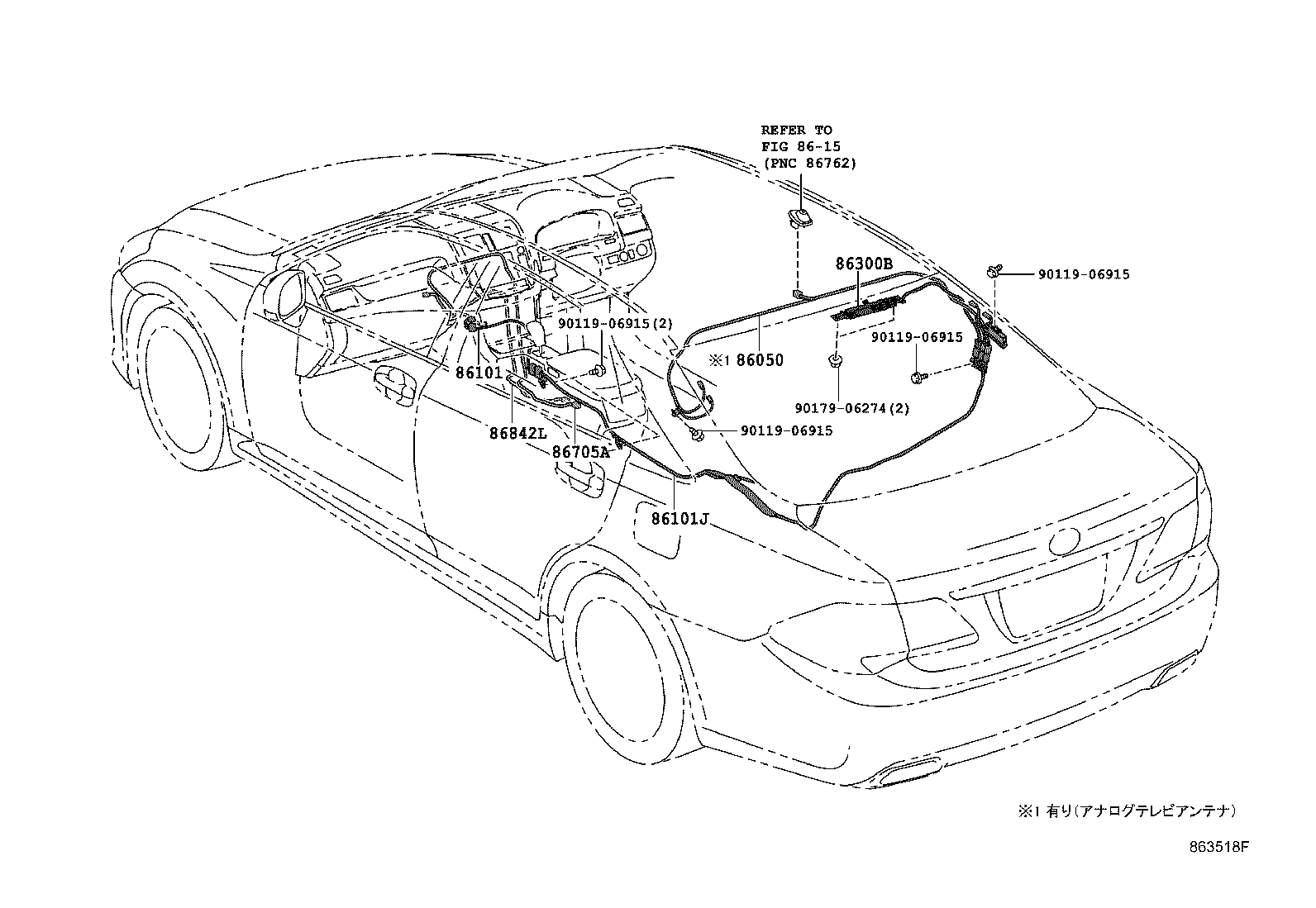

ILLUST NO. 1 OF 2(0802-1002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-30170 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−無し(ｲﾝﾊﾟﾈﾜｲﾔﾊｰﾈｽ付け捨て)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86050-30160 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-30C60 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C50 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−無し(ｲﾝﾊﾟﾈﾜｲﾔﾊｰﾈｽ付け捨て)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86101-30C71 |
GRS200,201 |
1 | ||
| 86101-30C60 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86101-30C61 |
GRS200,201 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C70 |
GRS200,201 |
1 | ||
| 86101-30C61 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH18ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C61 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C50 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-30C10 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C30 |
GRS200,201 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C40 |
GRS200,201 |
1 | ||
| 86101-30C30 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86101-30C30 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH18ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C20 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−無し(ｲﾝﾊﾟﾈﾜｲﾔﾊｰﾈｽ付け捨て)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-30B30 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86300-30B30 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86300-30B30 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86300-30B40 |
GRS200,201 |
1 | ||
| 86300-30B30 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86300-30B30 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86300-30B30 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86300-30B30 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86705A - CORD SUB-ASSY, TELEPHONE ANTENNA | ||||
| 86705-30230 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−無し(ｲﾝﾊﾟﾈﾜｲﾔﾊｰﾈｽ付け捨て)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86705-30200 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86705-30200 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−無し(ｲﾝﾊﾟﾈﾜｲﾔﾊｰﾈｽ付け捨て)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86705-30230 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86705-30200 |
GRS200,201 ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86705-30200 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ｵｰﾃﾞｨｵ−DVD/MD/HDD/5.1CH18ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86842L - WIRE, NAVIGATION, NO.1 | ||||
| 86842-30230 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−無し(ｲﾝﾊﾟﾈﾜｲﾔﾊｰﾈｽ付け捨て) |
1 | ||
| 86842-30230 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 86842-30230 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8615 | ||||

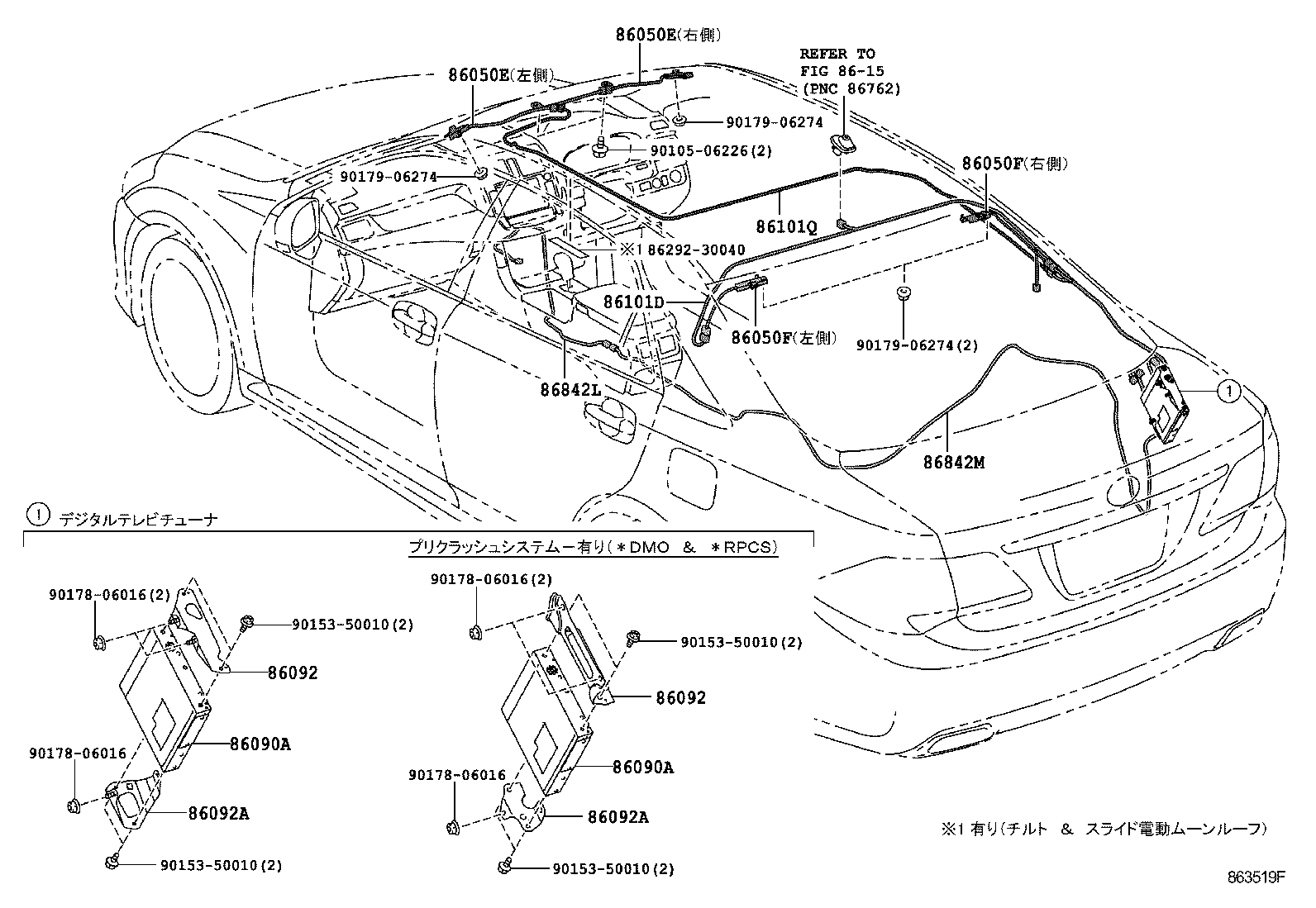

ILLUST NO. 2 OF 2(0802-1002)
ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050E - ANTENNA ASSY, TELEVISION | ||||
| 86050-30120 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30120 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30120 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,右側 |
1 | ||
| 86050-30120 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,右側 |
1 | ||
| 86050-30130 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,左側 |
1 | ||
| 86050-30130 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30130 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30130 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,左側 |
1 | ||
| 86050-30120 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30120 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30120 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30130 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30130 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30130 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050E - ANTENNA ASSY, TELEVISION | ||||
| 86050-30120 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30120 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30120 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,右側 |
1 | ||
| 86050-30120 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,右側 |
1 | ||
| 86050-30130 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,左側 |
1 | ||
| 86050-30130 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30130 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30130 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,左側 |
1 | ||
| 86050-30120 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30120 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30120 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30130 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30130 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30130 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050F - ANTENNA ASSY, TELEVISION | ||||
| 86050-30140 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,右側 |
1 | ||
| 86050-30140 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30150 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,左側 |
1 | ||
| 86050-30140 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,右側 |
1 | ||
| 86050-30140 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,左側 |
1 | ||
| 86050-30140 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30140 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30140 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30150 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050F - ANTENNA ASSY, TELEVISION | ||||
| 86050-30140 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,右側 |
1 | ||
| 86050-30140 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30150 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,左側 |
1 | ||
| 86050-30140 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,右側 |
1 | ||
| 86050-30140 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り,左側 |
1 | ||
| 86050-30140 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30140 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30140 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),右側 |
1 | ||
| 86050-30150 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86050-30150 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応),左側 |
1 | ||
| 86090A - TUNER ASSY, DIGITAL TELEVISION | ||||
| 86091-30010 |
GRS20#,GWS204 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 86091-30020 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86090A - TUNER ASSY, DIGITAL TELEVISION | ||||
| 86091-30010 |
GRS20#,GWS204 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 86091-30020 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86092 - BRACKET, DIGITAL TELEVISION, FRONT | ||||
| 86092-30010 |
GRS20#,GWS204 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 86092-30011 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86092 - BRACKET, DIGITAL TELEVISION, FRONT | ||||
| 86092-30010 |
GRS20#,GWS204 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 86092-30011 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86092A - BRACKET, DIGITAL TELEVISION, REAR | ||||
| 86092-30020 |
GRS20#,GWS204 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 86092-30021 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86092A - BRACKET, DIGITAL TELEVISION, REAR | ||||
| 86092-30020 |
GRS20#,GWS204 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 86092-30021 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-30C90 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86101-30D10 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C90 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86101-30C91 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30D10 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C91 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C91 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101Q - CORD SUB-ASSY, ANTENNA, NO.4 | ||||
| 86101-30D00 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86101-30C80 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)&GｰBOOK−有り |
1 | ||
| 86101-30D00 |
GRS200,201 ﾑｰﾝﾙｰﾌ−有り(電動)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C80 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C80 |
GRS201;GRS200..ATH “Special Edition” *(S)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30D00 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&ﾑｰﾝﾙｰﾌ−有り(電動)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86101-30C80 |
GRS200,201..ATH ﾅﾋﾞﾊﾟｯｹｰｼﾞ(2.5ｱｽﾘｰﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86842L - WIRE, NAVIGATION, NO.1 | ||||
| 86842-30230 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−無し(ｲﾝﾊﾟﾈﾜｲﾔﾊｰﾈｽ付け捨て) |
1 | ||
| 86842-30230 |
GRS200,201 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 86842-30230 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| 86842M - WIRE, NAVIGATION, NO.2 | ||||
| 86842-30240 |
GRS20#,GWS204 ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 86842-30241 |
GRS200,201 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応) |
1 | ||
| Common parts | ||||
| 86292-30040 | ||||
| 90105-06226 | ||||
| 90153-50010 | ||||
| 90178-06016 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8615 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
