GRS201-AETXH (2008)
Toyota Crown
(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-30240 |
GRS20#,GWS204 |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-30A10 |
GRS20#,GWS204 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-30902 |
GRS20#,GWS204 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-30902 |
GRS20#,GWS204 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-30140 |
GRS20#,GWS204 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-30140 |
GRS20#,GWS204 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-30150 |
GRS20#..CBU 寒冷地仕様 |
1 | ||
| 55708-30141 |
GRS20#,GWS204 |
1 | ||
| 55708-30151 |
GRS20#,GWS204 寒冷地仕様 |
1 | ||
| 55708-30140 |
GRS20#..CBU |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-08108 |
GRS20#,GWS204 |
12 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-30902 |
GRS200,201 *EHL,厚さ=5.36,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-30904 |
GRS200,201 *LAM,厚さ=5.36,ｸﾞﾘｰﾝ,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 56101-30903 |
GRS200,201 *EHL,厚さ=5.36,ｸﾞﾘｰﾝ,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝZｸﾞ対応) |
1 | ||
| 56101-30901 |
GRS200,201 *LAM,厚さ=5.36,ｸﾞﾘｰﾝ |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-22050 |
GRS20#,GWS204 |
2 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-22050 |
GRS20#,GWS204 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30110 |
GRS20#,GWS204 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GRS20#,GWS204 |
1 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-30360 |
GRS20#,GWS204 長さ=2894 |
1 | ||
| 56117-30360 |
GRS200,201 長さ=2894,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 56117-30360 |
GRS20#,GWS204 長さ=2894,寒冷地仕様 |
1 | ||
| 56117-30360 |
GRS200,201 長さ=2894,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 56118C - RETAINER, WINDSHIELD GLASS, NO.2 | ||||
| 56118-30100 |
GRS20#,GWS204 長さ=25,寒冷地仕様 |
1 | ||
| 56118-30100 |
GRS200,201 長さ=25,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 56118-30100 |
GRS20#,GWS204 長さ=25 |
1 | ||
| 56118-30100 |
GRS200,201 長さ=25,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り(ﾜﾝｾｸﾞ対応) |
1 | ||
| 56119 - SEAL, WINDSHIELD GLASS | ||||
| 56119-30010 |
GRS20#,GWS204 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75531-30380 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 90467-10206 | ||||

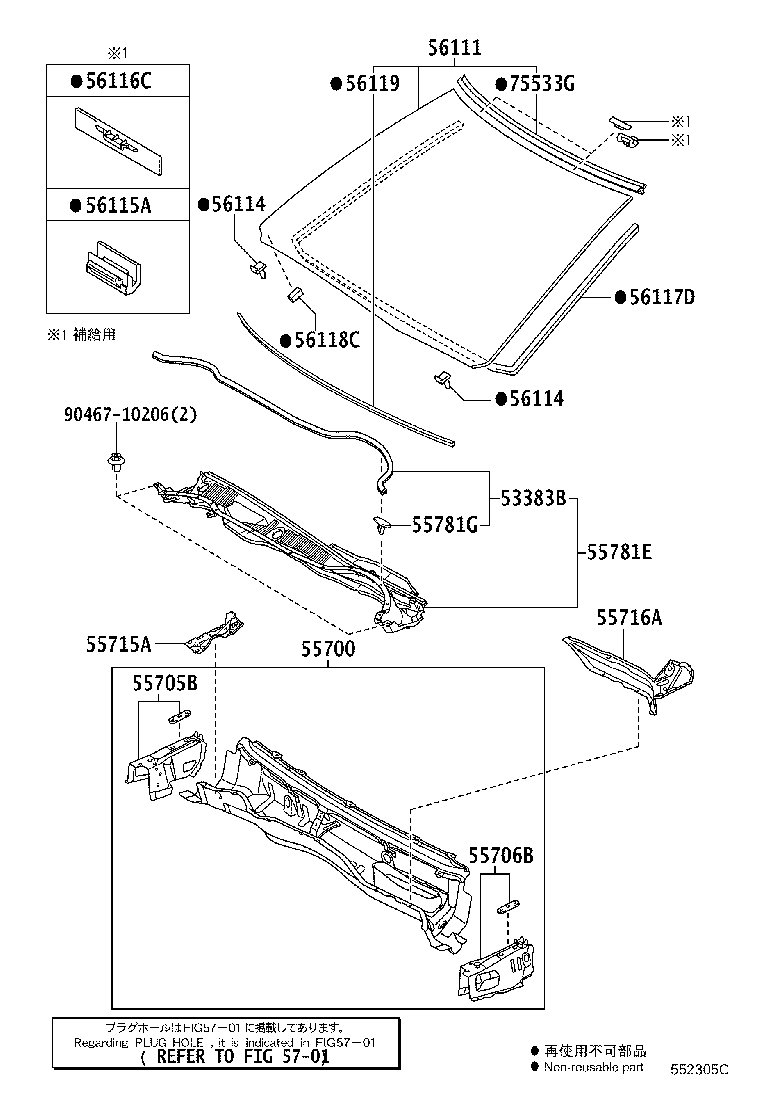

| Linked diagrams | ||||
| 5701 | ||||
