GRS201-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 4GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

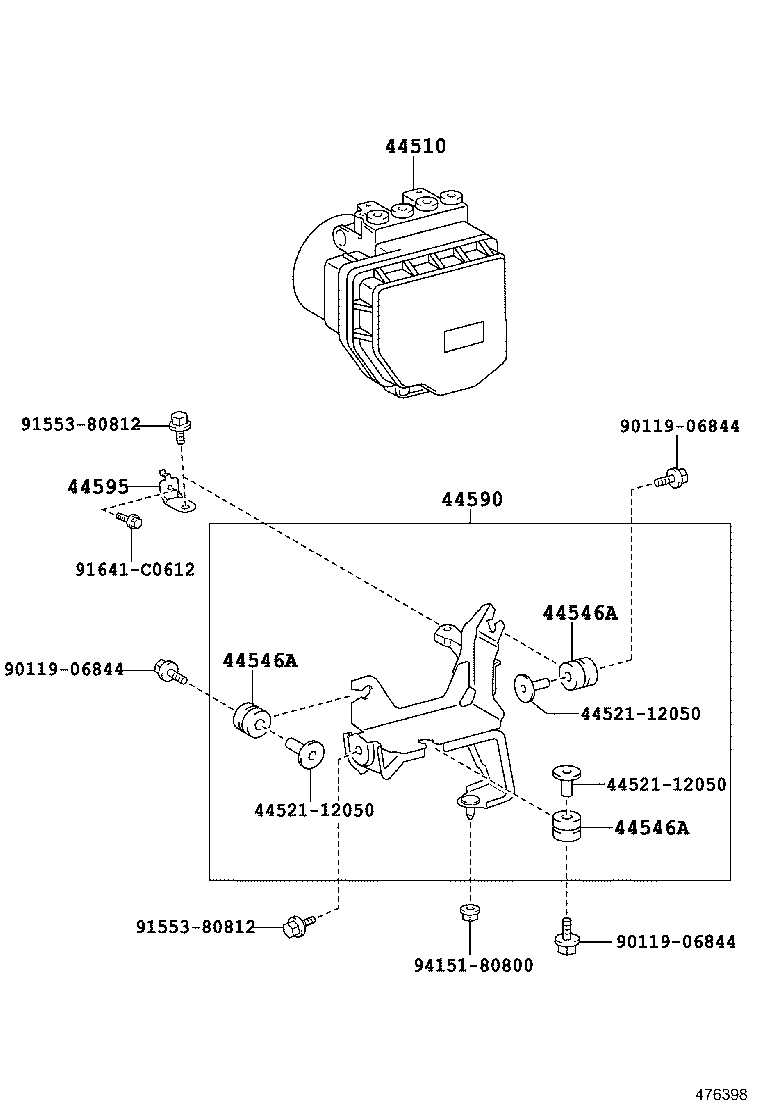

ILLUST NO. 2 OF 2(0802- )GRS20#

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 44595 9011906844 9011906844 9011906844 9155380812 9155380812 91641C0612 9415180800
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-30500

GRS201..ATH

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GRS20#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GRS20#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

GRS20#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-30120

GRS20#

 1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-30010

GRS20#,GWS204

 1
Common parts
44521-12050
90119-06844
91553-80812
91641-C0612
94151-80800

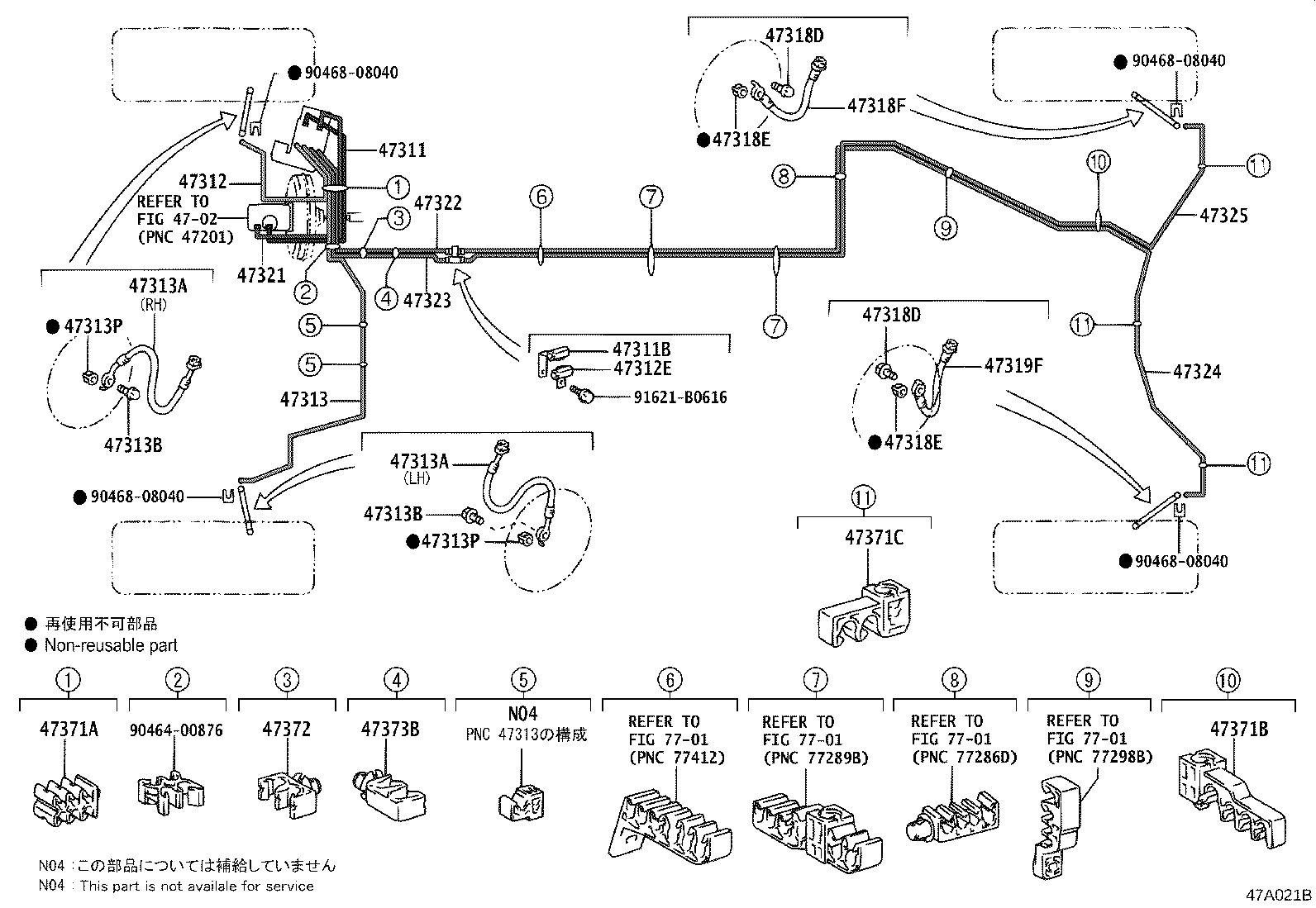

ILLUST NO. 1 OF 2(0802- )GRS20#

Click highlighted areas on diagram

diagram 4702 47311 47311B 47312 47312E 47313 47313A 47313A 47313B 47313B 47313P 47313P 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47325 47371A 47371B 47371C 47372 47373B 7701 7701 7701 7701 9046400876 9046808040 9046808040 9046808040 9046808040 91621B0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-30700

GRS20#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10250

GRS20#,GWS204

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30660

GRS201,203

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10144

GRS20#,GWS204

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30620

GRS201,203

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E02

GRS201,203

右側

 1
90947-02E03

GRS201,203

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E02

GRS201,203

右側

 1
90947-02E03

GRS201,203

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GRS20#,GWS204

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GRS20#,GWS204

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GRS20#,GWS204

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GRS20#,GWS204

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GRS20#,GWS204

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GRS20#,GWS204

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GRS20#,GWS204

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GRS20#,GWS204

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F67

GRS20#,GWS204

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F67

GRS20#,GWS204

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-30410

GRS20#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-30380

GRS20#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-30340

GRS20#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30310

GRS20#,GWS204

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-30090

GRS20#,GWS204

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01C51

GRS20#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D09

GRS20#,GWS204

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D11

GRS20#,GWS204

 3
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D12

GRS20#,GWS204

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D13

GRS20#,GWS204

 1
Common parts
90464-00876
90468-08040
91621-B0616
Linked diagrams
4702
7701
