GRS201-AETXH (2008)

Toyota Crown

Production Feb 2008 - Feb 2010
Engine 4GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(0802- )

Click highlighted areas on diagram

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

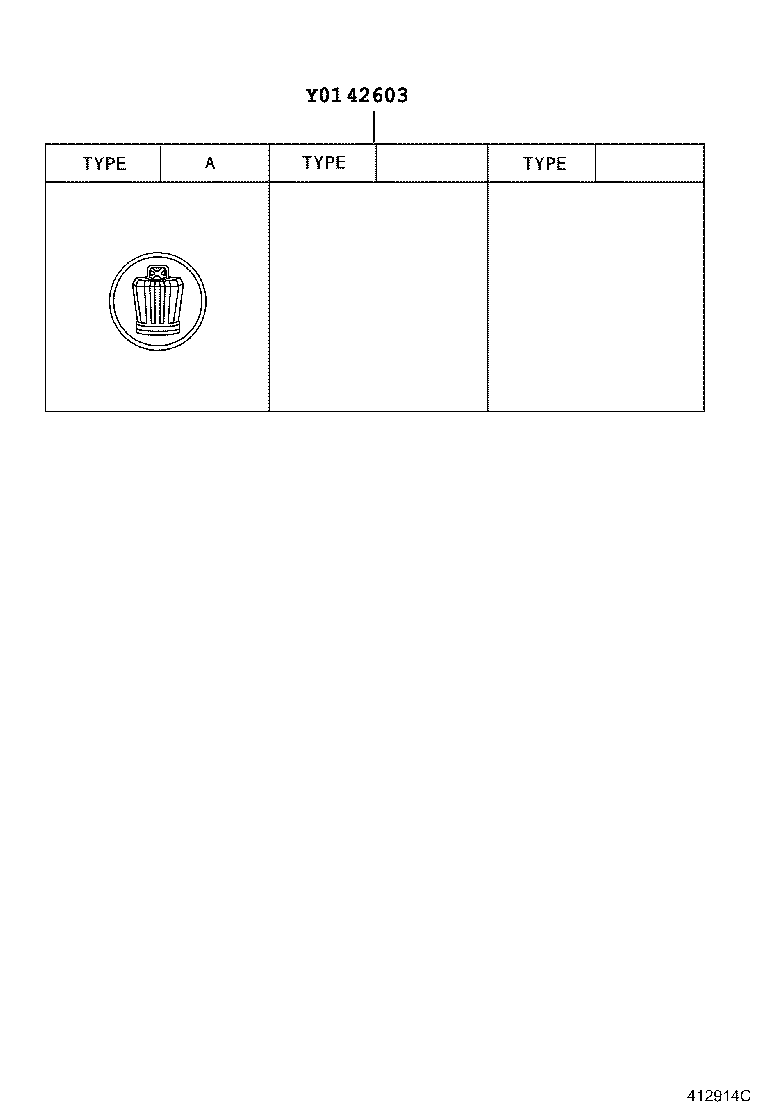

ILLUST NO. 2 OF 4(0802- )

Click highlighted areas on diagram

diagram 42603
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-30640

GRS20#,GWS204

*ALU,TYPE A:ｲﾗｽﾄ参照

 4

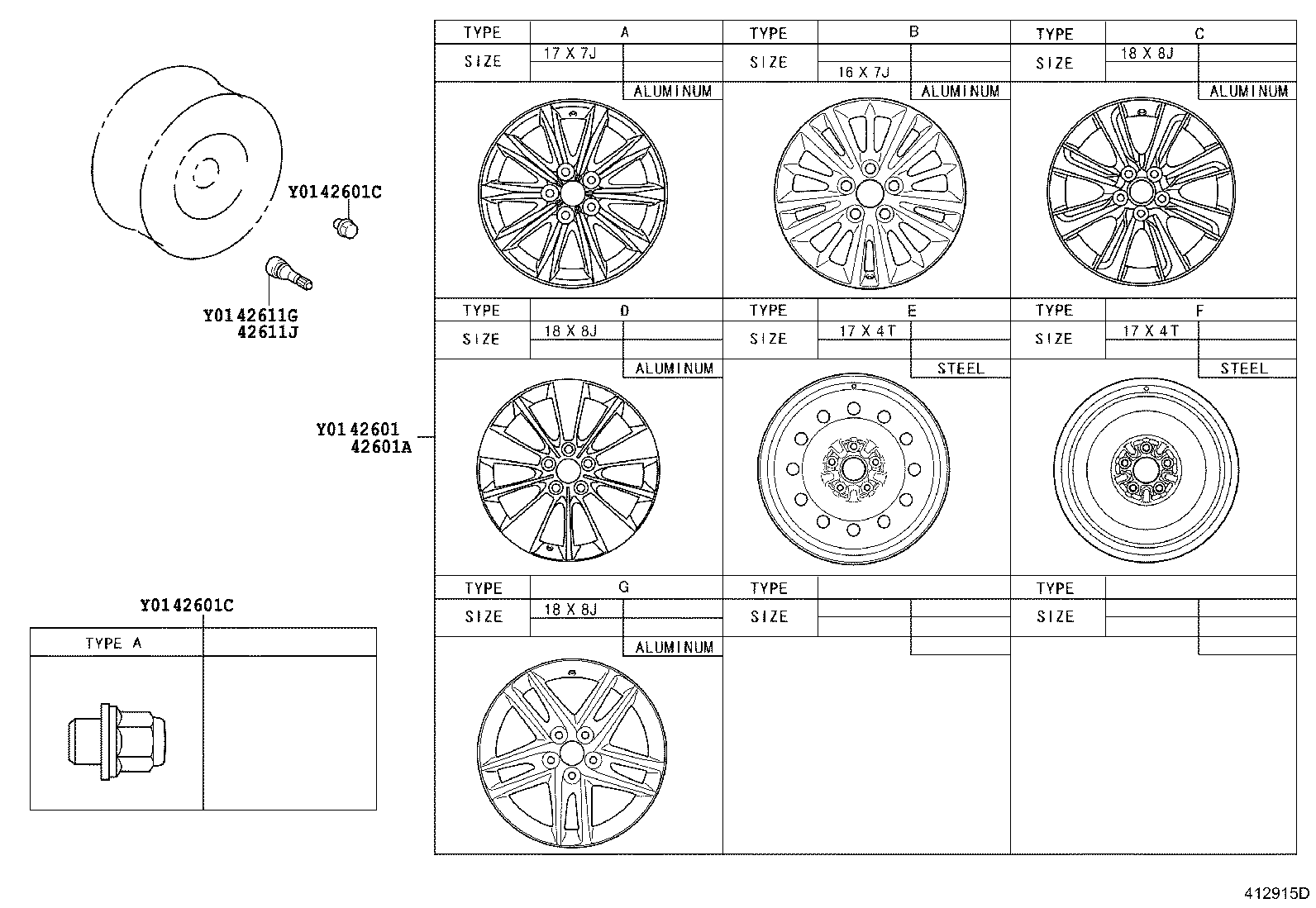

ILLUST NO. 1 OF 4(0802- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42601C 42611G 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
4261A-30050

GRS200,201,204..ATH

18X8J,#,TYPE C:ｲﾗｽﾄ参照

 4
4261A-30080

GRS200,201,204..ATH

18X8J,#,“Anniversary Edition” *(A)&ｽﾍﾟｱﾀｲﾔ|車両装着ﾀｲﾔ,TYPE C:ｲﾗｽﾄ参照

 4
4261A-30080

GRS200,201,204..ATH

18X8J,#,“Anniversary Edition” *(A),TYPE C:ｲﾗｽﾄ参照

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-50090

GRS200,201,202,203

17X4T,TYPE E:ｲﾗｽﾄ参照

 1
4261A-30050

GRS200,201,204..ATH

18X8J,#,ｽﾍﾟｱﾀｲﾔ−車両装着ﾀｲﾔ,TYPE C:ｲﾗｽﾄ参照

 1
4261A-30080

GRS200,201,204..ATH

18X8J,#,“Anniversary Edition” *(A)&ｽﾍﾟｱﾀｲﾔ|車両装着ﾀｲﾔ,TYPE C:ｲﾗｽﾄ参照

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

GRS20#,GWS204

TYPE A:ｲﾗｽﾄ参照

 20
42601C - NUT, HUB (FOR AXLE)
90942-01033

GRS20#,GWS204

TYPE A:ｲﾗｽﾄ参照

 20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

GRS20#,GWS204

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

GRS20#,GWS204

 1

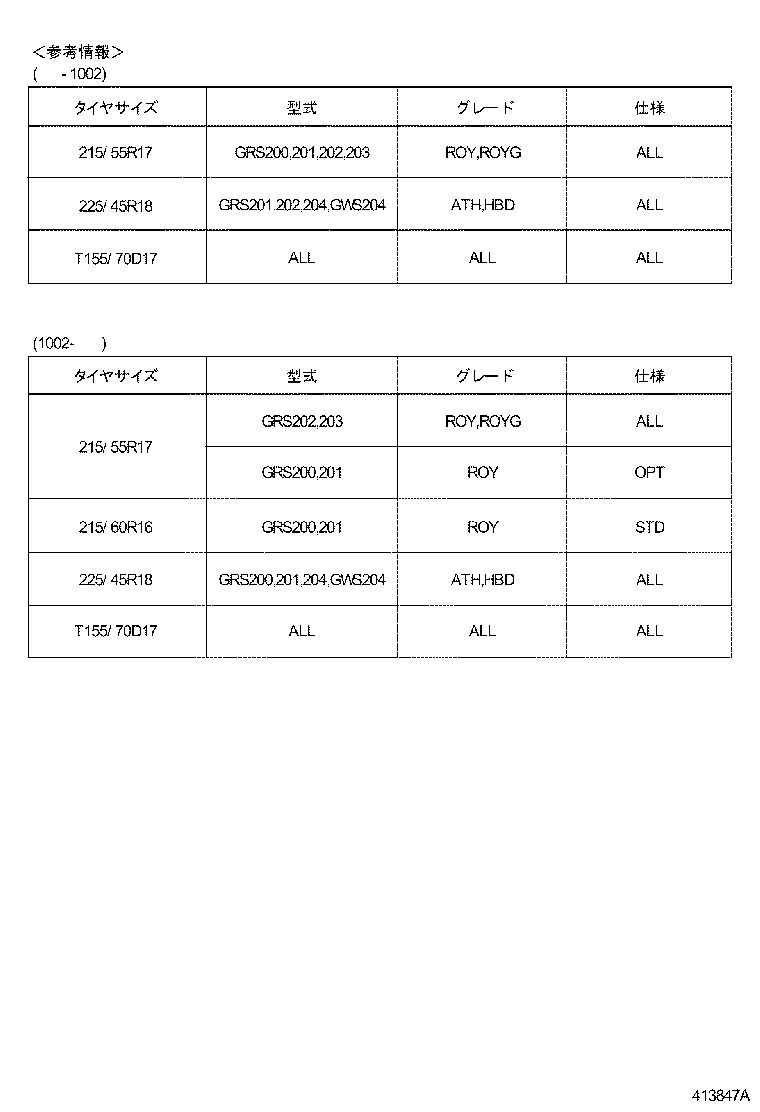

ILLUST NO. 4 OF 4(0802- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
