GRS201-AETQH (2010)

Toyota Crown

Production Feb 2010 - Dec 2012
Engine 4GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

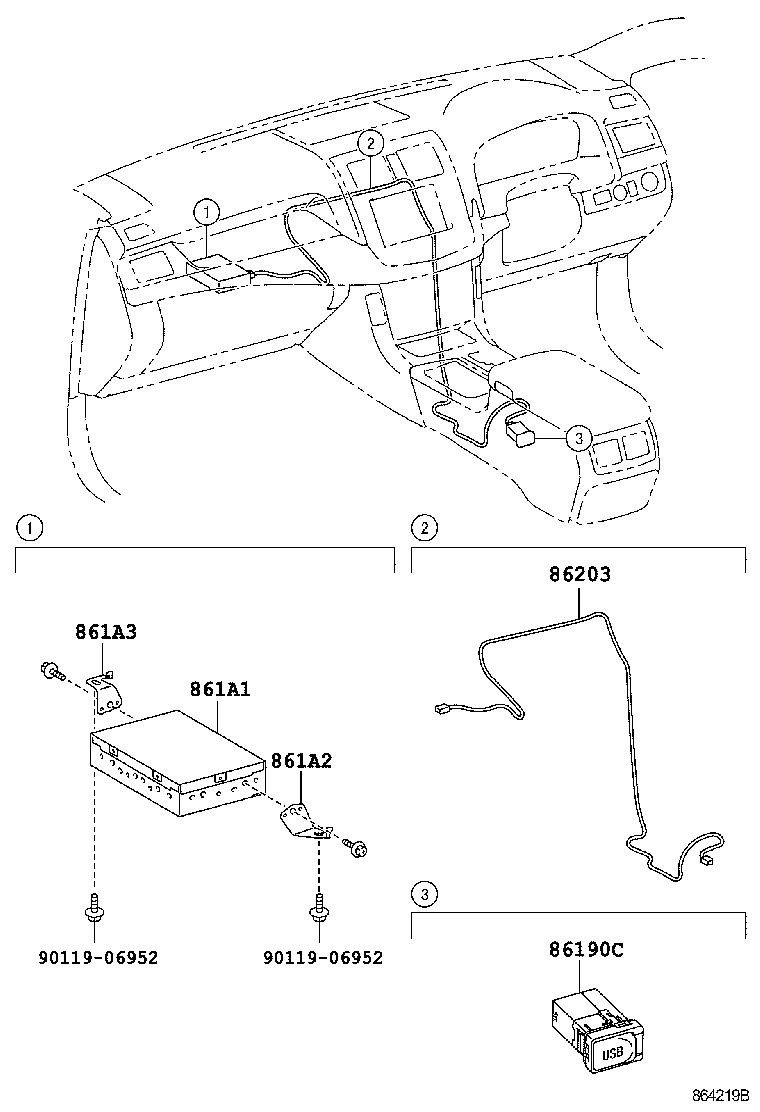

ILLUST NO. 3 OF 4(1002- )

Click highlighted areas on diagram

diagram 86190C 861A1 861A2 861A3 86203 9011906952 9011906952
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-30020

GRS200,201..CBU

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)

 1
861A1 - COMPUTER, MULTI-MEDIA INTERFACE
861A0-77010

GRS200,201..CBU

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)

 1
861A0-77010

GRS200,201..CBU

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)

 1
861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1
861A2-30020

GRS200,201..CBU

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)

 1
861A3 - BRACKET, MULTI-MEDIA INTERFACE, NO.2
861A3-30030

GRS200,201..CBU

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)

 1
86203 - WIRE, RADIO
86203-30580

GRS200,201..CBU

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−HDDﾅﾋﾞｹﾞｰｼｮﾝ(BLUETOOTH対応)

 1
Common parts
90119-06952
