GRS201-AETQH (2008)
Toyota Crown
Production
Feb 2008
-
Feb 2010
Engine
4GRFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

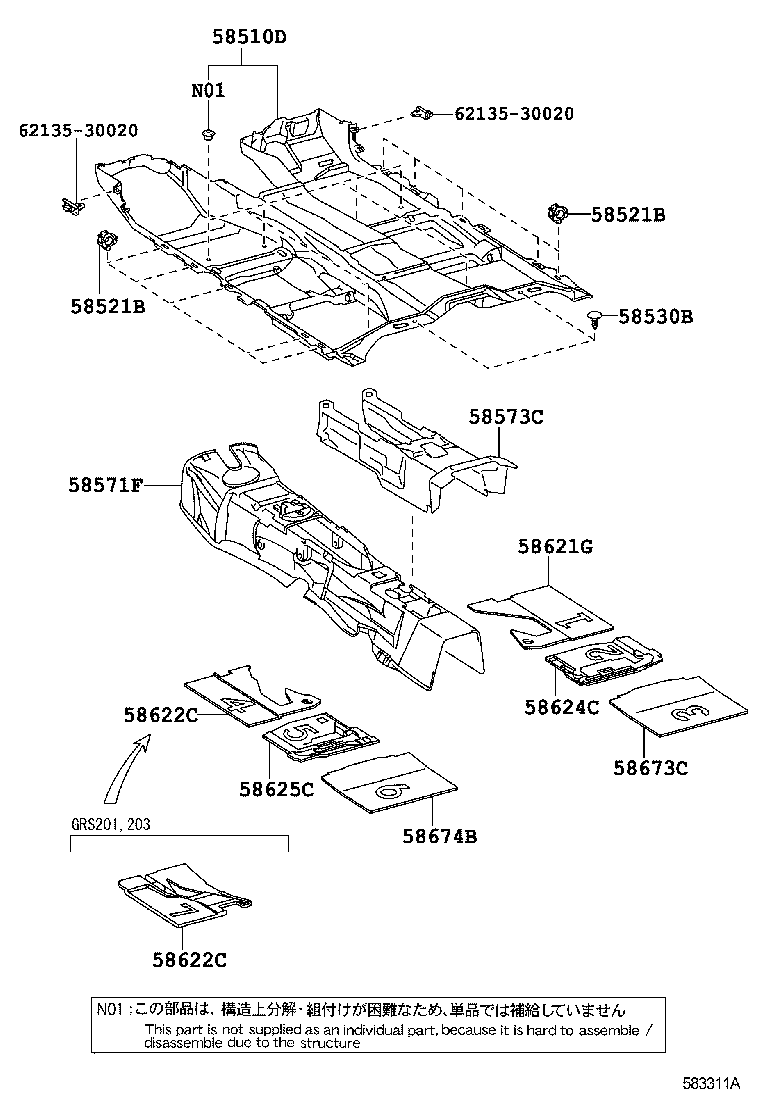

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-30A80B0 |
GRS201,203 GRAY,TRIM1# |
1 | ||
| 58510-30A80A0 |
GRS201,203..ROY SHELL,TRIM0# |
1 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-30140 |
GRS20#,GWS204 |
12 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-30140 |
GRS20#,GWS204 |
12 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164B8 |
GRS20#,GWS204 LT.GRAY |
2 | ||
| 58571F - PAD, FRONT FLOOR, FRONT | ||||
| 58571-30150 |
GRS201,203 |
1 | ||
| 58571-30140 |
GRS201,203 |
1 | ||
| 58573C - PAD, FRONT FLOOR CENTER | ||||
| 58573-30090 |
GRS20#,GWS204 |
1 | ||
| 58621G - PAD, FRONT FLOOR SILENCER, RH | ||||
| 58621-30150 |
GRS20#,GWS204 |
1 | ||
| 58622C - PAD, FRONT FLOOR SILENCER, LH | ||||
| 58622-30170 |
GRS201,203 |
1 | ||
| 58622C - PAD, FRONT FLOOR SILENCER, LH | ||||
| 58622-30170 |
GRS201,203 |
1 | ||
| 58624C - PAD, CENTER FLOOR SILENCER, RH | ||||
| 58624-30130 |
GRS20#,GWS204 |
1 | ||
| 58625C - PAD, CENTER FLOOR SILENCER, LH | ||||
| 58625-30080 |
GRS20#,GWS204 |
1 | ||
| 58673C - PAD, REAR FLOOR SILENCER, NO.1 | ||||
| 58673-30020 |
GRS20#,GWS204 |
1 | ||
| 58674B - PAD, REAR FLOOR SILENCER, NO.2 | ||||
| 58674-30020 |
GRS20#,GWS204 |
1 | ||
| Common parts | ||||
| 62135-30020 | ||||
