UZS187-CETZK (2006)

Toyota Crown/Majesta

Production Jun 2006 - Dec 2008
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )UZS18#

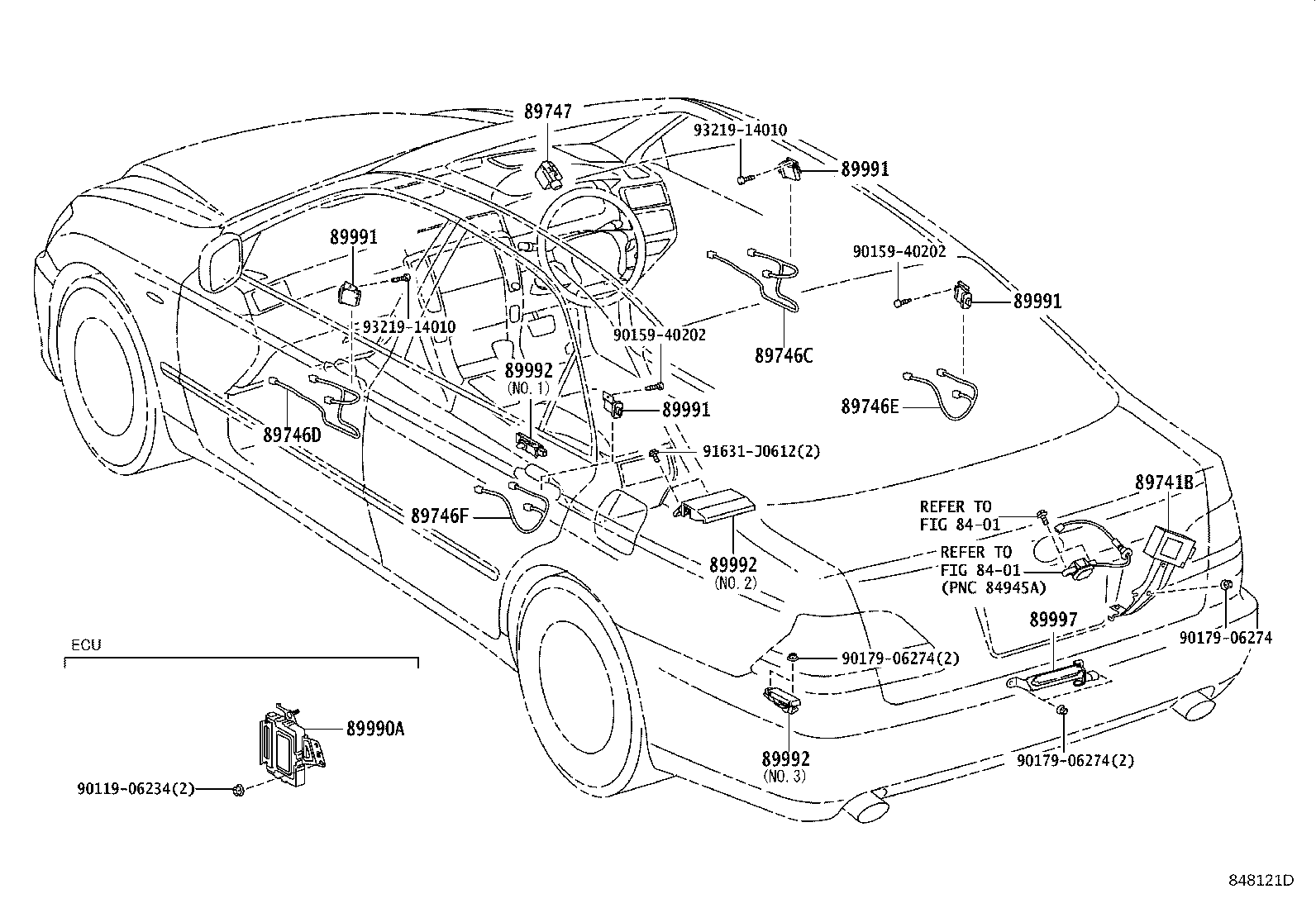

Click highlighted areas on diagram

diagram 8401 8401 89741B 89746C 89746D 89746E 89746F 89747 89990A 89991 89991 89991 89991 89992 89992 89992 89997 9011906234 9015940202 9015940202 9017906274 9017906274 9017906274 91631J0612 9321914010 9321914010
Part # Description Qty Price
89741B - RECEIVER, DOOR CONTROL, NO.2
89740-30170

UZS18#

 1
89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1
89746-30010

UZS18#

 1
89746-30112

UZS18#

 1
89746-30110

UZS18#

 1
89746-30111

UZS18#

 1
89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2
89746-30020

UZS18#

 1
89746-30120

UZS18#

 1
89746-30122

UZS18#

 1
89746-30121

UZS18#

 1
89746E - HARNESS, ELECTRICAL KEY WIRE, NO.3
89746-30030

UZS18#

 1
89746-30130

UZS18#

 1
89746-30131

UZS18#

 1
89746F - HARNESS, ELECTRICAL KEY WIRE, NO.4
89746-30130

UZS18#

 1
89746-30030

UZS18#

 1
89746-30131

UZS18#

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-48020

UZS18#

 1
89747-48020

UZS18#

 1
89747-48020

UZS18#

G−BOOK−ﾌﾟﾚﾐｱﾑ

 1
89990A - COMPUTER ASSY, SMART KEY
89990-30130

UZS18#

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30020

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾌﾛﾝﾄ左側

 1
89991-30010

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾌﾛﾝﾄ右側

 1
89991-30030

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾘﾔ

 2
89991-30050

UZS18#

右側

 2
89991-30040

UZS18#

左側

 2
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30020

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾌﾛﾝﾄ左側

 1
89991-30010

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾌﾛﾝﾄ右側

 1
89991-30030

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾘﾔ

 2
89991-30050

UZS18#

右側

 2
89991-30040

UZS18#

左側

 2
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30020

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾌﾛﾝﾄ左側

 1
89991-30010

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾌﾛﾝﾄ右側

 1
89991-30030

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾘﾔ

 2
89991-30050

UZS18#

右側

 2
89991-30040

UZS18#

左側

 2
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30020

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾌﾛﾝﾄ左側

 1
89991-30010

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾌﾛﾝﾄ右側

 1
89991-30030

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

ﾘﾔ

 2
89991-30050

UZS18#

右側

 2
89991-30040

UZS18#

左側

 2
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-30110

UZS18#

NO.3

 1
89992-30030

UZS18#

NO.3

 1
89992-30020

UZS18#

NO.2

 1
89992-30010

UZS18#

NO.1

 1
89992-30090

UZS18#

NO.1

 1
89992-30100

UZS18#

NO.2

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-30110

UZS18#

NO.3

 1
89992-30030

UZS18#

NO.3

 1
89992-30020

UZS18#

NO.2

 1
89992-30010

UZS18#

NO.1

 1
89992-30090

UZS18#

NO.1

 1
89992-30100

UZS18#

NO.2

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-30110

UZS18#

NO.3

 1
89992-30030

UZS18#

NO.3

 1
89992-30020

UZS18#

NO.2

 1
89992-30010

UZS18#

NO.1

 1
89992-30090

UZS18#

NO.1

 1
89992-30100

UZS18#

NO.2

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30020

UZS18#

 1
89997-41010

UZS18#

 1
Common parts
90119-06234
90159-40202
90179-06274
91631-J0612
93219-14010
Linked diagrams
8401
