UZS187-CETZK (2004)

Toyota Crown/Majesta

Production Jun 2004 - Jun 2006
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )UZS18#

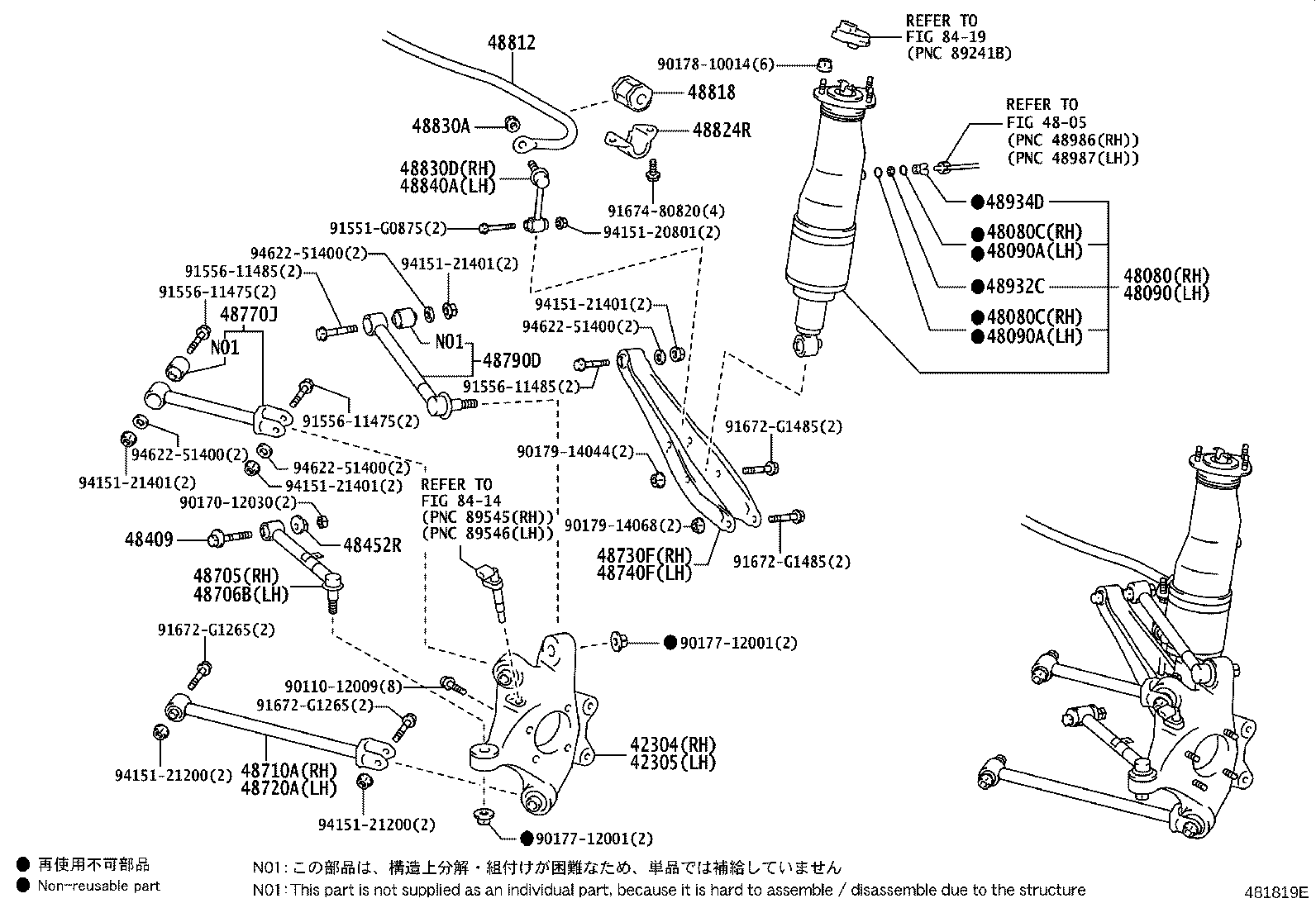

Click highlighted areas on diagram

diagram 42304 42305 4805 48080 48080C 48080C 48090 48090A 48090A 48409 48452R 48705 48706B 48710A 48720A 48730F 48740F 48770J 48790D 48812 48818 48824R 48830A 48830D 48840A 48932C 48934D 8414 8419 9011012009 9017012030 9017712001 9017712001 9017810014 9017914044 9017914068 91551G0875 9155611475 9155611475 9155611485 9155611485 91672G1265 91672G1265 91672G1485 91672G1485 9167480820 9415120801 9415121200 9415121200 9415121401 9415121401 9415121401 9415121401 9462251400 9462251400 9462251400 9462251400
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-30080

GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-30080

GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG

 1
48080 - CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER
48080-30141

UZS18#

 1
48080-30142

UZS18#

 1
48080-30140

UZS18#

 1
48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH)
90301-04011

UZS18#

 2
90301-04011

UZS18#

 2
48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH)
90301-04011

UZS18#

 2
90301-04011

UZS18#

 2
48090 - CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER
48090-30142

UZS18#

 1
48090-30140

UZS18#

 1
48090-30141

UZS18#

 1
48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH)
90301-04011

UZS18#

 2
90301-04011

UZS18#

 2
48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH)
90301-04011

UZS18#

 2
90301-04011

UZS18#

 2
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-30020

UZS18#

 2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-30040

UZS18#

 2
48705 - LINK SUB-ASSY, TOE CONTROL, RH
48705-30090

UZS18#

 1
48706B - LINK SUB-ASSY, TOE CONTROL, LH
48706-30090

UZS18#

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-30200

UZS18#

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-30200

UZS18#

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-30120

UZS18#

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-30120

UZS18#

 1
48770J - ARM ASSY, UPPER CONTROL, REAR NO.1
48770-30080

UZS18#

 2
48790D - ARM ASSY, UPPER CONTROL, REAR NO.2
48790-30090

UZS18#

 2
48812 - BAR, STABILIZER, REAR
48812-30400

UZS18#

 1
48818 - BUSH, STABILIZER, REAR
48818-30180

UZS18#

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48832-30060

UZS18#

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-12151

UZS18#

 2
48830D - LINK ASSY, REAR STABILIZER, RH
48830-30090

UZS18#

 1
48840A - LINK ASSY, REAR STABILIZER, LH
48830-30090

UZS18#

 1
48932C - PLATE, HEIGHT CONTROL TUBE
48932-30010

UZS18#

 2
48932-30010

UZS18#

 2
48934D - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010

UZS18#

 2
48934-30010

UZS18#

 2
Common parts
90110-12009
90170-12030
90177-12001
90178-10014
90179-14044
90179-14068
91551-G0875
91556-11475
91556-11485
91672-G1265
91672-G1485
91674-80820
94151-20801
94151-21200
94151-21401
94622-51400
Linked diagrams
4805
8414
8419
