UZS187-CETZK (2004)

Toyota Crown/Majesta

Production Jun 2004 - Jun 2006
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )UZS18#

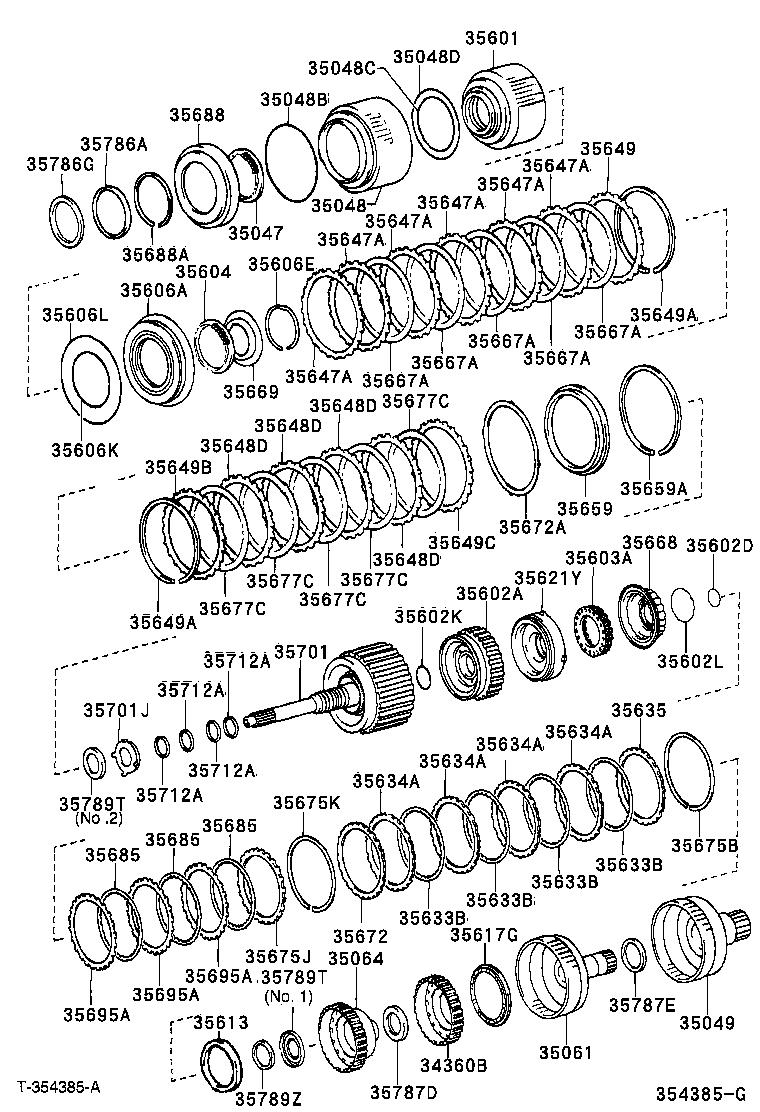

Click highlighted areas on diagram

A761E,A761H

diagram 34360B 35047 35048 35048B 35048C 35048D 35049 35061 35064 35601 35602A 35602D 35602K 35602L 35603A 35604 35606A 35606E 35606K 35606L 35613 35617G 35621Y 35633B 35633B 35633B 35633B 35634A 35634A 35634A 35634A 35635 35647A 35647A 35647A 35647A 35647A 35647A 35648D 35648D 35648D 35648D 35649 35649A 35649A 35649B 35649C 35659 35659A 35667A 35667A 35667A 35667A 35667A 35668 35669 35672 35672A 35675B 35675J 35675K 35677C 35677C 35677C 35677C 35677C 35685 35685 35685 35688 35688A 35695A 35695A 35695A 35701 35701J 35712A 35712A 35712A 35712A 35786A 35786G 35787D 35787E 35789T 35789T 35789Z
Part # Description Qty Price
34360B - CLUTCH ASSY, UNDERDRIVE 1 WAY
34360-50010

UZS18#

 1
35047 - SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35047-60010

UZS18#

 1
35048B - RING, O (FOR REVERSE CLUTCH PISTON)
90301-99140

UZS18#

 1
35048C - RING, O(FOR REVERSE CLUTCH PISTON INNER)
90301-99147

UZS18#

 1
35048D - RING, O(FOR DIRECT CLUTCH PISTON OUTER)
90301-99141

UZS18#

 1
35049 - HUB SUB-ASSY, REVERSE CLUTCH
35049-50010

UZS18#

 1
35061 - HUB SUB-ASSY, FORWARD CLUTCH
35061-50010

UZS18#

 1
35064 - HUB SUB-ASSY, COAST CLUTCH
35064-50010

UZS18#

 1
35601 - DRUM SUB-ASSY, CLUTCH
35601-50030

UZS18#

 1
35602A - PISTON SUB-ASSY, FORWARD CLUTCH
35602-50020

UZS18#

 1
35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN
90520-35003

UZS18#

 1
35602K - RING, O(FOR FORWARD CLUTCH PISTON INNER)
90301-33006

UZS18#

 1
35602L - RING, O(FOR FORWARD CLUTCH PISTON OUTER)
90301-98004

UZS18#

 1
35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN
35603-50030

UZS18#

 1
35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604-60020

UZS18#

 1
35606A - PISTON SUB-ASSY, DIRECT CLUTCH
35652-60020

UZS18#

 1
35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN
90520-64003

UZS18#

 1
35606K - RING, O(FOR DIRECT CLUTCH PISTON INNER)
90301-74002

UZS18#

 1
35606L - RING, O(FOR DIRECT CLUTCH PISTON OUTER)
90301-99149

UZS18#

 1
35613 - RING, CLUTCH PISTON OIL SEAL, OUTER
35613-50010

UZS18#

 1
35617G - RING, CLUTCH DRUM OIL SEAL
35614-50010

UZS18#

 1
35621Y - PISTON, COAST CLUTCH
35621-50010

UZS18#

 1
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-50010

UZS18#

 4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-50010

UZS18#

 4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-50010

UZS18#

 4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-50010

UZS18#

 4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-50010

UZS18#

厚さ=2.4

 4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-50010

UZS18#

厚さ=2.4

 4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-50010

UZS18#

厚さ=2.4

 4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-50010

UZS18#

厚さ=2.4

 4
35635 - FLANGE, FORWARD CLUTCH
35635-60010

UZS18#

厚さ=3.0,ﾏｰｸ 0

 1
35635-60030

UZS18#

厚さ=3.2,ﾏｰｸ 2

 1
35635-60020

UZS18#

厚さ=3.1,ﾏｰｸ 1

 1
35635-60050

UZS18#

厚さ=3.4,ﾏｰｸ 4

 1
35635-60110

UZS18#

厚さ=4.0,ﾏｰｸ A

 1
35635-60040

UZS18#

厚さ=3.3,ﾏｰｸ 3

 1
35635-60060

UZS18#

厚さ=3.5,ﾏｰｸ 5

 1
35635-60080

UZS18#

厚さ=3.7,ﾏｰｸ 7

 1
35635-60070

UZS18#

厚さ=3.6,ﾏｰｸ 6

 1
35635-60090

UZS18#

厚さ=3.8,ﾏｰｸ 8

 1
35635-60100

UZS18#

厚さ=3.9,ﾏｰｸ 9

 1
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

UZS18#

 6
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

UZS18#

 6
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

UZS18#

 6
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

UZS18#

 6
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

UZS18#

 6
35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010

UZS18#

 6
35648D - PLATE, CLUTCH, NO.3
35648-50010

UZS18#

 4
35648D - PLATE, CLUTCH, NO.3
35648-50010

UZS18#

 4
35648D - PLATE, CLUTCH, NO.3
35648-50010

UZS18#

 4
35648D - PLATE, CLUTCH, NO.3
35648-50010

UZS18#

 4
35649 - FLANGE, REVERSE CLUTCH
35649-60030

UZS18#

厚さ=3.0,ﾏｰｸ2

 1
35649-60050

UZS18#

厚さ=3.2,ﾏｰｸ4

 1
35649-60080

UZS18#

厚さ=3.5,ﾏｰｸ 7

 1
35649-60090

UZS18#

厚さ=3.6,ﾏｰｸ8

 1
35649-60100

UZS18#

厚さ=3.7,ﾏｰｸ9

 1
35649-60060

UZS18#

厚さ=3.3,ﾏｰｸ5

 1
35649-60040

UZS18#

厚さ=3.1,ﾏｰｸ3

 1
35649-60070

UZS18#

厚さ=3.4,ﾏｰｸ6

 1
35649-60110

UZS18#

厚さ=3.8,ﾏｰｸ10

 1
35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
90520-99074

UZS18#

 2
35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
90520-99074

UZS18#

 2
35649B - FLANGE, REVERSE CLUTCH
35649-60030

UZS18#

 1
35649C - FLANGE, REVERSE CLUTCH
35649-60040

UZS18#

厚さ=3.1.ﾏｰｸ 3

 1
35649-60090

UZS18#

厚さ=3.6,ﾏｰｸ 8

 1
35649-60060

UZS18#

厚さ=3.3,ﾏｰｸ 5

 1
35649-60070

UZS18#

厚さ=3.4,ﾏｰｸ 6

 1
35649-60010

UZS18#

厚さ=2.8,ﾏｰｸ 0

 1
35649-60100

UZS18#

厚さ=3.7,ﾏｰｸ 9

 1
35649-60080

UZS18#

厚さ=3.5,ﾏｰｸ 7

 1
35649-60030

UZS18#

厚さ=3.0,ﾏｰｸ 2

 1
35649-60020

UZS18#

厚さ=2.9,ﾏｰｸ 1

 1
35649-60050

UZS18#

厚さ=3.2,ﾏｰｸ 4

 1
35649-60110

UZS18#

厚さ=3.8,ﾏｰｸ A

 1
35659 - SLEEVE, REVERSE CLUTCH REACTION
35659-60020

UZS18#

 1
35659A - RING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
90520-99083

UZS18#

 1
35667A - DISK, DIRECT CLUTCH
35667-60020

UZS18#

 5
35667A - DISK, DIRECT CLUTCH
35667-60020

UZS18#

 5
35667A - DISK, DIRECT CLUTCH
35667-60020

UZS18#

 5
35667A - DISK, DIRECT CLUTCH
35667-60020

UZS18#

 5
35667A - DISK, DIRECT CLUTCH
35667-60020

UZS18#

 5
35668 - BALANCER, CLUTCH, NO.1
35668-50010

UZS18#

 1
35669 - BALANCER, CLUTCH, NO.2
35669-60010

UZS18#

 1
35672 - PLATE, CLUTCH CUSHION
35672-50040

UZS18#

 1
35672A - PLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35672-60020

UZS18#

 1
35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
90520-99082

UZS18#

 1
35675J - FLANGE, COAST CLUTCH
35675-50010

UZS18#

厚さ=3.0

 1
35675-50040

UZS18#

厚さ=3.3

 1
35675-50090

UZS18#

厚さ=3.8

 1
35675-50050

UZS18#

厚さ=3.4

 1
35675-50020

UZS18#

厚さ=3.1

 1
35675-50060

UZS18#

厚さ=3.5

 1
35675-50030

UZS18#

厚さ=3.2

 1
35675-50080

UZS18#

厚さ=3.7

 1
35675-50070

UZS18#

厚さ=3.6

 1
35675-50100

UZS18#

厚さ=3.9

 1
35675K - RING, SNAP (FOR COAST CLUTCH FLANGE)
90520-99089

UZS18#

 1
35677C - DISC, REAR CLUTCH
35677-50040

UZS18#

 5
35677C - DISC, REAR CLUTCH
35677-50040

UZS18#

 5
35677C - DISC, REAR CLUTCH
35677-50040

UZS18#

 5
35677C - DISC, REAR CLUTCH
35677-50040

UZS18#

 5
35677C - DISC, REAR CLUTCH
35677-50040

UZS18#

 5
35685 - DISC, COAST CLUTCH
35685-50010

UZS18#

 3
35685 - DISC, COAST CLUTCH
35685-50010

UZS18#

 3
35685 - DISC, COAST CLUTCH
35685-50010

UZS18#

 3
35688 - BALANCER, CLUTCH, NO.3
35688-50010

UZS18#

 1
35688A - RING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
90520-79001

UZS18#

 1
35695A - PLATE, COAST CLUTCH
35695-50010

UZS18#

 3
35695A - PLATE, COAST CLUTCH
35695-50010

UZS18#

 3
35695A - PLATE, COAST CLUTCH
35695-50010

UZS18#

 3
35701 - SHAFT SUB-ASSY, INPUT
35701-50030

UZS18#

 1
35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
90374-34011

UZS18#

 1
35712A - RING, INPUT SHAFT OIL SEAL
35712-60010

UZS18#

 4
35712A - RING, INPUT SHAFT OIL SEAL
35712-60010

UZS18#

 4
35712A - RING, INPUT SHAFT OIL SEAL
35712-60010

UZS18#

 4
35712A - RING, INPUT SHAFT OIL SEAL
35712-60010

UZS18#

 4
35786A - RACE, THRUST BEARING, NO.1
35786-60010

UZS18#

 1
35786G - BEARING,THRUST NEEDLE ROLLER
90374-71001

UZS18#

 1
35787D - BEARING, THRUST NEEDLE ROLLER
90374-35006

UZS18#

 1
35787E - BEARING, THRUST NEEDLE ROLLER
90374-42008

UZS18#

 1
35789T - RACE, THRUST BEARING (INPUT SHAFT REAR)
35789-50060

UZS18#

NO.2

 1
35789-50050

UZS18#

NO.1

 1
35789T - RACE, THRUST BEARING (INPUT SHAFT REAR)
35789-50060

UZS18#

NO.2

 1
35789-50050

UZS18#

NO.1

 1
35789Z - BEARING, THRUST NEEDLE ROLLER
90374-21004

UZS18#

 1
