UZS187-CETZK (2004)

Toyota Crown/Majesta

Production Jun 2004 - Jun 2006
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )3UZFE

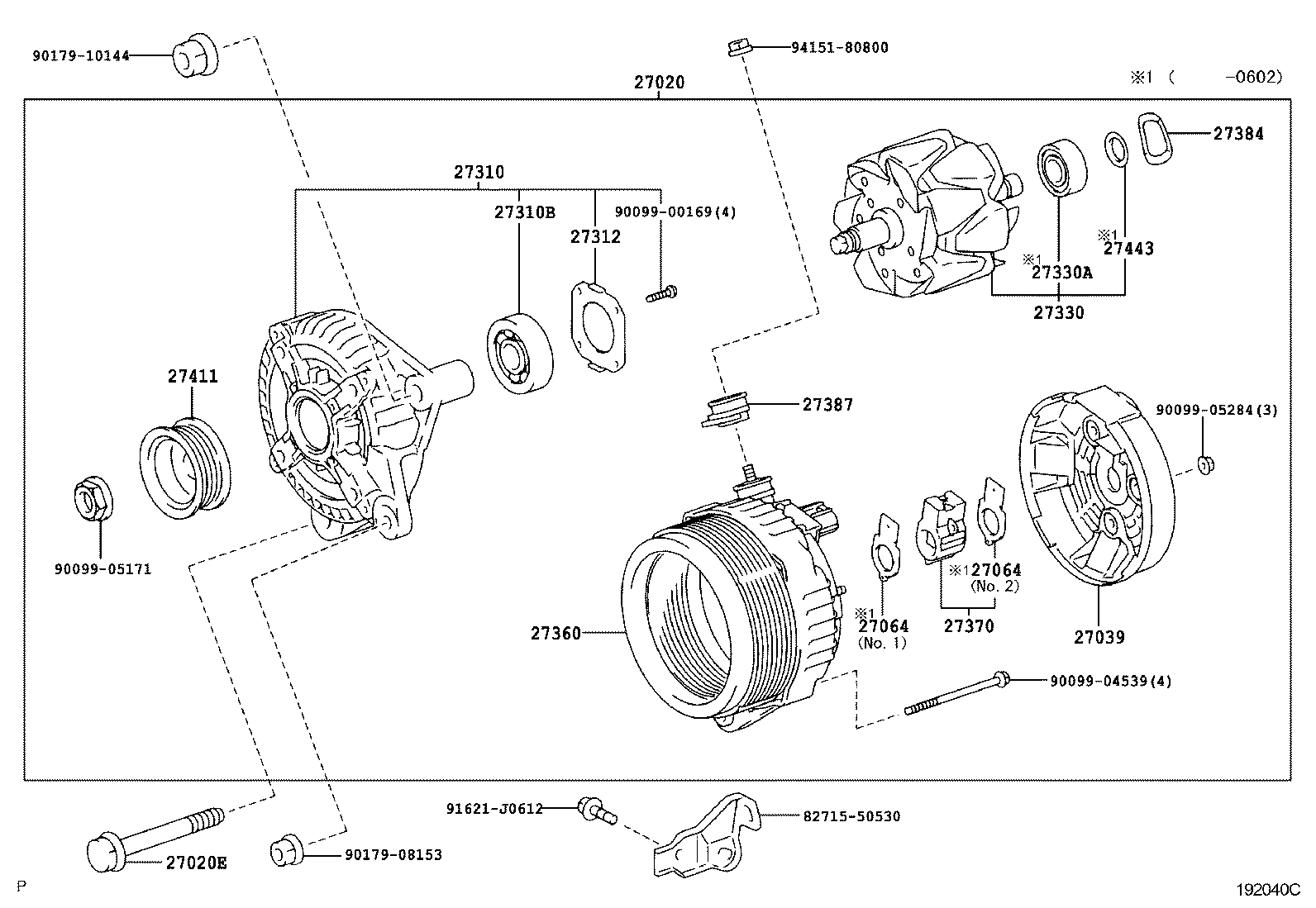

Click highlighted areas on diagram

12V 130A

diagram 27020 27020E 27039 27064 27064 27310 27310B 27312 27330 27330A 27360 27370 27384 27387 27411 27443 8271550530 9009900169 9009904539 9009905171 9009905284 9017908153 9017910144 91621J0612 9415180800
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-50310

3UZFE..UZS18#

12V 130A

 1
27020E - BOLT(FOR ALTERNATOR)
90119-10791

3UZFE..UZS18#

 1
27039 - COVER, ALTERNATOR REAR END
27039-50370

3UZFE..UZS18#

 1
27039-30080

3UZFE..UZS18#

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

3UZFE..UZS18#

NO.1

 1
27064-20130

3UZFE..UZS18#

NO.2

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

3UZFE..UZS18#

NO.1

 1
27064-20130

3UZFE..UZS18#

NO.2

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-50310

3UZFE..UZS18#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18#

 1
27312 - PLATE, RETAINER
27312-72100

3UZFE..UZS18#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-20130

3UZFE..UZS18#

 1
27330-33090

3UZFE..UZS18#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3UZFE..UZS18#

 1
27360 - COIL ASSY, ALTERNATOR
27360-50340

3UZFE..UZS18#

 1
27360-50280

3UZFE..UZS18#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

3UZFE..UZS18#

 1
27370-20130

3UZFE..UZS18#

 1
27384 - WASHER
27384-50030

3UZFE..UZS18#

 1
27387 - INSULATOR, TERMINAL
27387-50310

3UZFE..UZS18#

 1
27411 - PULLEY, ALTERNATOR
27411-50190

3UZFE..UZS18#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3UZFE..UZS18#

 1
Common parts
82715-50530
90099-00169
90099-04539
90099-05171
90099-05284
90179-08153
90179-10144
91621-J0612
94151-80800
