UZS186-CETZK (2004)

Toyota Crown/Majesta

Production Jun 2004 - Jun 2006
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0509)GRS18# ; (0406-0606)UZS18#

Click highlighted areas on diagram

ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)

diagram 69503 69503B 69510 69550A 69560A 8424 89745A 89751A 89758 89759 89904B 89994B 9017905011
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-30A40

UZS18#

 1
69503B - KEY, CUT
69515-30270

UZS18#

ﾏｽﾀｰｷｰ,W(*68)

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30280

UZS18#

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-30150

UZS18#

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30330

UZS18#

 1
89745A - BATTERY, TRANSMITTER
89745-50020

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

 1
89745-50020

GRS182,183,UZS18#;GRS180..5FC..(ATH,ROY)

G−BOOK−ﾌﾟﾚﾐｱﾑ

 1
89751A - COVER, TRANSMITTER HOUSING
89751-30080

UZS18#

 3
89758 - PACKING, DOOR CONTROL TRANSMITTER
89758-30010

UZS18#

 3
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-30100

UZS18#

ｽﾏｰﾄ機能無し(ｻﾌﾞｷｰ)

 1
89904-30090

UZS18#

ｽﾏｰﾄ機能有り(ﾏｽﾀｰｷｰ)

 1
89994B - TRANSMITTER, ELECTRICAL KEY
89994-30080

UZS18#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸｷｰ用

 1
89994-30070

UZS18#

ｽﾏｰﾄｷｰ用

 2
Common parts
90179-05011
Linked diagrams
8424

(0509- )GRS18# ; (0606- )UZS18#

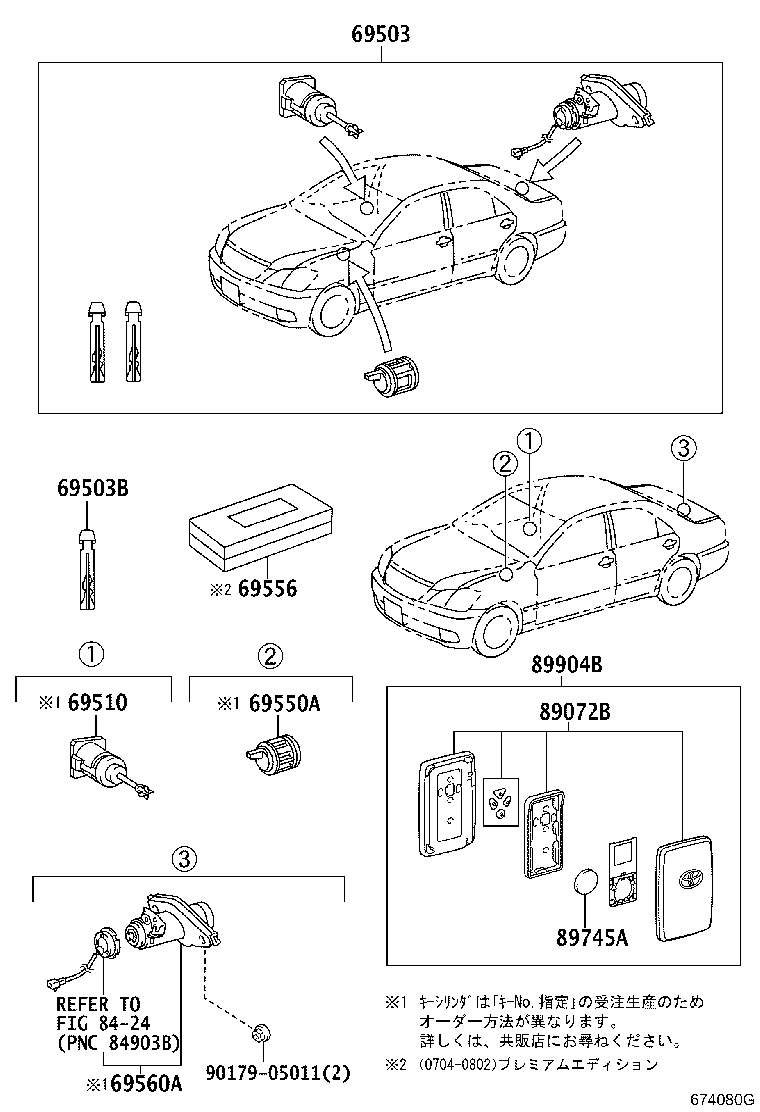

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503B 69510 69550A 69556 69560A 8424 89072B 89745A 89904B 9017905011
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-30A40

UZS18#

 1
69503B - KEY, CUT
69515-30270

UZS18#

ﾏｽﾀｰｷｰ,W(*68)

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30280

UZS18#

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-30150

UZS18#

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30330

UZS18#

 1
89745A - BATTERY, TRANSMITTER
89745-50020

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

 1
89745-50020

GRS182,183,UZS18#;GRS180..5FC..(ATH,ROY)

G−BOOK−ﾌﾟﾚﾐｱﾑ

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-30100

UZS18#

ｽﾏｰﾄ機能無し(ｻﾌﾞｷｰ)

 1
89904-30090

UZS18#

ｽﾏｰﾄ機能有り(ﾏｽﾀｰｷｰ)

 1
Common parts
90179-05011
Linked diagrams
8424
