UZS186-CETQK (2004)

Toyota Crown/Majesta

Production Jun 2004 - Jun 2006
Engine 3UZFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )UZS18#

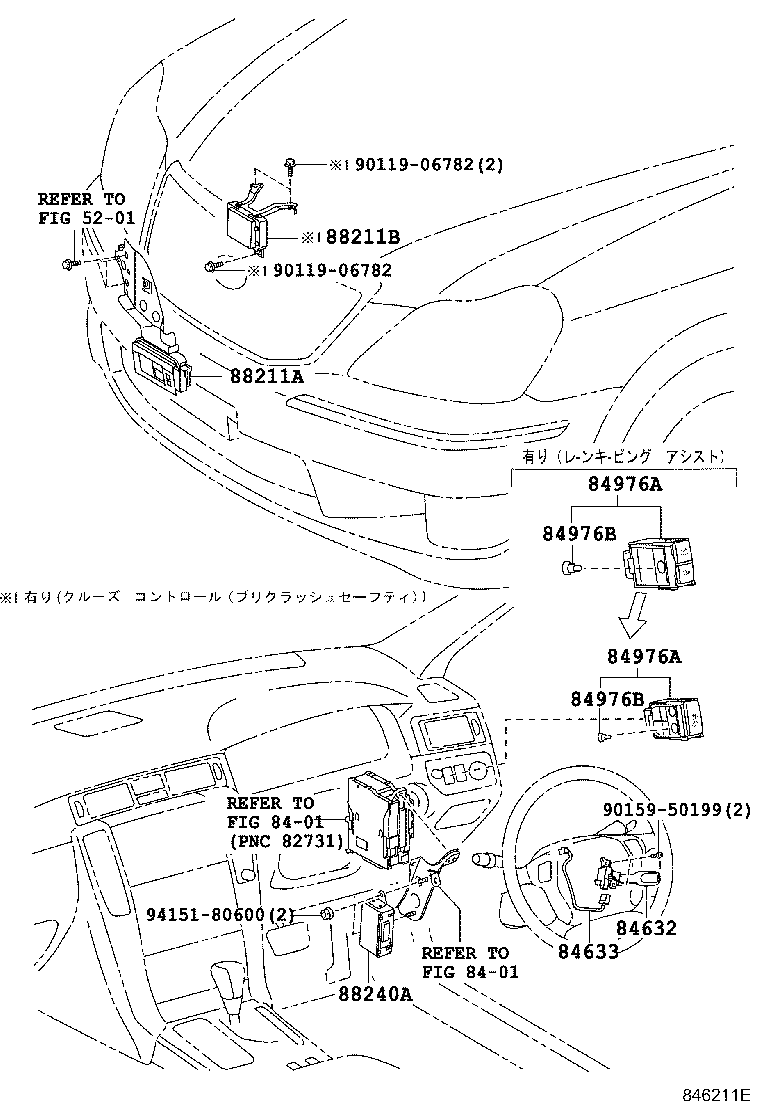

Click highlighted areas on diagram

diagram 5201 8401 8401 84632 84633 84976A 84976A 84976B 84976B 88211A 88211B 88240A 9011906782 9011906782 9015950199 9415180600
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-34010

GRS18#,UZS18#

 1
84632-34011

GRS180,181..5FC;GRS182,183,UZS18#

 1
84632-58011

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
84632-58011

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
84632-58010

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
84632-58010

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48020

GRS180,181..5FC;GRS182,183,UZS18#

 1
84633-48010

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
84633-48010

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
84976A - SWITCH, RADAR CRUISE
84976-30010

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
84976-30010

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
84976-30020

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84976-30020

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84976A - SWITCH, RADAR CRUISE
84976-30010

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
84976-30010

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
84976-30020

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84976-30020

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84976B - BULB, RADAR CRUISE SWITCH
84999-10310

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84999-10310

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84999-10310

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84999-10310

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
90010-01095

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
90010-01095

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
84976B - BULB, RADAR CRUISE SWITCH
84999-10310

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84999-10310

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84999-10310

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
84999-10310

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
90010-01095

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
90010-01095

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
88211A - SENSOR, LASER RADAR
88210-30050

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
88210-30050

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-30070

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
88240A - COMPUTER ASSY, DISTANCE CONTROL
88240-30430

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
88240-30400

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
88240-30430

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り

 1
88240-30400

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
88240-30430

UZS186

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ(低速対応))

 1
88240-30430

UZS186..C

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾌﾟﾘｸﾗｯｼｭｾ−ﾌﾃｨ(低速対応))

 1
Common parts
90119-06782
90159-50199
94151-80600
Linked diagrams
5201
8401
