GRS183-AETQH (2005)
Toyota Crown/Majesta
Production
Sep 2005
-
Feb 2008
Engine
3GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )2GRFSE,3GRFSE,4GRFSE

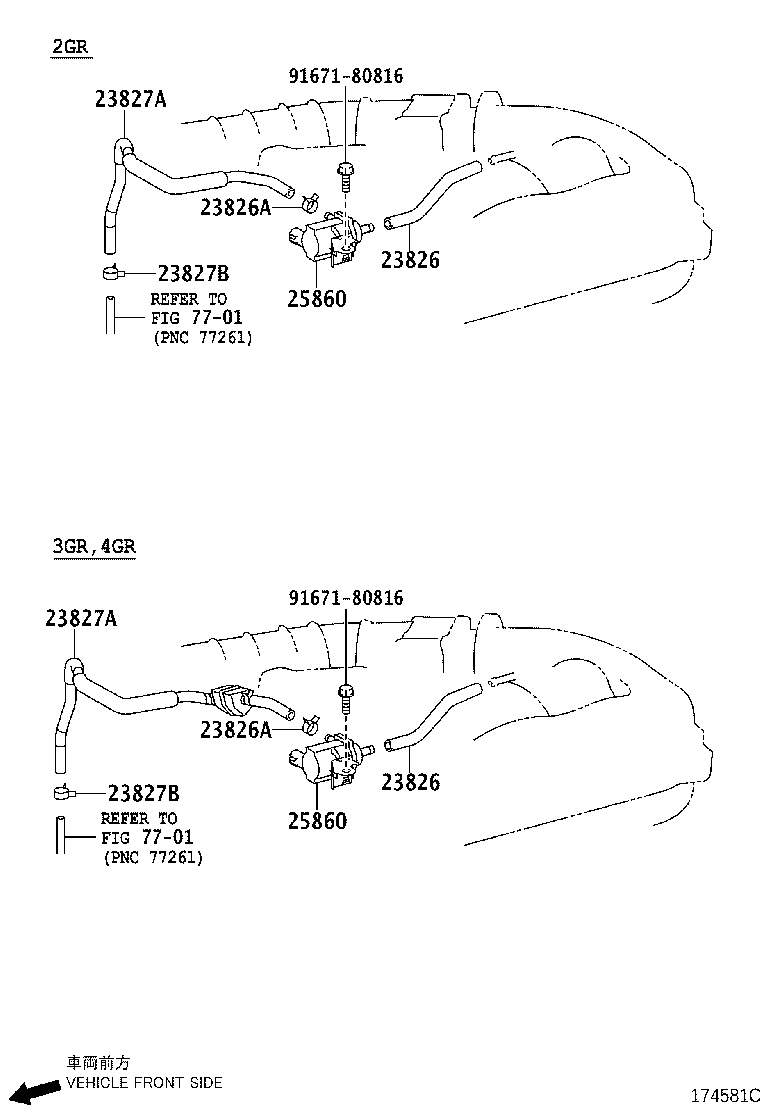

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23826-31030 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23826-31030 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51300 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 96132-51300 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51300 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 96132-51300 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-31010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23827-31110 |
3GRFSE,4GRFSE..GRS180,181,182,183 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-31010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23827-31110 |
3GRFSE,4GRFSE..GRS180,181,182,183 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41500 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 96132-41500 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41500 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 96132-41500 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-31040 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 25860-50160 |
3GRFSE,4GRFSE..GRS180,181,182,183 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-31040 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 25860-50160 |
3GRFSE,4GRFSE..GRS180,181,182,183 |
1 | ||
| Common parts | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 7701 | ||||
