GRS183-AETQH (2003)

Toyota Crown/Majesta

Production Dec 2003 - Sep 2005
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

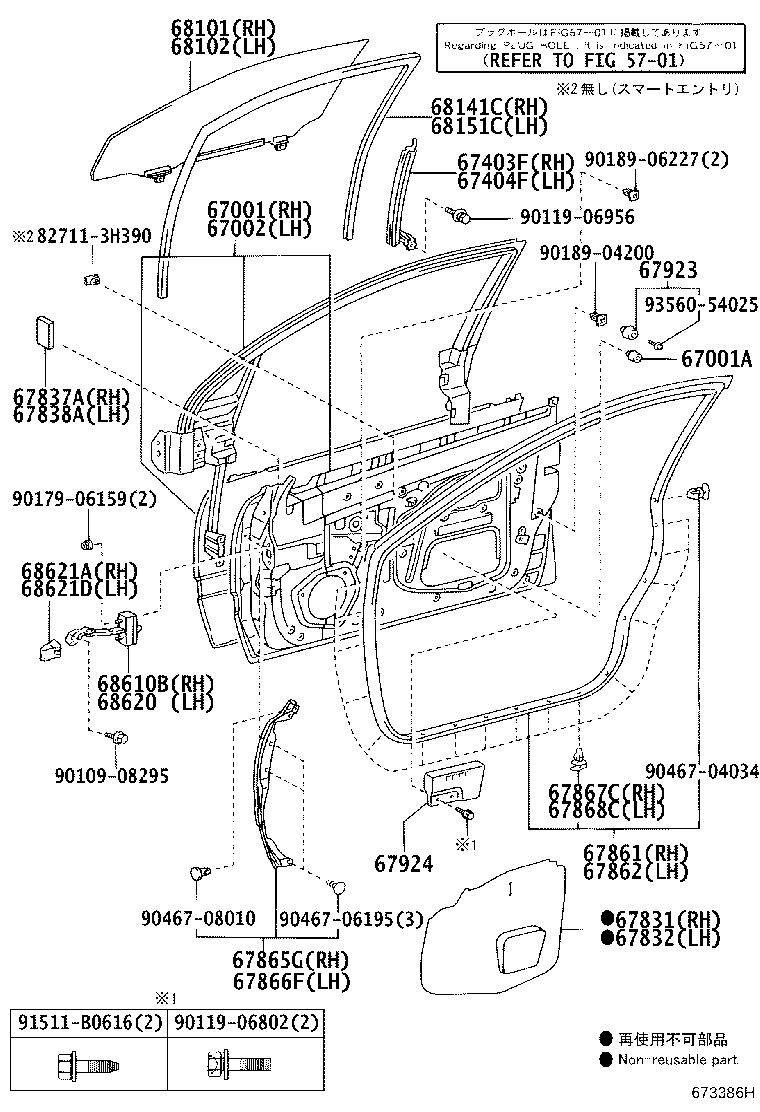

ILLUST NO. 1 OF 3(0312-0408)

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 5701 67001 67001A 67002 67403F 67404F 67831 67832 67837A 67838A 67861 67862 67865G 67866F 67867C 67868C 67923 67924 68101 68102 68141C 68151C 68610B 68620 68621A 68621D 827113H390 9010908295 9011906802 9011906956 9017906159 9018904200 9018906227 9046704034 9046706195 9046708010 91511B0616 9356054025
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-30831

GRS18#

 1
67001-30830

GRS18#,UZS18#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069

GRS18#

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-30A01

GRS18#

 1
67002-30A00

GRS18#,UZS18#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-30170

GRS18#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-30170

GRS18#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-30410

GRS18#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-30260

GRS18#

 1
67837A - SEAL, FRONT DOOR VENT, RH
67837-51010

GRS18#

 1
67838A - SEAL, FRONT DOOR VENT, LH
67837-51010

GRS18#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-30270

GRS18#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-30270

GRS18#

 1
67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH
67865-30030

GRS18#

 1
67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH
67866-30030

GRS18#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

GRS180,182,183

 16
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

GRS180,182,183

 16
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-24030

GRS18#

 2
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67923-30100

GRS18#

右側

 1
67924-30070

GRS18#

左側

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-30760

GRS180,181..5FC;GRS182,183,UZS18#

*UVCT,厚さ=5.0,ｸﾞﾘｰﾝ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-30760

GRS180,181..5FC;GRS182,183,UZS18#

*UVCT,厚さ=5.0,ｸﾞﾘｰﾝ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-30330

GRS18#,UZS18#

 1
68141-30331

GRS18#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-30170

GRS18#,UZS18#

 1
68151-30171

GRS18#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-30170

GRS18#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-30090

GRS18#

 1
68621A - COVER, FRONT DOOR CHECK, RH
68621-33010

GRS18#

 1
68621D - COVER, FRONT DOOR CHECK, LH
68622-33010

GRS18#

 1
Common parts
82711-3H390
90109-08295
90119-06802
90119-06956
90179-06159
90189-04200
90189-06227
90467-04034
90467-06195
90467-08010
91511-B0616
93560-54025
Linked diagrams
5701

ILLUST NO. 2 OF 3(0312-0509)GRS18# ; (0406-0606)UZS18# ; (0509-)GRS18# ; (0606- )UZS18#

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 6703 67601 67601A 67601B 67601G 67602 67602A 67663 67664 67691 67692 68171B 68172A 7401 7429432010 8401 8401 8401 8401 8401 9015940141 9016460014 9018904200 9046705162C0 9046709177 9046709206
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-30A10A0

GRS180,182,183..ROY

IVORY,TRIM0#

 1
67610-30A30A0

GRS183

有り(ﾘﾔ ｴｱｺﾝ)&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ､ﾄﾞｱ)&ｵｰﾃﾞｨｵ−高精細DVDﾅﾋﾞ&CDｵｰﾄﾁｪﾝｼﾞｬ&ｶｾｯﾄ&8SP,IVORY,TRIM0#

 1
67610-30A30B0

GRS183

有り(ﾘﾔ ｴｱｺﾝ)&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ､ﾄﾞｱ)&ｵｰﾃﾞｨｵ−高精細DVDﾅﾋﾞ&CDｵｰﾄﾁｪﾝｼﾞｬ&ｶｾｯﾄ&8SP,GRAY,TRIM1#

 1
67610-30A10B0

GRS180,182,183..ROY

GRAY,TRIM1#

 1
67650-3F200B0

GRS183

Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ﾗｯｾﾙ,GRAY,TRIM1#

 1
67610-30A30A0

GRS183

有り(ﾘﾔ ｴｱｺﾝ)&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ､ﾄﾞｱ)&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ,IVORY,TRIM0#

 1
67610-30A30A0

GRS183

有り(ﾘﾔ ｴｱｺﾝ)&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ､ﾄﾞｱ)&ｵｰﾃﾞｨｵ−高精細DVDﾅﾋﾞ&CDｵｰﾄﾁｪﾝｼﾞｬ&MD&8SP,IVORY,TRIM0#

 1
67610-30A30B0

GRS183

有り(ﾘﾔ ｴｱｺﾝ)&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ､ﾄﾞｱ)&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ,GRAY,TRIM1#

 1
67650-3F200A0

GRS183

Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ﾗｯｾﾙ,IVORY,TRIM0#

 1
67610-30A30B0

GRS183

有り(ﾘﾔ ｴｱｺﾝ)&ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ､ﾄﾞｱ)&ｵｰﾃﾞｨｵ−高精細DVDﾅﾋﾞ&CDｵｰﾄﾁｪﾝｼﾞｬ&MD&8SP,GRAY,TRIM1#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-32120

GRS180,181..5FC;GRS182,183,UZS18#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07066A5

GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG

IVORY,TRIM0#

 2
90467-07066P8

GRS18#

GRAY,TRIM1#

 2
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800P3

GRS18#

GRAY,TRIM1#

 2
90950-01800A2

GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG

IVORY,TRIM0#

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-30A00A0

GRS183

Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ﾗｯｾﾙ,IVORY,TRIM0#

 1
67620-30A00B0

GRS183

Sﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ﾗｯｾﾙ,GRAY,TRIM1#

 1
67620-30A30B0

GRS180,182,183..ROY,ROYG

GRAY,TRIM1#

 1
67620-30A30A0

GRS180,182,183..ROY,ROYG

IVORY,TRIM0#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-32120

GRS180,181..5FC;GRS182,183,UZS18#

 1
67663 - GARNISH, DOOR FRAME, UPPER RH
67663-30050

GRS18#

 1
67664 - GARNISH, DOOR FRAME, UPPER LH
67664-30050

GRS18#

 1
67692 - COVER, FRONT DOOR INNER TRIM, LH
67692-30020A0

GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG

IVORY,TRIM0#

 1
67692-30020B0

GRS18#

GRAY,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-30150

GRS180,181..5FC;GRS182,183,UZS18#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-30120

GRS180,181..5FC;GRS182,183,UZS18#

 1
Common parts
74294-32010
90159-40141
90164-60014
90189-04200
90467-05162C0
90467-09177
90467-09206
Linked diagrams
6703
7401
8401

ILLUST NO. 1 OF 3(0408- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 5701 67001 67001A 67002 67403F 67404F 67831 67832 67837A 67838A 67861 67862 67865G 67866F 67867C 67868C 67923 67924 68101 68102 68141C 68151C 68610B 68620 68621A 68621D 827113H390 9010908295 9011906802 9011906956 9017906159 9018904200 9018906227 9038708171 9046704034 9046704034 9046706195 9046708010 91511B0616 9155380618 9356054025
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-30831

GRS18#

 1
67001-30830

GRS18#,UZS18#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069

GRS18#

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-30A01

GRS18#

 1
67002-30A00

GRS18#,UZS18#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-30170

GRS18#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-30170

GRS18#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-30410

GRS18#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-30260

GRS18#

 1
67837A - SEAL, FRONT DOOR VENT, RH
67837-51010

GRS18#

 1
67838A - SEAL, FRONT DOOR VENT, LH
67837-51010

GRS18#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-30270

GRS18#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-30270

GRS18#

 1
67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH
67865-30030

GRS18#

 1
67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH
67866-30030

GRS18#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

GRS180,182,183

 16
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

GRS180,182,183

 16
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-24030

GRS18#

 2
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67923-30100

GRS18#

右側

 1
67924-30070

GRS18#

左側

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-30760

GRS180,181..5FC;GRS182,183,UZS18#

*UVCT,厚さ=5.0,ｸﾞﾘｰﾝ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-30760

GRS180,181..5FC;GRS182,183,UZS18#

*UVCT,厚さ=5.0,ｸﾞﾘｰﾝ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-30330

GRS18#,UZS18#

 1
68141-30331

GRS18#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-30170

GRS18#,UZS18#

 1
68151-30171

GRS18#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-30170

GRS18#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-30090

GRS18#

 1
68621A - COVER, FRONT DOOR CHECK, RH
68621-33010

GRS18#

 1
68621D - COVER, FRONT DOOR CHECK, LH
68622-33010

GRS18#

 1
Common parts
82711-3H390
90109-08295
90119-06802
90119-06956
90179-06159
90189-04200
90189-06227
90387-08171
90467-04034
90467-06195
90467-08010
91511-B0616
91553-80618
93560-54025
Linked diagrams
5701
