GRS182-AETUH (2003)

Toyota Crown/Majesta

Production Dec 2003 - Sep 2005
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

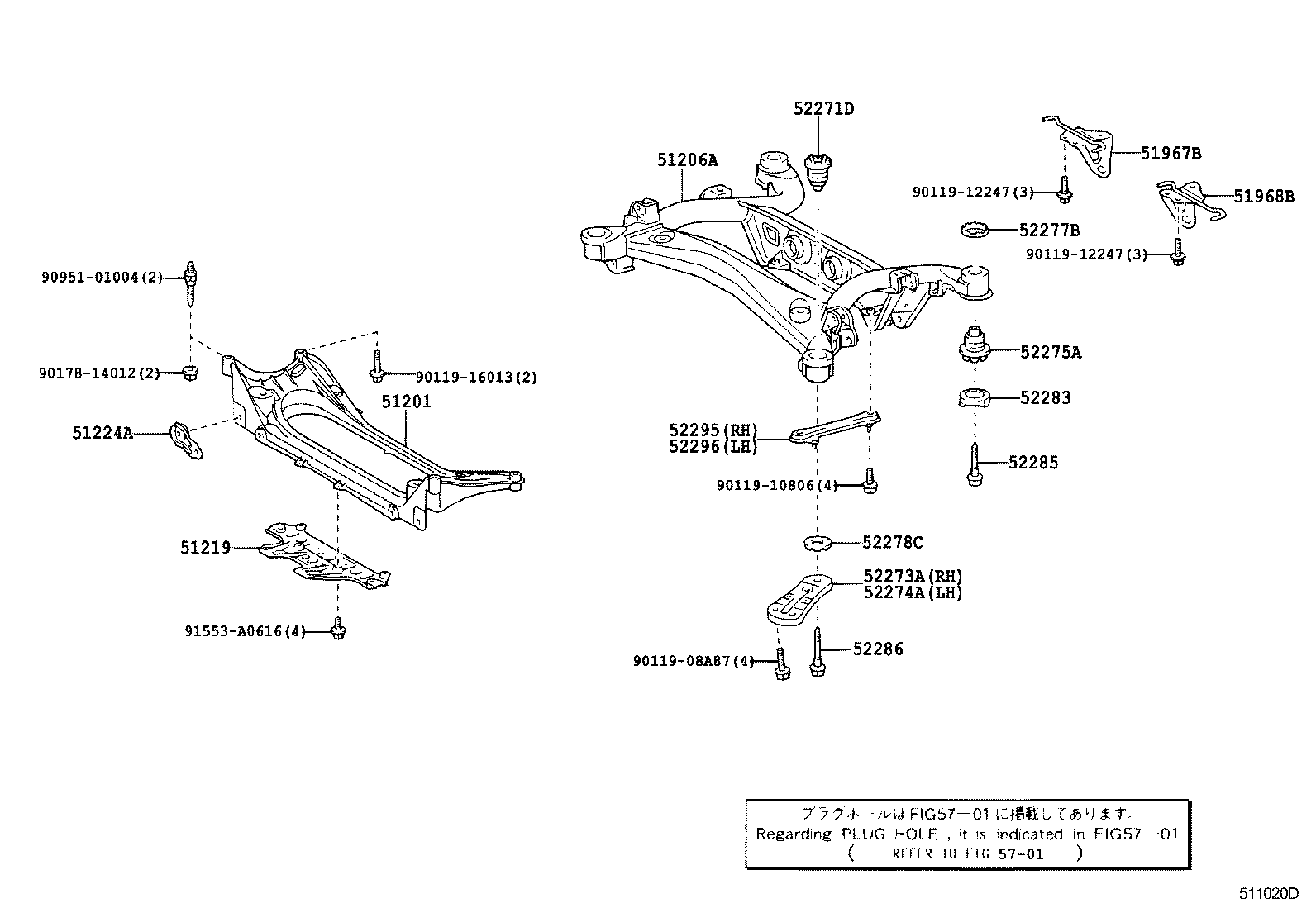

ILLUST NO. 1 OF 2(0312- )GRS180,182,184,UZS186

Click highlighted areas on diagram

diagram 51201 51206A 51219 51224A 51967B 51968B 52271D 52273A 52274A 52275A 52277B 52278C 52283 52285 52286 52295 52296 5701 9011908A87 9011910806 9011912247 9011912247 9011916013 9017814012 9095101004 91553A0616
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-30130

GRS180,182

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-30080

GRS18#

 1
51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51219-30031

GRS180,182

 1
51219-30030

GRS180,182,UZS186

 1
51224A - PLATE, FRONT SUSPENSION MENBER BRACE
51224-30030

GRS180,182

 2
51967B - HOOK, TRANSPORT, REAR RH
51967-30050

GRS180,181..5FC;GRS182,183,UZS18#

 1
51967-30060

GRS180,181..5FC;GRS182,183,UZS18#

寒冷地仕様

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-30060

GRS180,181..5FC;GRS182,183,UZS18#

 1
51968-30070

GRS180,181..5FC;GRS182,183,UZS18#

寒冷地仕様

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-30100

GRS18#..ROY,ROYEX,ROYG

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-30080

GRS18#..ROY,ROYEX,ROYG

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-30080

GRS18#..ROY,ROYEX,ROYG

 1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-30110

GRS18#..ROY,ROYEX,ROYG

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-30060

GRS18#..ROY,ROYEX,ROYG

 2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-30050

GRS18#..ROY,ROYEX,ROYG

 2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-30060

GRS18#..ROY,ROYEX,ROYG

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021

GRS18#..ROY,ROYEX,ROYG

 2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-30010

GRS18#,UZS18#..A,C,ROY,ROYEX,ROYG

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-30030

GRS18#..ROY,ROYEX,ROYG

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-30030

GRS18#..ROY,ROYEX,ROYG

 1
Common parts
90119-08A87
90119-10806
90119-12247
90119-16013
90178-14012
90951-01004
91553-A0616
Linked diagrams
5701

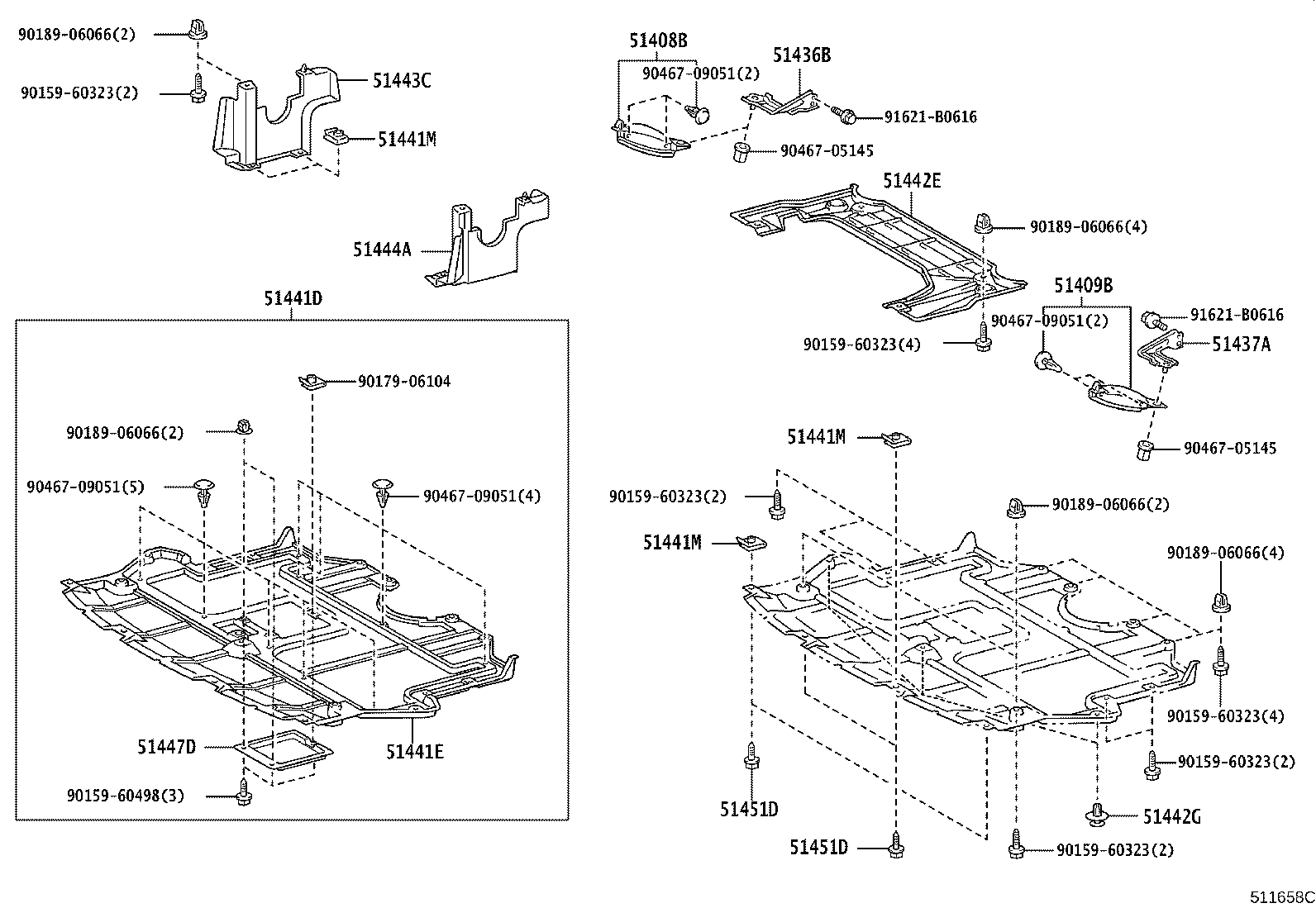

ILLUST NO. 2 OF 2(0312-0505)GRS180,182

Click highlighted areas on diagram

ｱﾝﾀﾞ ｶﾊﾞ-

diagram 51408B 51409B 51436B 51437A 51441D 51441E 51441M 51441M 51441M 51442E 51442G 51443C 51444A 51447D 51451D 51451D 9015960323 9015960323 9015960323 9015960323 9015960323 9015960323 9015960498 9017906104 9018906066 9018906066 9018906066 9018906066 9018906066 9046705145 9046705145 9046709051 9046709051 9046709051 9046709051 91621B0616 91621B0616
Part # Description Qty Price
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-30050

GRS180,182

 1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
51409-30050

GRS180,182

 1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-30030

GRS180,182

 1
51437A - BRACKET, ENGINE SIDE COVER, NO.1 LH
51437-30010

GRS180,182

 1
51441D - COVER, ENGINE UNDER
51410-30020

GRS180,182

 1
51410-30021

GRS180,182

 1
51441E - COVER, MOTOR UNDER, NO.1
51441-30330

GRS180,182

 1
51441M - NUT
90179-05060

GRS18#

 1
90179-05060

GRS180,182

 8
51441M - NUT
90179-05060

GRS18#

 1
90179-05060

GRS180,182

 8
51441M - NUT
90179-05060

GRS18#

 1
90179-05060

GRS180,182

 8
51442E - COVER, ENGINE UNDER, NO.2
51442-30130

GRS180,182

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07166

GRS180,181..5FC;GRS182,183,UZS18#

 3
51443C - COVER, ENGINE UNDER, REAR RH
51443-30140

GRS180,182

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-30170

GRS180,182

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-30080

GRS180,182

 1
51447-30080

GRS180,182

 1
51451D - SCREW, NO.1
90159-60477

GRS180,181..5FC;GRS182,183,UZS18#

 4
51451D - SCREW, NO.1
90159-60477

GRS180,181..5FC;GRS182,183,UZS18#

 4
Common parts
90159-60323
90159-60498
90179-06104
90189-06066
90467-05145
90467-09051
91621-B0616

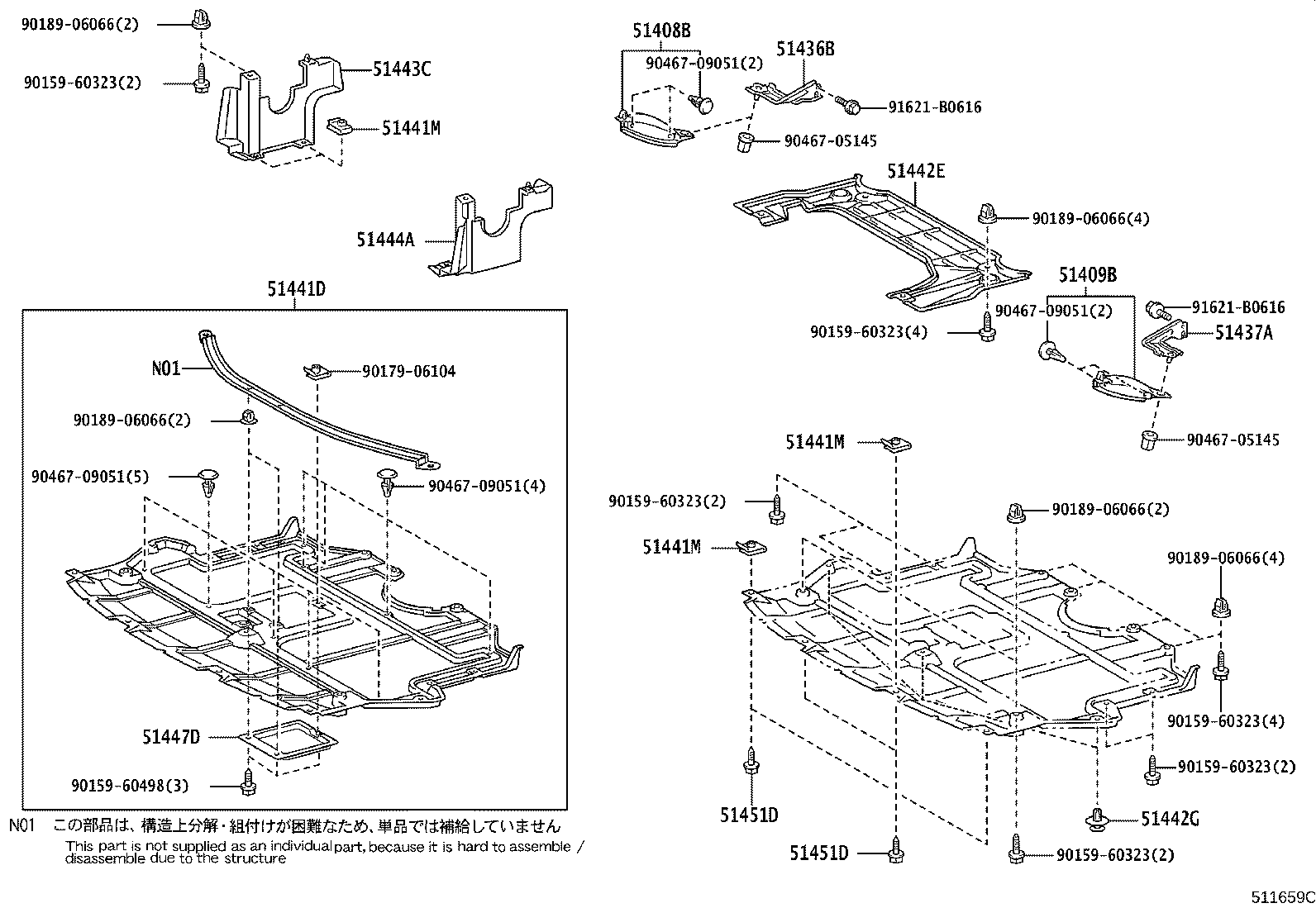

ILLUST NO. 2 OF 2(0505-0509)GRS180,182

Click highlighted areas on diagram

ｱﾝﾀﾞ ｶﾊﾞｰ

diagram 51408B 51409B 51436B 51437A 51441D 51441M 51441M 51441M 51442E 51442G 51443C 51444A 51447D 51451D 51451D 9015960323 9015960323 9015960323 9015960323 9015960323 9015960323 9015960498 9017906104 9018906066 9018906066 9018906066 9018906066 9018906066 9046705145 9046705145 9046709051 9046709051 9046709051 9046709051 91621B0616 91621B0616
Part # Description Qty Price
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-30050

GRS180,182

 1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
51409-30050

GRS180,182

 1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-30030

GRS180,182

 1
51437A - BRACKET, ENGINE SIDE COVER, NO.1 LH
51437-30010

GRS180,182

 1
51441D - COVER, ENGINE UNDER
51410-30020

GRS180,182

 1
51410-30021

GRS180,182

 1
51441M - NUT
90179-05060

GRS18#

 1
90179-05060

GRS180,182

 8
51441M - NUT
90179-05060

GRS18#

 1
90179-05060

GRS180,182

 8
51441M - NUT
90179-05060

GRS18#

 1
90179-05060

GRS180,182

 8
51442E - COVER, ENGINE UNDER, NO.2
51442-30130

GRS180,182

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07166

GRS180,181..5FC;GRS182,183,UZS18#

 3
51443C - COVER, ENGINE UNDER, REAR RH
51443-30140

GRS180,182

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-30170

GRS180,182

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-30080

GRS180,182

 1
51447-30080

GRS180,182

 1
51451D - SCREW, NO.1
90159-60477

GRS180,181..5FC;GRS182,183,UZS18#

 4
51451D - SCREW, NO.1
90159-60477

GRS180,181..5FC;GRS182,183,UZS18#

 4
Common parts
90159-60323
90159-60498
90179-06104
90189-06066
90467-05145
90467-09051
91621-B0616
