GRS182-AETQH (2003)

Toyota Crown/Majesta

Production Dec 2003 - Sep 2005
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )GRS180,182,184,UZS186

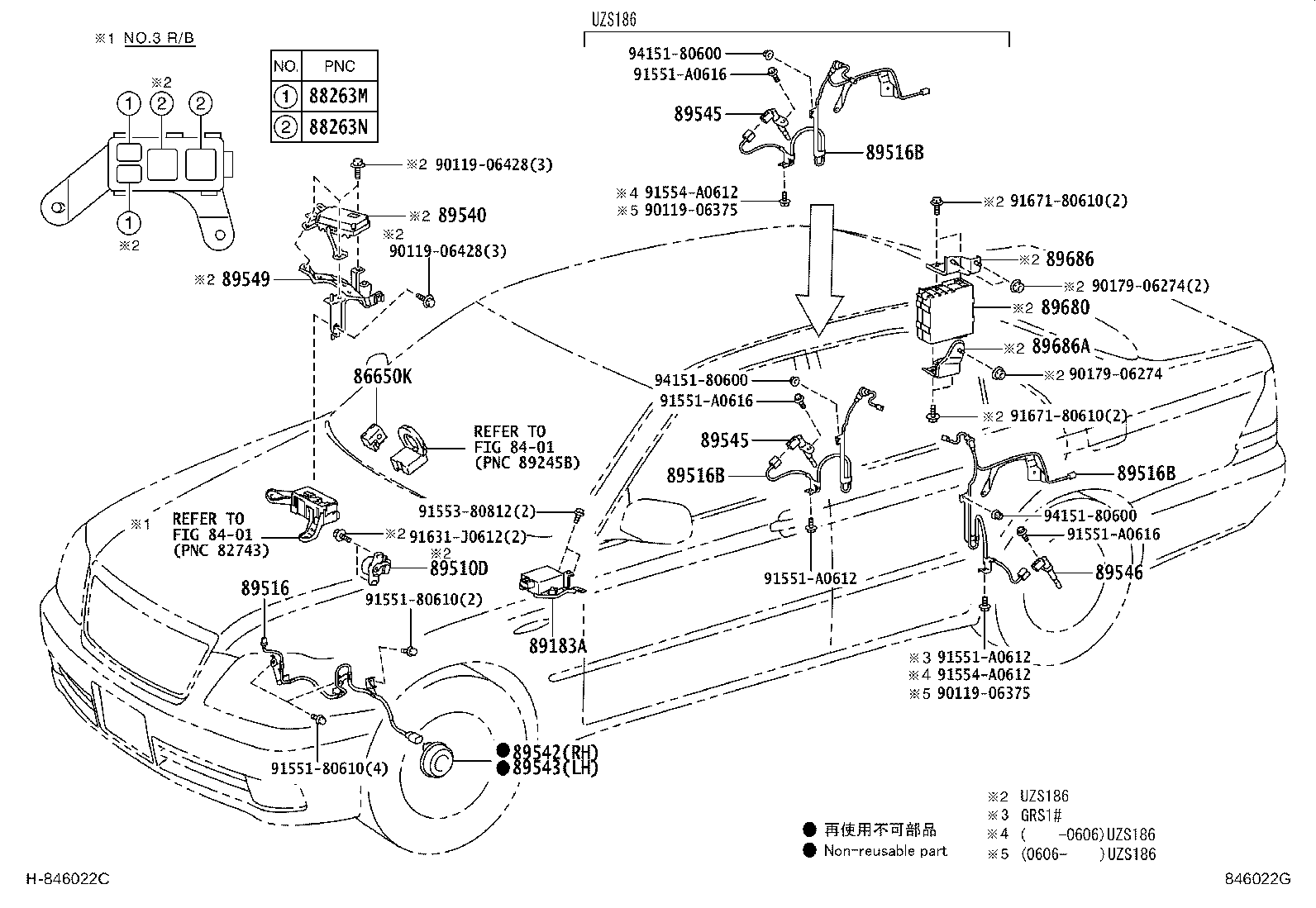

Click highlighted areas on diagram

diagram 8401 8401 86650K 88263M 88263N 89183A 89510D 89516 89516B 89516B 89516B 89540 89542 89543 89545 89545 89546 89549 89680 89686 89686A 9011906375 9011906375 9011906428 9011906428 9017906274 9017906274 9155180610 9155180610 91551A0612 91551A0612 91551A0616 91551A0616 91551A0616 9155380812 91554A0612 91554A0612 91631J0612 9167180610 9167180610 9415180600 9415180600 9415180600
Part # Description Qty Price
86650K - BUZZER ASSY, SKID CONTROL
86652-48010

GRS18#

 1
88263M - RELAY, ABS SOLENOID
88263-32070

GRS180,181..5FC;GRS182,183,UZS187

 1
88263N - RELAY, ABS MOTOR
88263-21010

GRS180,181..5FC;GRS182,183,UZS187

 1
89183A - SENSOR, YAWRATE
89180-30070

GRS18#

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-30020

GRS180..5FC;GRS182,UZS186

右側

 1
89516-30030

GRS180..5FC;GRS182,UZS186

左側

 1
89516B - WIRE, SKID CONTROL SENSOR
89516-22030

GRS18#,UZS18#

左側

 1
89516-30090

GRS18#,UZS18#

左側

 1
89516-22020

GRS18#

右側

 1
89516-22040

GRS18#

左側

 1
89516-30080

GRS18#

右側

 1
89516B - WIRE, SKID CONTROL SENSOR
89516-22030

GRS18#,UZS18#

左側

 1
89516-30090

GRS18#,UZS18#

左側

 1
89516-22020

GRS18#

右側

 1
89516-22040

GRS18#

左側

 1
89516-30080

GRS18#

右側

 1
89516B - WIRE, SKID CONTROL SENSOR
89516-22030

GRS18#,UZS18#

左側

 1
89516-30090

GRS18#,UZS18#

左側

 1
89516-22020

GRS18#

右側

 1
89516-22040

GRS18#

左側

 1
89516-30080

GRS18#

右側

 1
89542 - SENSOR, SPEED, FRONT RH
89542-30260

GRS180..5FC;GRS182,UZS186

 1
89543 - SENSOR, SPEED, FRONT LH
89543-30260

GRS180..5FC;GRS182,UZS186

 1
89545 - SENSOR, SPEED, REAR RH
89545-30070

GRS180,181..5FC;GRS182,183,UZS18#

 1
89545 - SENSOR, SPEED, REAR RH
89545-30070

GRS180,181..5FC;GRS182,183,UZS18#

 1
89546 - SENSOR, SPEED, REAR LH
89546-30070

GRS180,181..5FC;GRS182,183,UZS18#

 1
Common parts
90119-06375
90119-06428
90179-06274
91551-80610
91551-A0612
91551-A0616
91553-80812
91554-A0612
91631-J0612
91671-80610
94151-80600
Linked diagrams
8401
