GRS182-AETQH (2003)

Toyota Crown/Majesta

Production Dec 2003 - Sep 2005
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0312- )

Click highlighted areas on diagram

ﾒ-ﾀ

diagram 83100 83138G 9015950327 9354013008
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-30A30

GRS182..ROY

DENSO,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ)

 1
83800-30A30

GRS182,183..ROY

DENSO,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ)

 1
83800-30A10

GRS182..ROY

DENSO,寒冷地仕様

 1
83800-30A00

GRS182..ROY

DENSO

 1
83800-30A10

GRS182..ROY

DENSO,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A)

 1
83800-30A31

GRS182..ROY

DENSO,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ)

 1
83800-30A31

GRS182,183..ROY

DENSO,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰｻﾞﾚｰﾀﾞ)

 1
83138G - GLASS, COMBINATION METER
83852-30A00

GRS18#

 1
Common parts
90159-50327
93540-13008

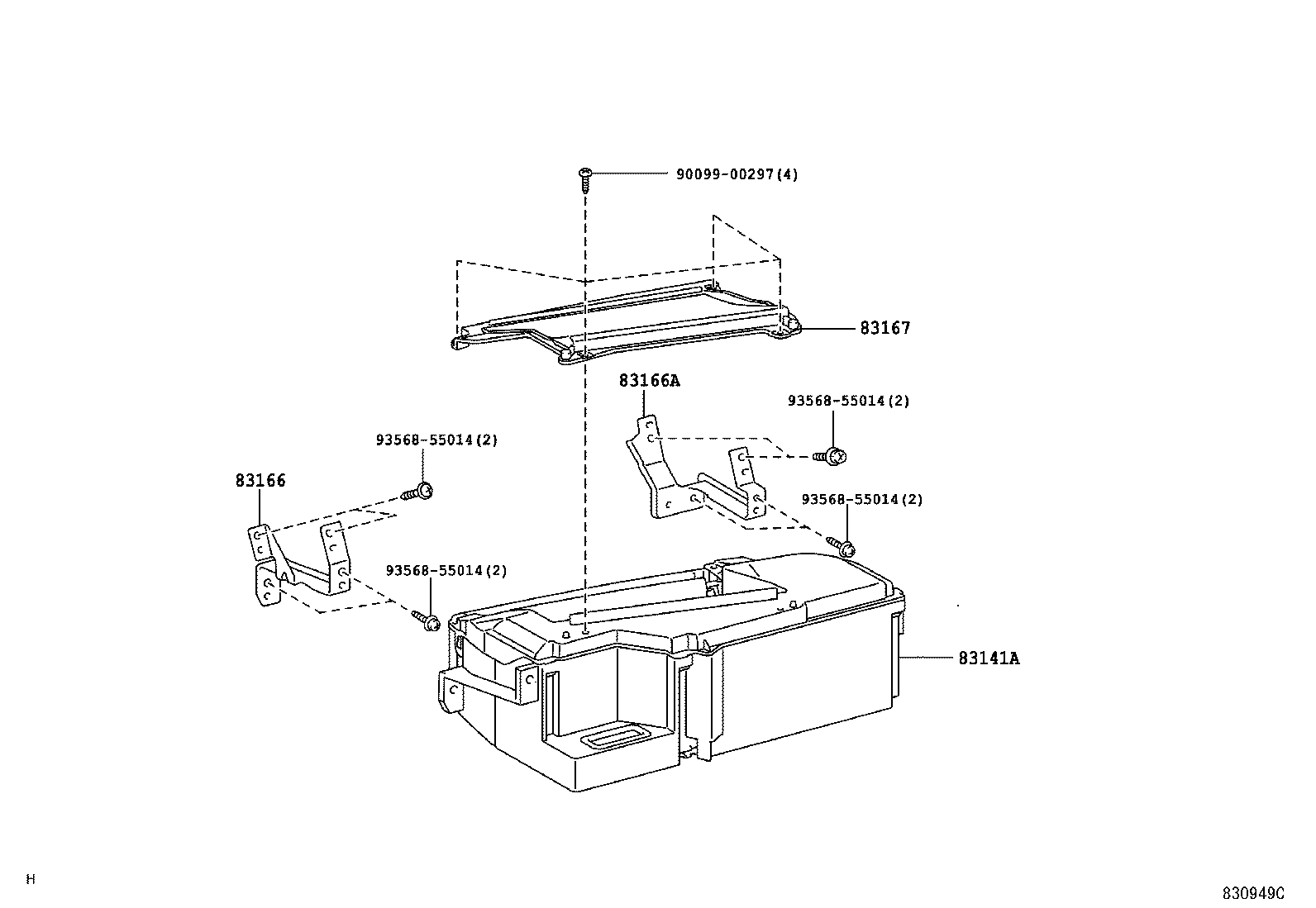

ILLUST NO. 2 OF 3(0312- )GRS182,183,184,UZS18#

Click highlighted areas on diagram

ﾍﾂﾄﾞｱﾂﾌﾟﾃﾞｲｽﾌﾟﾚｲ ｱﾘ(ﾅｲﾄ ﾋﾞｭ-)

diagram 83141A 83166 83166A 83167 9009900297 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
Common parts
90099-00297
93568-55014

ILLUST NO. 3 OF 3(0312- )

Click highlighted areas on diagram

ｸﾛﾂｸ

diagram 83910
Part # Description Qty Price
83910 - CLOCK ASSY
83910-30600

GRS182,183

 1
83910-30610

GRS182,183..ATH,ROY

ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−無し

 1
