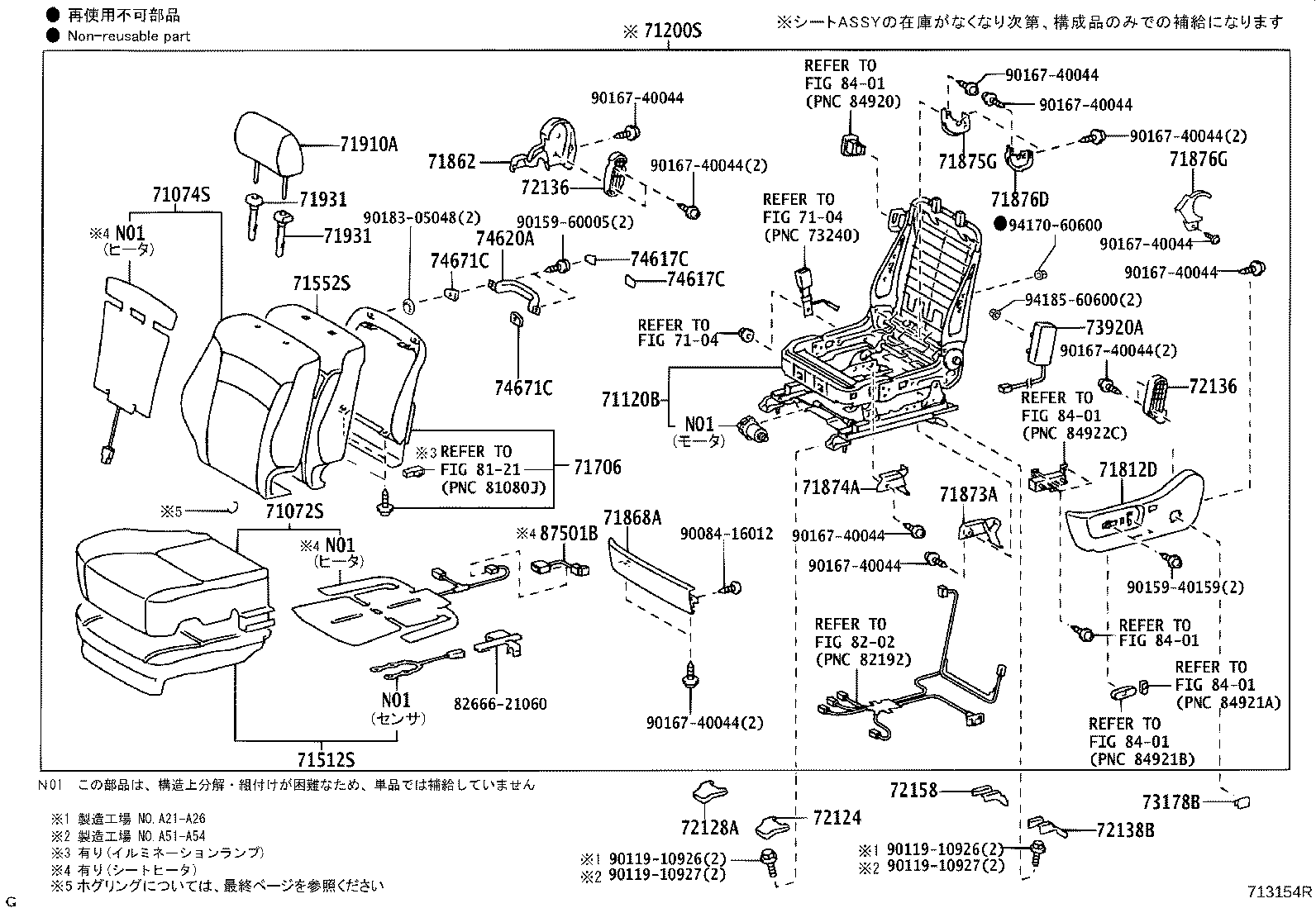

GRS182-AETQH (2003)
Toyota Crown/Majesta
(0312- )
ｳﾝﾃﾝｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-30A20A4 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71071-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
1 | ||
| 71071-30A20B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71071-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71073-30A30B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71073-30A30A3 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71073-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71010-3F880B2 |
GRS182..ROY GRAY,TRIM1# |
1 | ||
| 71010-3F880A5 |
GRS182..ROY IVORY,TRIM0# |
1 | ||
| 71100-30A70A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71100-30A70B2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71100-3K870A4 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71100-3K870A4 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-30100 |
GRS182,UZS18#;GRS180..5FC..(ATH,ROY) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30A10 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| 71511-30A10 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 71511-30A00 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30A10 |
GRS182,183,UZS18#..A,C,ROY,ROYG |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30740B1 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71705-30740C1 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71705-30740A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30450B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71811-30450C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71811-30450A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110B4 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71861-60110A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71861-60110C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30120B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71867-30120C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71867-30120A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60150A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71875-60150B4 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71875-60150C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30A20A1 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
2 | ||
| 71910-30A30B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71910-30A30A1 |
GRS180,182,183..ROY,ROYG IVORY,TRIM0# |
2 | ||
| 71910-30A30A1 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71910-30A30B0 |
GRS180,182,183..ROY,ROYG GRAY,TRIM1# |
2 | ||
| 71910-30A20A1 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-30010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),助手席C左側 |
1 | ||
| 72136-30040 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),運転席C左側,助手席,右側 |
1 | ||
| 72136-30030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG 運転席,右側 |
1 | ||
| 72136-30040 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),運転席,左側 |
1 | ||
| 72136-30010 |
GRS182,183,UZS18# 助手席,左側 |
1 | ||
| 72136-30040 |
GRS182,183,UZS18# 助手席,右側 |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-30010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),助手席C左側 |
1 | ||
| 72136-30040 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),運転席C左側,助手席,右側 |
1 | ||
| 72136-30030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG 運転席,右側 |
1 | ||
| 72136-30040 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),運転席,左側 |
1 | ||
| 72136-30010 |
GRS182,183,UZS18# 助手席,左側 |
1 | ||
| 72136-30040 |
GRS182,183,UZS18# 助手席,右側 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30190B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72137-30190C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72137-30190A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72157-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72157-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30260 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-30030C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 73178-30030B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 73178-30030A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73178-30030A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-47031 |
GRS182,183,UZS18# |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30080A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 74620-30080B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
2 | ||
| 74620-30080B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 74620-30080A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
2 | ||
| 74620-30080B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
2 | ||
| 74620-30080A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
2 | ||
| 74620-30080C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-58020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-58040 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-58030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-60010 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 87501-60010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| Common parts | ||||
| 90084-16012 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90148-60038 | ||||
| 90148-80059 | ||||
| 90148-80060 | ||||
| 90148-80061 | ||||
| 90148-80062 | ||||
| 90159-40159 | ||||
| 90159-60005 | ||||
| 90167-40044 | ||||
| 90183-05048 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(0312- )GRS18#
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-30A20A4 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71071-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
1 | ||
| 71071-30A20B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71071-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71073-30A30B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71073-30A30A3 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71073-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-30100 |
GRS182,UZS18#;GRS180..5FC..(ATH,ROY) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30A10 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| 71511-30A10 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 71511-30A00 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30A10 |
GRS182,183,UZS18#..A,C,ROY,ROYG |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30740B1 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71705-30740C1 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71705-30740A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30450B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71811-30450C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71811-30450A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110B4 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71861-60110A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71861-60110C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-30120B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71867-30120C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71867-30120A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60150A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71875-60150B4 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71875-60150C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30A20A1 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
2 | ||
| 71910-30A30B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71910-30A30A1 |
GRS180,182,183..ROY,ROYG IVORY,TRIM0# |
2 | ||
| 71910-30A30A1 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71910-30A30B0 |
GRS180,182,183..ROY,ROYG GRAY,TRIM1# |
2 | ||
| 71910-30A20A1 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-30010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),助手席C左側 |
1 | ||
| 72136-30040 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),運転席C左側,助手席,右側 |
1 | ||
| 72136-30030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG 運転席,右側 |
1 | ||
| 72136-30040 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),運転席,左側 |
1 | ||
| 72136-30010 |
GRS182,183,UZS18# 助手席,左側 |
1 | ||
| 72136-30040 |
GRS182,183,UZS18# 助手席,右側 |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-30010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),助手席C左側 |
1 | ||
| 72136-30040 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),運転席C左側,助手席,右側 |
1 | ||
| 72136-30030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG 運転席,右側 |
1 | ||
| 72136-30040 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),運転席,左側 |
1 | ||
| 72136-30010 |
GRS182,183,UZS18# 助手席,左側 |
1 | ||
| 72136-30040 |
GRS182,183,UZS18# 助手席,右側 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30190B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72137-30190C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72137-30190A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72157-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72157-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30260 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-30030C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 73178-30030B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 73178-30030A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73178-30030A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30080A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 74620-30080B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
2 | ||
| 74620-30080B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 74620-30080A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
2 | ||
| 74620-30080B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
2 | ||
| 74620-30080A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
2 | ||
| 74620-30080C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-58020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-58040 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-58030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| Common parts | ||||
| 90084-16012 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90148-60038 | ||||
| 90148-80059 | ||||
| 90148-80060 | ||||
| 90148-80061 | ||||
| 90148-80062 | ||||
| 90159-40159 | ||||
| 90159-60005 | ||||
| 90167-40044 | ||||
| 90183-05048 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

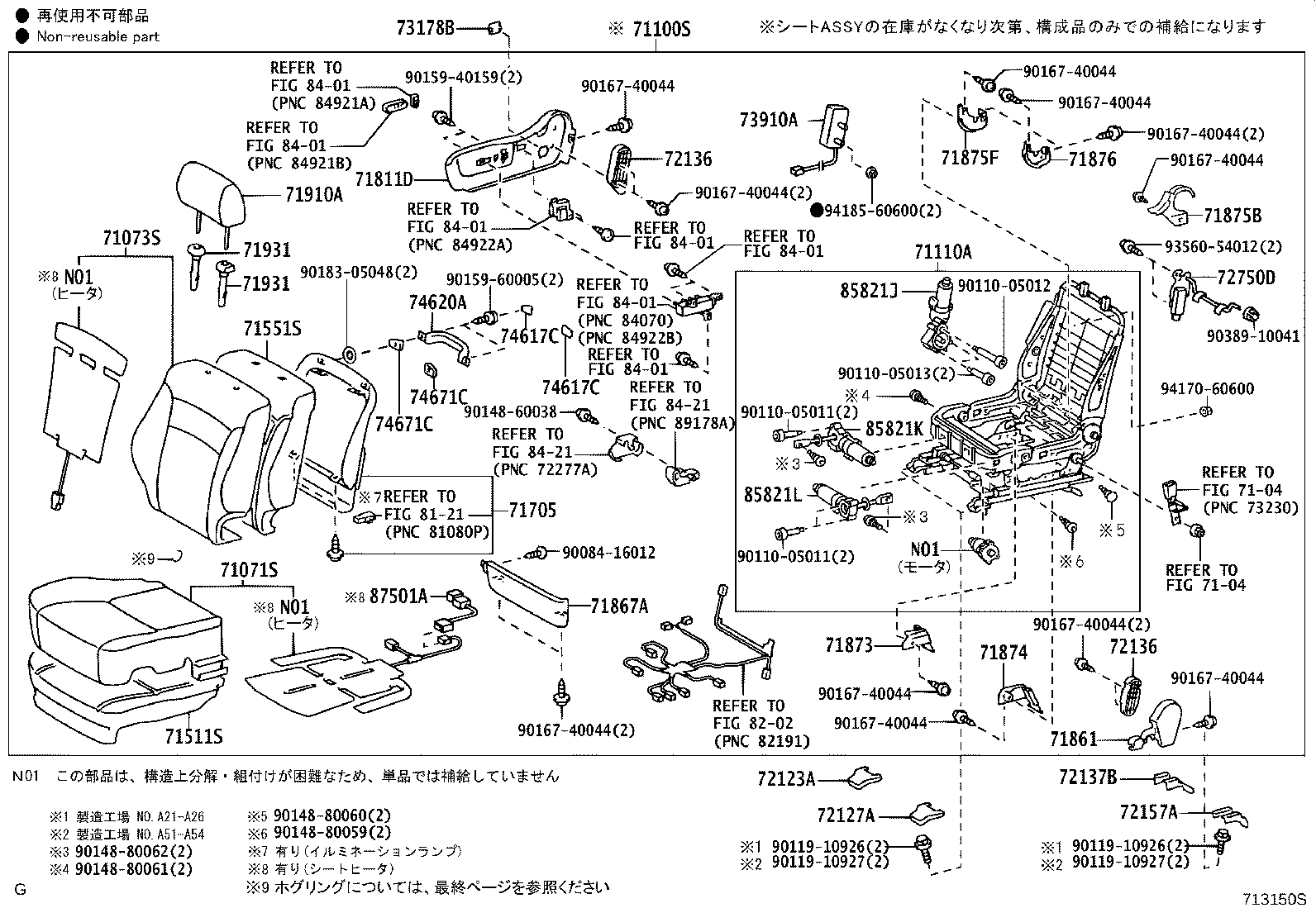

(0312- )GRS18#
ｳﾝﾃﾝｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-30A20A4 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71071-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
1 | ||
| 71071-30A20B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71071-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71073-30A30B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71073-30A30A3 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71073-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71010-3F880B2 |
GRS182..ROY GRAY,TRIM1# |
1 | ||
| 71010-3F880A5 |
GRS182..ROY IVORY,TRIM0# |
1 | ||
| 71100-30A70A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71100-30A70B2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71100-3K870A4 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71100-3K870A4 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-30100 |
GRS182,UZS18#;GRS180..5FC..(ATH,ROY) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30A10 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| 71511-30A10 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 71511-30A00 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30A10 |
GRS182,183,UZS18#..A,C,ROY,ROYG |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30740B1 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71705-30740C1 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71705-30740A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30450B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71811-30450C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71811-30450A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110B4 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71861-60110A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71861-60110C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60150A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71875-60150B4 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71875-60150C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30A20A1 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
2 | ||
| 71910-30A30B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71910-30A30A1 |
GRS180,182,183..ROY,ROYG IVORY,TRIM0# |
2 | ||
| 71910-30A30A1 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71910-30A30B0 |
GRS180,182,183..ROY,ROYG GRAY,TRIM1# |
2 | ||
| 71910-30A20A1 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30190B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72137-30190C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72137-30190A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72157-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72157-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30260 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-30030C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 73178-30030B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 73178-30030A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73178-30030A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-47031 |
GRS182,183,UZS18# |
1 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58040 | ||||
| 72702-58050 | ||||
| 72702-58070 | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90148-60038 | ||||
| 90167-40044 | ||||
| 90389-10041 | ||||
| 90520-01006 | ||||
| 93560-54012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

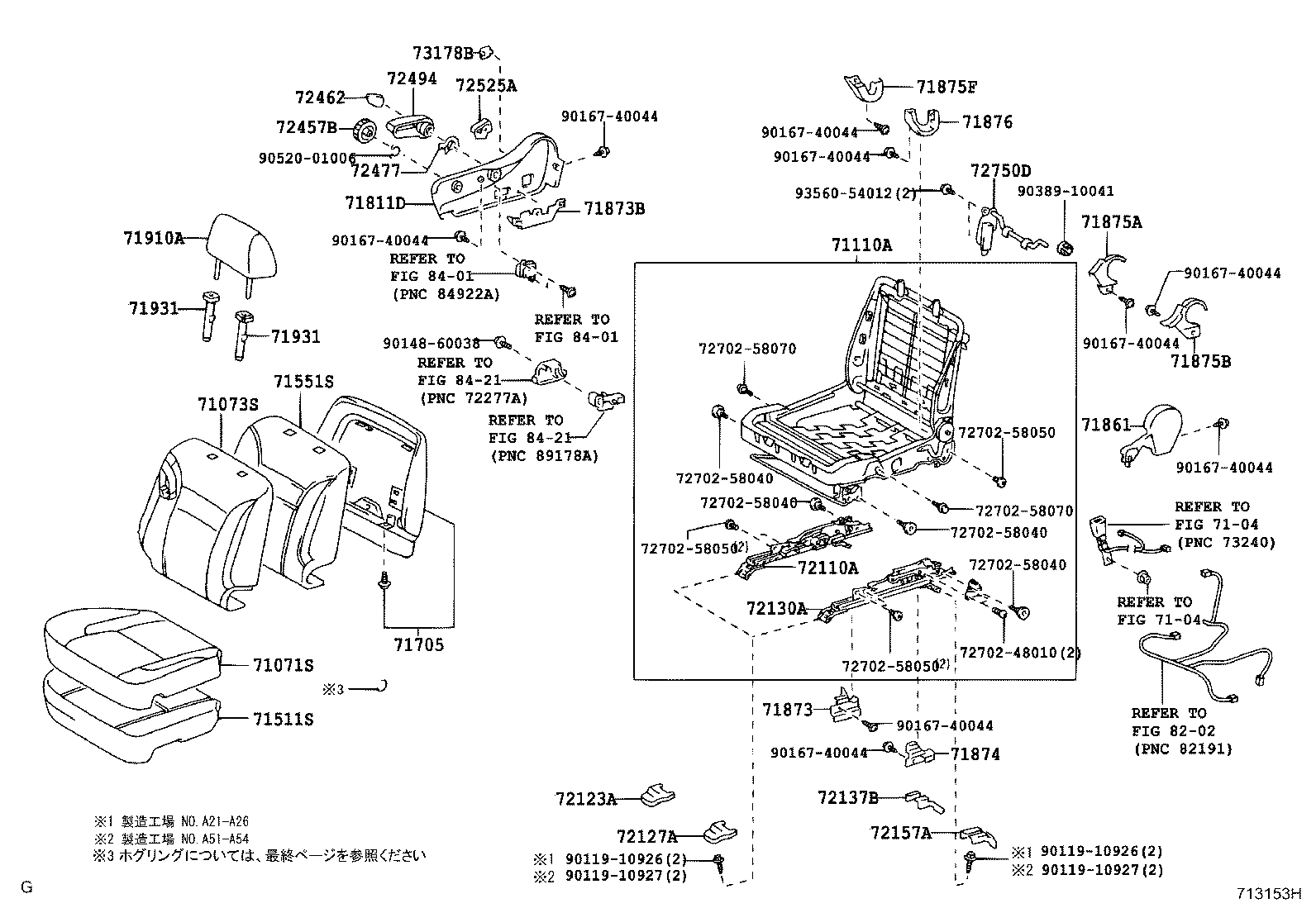

(0312- )GRS18#
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-30A20A4 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71071-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
1 | ||
| 71071-30A20B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71071-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71073-30A30B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71073-30A30A3 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71073-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-30100 |
GRS182,UZS18#;GRS180..5FC..(ATH,ROY) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30A10 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| 71511-30A10 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 71511-30A00 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30A10 |
GRS182,183,UZS18#..A,C,ROY,ROYG |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30740B1 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71705-30740C1 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71705-30740A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-30450B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71811-30450C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71811-30450A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110B4 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71861-60110A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71861-60110C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60150A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71875-60150B4 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71875-60150C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30A20A1 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
2 | ||
| 71910-30A30B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71910-30A30A1 |
GRS180,182,183..ROY,ROYG IVORY,TRIM0# |
2 | ||
| 71910-30A30A1 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71910-30A30B0 |
GRS180,182,183..ROY,ROYG GRAY,TRIM1# |
2 | ||
| 71910-30A20A1 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-30190B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72137-30190C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72137-30190A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-30090B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72157-30090A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72157-30090C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30260 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-30030C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 73178-30030B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 73178-30030A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73178-30030A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58040 | ||||
| 72702-58050 | ||||
| 72702-58070 | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90148-60038 | ||||
| 90167-40044 | ||||
| 90389-10041 | ||||
| 90520-01006 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

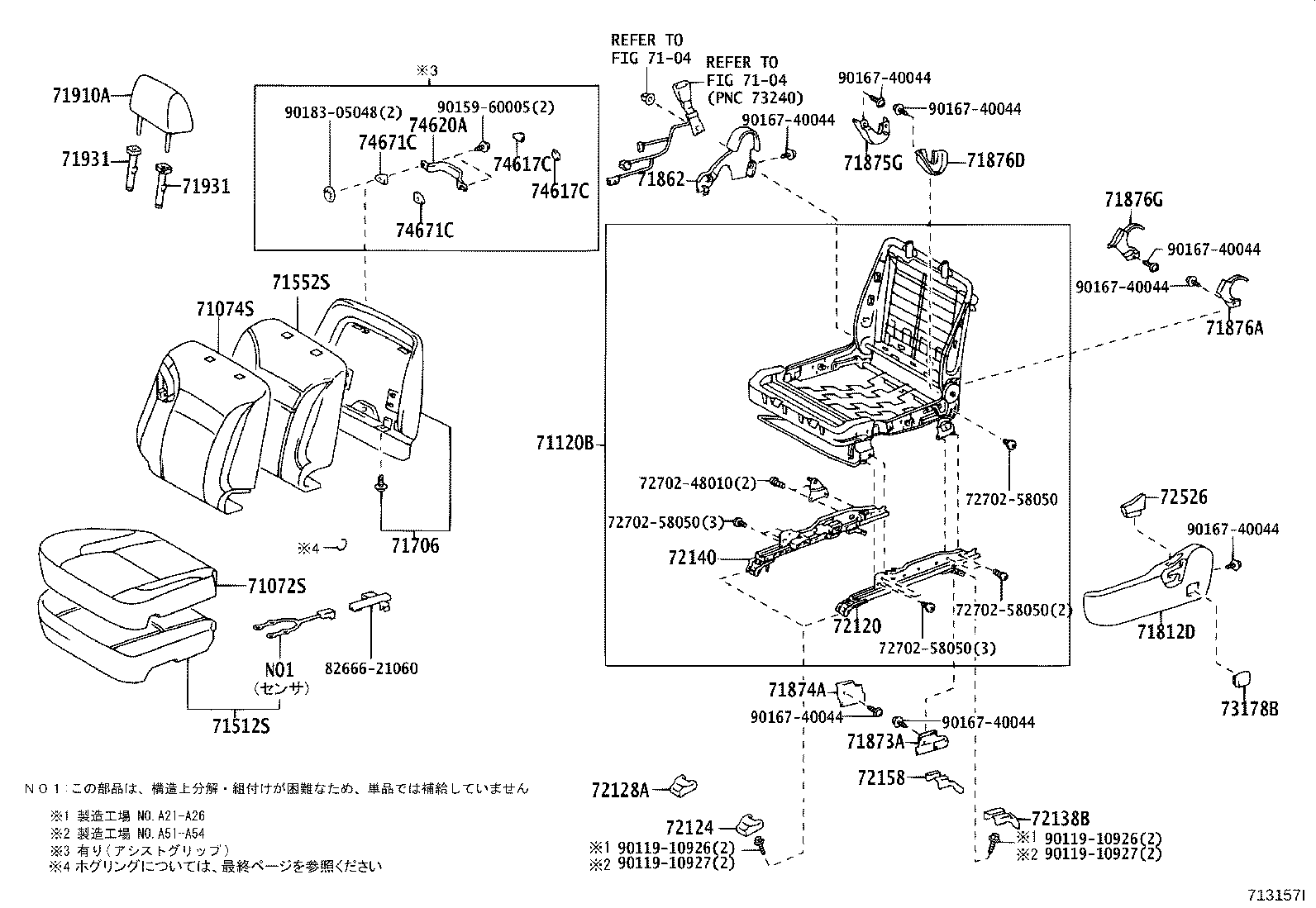

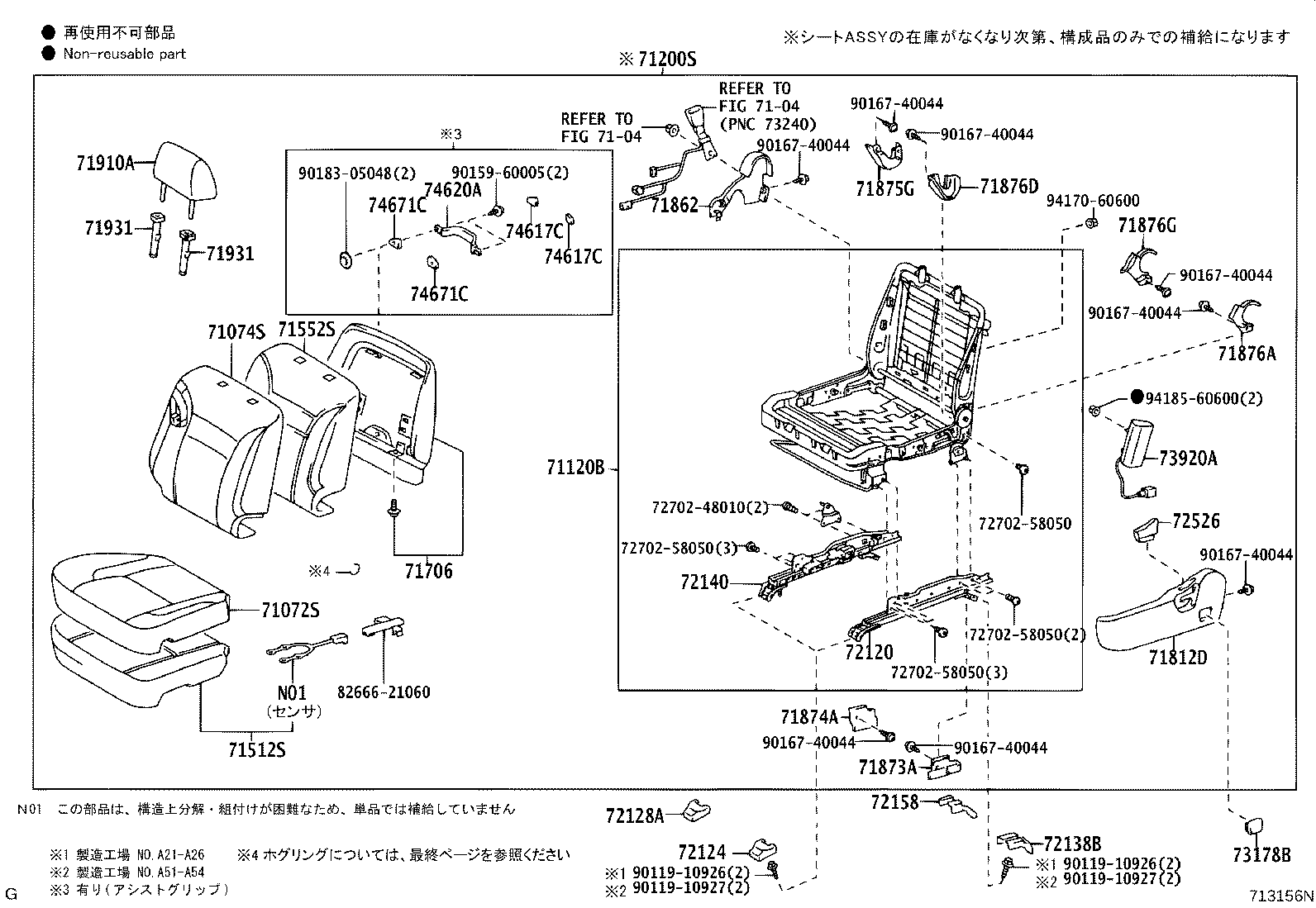

(0312- )
ｼﾞﾖｼﾕｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞﾂｸﾞ&ﾊﾟﾜ-ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-30A20A4 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71072-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
1 | ||
| 71072-30A20B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71072-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71074-30A30A3 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71074-30A30B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71074-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-30030 |
GRS182,UZS186 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-30A00A6 |
GRS182..ROY IVORY & NEW IVORY,TRIM0# |
1 | ||
| 71200-30A00B2 |
GRS182..ROY GRAY,TRIM1# |
1 | ||
| 71200-30A40A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71200-30B10A4 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM01 |
1 | ||
| 71200-30A40B2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-30020 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| 71502-30010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 71502-30020 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-30640 |
GRS182,183,UZS18#..A,C,ROY,ROYG |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30740B1 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71705-30740A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71705-30740C1 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30360A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71812-30360B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71812-30360B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71812-30360C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71812-30360A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100B4 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71862-60100A1 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71862-60100C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30170B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 71868-30170A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71868-30170C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-48030 |
GRS182,183,UZS18# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48030 |
GRS182,183,UZS18# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
GRS182,183,UZS18# |
1 | ||
| 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71876-60140 |
GRS182,183,UZS18# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60170B5 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71876-60170C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71876-60170A1 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30A20A1 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
2 | ||
| 71910-30A30B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71910-30A30A1 |
GRS180,182,183..ROY,ROYG IVORY,TRIM0# |
2 | ||
| 71910-30A30A1 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71910-30A30B0 |
GRS180,182,183..ROY,ROYG GRAY,TRIM1# |
2 | ||
| 71910-30A20A1 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-30090B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-30090B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-30010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),助手席C左側 |
1 | ||
| 72136-30040 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),運転席C左側,助手席,右側 |
1 | ||
| 72136-30030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG 運転席,右側 |
1 | ||
| 72136-30040 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),運転席,左側 |
1 | ||
| 72136-30010 |
GRS182,183,UZS18# 助手席,左側 |
1 | ||
| 72136-30040 |
GRS182,183,UZS18# 助手席,右側 |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-30010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),助手席C左側 |
1 | ||
| 72136-30040 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),運転席C左側,助手席,右側 |
1 | ||
| 72136-30030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG 運転席,右側 |
1 | ||
| 72136-30040 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),運転席,左側 |
1 | ||
| 72136-30010 |
GRS182,183,UZS18# 助手席,左側 |
1 | ||
| 72136-30040 |
GRS182,183,UZS18# 助手席,右側 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-30190B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 72137-30190A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72137-30190C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-30090B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 72157-30090C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72157-30090A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-30030C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 73178-30030B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 73178-30030A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73178-30030A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47031 |
GRS182,183,UZS18# |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30080A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 74620-30080B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
2 | ||
| 74620-30080B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 74620-30080A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
2 | ||
| 74620-30080B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
2 | ||
| 74620-30080A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
2 | ||
| 74620-30080C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-60010 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 87501-60010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| Common parts | ||||
| 82666-21060 | ||||
| 90084-16012 | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90159-40159 | ||||
| 90159-60005 | ||||
| 90167-40044 | ||||
| 90183-05048 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
(0312- )
ｼﾞﾖｼﾕｾｷ-ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-30A20A4 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71072-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
1 | ||
| 71072-30A20B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71072-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71074-30A30A3 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71074-30A30B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71074-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-30030 |
GRS182,UZS186 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-30020 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| 71502-30010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 71502-30020 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-30640 |
GRS182,183,UZS18#..A,C,ROY,ROYG |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30740B1 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71705-30740A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71705-30740C1 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30360A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71812-30360B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71812-30360B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71812-30360C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71812-30360A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100B4 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71862-60100A1 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71862-60100C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-30170B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 71868-30170A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71868-30170C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-48030 |
GRS182,183,UZS18# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48030 |
GRS182,183,UZS18# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
GRS182,183,UZS18# |
1 | ||
| 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71876-60140 |
GRS182,183,UZS18# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60170B5 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71876-60170C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71876-60170A1 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30A20A1 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
2 | ||
| 71910-30A30B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71910-30A30A1 |
GRS180,182,183..ROY,ROYG IVORY,TRIM0# |
2 | ||
| 71910-30A30A1 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71910-30A30B0 |
GRS180,182,183..ROY,ROYG GRAY,TRIM1# |
2 | ||
| 71910-30A20A1 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-30090B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-30090B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-30010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),助手席C左側 |
1 | ||
| 72136-30040 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),運転席C左側,助手席,右側 |
1 | ||
| 72136-30030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG 運転席,右側 |
1 | ||
| 72136-30040 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),運転席,左側 |
1 | ||
| 72136-30010 |
GRS182,183,UZS18# 助手席,左側 |
1 | ||
| 72136-30040 |
GRS182,183,UZS18# 助手席,右側 |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-30010 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),助手席C左側 |
1 | ||
| 72136-30040 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),運転席C左側,助手席,右側 |
1 | ||
| 72136-30030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG 運転席,右側 |
1 | ||
| 72136-30040 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),運転席,左側 |
1 | ||
| 72136-30010 |
GRS182,183,UZS18# 助手席,左側 |
1 | ||
| 72136-30040 |
GRS182,183,UZS18# 助手席,右側 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-30190B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 72137-30190A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72137-30190C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-30090B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 72157-30090C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72157-30090A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-30030C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 73178-30030B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 73178-30030A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73178-30030A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30080A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 74620-30080B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
2 | ||
| 74620-30080B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 74620-30080A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
2 | ||
| 74620-30080B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
2 | ||
| 74620-30080A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
2 | ||
| 74620-30080C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| Common parts | ||||
| 82666-21060 | ||||
| 90084-16012 | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90159-40159 | ||||
| 90159-60005 | ||||
| 90167-40044 | ||||
| 90183-05048 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
(0312- )GRS18#,UZS187
ｼﾞﾖｼﾕｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-30A20A4 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71072-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
1 | ||
| 71072-30A20B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71072-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71074-30A30A3 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71074-30A30B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71074-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-30030 |
GRS182,UZS186 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-30A00A6 |
GRS182..ROY IVORY & NEW IVORY,TRIM0# |
1 | ||
| 71200-30A00B2 |
GRS182..ROY GRAY,TRIM1# |
1 | ||
| 71200-30A40A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71200-30B10A4 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM01 |
1 | ||
| 71200-30A40B2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-30020 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| 71502-30010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 71502-30020 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-30640 |
GRS182,183,UZS18#..A,C,ROY,ROYG |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30740B1 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71705-30740A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71705-30740C1 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30360A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71812-30360B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71812-30360B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71812-30360C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71812-30360A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100B4 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71862-60100A1 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71862-60100C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-48030 |
GRS182,183,UZS18# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48030 |
GRS182,183,UZS18# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
GRS182,183,UZS18# |
1 | ||
| 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71876-60140 |
GRS182,183,UZS18# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60170B5 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71876-60170C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71876-60170A1 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30A20A1 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
2 | ||
| 71910-30A30B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71910-30A30A1 |
GRS180,182,183..ROY,ROYG IVORY,TRIM0# |
2 | ||
| 71910-30A30A1 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71910-30A30B0 |
GRS180,182,183..ROY,ROYG GRAY,TRIM1# |
2 | ||
| 71910-30A20A1 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-30090B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-30090B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-30190B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 72137-30190A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72137-30190C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-30090B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 72157-30090C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72157-30090A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-30030C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 73178-30030B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 73178-30030A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73178-30030A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47031 |
GRS182,183,UZS18# |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30080A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 74620-30080B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
2 | ||
| 74620-30080B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 74620-30080A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
2 | ||
| 74620-30080B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
2 | ||
| 74620-30080A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
2 | ||
| 74620-30080C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 82666-21060 | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90159-60005 | ||||
| 90167-40044 | ||||
| 90183-05048 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0312- )GRS18#
ｼﾞﾖｼﾕｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-30A20A4 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71072-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
1 | ||
| 71072-30A20B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71072-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-30A10A2 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71074-30A30A3 |
GRS182,183..ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71074-30A30B1 |
GRS182,183..ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71074-30A10A2 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,IVORY,TRIM0# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-30030 |
GRS182,UZS186 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-30020 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ) |
1 | ||
| 71502-30010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 71502-30020 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-30640 |
GRS182,183,UZS18#..A,C,ROY,ROYG |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30740B1 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 71705-30740A1 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71705-30740C1 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-30360A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71812-30360B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71812-30360B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71812-30360C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71812-30360A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100B4 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71862-60100A1 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71862-60100C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-48030 |
GRS182,183,UZS18# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48030 |
GRS182,183,UZS18# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
GRS182,183,UZS18# |
1 | ||
| 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71876-60140 |
GRS182,183,UZS18# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60170B5 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 71876-60170C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 71876-60170A1 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-30A20A1 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),NEW IVORY,TRIM0# |
2 | ||
| 71910-30A30B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71910-30A30A1 |
GRS180,182,183..ROY,ROYG IVORY,TRIM0# |
2 | ||
| 71910-30A30A1 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71910-30A30B0 |
GRS180,182,183..ROY,ROYG GRAY,TRIM1# |
2 | ||
| 71910-30A20A1 |
GRS182,UZS18#..C,ROYG ｼｰﾄ表皮−本皮,NEW IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010A2 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 71930-47010B9 |
GRS182,183..ROY ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 71931-47010A6 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM01 |
1 | ||
| 71930-47010A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-47010P2 |
GRS182,183..ROY ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM12 |
1 | ||
| 71931-47010A6 |
GRS181,182,UZS18#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-30090B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-30090B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 72123-30090A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72123-30090C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-30190B0 |
GRS182,183 GRAY,TRIM1# |
1 | ||
| 72137-30190A0 |
GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 72137-30190C0 |
GRS182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-30090B0 |
GRS182 GRAY,TRIM1# |
1 | ||
| 72157-30090C0 |
GRS182,UZS186..A,ATH,C BLACK,TRIM2# |
1 | ||
| 72157-30090A0 |
GRS182,UZS186..A,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-30030C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 73178-30030B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 73178-30030A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73178-30030A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30060 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
2 | ||
| 74617-30060 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30080A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 74620-30080B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
2 | ||
| 74620-30080B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 74620-30080A0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),IVORY,TRIM0# |
2 | ||
| 74620-30080B0 |
GRS182..ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ&ｸｰﾙﾎﾞｯｸｽ)&ｼｰﾄ表皮−本皮&ﾏｲｺﾝﾌﾟﾘｾｯﾄﾄﾞﾗｲﾋﾞﾝｸﾞﾎﾟｼﾞｼｮﾝｼｽﾃﾑ−有り(ﾁﾙﾄ+ｼｰﾄｽﾗｲﾄﾞ),GRAY,TRIM1# |
2 | ||
| 74620-30080A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
2 | ||
| 74620-30080C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30020B0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),GRAY,TRIM1# |
2 | ||
| 74671-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
4 | ||
| 74671-30020A0 |
GRS182,183..ROY ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ),IVORY,TRIM0# |
2 | ||
| 74671-30020B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
4 | ||
| 74671-30020A0 |
GRS180..5FC..ROY;GRS182,183,UZS18#..A,C,ROY,ROYG IVORY,TRIM0# |
4 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 82666-21060 | ||||
| 90119-10926 | ||||
| 90119-10927 | ||||
| 90159-60005 | ||||
| 90167-40044 | ||||
| 90183-05048 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0312- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
