GRS182-AETQH (2003)

Toyota Crown/Majesta

Production Dec 2003 - Sep 2005
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )GRS180,182,184

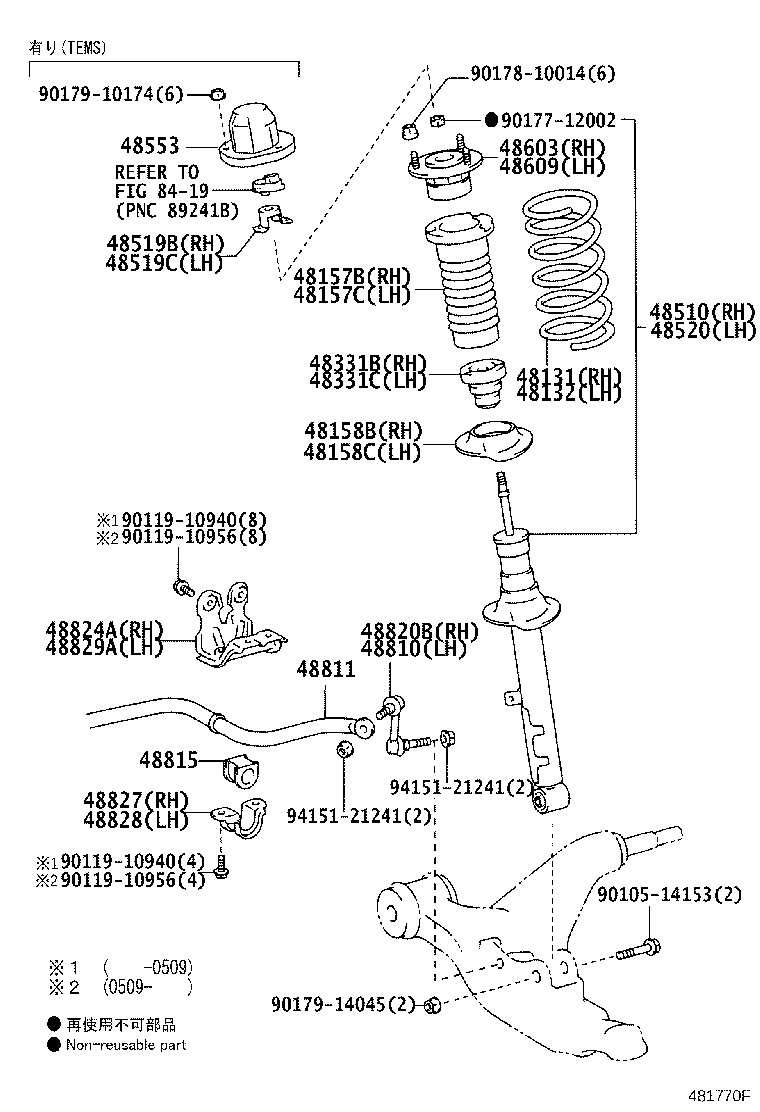

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48510 48519B 48519C 48520 48553 48603 48609 48810 48811 48815 48820B 48824A 48827 48828 48829A 8419 9010514153 9011910940 9011910940 9011910956 9011910956 9017712002 9017810014 9017910174 9017914045 9415121241 9415121241
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-30A00

GRS180,182..ROY,ROYEX,ROYG

 1
48132 - SPRING, FRONT COIL, LH
48131-30A00

GRS180,182..ROY,ROYEX,ROYG

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-30250

GRS180,182

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-30250

GRS180,182

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-30020

GRS18#

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-30020

GRS18#

 1
48331B - BUMPER, FRONT SPRING, RH
48331-30170

GRS180,182

 1
48331C - BUMPER, FRONT SPRING, LH
48331-30170

GRS180,182

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80121

GRS180,182..ROY,ROYEX,ROYG

ﾏｰｸ 48510−30550

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-80008

GRS180,182..ROY,ROYEX,ROYG

ﾏｰｸ 48520−30090

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-30060

GRS180,182..ROY,ROYEX,ROYG

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-30060

GRS180,182..ROY,ROYEX,ROYG

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-30070

GRS180,182

 1
48811 - BAR, STABILIZER, FRONT
48811-30620

GRS180,182

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30550

GRS180,182

 2
48815-30551

GRS18#

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-30090

GRS180,182

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48809-30060

GRS180,182

 1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48824-30130

GRS180,182

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48824-30130

GRS180,182

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48809-30060

GRS180,182

 1
Common parts
90105-14153
90119-10940
90119-10956
90177-12002
90178-10014
90179-10174
90179-14045
94151-21241
Linked diagrams
8419
