GRS182-AETQH (2003)

Toyota Crown/Majesta

Production Dec 2003 - Sep 2005
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )GRS182,184,UZS186

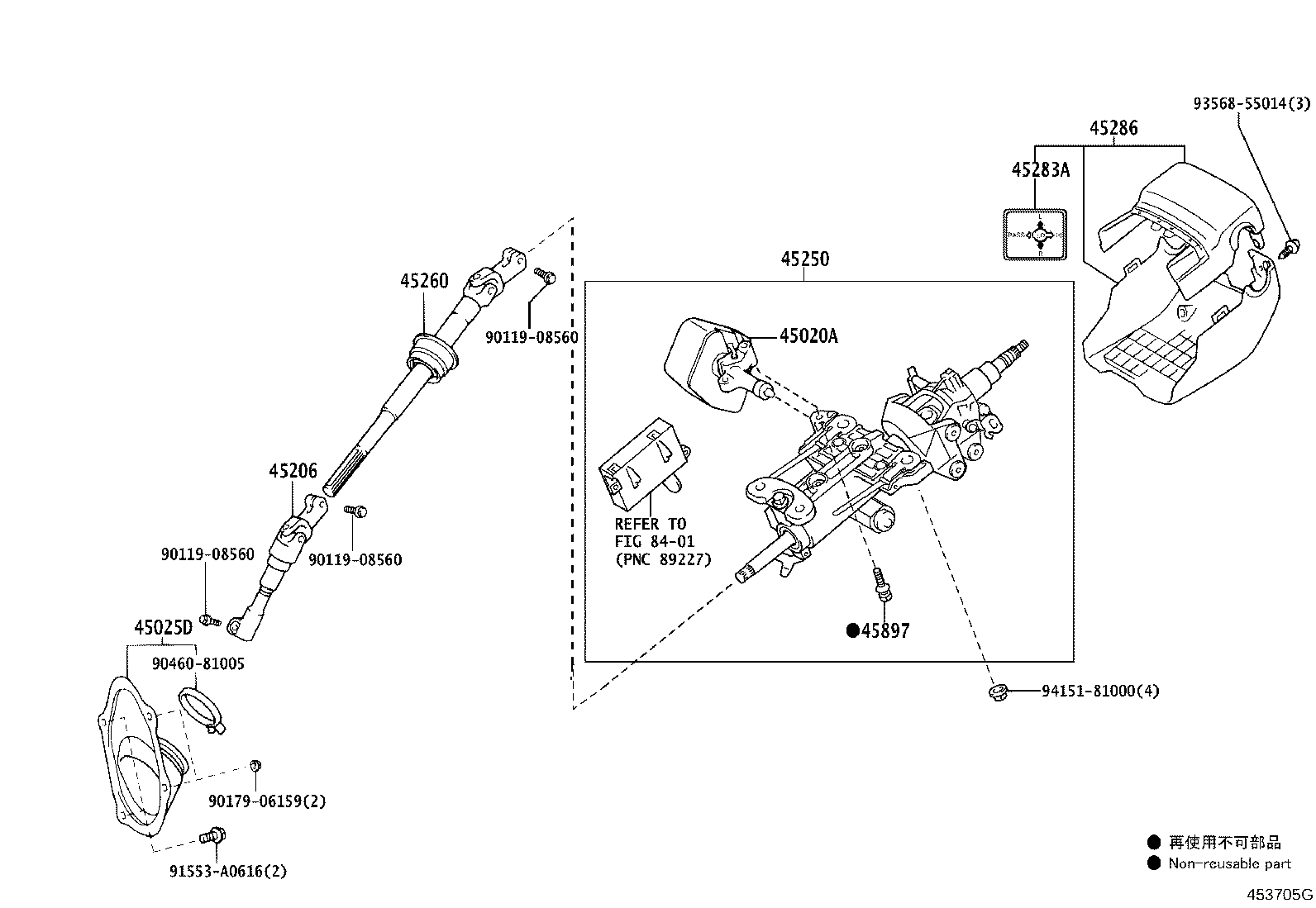

Click highlighted areas on diagram

diagram 45020A 45025D 45206 45250 45260 45283A 45286 45897 8401 9011908560 9011908560 9011908560 9017906159 9046081005 91553A0616 9356855014 9415181000
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-30A10

GRS182,183

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-30350

GRS180,182

 1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-30100

GRS180,182

 1
45250 - COLUMN ASSY, STEERING
45250-30A10

GRS182,183,UZS18#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-30160

GRS180,182

 1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010

GRS182,183,UZS18#

 1
45286 - COVER, STEERING COLUMN
45286-3A904E0

GRS182,183..ROY,ROYG

ORCHID BROWN,TRIM0#

 1
45286-3A904C0

GRS182,183..ROY,ROYG

BLACK,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GRS18#

 2
Common parts
90119-08560
90179-06159
90460-81005
91553-A0616
93568-55014
94151-81000
Linked diagrams
8401
