GRS182-AETQH (2003)

Toyota Crown/Majesta

Production Dec 2003 - Sep 2005
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )GRS180,182,184,UZS186

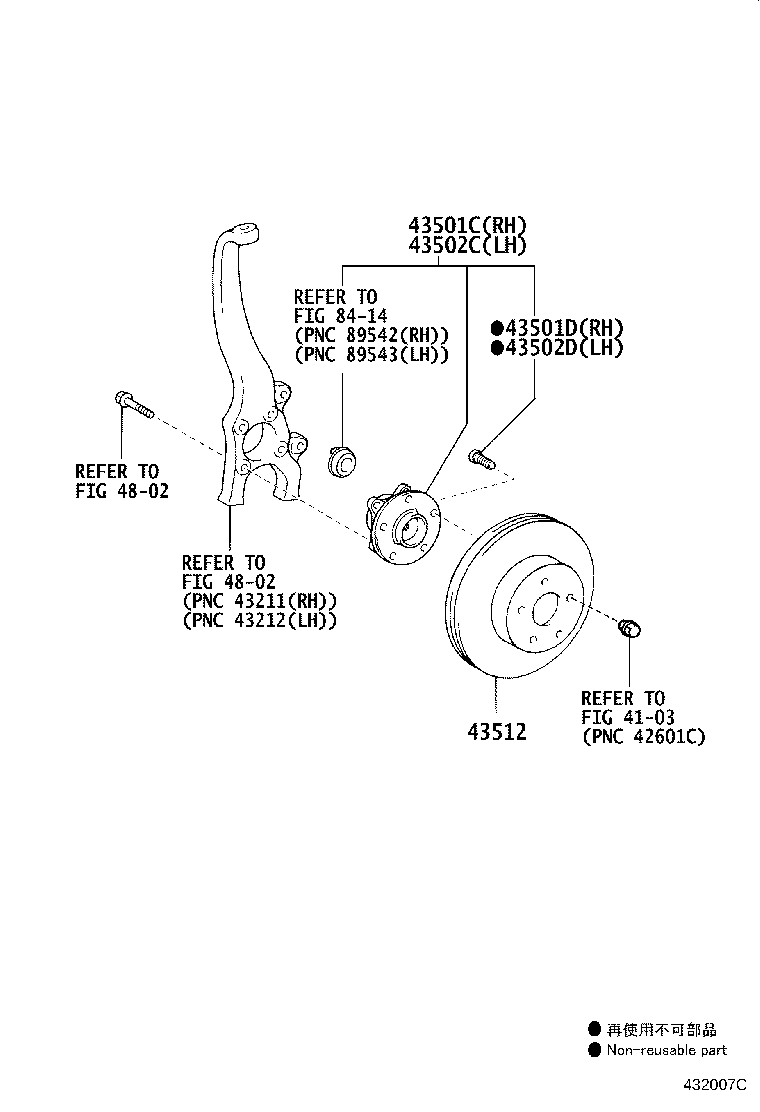

Click highlighted areas on diagram

diagram 4103 43501C 43501D 43502C 43502D 43512 4802 4802 8414
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-30010

GRS180..5FC;GRS182,UZS186

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02070

GRS18#

 5
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43560-30010

GRS180..5FC;GRS182,UZS186

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02070

GRS18#

 5
43512 - DISC, FRONT
43512-30310

GRS18#..ROY,ROYEX,ROYG

 2
Linked diagrams
4103
4802
8414
