GRS181-AEAXH (2005)

Toyota Crown/Majesta

Production Sep 2005 - Feb 2008
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )3GRFSE,4GRFSE

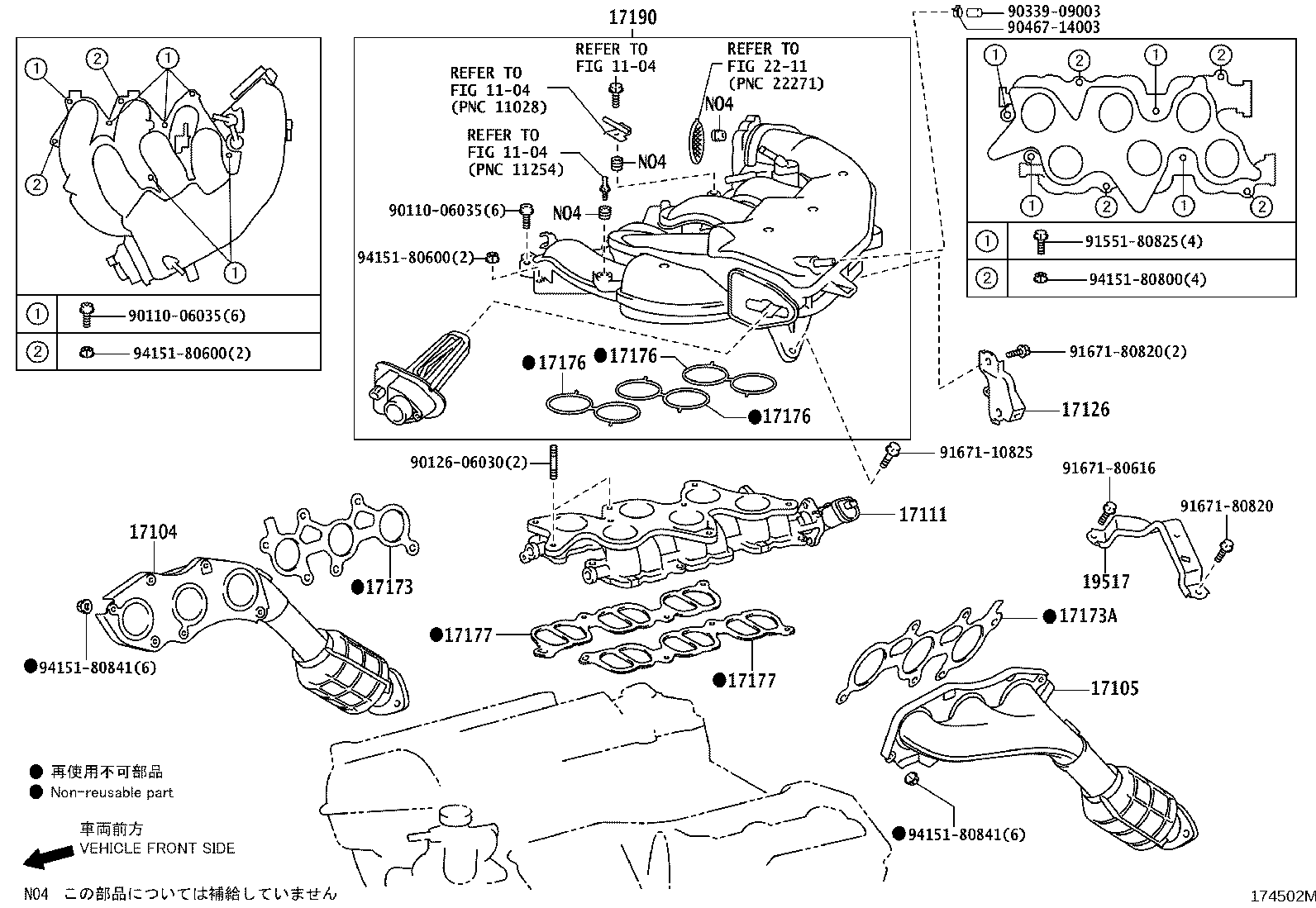

Click highlighted areas on diagram

diagram 1104 1104 1104 17104 17105 17111 17126 17173 17173A 17176 17176 17176 17177 17177 17190 19517 2211 9011006035 9011006035 9012606030 9033909003 9046714003 9155180825 9167110825 9167180616 9167180820 9167180820 9415180600 9415180600 9415180800 9415180841 9415180841
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31040

4GRFSE..GRS181

 1
17140-31040

4GRFSE..GRS181

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31040

4GRFSE..GRS181

 1
17150-31040

4GRFSE..GRS181

 1
17111 - MANIFOLD, INTAKE
17120-31010

3GRFSE,4GRFSE..GRS18#

 1
17120-31020

3GRFSE,4GRFSE..GRS180,181,182,183

 1
17126 - STAY, SURGE TANK, NO.2
17126-31020

3GRFSE,4GRFSE..GRS180,181,182,183

 1
17126-31020

3GRFSE,4GRFSE..GRS18#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31020

2GRFSE,3GRFSE,4GRFSE..GRS18#

 1
17173-31020

3GRFSE,4GRFSE..GRS18#

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31020

3GRFSE,4GRFSE..GRS18#

 1
17173-31020

2GRFSE,3GRFSE,4GRFSE..GRS18#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31050

3GRFSE,4GRFSE..GRS180,181,182,183

 3
17176-31020

3GRFSE,4GRFSE..GRS18#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31050

3GRFSE,4GRFSE..GRS180,181,182,183

 3
17176-31020

3GRFSE,4GRFSE..GRS18#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31050

3GRFSE,4GRFSE..GRS180,181,182,183

 3
17176-31020

3GRFSE,4GRFSE..GRS18#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31020

3GRFSE,4GRFSE..GRS180,181,182,183

 2
17177-31020

3GRFSE,4GRFSE..GRS18#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31020

3GRFSE,4GRFSE..GRS180,181,182,183

 2
17177-31020

3GRFSE,4GRFSE..GRS18#

 2
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31020

3GRFSE,4GRFSE..GRS18#

 1
17190-31040

3GRFSE,4GRFSE..GRS180,181,182,183

 1
19517 - BRACKET, IGNITION COIL COVER
19517-31010

3GRFSE,4GRFSE..GRS180,181,182,183

 1
Common parts
90110-06035
90126-06030
90339-09003
90467-14003
91551-80825
91671-10825
91671-80616
91671-80820
94151-80600
94151-80800
94151-80841
Linked diagrams
1104
2211
