GRS181-AEAXH (2004)
Toyota Crown/Majesta
Production
Aug 2004
-
Sep 2005
Engine
4GRFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0509)ATH

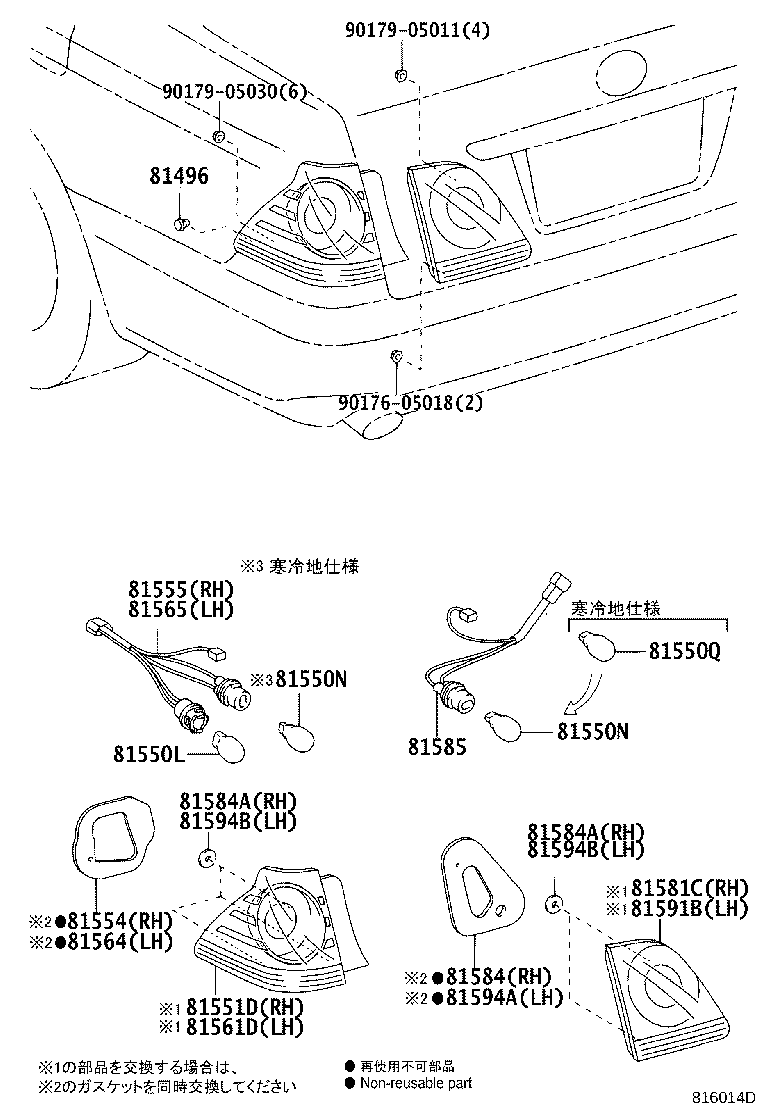

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
GRS18# |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
GRS18# |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
GRS18# |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
GRS18# |
2 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 90981-11059 |
GRS18# 寒冷地仕様 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-30890 |
GRS180,181,182..ATH |
1 | ||
| 81551-30A00 |
GRS180,181,182..ATH 寒冷地仕様 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-30890 |
GRS180,181,182..ATH |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-30890 |
GRS180,181,182..ATH |
1 | ||
| 81555-30A00 |
GRS180,181,182..ATH 寒冷地仕様 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-30860 |
GRS180,181,182..ATH |
1 | ||
| 81561-3A020 |
GRS180,181,182..ATH 寒冷地仕様 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-30860 |
GRS180,181,182..ATH |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-30860 |
GRS180,181,182..ATH |
1 | ||
| 81565-3A020 |
GRS180,181,182..ATH 寒冷地仕様 |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-30190 |
GRS180,181,182..ATH |
1 | ||
| 81581-30200 |
GRS180,181,182..ATH 寒冷地仕様 |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-30170 |
GRS18# |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-22040 |
GRS18# |
5 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-22040 |
GRS18# |
5 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-30190 |
GRS180,181,182..ATH |
2 | ||
| 81585-30200 |
GRS180,181,182..ATH 寒冷地仕様 |
2 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-30140 |
GRS180,181,182..ATH 寒冷地仕様 |
1 | ||
| 81591-30130 |
GRS180,181,182..ATH |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-30110 |
GRS18# |
1 | ||
| 81594B - PACKING, REAR LAMP LH | ||||
| 81584-22040 |
GRS18# |
5 | ||
| 81594B - PACKING, REAR LAMP LH | ||||
| 81584-22040 |
GRS18# |
5 | ||
| Common parts | ||||
| 90176-05018 | ||||
| 90179-05011 | ||||
| 90179-05030 | ||||
