GRS181-AEAXH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0509)GRS180,182 ; (0312- )GRS181,183 ;(0509- )GRS184

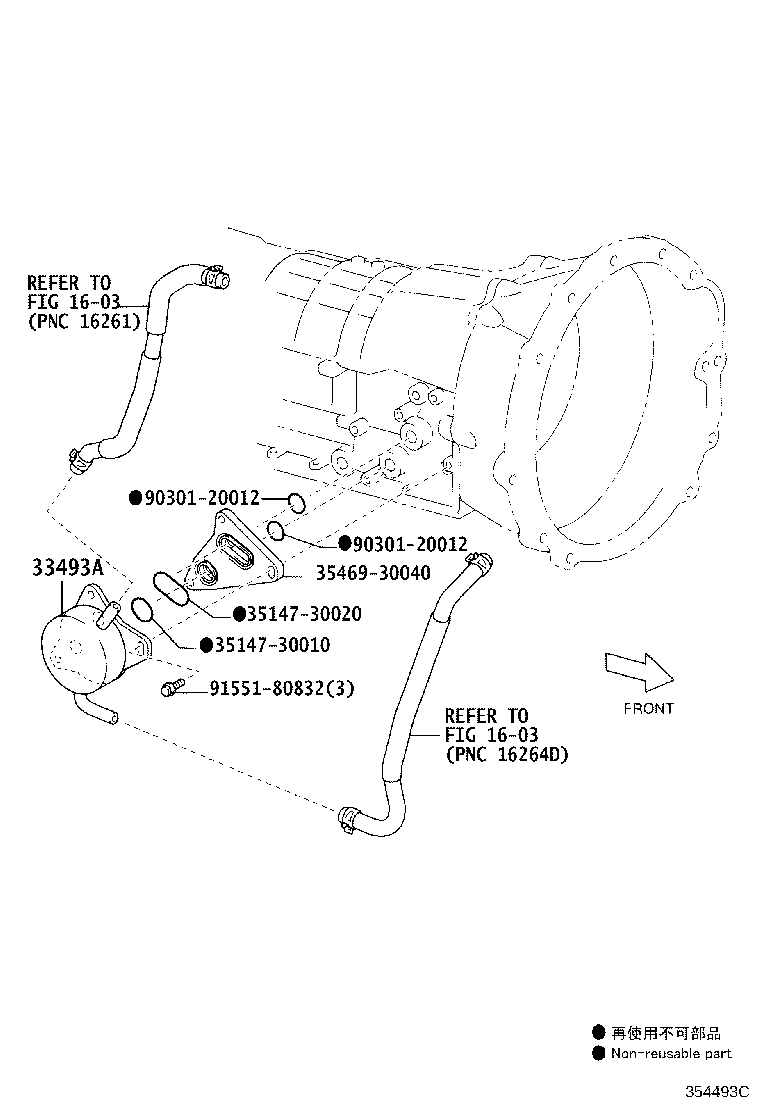

Click highlighted areas on diagram

A750E,A750H,A760E,A760H

diagram 1603 1603 33493A 3514730010 3514730020 3546930040 9030120012 9030120012 9155180832
Part # Description Qty Price
33493A - COOLER, TRANSMISSION OIL
33493-30010

GRS18#

 1
Common parts
35147-30010
35147-30020
35469-30040
90301-20012
91551-80832
Linked diagrams
1603
