GRS181-AEAXH (2004)
Toyota Crown/Majesta

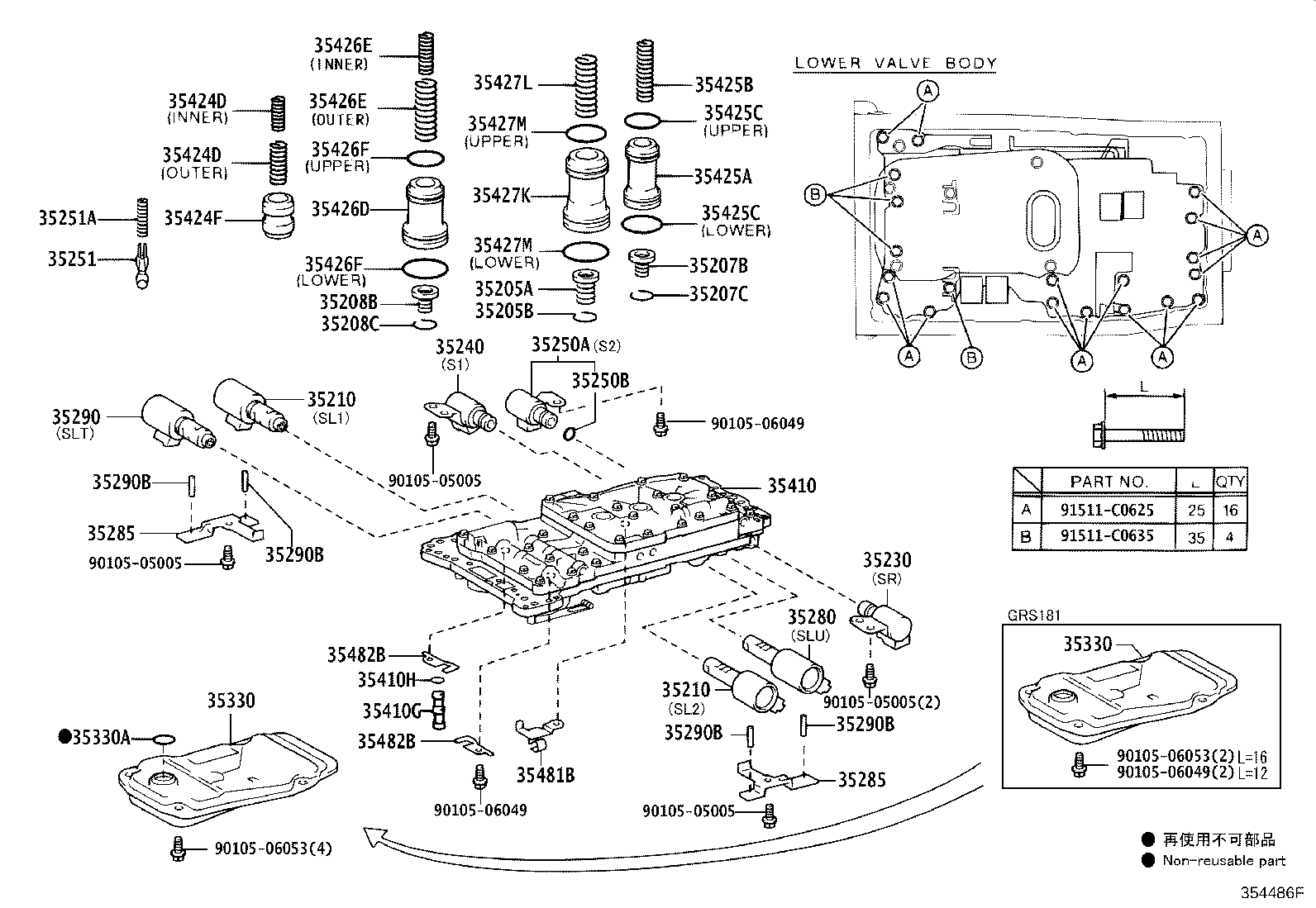

ILLUST NO. 1 OF 2(0312-0509)GRS180 ; (0408- )GRS181
A750E,A750H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35205A - SPRING SUB-ASSY, B-3 ACCUMULATOR | ||||
| 35205-50010 |
GRS18# |
1 | ||
| 35205B - RING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 35207B - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35207-22010 |
GRS18# |
1 | ||
| 35207C - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 35208C - RING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-50010 |
GRS180,181..5FC;GRS182,183,UZS18# SL1 & SL2 |
2 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-50010 |
GRS180,181..5FC;GRS182,183,UZS18# SL1 & SL2 |
2 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-60010 |
GRS180,181 SR |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-34010 |
GRS180,181 S1 |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-60010 |
GRS180,181 S2 |
1 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
GRS180,181 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
GRS18# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
GRS18# |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-50020 |
GRS180,181..5FC;GRS182,183,UZS18# SLU |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-34010 |
GRS180,181 |
2 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-34010 |
GRS180,181 |
2 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-50010 |
GRS180,181..5FC;GRS182,183,UZS18# SLT |
1 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
GRS18# |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
GRS18# |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
GRS18# |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
GRS18# |
4 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30080 |
GRS181,183 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30080 |
GRS181,183 |
1 | ||
| 35330A - RING, O (FOR OIL STRAINER) | ||||
| 90301-31014 |
GRS18# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-30A40 |
GRS181 |
1 | ||
| 35410H - RING O (FOR VALVE BODY) | ||||
| 90301-06004 |
GRS180,181 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20173 |
GRS180,181 内側 |
1 | ||
| 90501-21040 |
GRS180,181 外側 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20173 |
GRS180,181 内側 |
1 | ||
| 90501-21040 |
GRS180,181 外側 |
1 | ||
| 35424F - VALVE, C-1 ACCUMULATOR | ||||
| 35424-60030 |
GRS18# |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-50020 |
GRS18# |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22062 |
GRS180,181 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
GRS18# 下側 |
1 | ||
| 90301-20008 |
GRS18# 上側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
GRS18# 下側 |
1 | ||
| 90301-20008 |
GRS18# 上側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-50020 |
GRS18# |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-24038 |
GRS18# 内側 |
1 | ||
| 90501-23152 |
GRS180,181 外側 |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-24038 |
GRS18# 内側 |
1 | ||
| 90501-23152 |
GRS180,181 外側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
GRS18# 上側 |
1 | ||
| 90301-34011 |
GRS18# 下側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
GRS18# 上側 |
1 | ||
| 90301-34011 |
GRS18# 下側 |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-50020 |
GRS18# |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-26098 |
GRS18# |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-34011 |
GRS18# 下側 |
1 | ||
| 90301-23010 |
GRS18# 上側 |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-34011 |
GRS18# 下側 |
1 | ||
| 90301-23010 |
GRS18# 上側 |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-60010 |
GRS180,181 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-60040 |
GRS180,181 |
2 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-60040 |
GRS180,181 |
2 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 91511-C0625 | ||||
| 91511-C0635 | ||||
