GRS181-AEAXH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0509)GRS180,182 ; (0312- )GRS181,183,UZS18# ; (0509- )GRS184

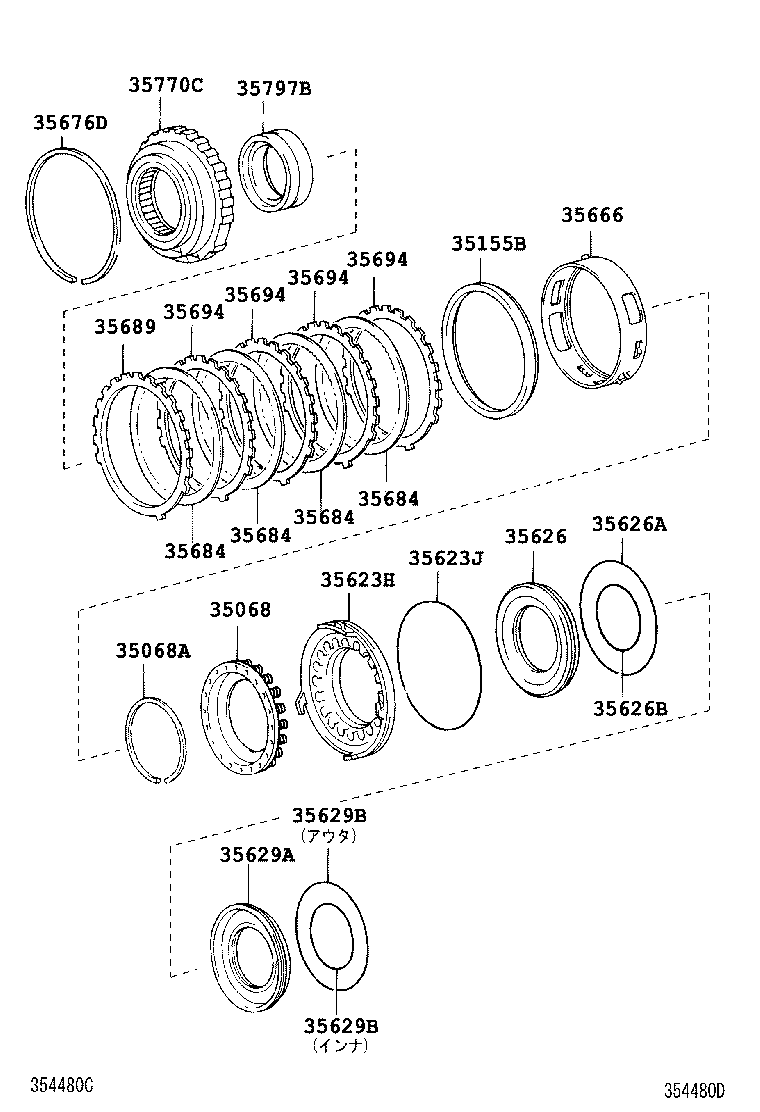

Click highlighted areas on diagram

A750E,A750H,A760E,A760H,A761E,A761H

diagram 35068 35068A 35155B 35623H 35623J 35626 35626A 35626B 35629A 35629B 35629B 35666 35676D 35684 35684 35684 35684 35689 35694 35694 35694 35694 35770C 35797B
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-60010

GRS18#

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-61001

GRS18#

 1
35155B - SLEEVE, REAR COVER
35155-50010

GRS18#

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-50030

GRS18#

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99087

GRS18#

 1
35626 - SLEEVE, BRAKE REACTION
35626-50010

GRS18#

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99144

GRS18#

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-79003

GRS18#

 1
35629A - PISTON, BRAKE, NO.4
35629-50020

GRS18#

 1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-67006

GRS18#

内側

 1
90301-99084

GRS18#

外側

 1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-67006

GRS18#

内側

 1
90301-99084

GRS18#

外側

 1
35666 - TUBE, BRAKE APPLY
35666-50010

GRS18#

 1
35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)
90521-99131

GRS18#

 1
35684 - DISC, BRAKE, NO.4
35684-50010

GRS18#

 4
35684 - DISC, BRAKE, NO.4
35684-50010

GRS18#

 4
35684 - DISC, BRAKE, NO.4
35684-50010

GRS18#

 4
35684 - DISC, BRAKE, NO.4
35684-50010

GRS18#

 4
35689 - FLANGE, BRAKE, NO.4
35689-60150

GRS18#

厚さ=2.8,ﾏｰｸ 10

 1
35689-60170

GRS18#

厚さ=3.2,ﾏｰｸ 14

 1
35689-60110

GRS18#

厚さ=2.0,ﾏｰｸ 2

 1
35689-60100

GRS18#

厚さ=1.8,ﾏｰｸ 0

 1
35689-60130

GRS18#

厚さ=2.4,ﾏｰｸ 6

 1
35689-60120

GRS18#

厚さ=2.2,ﾏｰｸ 4

 1
35689-60140

GRS18#

厚さ=2.6,ﾏｰｸ 8

 1
35689-60160

GRS18#

厚さ=3.0,ﾏｰｸ 12

 1
35694 - PLATE, BRAKE, NO.4
35694-60010

GRS18#,UZS18#

 4
35694-60011

GRS18#

 4
35694 - PLATE, BRAKE, NO.4
35694-60010

GRS18#,UZS18#

 4
35694-60011

GRS18#

 4
35694 - PLATE, BRAKE, NO.4
35694-60010

GRS18#,UZS18#

 4
35694-60011

GRS18#

 4
35694 - PLATE, BRAKE, NO.4
35694-60010

GRS18#,UZS18#

 4
35694-60011

GRS18#

 4
35770C - CLUTCH ASSY, 1WAY NO.3
35770-50010

GRS18#

 1
35797B - RACE, 1 WAY CLUTCH, INNER
35797-50030

GRS180,181..5FC;GRS182,183,UZS18#

 1
