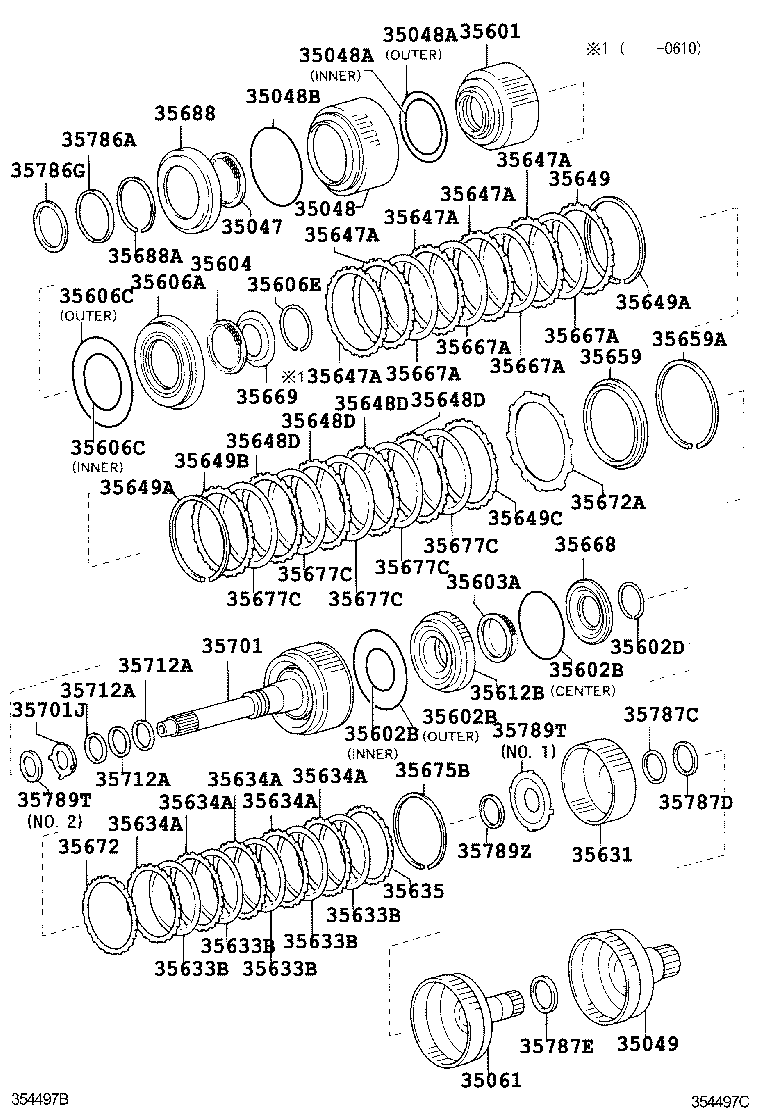

GRS181-AEAXH (2004)
Toyota Crown/Majesta
(0312-0509)GRS180 ; (0408- )GRS181
A750E,A750H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35047 - SPRING SUB-ASSY, REVERSE CLUTCH RETURN | ||||
| 35047-60010 |
GRS18# |
1 | ||
| 35048A - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-99147 |
GRS18# 内側 |
1 | ||
| 90301-99141 |
GRS18# 外側 |
1 | ||
| 35048A - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-99147 |
GRS18# 内側 |
1 | ||
| 90301-99141 |
GRS18# 外側 |
1 | ||
| 35048B - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-99140 |
GRS18# |
1 | ||
| 35049 - HUB SUB-ASSY, REVERSE CLUTCH | ||||
| 35049-30020 |
GRS18# |
1 | ||
| 35061 - HUB SUB-ASSY, FORWARD CLUTCH | ||||
| 35061-50010 |
GRS18# |
1 | ||
| 35601 - DRUM SUB-ASSY, CLUTCH | ||||
| 35601-50030 |
GRS18# |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99096 |
GRS180,181 ｾﾝﾀ |
1 | ||
| 90301-39012 |
GRS180,181 内側 |
1 | ||
| 90301-99145 |
GRS180,181 外側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99096 |
GRS180,181 ｾﾝﾀ |
1 | ||
| 90301-39012 |
GRS180,181 内側 |
1 | ||
| 90301-99145 |
GRS180,181 外側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99096 |
GRS180,181 ｾﾝﾀ |
1 | ||
| 90301-39012 |
GRS180,181 内側 |
1 | ||
| 90301-99145 |
GRS180,181 外側 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35003 |
GRS18# |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-30020 |
GRS180,181 |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-60020 |
GRS18# |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35652-30060 |
GRS18# |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-74002 |
GRS18# 内側 |
1 | ||
| 90301-99149 |
GRS18# 外側 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-74002 |
GRS18# 内側 |
1 | ||
| 90301-99149 |
GRS18# 外側 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-64003 |
GRS18# |
1 | ||
| 35612B - PISTON, FORWARD CLUTCH | ||||
| 35612-30090 |
GRS180,181 |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-60040 |
GRS180,181 |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50010 |
GRS180,181 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50010 |
GRS180,181 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50010 |
GRS180,181 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50010 |
GRS180,181 |
5 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50010 |
GRS180,181 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50010 |
GRS180,181 厚さ=2.4 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50010 |
GRS180,181 厚さ=2.4 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50010 |
GRS180,181 厚さ=2.4 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50010 |
GRS180,181 厚さ=2.4 |
5 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50010 |
GRS180,181 厚さ=2.4 |
5 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-60040 |
GRS18# 厚さ=3.3,ﾏｰｸ 3 |
1 | ||
| 35635-60010 |
GRS18# 厚さ=3.0,ﾏｰｸ 0 |
1 | ||
| 35635-60020 |
GRS18# 厚さ=3.1,ﾏｰｸ 1 |
1 | ||
| 35635-60050 |
GRS18# 厚さ=3.4,ﾏｰｸ 4 |
1 | ||
| 35635-60090 |
GRS18# 厚さ=3.8,ﾏｰｸ 8 |
1 | ||
| 35635-60100 |
GRS18# 厚さ=3.9,ﾏｰｸ 9 |
1 | ||
| 35635-60080 |
GRS18# 厚さ=3.7,ﾏｰｸ 7 |
1 | ||
| 35635-60060 |
GRS18# 厚さ=3.5,ﾏｰｸ 5 |
1 | ||
| 35635-60030 |
GRS18# 厚さ=3.2,ﾏｰｸ 2 |
1 | ||
| 35635-60110 |
GRS18# 厚さ=4.0,ﾏｰｸ A |
1 | ||
| 35635-60070 |
GRS18# 厚さ=3.6,ﾏｰｸ 6 |
1 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
GRS18# |
5 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
GRS18# |
5 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
GRS18# |
5 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
GRS18# |
5 | ||
| 35647A - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-60010 |
GRS18# |
5 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-60010 |
GRS180,181 |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-60010 |
GRS180,181 |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-60010 |
GRS180,181 |
4 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-60010 |
GRS180,181 |
4 | ||
| 35649 - FLANGE, REVERSE CLUTCH | ||||
| 35649-60090 |
GRS18# 厚さ=3.6,ﾏｰｸ8 |
1 | ||
| 35649-60040 |
GRS18# 厚さ=3.1,ﾏｰｸ3 |
1 | ||
| 35649-60070 |
GRS18# 厚さ=3.4,ﾏｰｸ6 |
1 | ||
| 35649-60030 |
GRS18# 厚さ=3.0,ﾏｰｸ2 |
1 | ||
| 35649-60080 |
GRS18# 厚さ=3.5,ﾏｰｸ 7 |
1 | ||
| 35649-60100 |
GRS18# 厚さ=3.7,ﾏｰｸ9 |
1 | ||
| 35649-60110 |
GRS18# 厚さ=3.8,ﾏｰｸ10 |
1 | ||
| 35649-60060 |
GRS18# 厚さ=3.3,ﾏｰｸ5 |
1 | ||
| 35649-60050 |
GRS18# 厚さ=3.2,ﾏｰｸ4 |
1 | ||
| 35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE) | ||||
| 90520-99074 |
GRS18# |
2 | ||
| 35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE) | ||||
| 90520-99074 |
GRS18# |
2 | ||
| 35649B - FLANGE, REVERSE CLUTCH | ||||
| 35649-60030 |
GRS18# |
1 | ||
| 35649C - FLANGE, REVERSE CLUTCH | ||||
| 35649-60020 |
GRS18# 厚さ=2.9,ﾏｰｸ 1 |
1 | ||
| 35649-60030 |
GRS18# 厚さ=3.0,ﾏｰｸ 2 |
1 | ||
| 35649-60060 |
GRS18# 厚さ=3.3,ﾏｰｸ 5 |
1 | ||
| 35649-60090 |
GRS18# 厚さ=3.6,ﾏｰｸ 8 |
1 | ||
| 35649-60070 |
GRS18# 厚さ=3.4,ﾏｰｸ 6 |
1 | ||
| 35649-60100 |
GRS18# 厚さ=3.7,ﾏｰｸ 9 |
1 | ||
| 35649-60080 |
GRS18# 厚さ=3.5,ﾏｰｸ 7 |
1 | ||
| 35649-60040 |
GRS18# 厚さ=3.1.ﾏｰｸ 3 |
1 | ||
| 35649-60050 |
GRS18# 厚さ=3.2,ﾏｰｸ 4 |
1 | ||
| 35649-60110 |
GRS18# 厚さ=3.8,ﾏｰｸ A |
1 | ||
| 35649-60010 |
GRS18# 厚さ=2.8,ﾏｰｸ 0 |
1 | ||
| 35659 - SLEEVE, REVERSE CLUTCH REACTION | ||||
| 35659-60020 |
GRS18# |
1 | ||
| 35659A - RING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE) | ||||
| 90520-99083 |
GRS18# |
1 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
GRS18# |
4 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
GRS18# |
4 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
GRS18# |
4 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-60020 |
GRS18# |
4 | ||
| 35668 - BALANCER, CLUTCH, NO.1 | ||||
| 35668-60010 |
GRS180,181 |
1 | ||
| 35669 - BALANCER, CLUTCH, NO.2 | ||||
| 35669-60010 |
GRS18# |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-50040 |
GRS18# |
1 | ||
| 35672A - PLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35672-60020 |
GRS18# |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90520-99082 |
GRS18# |
1 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60010 |
GRS180,181 |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60010 |
GRS180,181 |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60010 |
GRS180,181 |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60010 |
GRS180,181 |
5 | ||
| 35677C - DISC, REAR CLUTCH | ||||
| 35677-60010 |
GRS180,181 |
5 | ||
| 35688 - BALANCER, CLUTCH, NO.3 | ||||
| 35688-50010 |
GRS18# |
1 | ||
| 35688A - RING, SNAP (FOR REVERSE CLUTCH RETURN SPRING) | ||||
| 90520-79001 |
GRS18# |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30140 |
GRS180,181 |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-34011 |
GRS18# |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
GRS180,181 |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
GRS180,181 |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-60010 |
GRS180,181 |
3 | ||
| 35786A - RACE, THRUST BEARING, NO.1 | ||||
| 35786-60010 |
GRS18# |
1 | ||
| 35786G - BEARING,THRUST NEEDLE ROLLER | ||||
| 90374-71001 |
GRS18# |
1 | ||
| 35787C - RACE, THRUST BEARING, NO.2 | ||||
| 35787-60010 |
GRS180,181 |
1 | ||
| 35787D - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-38005 |
GRS180,181 |
1 | ||
| 35787E - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-42008 |
GRS18# |
1 | ||
| 35789T - RACE, THRUST BEARING (INPUT SHAFT REAR) | ||||
| 35789-50060 |
GRS18# NO.2 |
1 | ||
| 35789-60040 |
GRS180,181 NO.1 |
1 | ||
| 35789T - RACE, THRUST BEARING (INPUT SHAFT REAR) | ||||
| 35789-50060 |
GRS18# NO.2 |
1 | ||
| 35789-60040 |
GRS180,181 NO.1 |
1 | ||
| 35789Z - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-21004 |
GRS18# |
1 | ||
