GRS181-AEAXH (2004)
Toyota Crown/Majesta
Production
Aug 2004
-
Sep 2005
Engine
4GRFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0509)GRS180,182 ; (0312- )GRS181,183

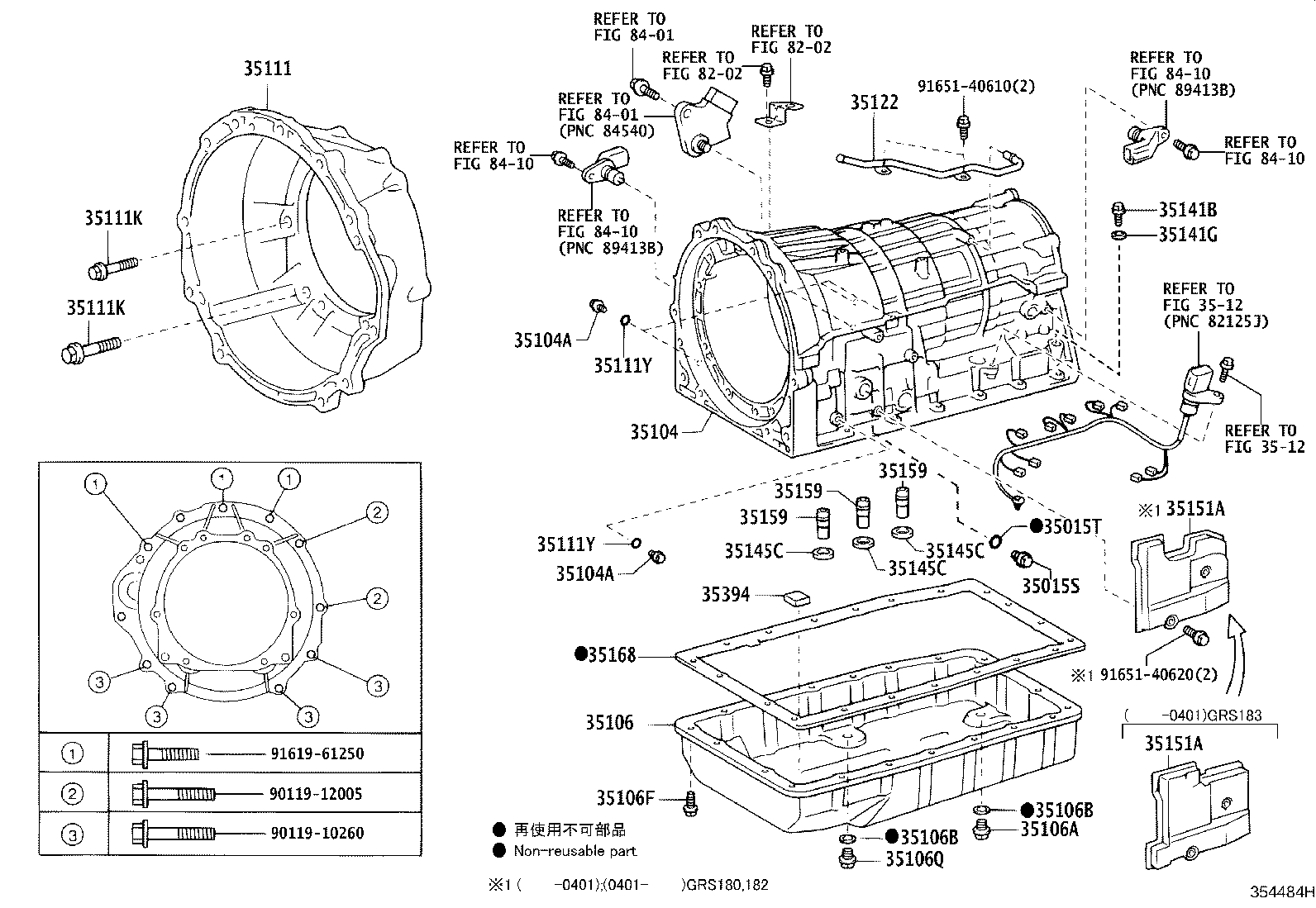

Click highlighted areas on diagram
A750E,A750H,A760E,A760H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35015S - PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90341-18059 |
GRS18# |
1 | ||
| 35015T - RING, O(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90301-15004 |
GRS18# |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30220 |
GRS181,183 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GRS18# |
5 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GRS18# |
5 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30260 |
GRS181,183 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
GRS18# |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GRS18# |
2 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GRS18# |
2 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06117 |
GRS18# |
20 | ||
| 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
GRS18# |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-30190 |
GRS18# |
1 | ||
| 35111-30170 |
GRS18# |
1 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GRS18# *12−1.75PX38―30 |
2 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GRS18# *12−1.75PX38―30 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GRS18# |
5 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GRS18# |
5 | ||
| 35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) | ||||
| 90930-03171 |
GRS18# |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
GRS18# |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11006 |
GRS18# |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GRS18# |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GRS18# |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GRS18# |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60010 |
GRS18# |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60010 |
GRS18# |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60010 |
GRS18# |
3 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-60010 |
GRS18# |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GRS181,183 |
6 | ||
| Common parts | ||||
| 90119-10260 | ||||
| 90119-12005 | ||||
| 91619-61250 | ||||
| 91651-40610 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||
