GRS181-AEAXH (2004)
Toyota Crown/Majesta
(0312-0509)GRS180,182 ; (0312- )GRS181,183,UZS18# ; (0509- )GRS184
A750E,A750H,A760E,A760H,A761E,A761H

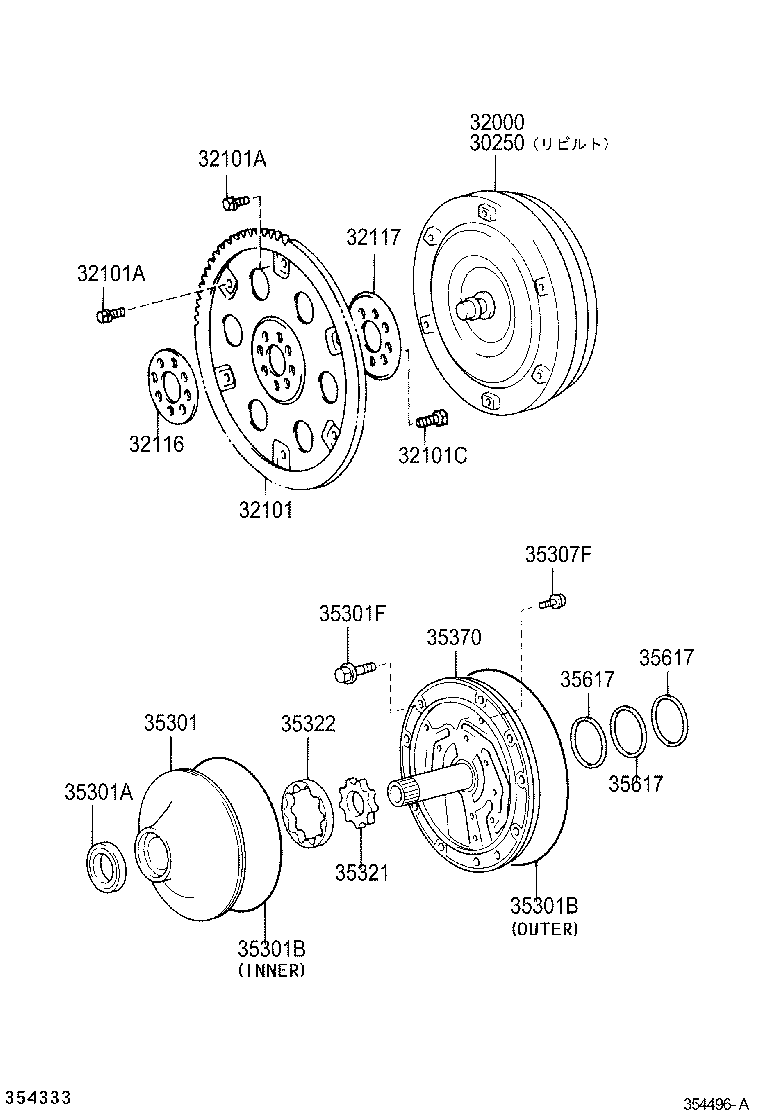

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-30400 |
GRS180,181 |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-30400 |
GRS180,181 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-30080 |
GRS18# |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-09005 |
GRS18# *9−1.25PX11−8,ﾌﾞﾗｯｸ |
1 | ||
| 90105-09006 |
GRS18# *9−1.25PX11−8.5,ｲｴﾛ− OR ｼﾙﾊﾞ− |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-09005 |
GRS18# *9−1.25PX11−8,ﾌﾞﾗｯｸ |
1 | ||
| 90105-09006 |
GRS18# *9−1.25PX11−8.5,ｲｴﾛ− OR ｼﾙﾊﾞ− |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
GRS18# *10−1.25PX18−13 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-32020 |
GRS18# |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-30030 |
GRS18# |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-60030 |
GRS18# |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38083 |
GRS18# |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99139 |
GRS18# 外側 |
1 | ||
| 90301-99148 |
GRS18# 内側 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99139 |
GRS18# 外側 |
1 | ||
| 90301-99148 |
GRS18# 内側 |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 91511-K0840 |
GRS18# *8−1.25PX40−30 |
10 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60079 |
GRS18# |
14 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-50020 |
GRS18# 厚さ=10.743−10.749 |
1 | ||
| 35321-50030 |
GRS18# 厚さ=10.750−10.756 |
1 | ||
| 35321-50070 |
GRS18# 厚さ=10.778−10.784 |
1 | ||
| 35321-50040 |
GRS18# 厚さ=10.757−10.763 |
1 | ||
| 35321-50010 |
GRS18# 厚さ=10.736−10.742 |
1 | ||
| 35321-50060 |
GRS18# 厚さ=10.771−10.777 |
1 | ||
| 35321-50050 |
GRS18# 厚さ=10.764−10.770 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-50010 |
GRS18# 厚さ=10.736−10.742 |
1 | ||
| 35322-50030 |
GRS18# 厚さ=10.750−10.756 |
1 | ||
| 35322-50050 |
GRS18# 厚さ=10.764−10.770 |
1 | ||
| 35322-50070 |
GRS18# 厚さ=10.778−10.784 |
1 | ||
| 35322-50020 |
GRS18# 厚さ=10.743−10.749 |
1 | ||
| 35322-50060 |
GRS18# 厚さ=10.771−10.777 |
1 | ||
| 35322-50040 |
GRS18# 厚さ=10.757−10.763 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-50030 |
GRS18# |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-60020 |
GRS18# |
3 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-60020 |
GRS18# |
3 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-60020 |
GRS18# |
3 | ||
