GRS181-AEASH (2004)
Toyota Crown/Majesta

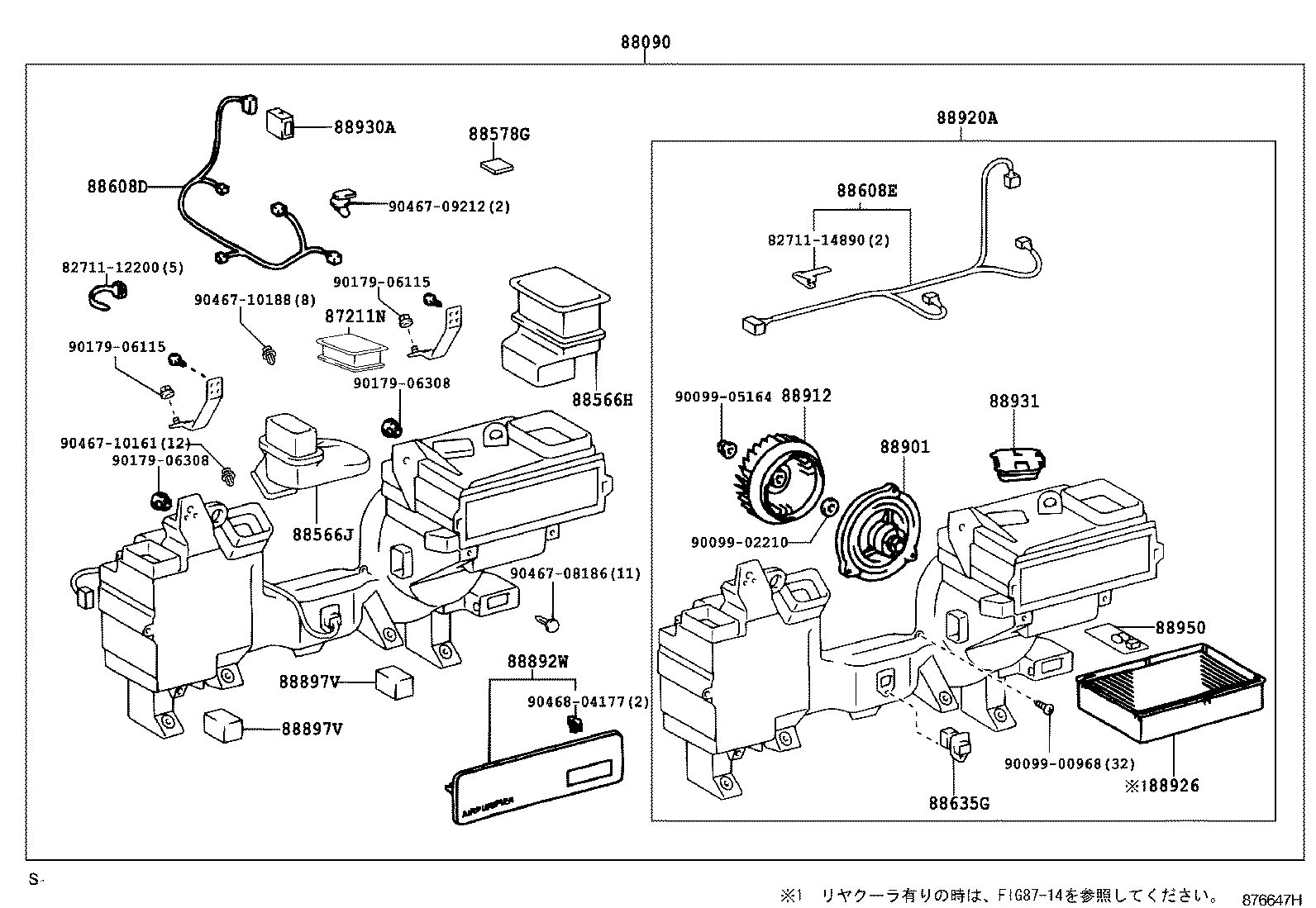

ILLUST NO. 1 OF 2(0312-0509)GRS18#
ﾏｲﾅｽｲｵﾝ ﾊﾂｾｲｿｳﾁ
| Part # | Description | Qty | Price |
|---|

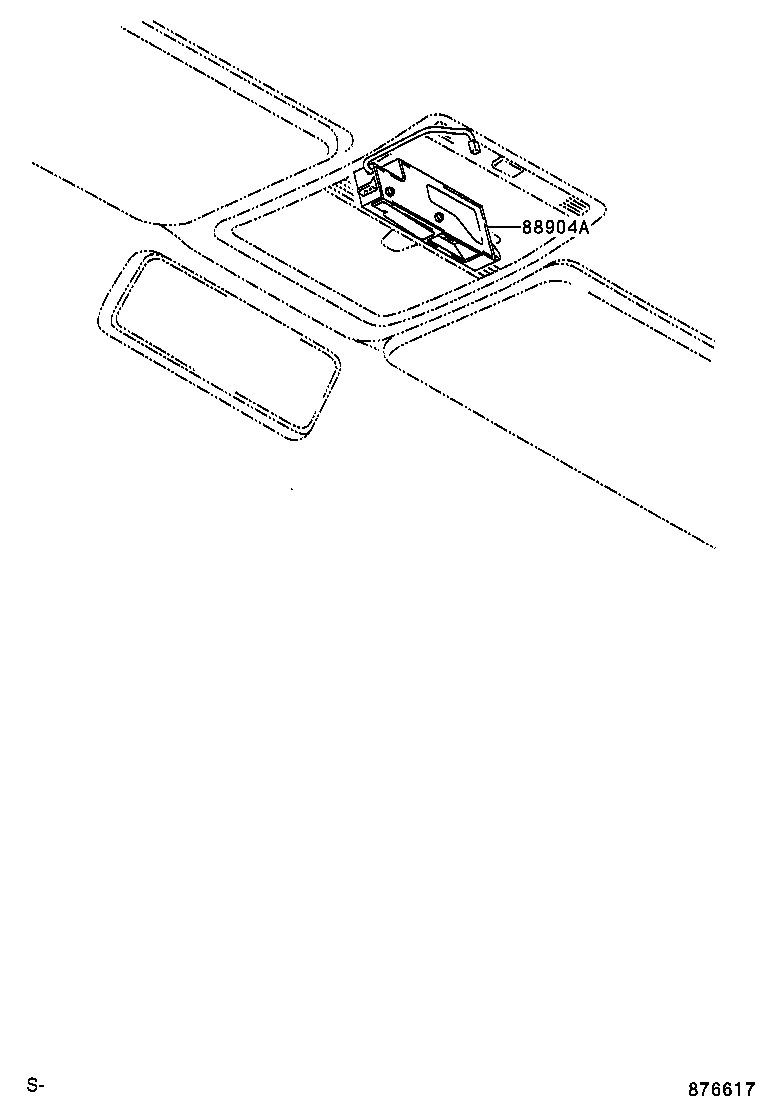

ILLUST NO. 2 OF 2(0312- )
ｸｳｷｾｲｼﾞｮｳｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211N - DUCT, AIR PURIFIER AIR, NO.1 | ||||
| 87211-30410 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 87211-30410 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 87211-30410 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 87211-30410 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88090 - AIR PURIFIER & ACCESSORY ASSY | ||||
| 88090-30050 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 88090-30050 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 88090-30050 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88090-30050 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88566H - DUCT, AIR, NO.1 | ||||
| 87211-30360 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 87211-30360 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 87211-30360 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 87211-30360 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88566J - DUCT, AIR, NO.2 | ||||
| 87211-30390 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 87211-30390 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 87211-30390 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 87211-30390 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88608D - HARNESS SUB-ASSY, WIRING AIR INDICATER, NO.2 | ||||
| 88608-3A160 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88608-3A160 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88608-3A160 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 88608-3A160 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 88608E - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.3 | ||||
| 88608-3A150 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 88608-3A150 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 88608-3A150 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88608-3A150 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88635G - RESISTOR, AIR PURIFIER BLOWER | ||||
| 88635-30450 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 88635-30450 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88635-30450 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 88635-30450 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88892W - COVER, AIR PURIFIER | ||||
| 88891-30690C0 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM0#,1#,2# |
1 | ||
| 88891-30690C0 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,BLACK,TRIM0#,1#,2# |
1 | ||
| 88891-30690C0 |
GRS181;GRS180,182..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1#,2# |
1 | ||
| 88891-30690C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM0#,1#,2# |
1 | ||
| 88897V - CUSHION, AIR PURIFIER | ||||
| 88897-30780 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
2 | ||
| 88897-30780 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
2 | ||
| 88897-30780 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
2 | ||
| 88897-30780 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
2 | ||
| 88897V - CUSHION, AIR PURIFIER | ||||
| 88897-30780 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
2 | ||
| 88897-30780 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
2 | ||
| 88897-30780 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
2 | ||
| 88897-30780 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
2 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 87104-30520 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 87104-30520 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 87104-30520 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 87104-30520 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 87134-30090 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 87134-30090 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 87134-30090 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 87134-30090 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-30140 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 88920-30140 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 88920-30140 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88920-30140 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88508-30110 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88508-30110 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 88508-30110 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 88508-30110 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-30050 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 88930-30050 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 88930-30050 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88930-30050 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-50030 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 88931-50030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88931-50030 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88931-50030 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 88950 - AMPLIFIER ASSY, AIR PURIFIER | ||||
| 88950-30020 |
GRS18#..ATH,ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP) |
1 | ||
| 88950-30020 |
GRS181;GRS180..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 88950-30020 |
GRS180,181..ATH,ROY ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 88950-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14890 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90179-06115 | ||||
| 90179-06308 | ||||
| 90467-08186 | ||||
| 90467-09212 | ||||
| 90467-10161 | ||||
| 90467-10188 | ||||
| 90468-04177 | ||||
