GRS181-AEASH (2004)
Toyota Crown/Majesta
Production
Aug 2004
-
Sep 2005
Engine
4GRFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

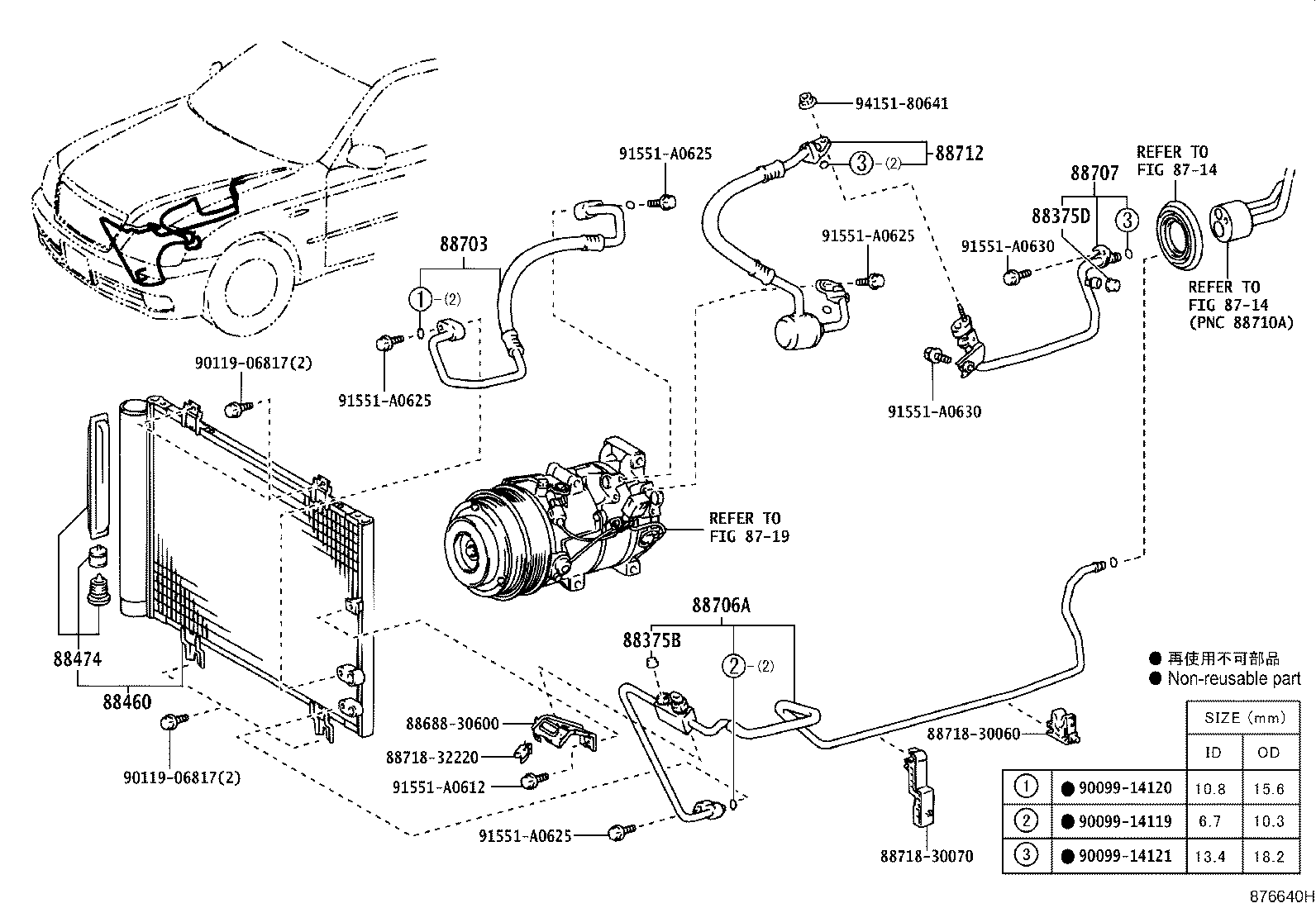

ILLUST NO. 1 OF 2(0312- )GRS18#
Click highlighted areas on diagram
ﾌﾛﾝﾄ,ｼﾝｸﾞﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30860 |
GRS18# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRS18# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88711-3A580 |
GRS18# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-3A390 |
GRS18#..ATH,ROY,ROYEX |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-30690 |
GRS180,181..5FC;GRS182,183,UZS186..A,ATH,ROY |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30160 |
GRS18# |
1 | ||
| Common parts | ||||
| 88688-30600 | ||||
| 88718-30060 | ||||
| 88718-30070 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06817 | ||||
| 91551-A0612 | ||||
| 91551-A0625 | ||||
| 91551-A0630 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

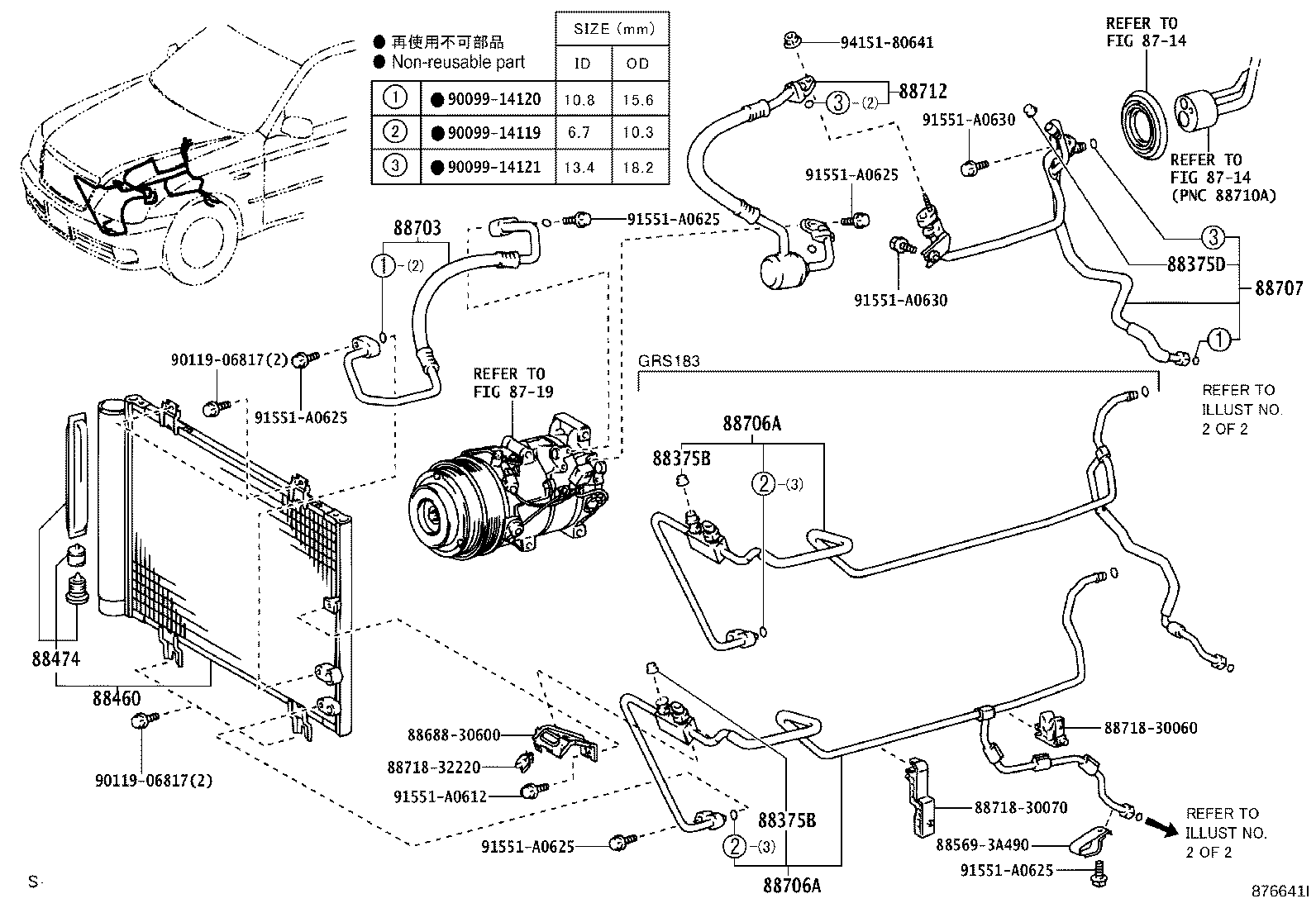

ILLUST NO. 1 OF 2(0312- )GRS18#
Click highlighted areas on diagram
ﾌﾛﾝﾄ,ﾃﾞﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30860 |
GRS18# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRS18# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88711-3A580 |
GRS18# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-3A390 |
GRS18#..ATH,ROY,ROYEX |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-30690 |
GRS180,181..5FC;GRS182,183,UZS186..A,ATH,ROY |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30160 |
GRS18# |
1 | ||
| Common parts | ||||
| 88569-3A490 | ||||
| 88688-30600 | ||||
| 88718-30060 | ||||
| 88718-30070 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06817 | ||||
| 91551-A0612 | ||||
| 91551-A0625 | ||||
| 91551-A0630 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

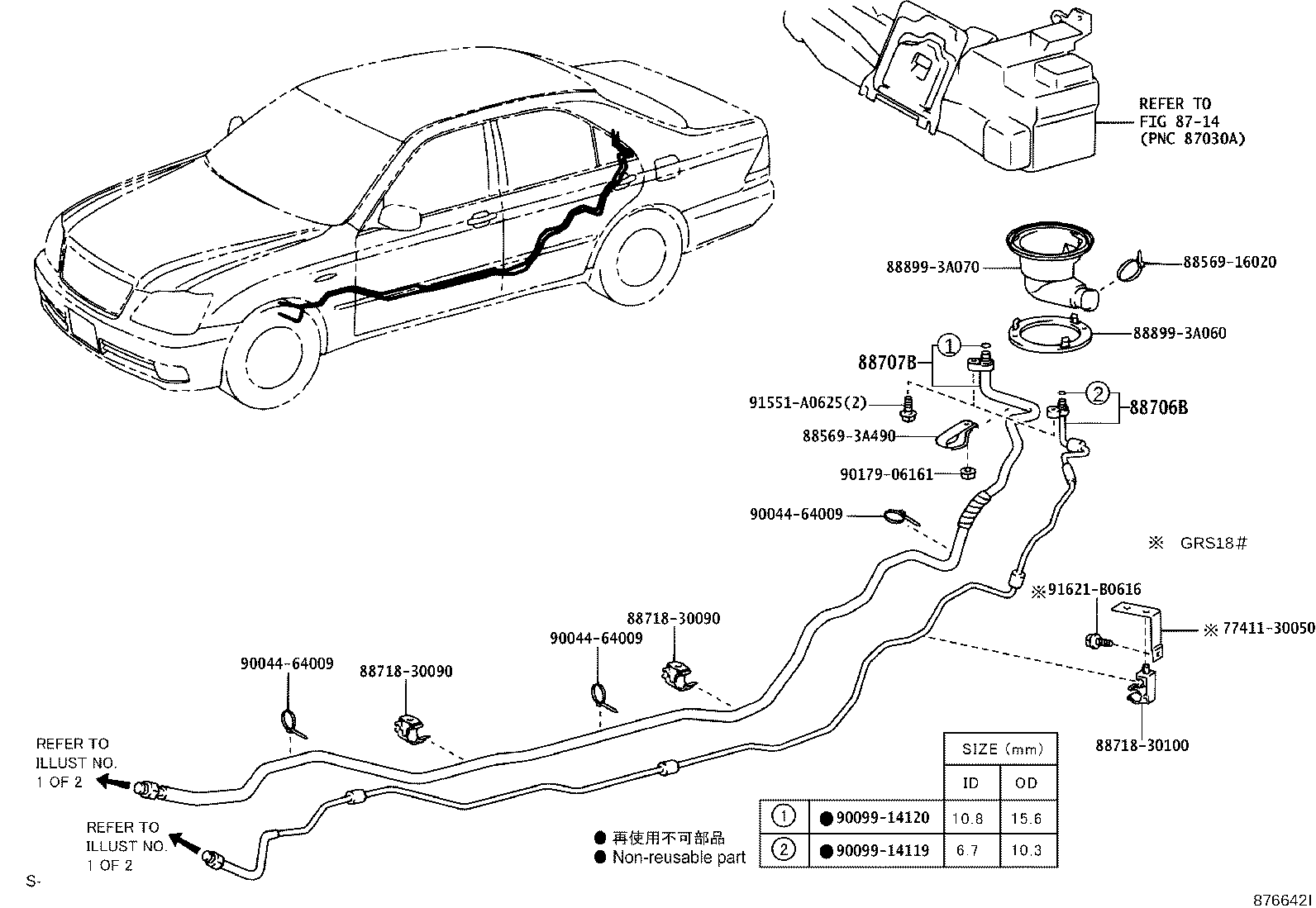

ILLUST NO. 2 OF 2(0312- )
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77411-30050 | ||||
| 88569-16020 | ||||
| 88569-3A490 | ||||
| 88718-30090 | ||||
| 88718-30100 | ||||
| 88899-3A060 | ||||
| 88899-3A070 | ||||
| 90044-64009 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90179-06161 | ||||
| 91551-A0625 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
