GRS181-AEASH (2004)
Toyota Crown/Majesta

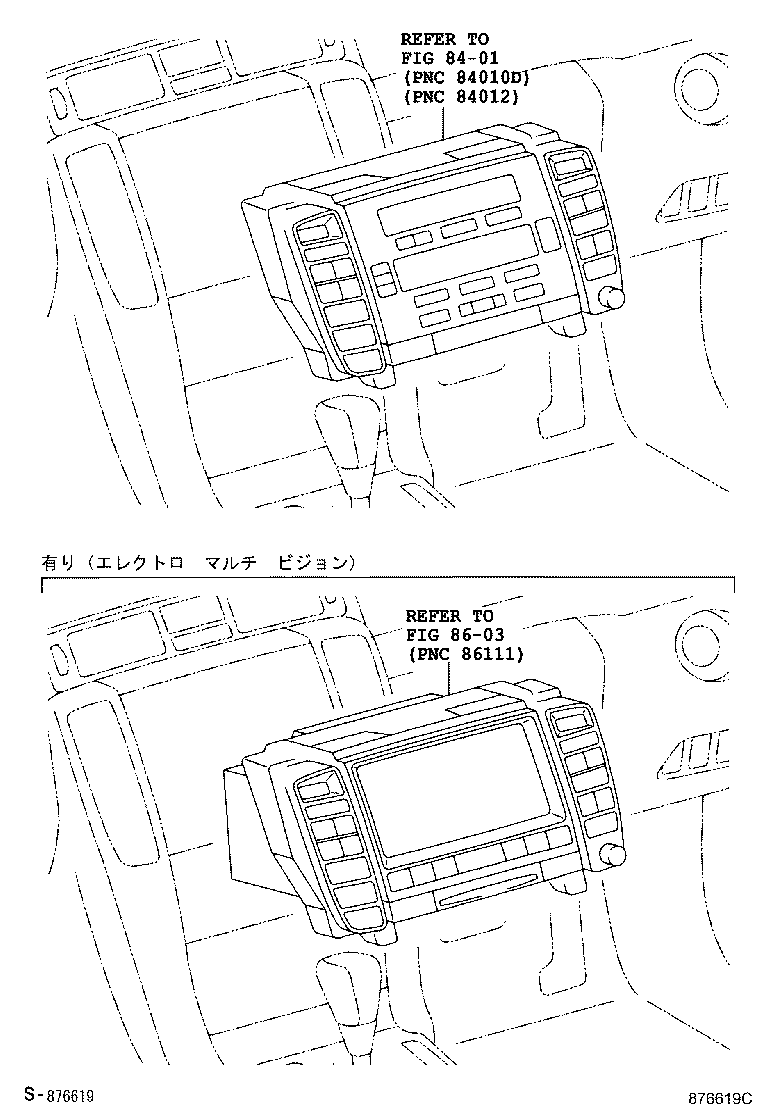

ILLUST NO. 1 OF 4(0312- )
ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||

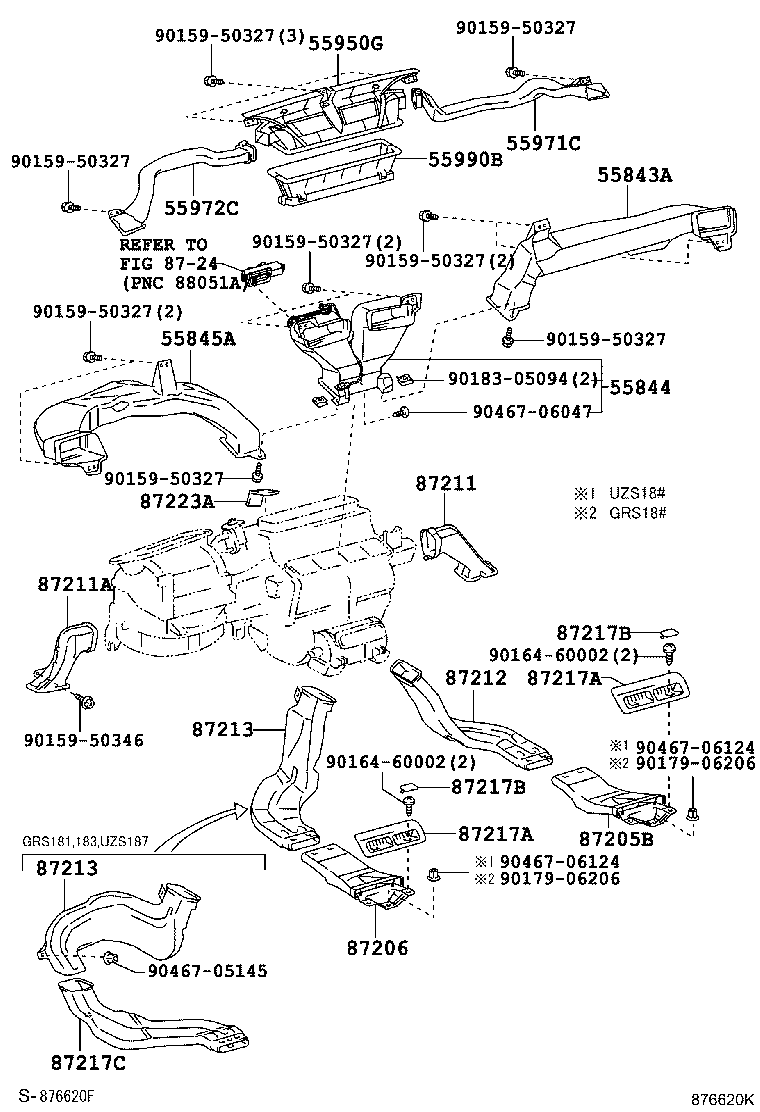

ILLUST NO. 2 OF 4(0312- )
ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30250 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-30220 |
GRS180,181..5FC;GRS182,183,UZS186..A,ATH,ROY,ROYG |
1 | ||
| 55844-30260 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-30220 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-30170 |
GRS18# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30190 |
GRS18# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30160 |
GRS18# |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-30070 |
GRS18# |
1 | ||
| 87205B - GUIDE SUB-ASSY, AIR DUCT, RH | ||||
| 87205-30220 |
GRS18# |
1 | ||
| 87206 - GUIDE SUB-ASSY, AIR DUCT, LH | ||||
| 87206-30010 |
GRS18# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-30340 |
GRS18# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-30350 |
GRS18# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30430 |
GRS18# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30380 |
GRS181,183 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30380 |
GRS181,183 |
1 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-30240A0 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 87217-30240B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-30240A0 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 87217-30240B0 |
GRS18# GRAY,TRIM1# |
2 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A4 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
4 | ||
| 90950-01693B7 |
GRS18# GRAY,TRIM1# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A4 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
4 | ||
| 90950-01693B7 |
GRS18# GRAY,TRIM1# |
4 | ||
| 87217C - DUCT, AIR, REAR NO.5 | ||||
| 87217-30250 |
GRS181,183 |
1 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-30030 |
GRS18# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-50346 | ||||
| 90164-60002 | ||||
| 90179-06206 | ||||
| 90183-05094 | ||||
| 90467-05145 | ||||
| 90467-06047 | ||||
| 90467-06124 | ||||
| Linked diagrams | ||||
| 8724 | ||||

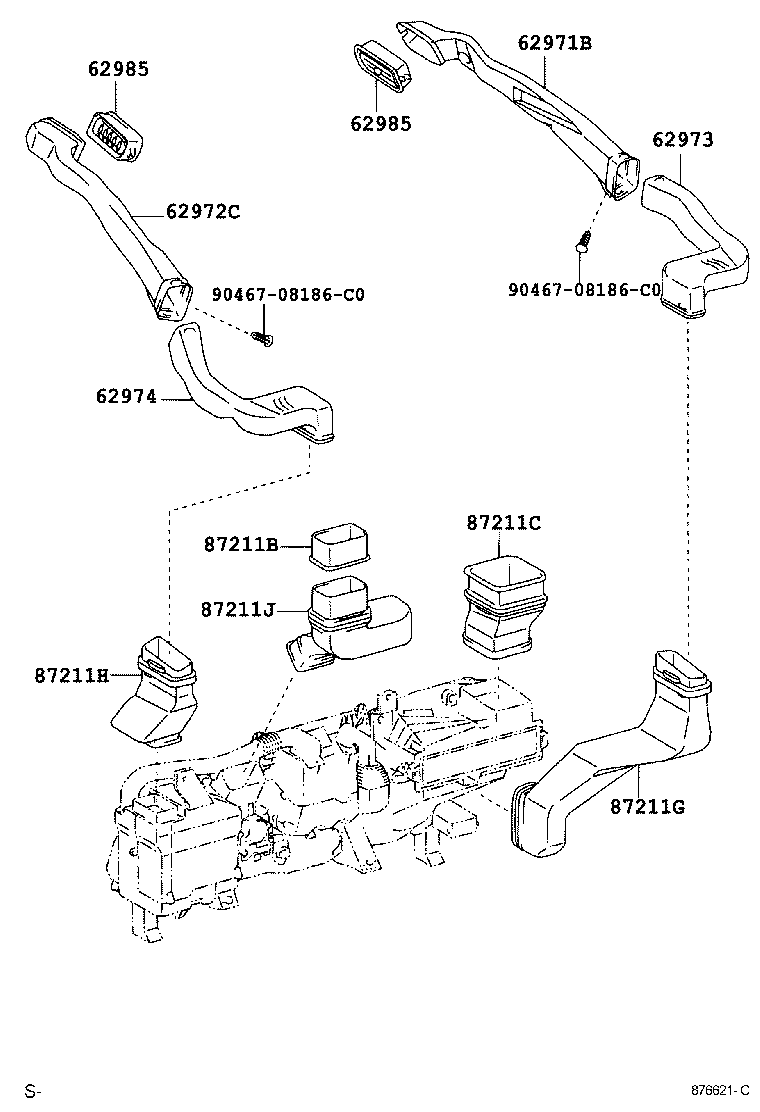

ILLUST NO. 3 OF 4(0312- )
ﾘﾔ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-08186C0 | ||||

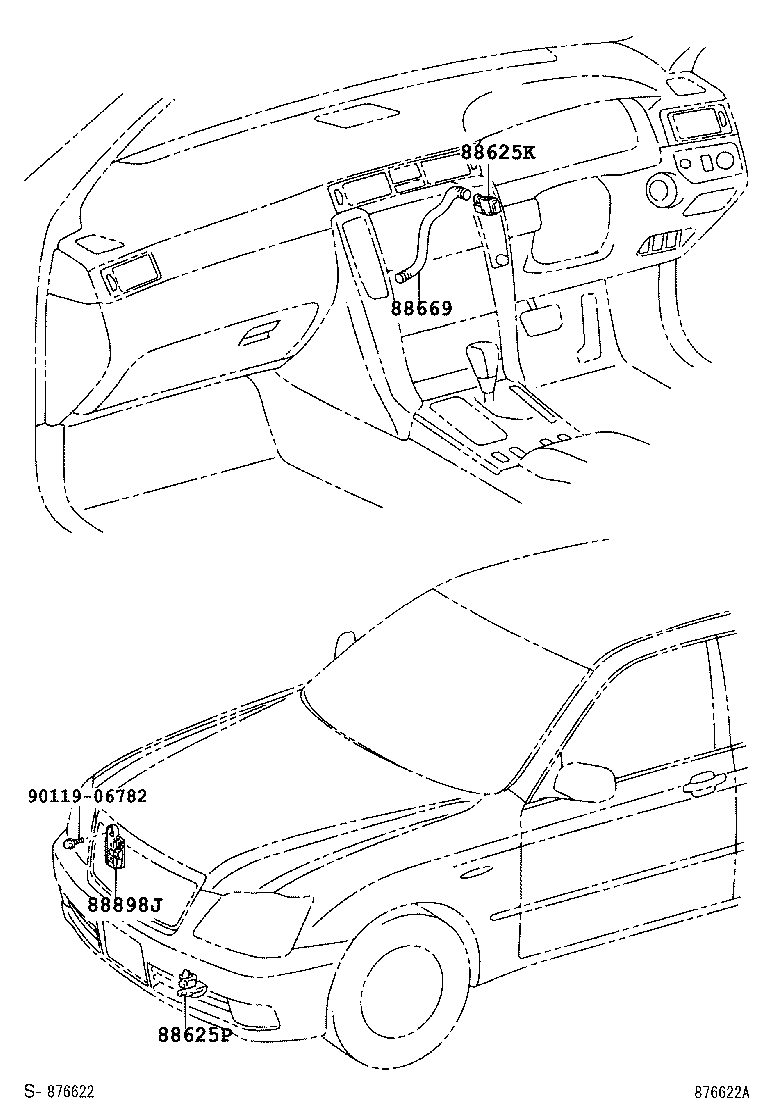

ILLUST NO. 4 OF 4(0312- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625K - THERMISTOR, COOLER | ||||
| 88625-58020 |
GRS18# |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
GRS18# |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-30040 |
GRS18# |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
