GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

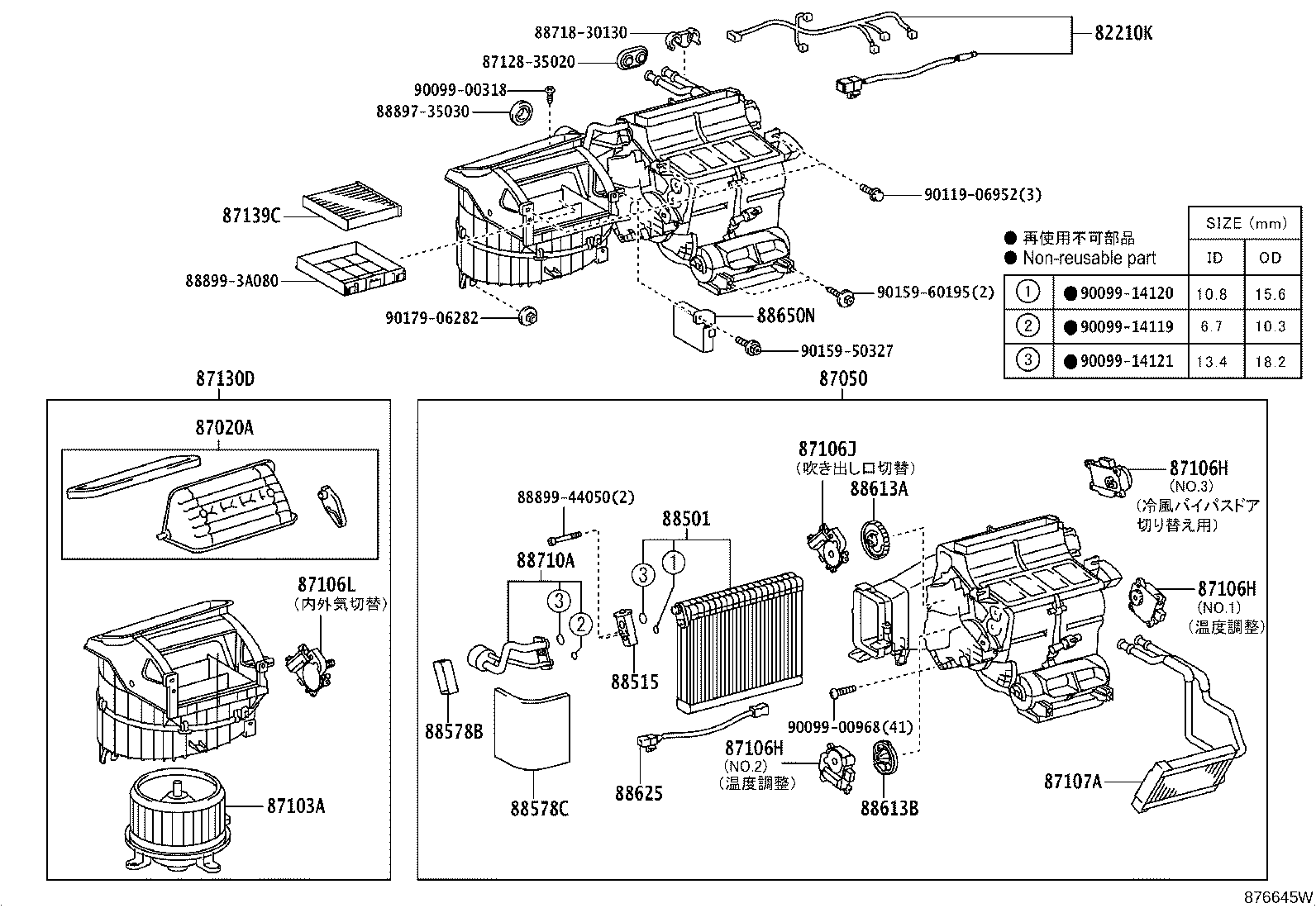

ILLUST NO. 1 OF 2(0312- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 82210K 87020A 87050 87103A 87106H 87106H 87106H 87106J 87106L 87107A 8712835020 87130D 87139C 88501 88515 88578B 88578C 88613A 88613B 88625 88650N 88710A 8871830130 8889735030 888993A080 8889944050 9009900318 9009900968 9009914119 9009914120 9009914121 9011906952 9015950327 9015960195 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82210-3A210

GRS180,181..5FC;GRS182,183,UZS18#

 1
87020A - DAMPER ASSY, HEATER AIR
87020-30010

GRS18#

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-30110

GRS180,181..5FC;GRS182,183,UZS18#

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-30400

GRS18#

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30450

GRS180,181..5FC;GRS182,183,UZS18#

NO.2

 1
87106-30440

GRS180,181..5FC;GRS182,183,UZS18#

NO.3

 1
87106-30430

GRS180,181..5FC;GRS182,183,UZS18#

NO.1

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30450

GRS180,181..5FC;GRS182,183,UZS18#

NO.2

 1
87106-30440

GRS180,181..5FC;GRS182,183,UZS18#

NO.3

 1
87106-30430

GRS180,181..5FC;GRS182,183,UZS18#

NO.1

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30450

GRS180,181..5FC;GRS182,183,UZS18#

NO.2

 1
87106-30440

GRS180,181..5FC;GRS182,183,UZS18#

NO.3

 1
87106-30430

GRS180,181..5FC;GRS182,183,UZS18#

NO.1

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-30450

GRS180,181..5FC;GRS182,183,UZS18#

 1
87106L - SERVO SUB-ASSY, DAMPER
87106-30470

GRS18#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-30560

GRS180,181..5FC;GRS182,183,UZS18#

 1
87130D - BLOWER ASSY
87130-30790

GRS18#

 1
87139C - FILTER, CLEAN AIR
87139-30040

GRS180,181..5FC;GRS182,183,UZS18#

微細塵ﾌｨﾙﾀ

 1
87139-50100

GRS180,181..5FC;GRS182,183,UZS18#

脱臭 & 花粉ﾌｨﾙﾀ

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-3A060

GRS180,181..5FC;GRS182,183,UZS18#

 1
88515 - VALVE, COOLER EXPANSION
88515-28180

GRS180,181..5FC;GRS182,183,UZS18#

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-30830

GRS180,181..5FC;GRS182,183,UZS18#

 1
88613A - LEVER, COOLER CONTROL, NO.1
88613-30010

GRS180,181..5FC;GRS182,183,UZS18#

 1
88613B - LEVER, COOLER CONTROL, NO.2
88613-30020

GRS180,181..5FC;GRS182,183,UZS18#

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-30A20

GRS18#

寒冷地仕様

 1
88650-30A00

GRS18#..ATH,ROY,ROYEX

 1
88650-30A02

GRS18#..ATH,ROY,ROYEX

 1
88650-30A03

GRS18#..ATH,ROY,ROYEX

 1
88650-30B00

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),寒冷地仕様

 1
88650-30A22

GRS18#

寒冷地仕様

 1
88650-30A90

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A)

 1
88650-30A23

GRS18#

寒冷地仕様

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A260

GRS180,181..5FC;GRS182,183,UZS18#

 1
Common parts
87128-35020
88718-30130
88897-35030
88899-3A080
88899-44050
90099-00318
90099-00968
90099-14119
90099-14120
90099-14121
90119-06952
90159-50327
90159-60195
90179-06282

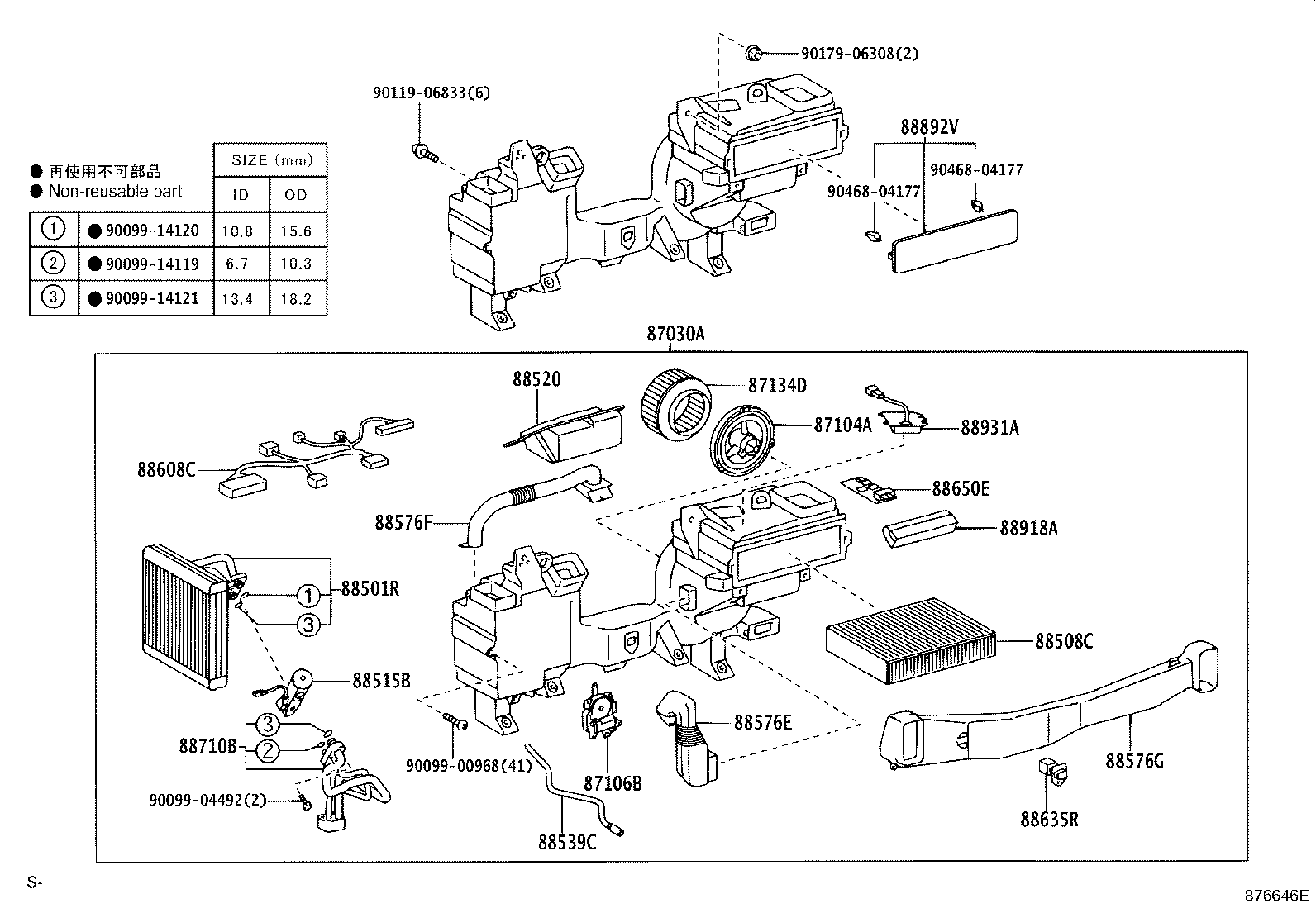

ILLUST NO. 2 OF 2(0312- )

Click highlighted areas on diagram

ﾘﾔ

diagram 87030A 87104A 87106B 87134D 88501R 88508C 88515B 88520 88539C 88576E 88576F 88576G 88608C 88635R 88650E 88710B 88892V 88918A 88931A 9009900968 9009904492 9009914119 9009914120 9009914121 9011906833 9017906308 9046804177 9046804177
Part # Description Qty Price
Common parts
90099-00968
90099-04492
90099-14119
90099-14120
90099-14121
90119-06833
90179-06308
90468-04177
