GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

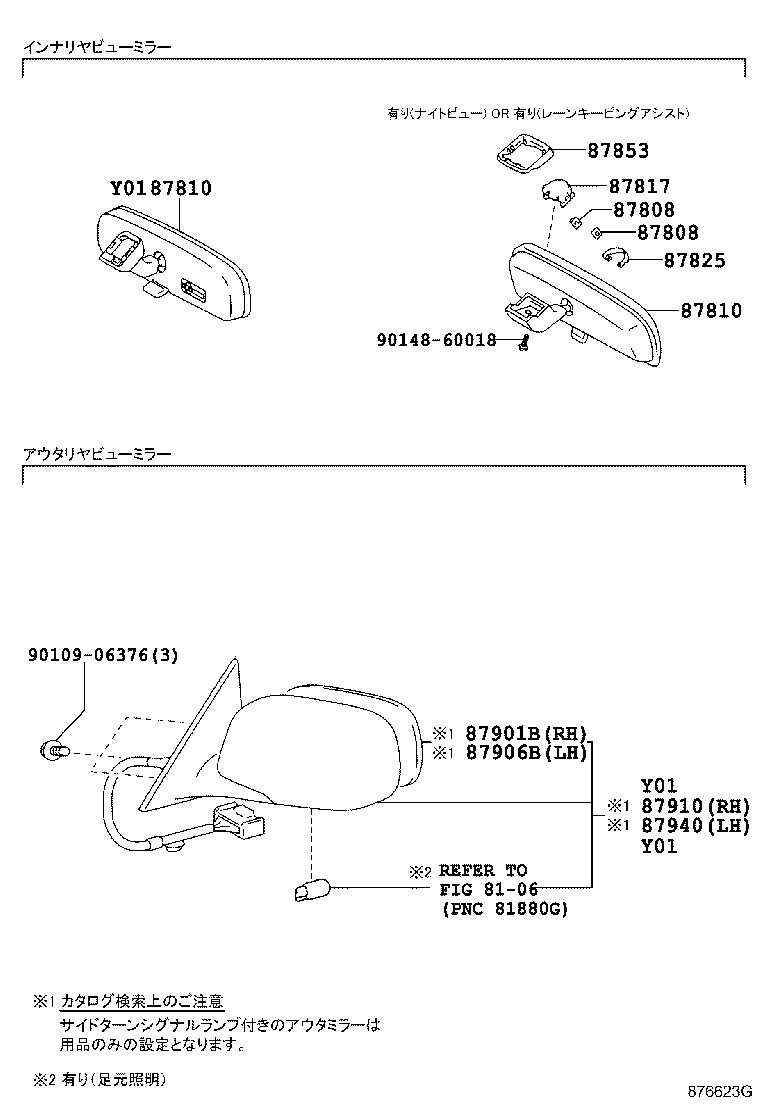

Click highlighted areas on diagram

diagram 8106 87808 87808 87810 87810 87817 87825 87853 87901B 87906B 87910 87940 9010906376 9014860018
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-60190

GRS180,181..5FC;GRS182,183,UZS18#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-60190

GRS180,181..5FC;GRS182,183,UZS18#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-30710

GRS180,181..5FC;GRS182,183,UZS18#

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-30A00

GRS180,181..5FC;GRS182,183,UZS18#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-30710A0

GRS180,181..ROYEX

SUPER WHITE 2,040

 1
87910-30710C0

GRS180,181..ROYEX

BLACK,202

 1
87910-30710B1

GRS180,181..ROYEX

PREMIUM SILVER PEARL,1F3

 1
87910-30710A1

GRS180,181..ROYEX

WHITE PEARL CS.,062

 1
87910-30710B0

GRS180,181..ROYEX

SILVER ME.,1C0

 1
87910-30710D0

GRS180,181..ROYEX

BLACKISH RED MC.,3R0

 1
87910-3A370A1

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062

 1
87910-3A370J0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8

 1
87910-3A370B1

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,PREMIUM SILVER PEARL,1F3

 1
87910-3A370C0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,BLACK,202

 1
87910-30710A2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067

 1
87910-30710J0

GRS180,181..ROYEX

DARK BLUE MC.,8P8

 1
87910-3A370D0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0

 1
87910-3A370A0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040

 1
87910-3A370A2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067,ｱﾘ(ﾗﾝﾌﾟ)

 1
87910-3A370B0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0

 1
87910-3A370A1

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

WHITE PEARL CS.,062

 1
87910-30710B2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7

 1
87910-3A370B2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7,ｱﾘ(ﾗﾝﾌﾟ)

 1
87910-3A370B1

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

PREMIUM SILVER PEARL,1F3

 1
87910-3A370C0

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

BLACK,202

 1
87910-3A370B0

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

SILVER ME.,1C0

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-30A00A1

GRS180,181..ROYEX

WHITE PEARL CS.,062

 1
87940-30A00B0

GRS180,181..ROYEX

SILVER ME.,1C0

 1
87940-30A00A0

GRS180,181..ROYEX

SUPER WHITE 2,040

 1
87940-30A00B1

GRS180,181..ROYEX

PREMIUM SILVER PEARL,1F3

 1
87940-30A00J0

GRS180,181..ROYEX

DARK BLUE MC.,8P8

 1
87940-30A10B0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0

 1
87940-30A00D0

GRS180,181..ROYEX

BLACKISH RED MC.,3R0

 1
87940-30A10J0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8

 1
87940-30A10A1

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062

 1
87940-30A10B1

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,PREMIUM SILVER PEARL,1F3

 1
87940-30A10A0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040

 1
87940-30A10D0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0

 1
87940-30A10A2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067,ｱﾘ(ﾗﾝﾌﾟ)

 1
87940-30A10B1

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

PREMIUM SILVER PEARL,1F3

 1
87940-30A00A2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067

 1
87940-30A10B0

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

SILVER ME.,1C0

 1
87940-30A10B2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7,ｱﾘ(ﾗﾝﾌﾟ)

 1
87940-30A10A1

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

WHITE PEARL CS.,062

 1
87940-30A00B2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7

 1
87940-30A00C0

GRS180,181..ROYEX

BLACK,202

 1
87940-30A10C0

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

BLACK,202

 1
87940-30A10C0

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ,BLACK,202

 1
Common parts
90109-06376
90148-60018
Linked diagrams
8106
