GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

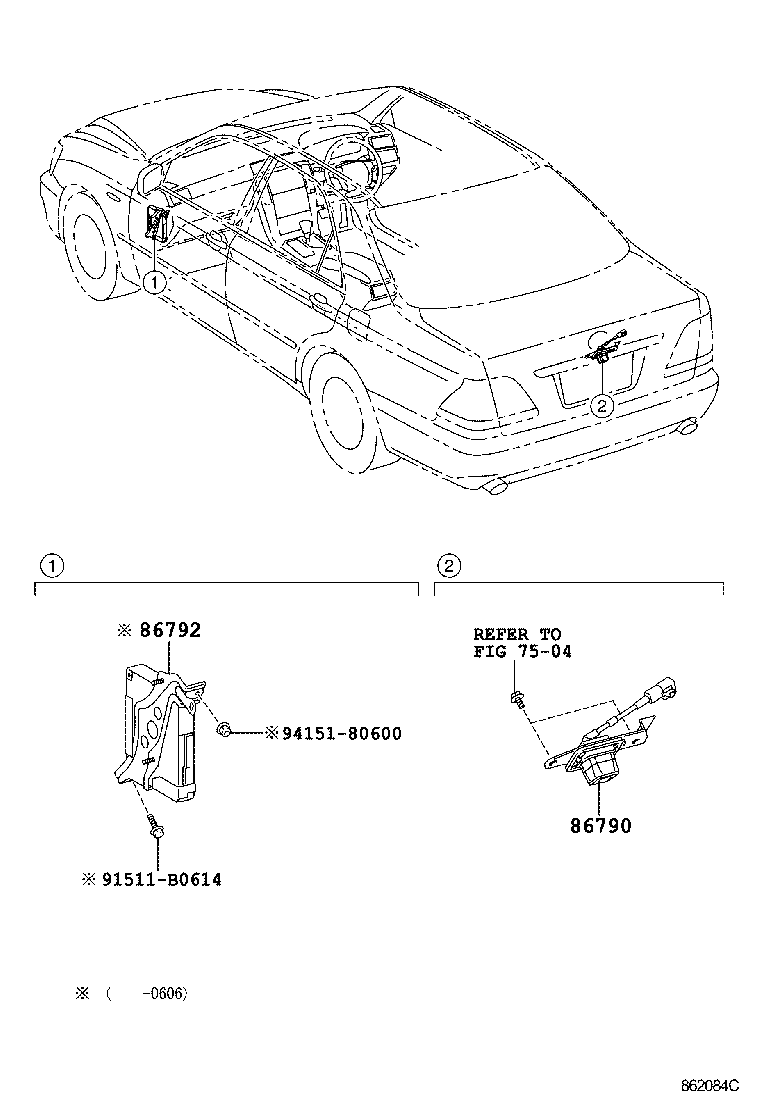

Click highlighted areas on diagram

diagram 7504 86790 86792 91511B0614 9415180600
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-30010

GRS180,181

ﾊﾞｯｸﾓﾆﾀ−有り

 1
86792 - CONTROLLER, TELEVISION CAMERA
86792-30010

GRS180,181

ﾊﾞｯｸﾓﾆﾀ−有り

 1
Common parts
91511-B0614
94151-80600
Linked diagrams
7504
