GRS181-AEASH (2004)
Toyota Crown/Majesta

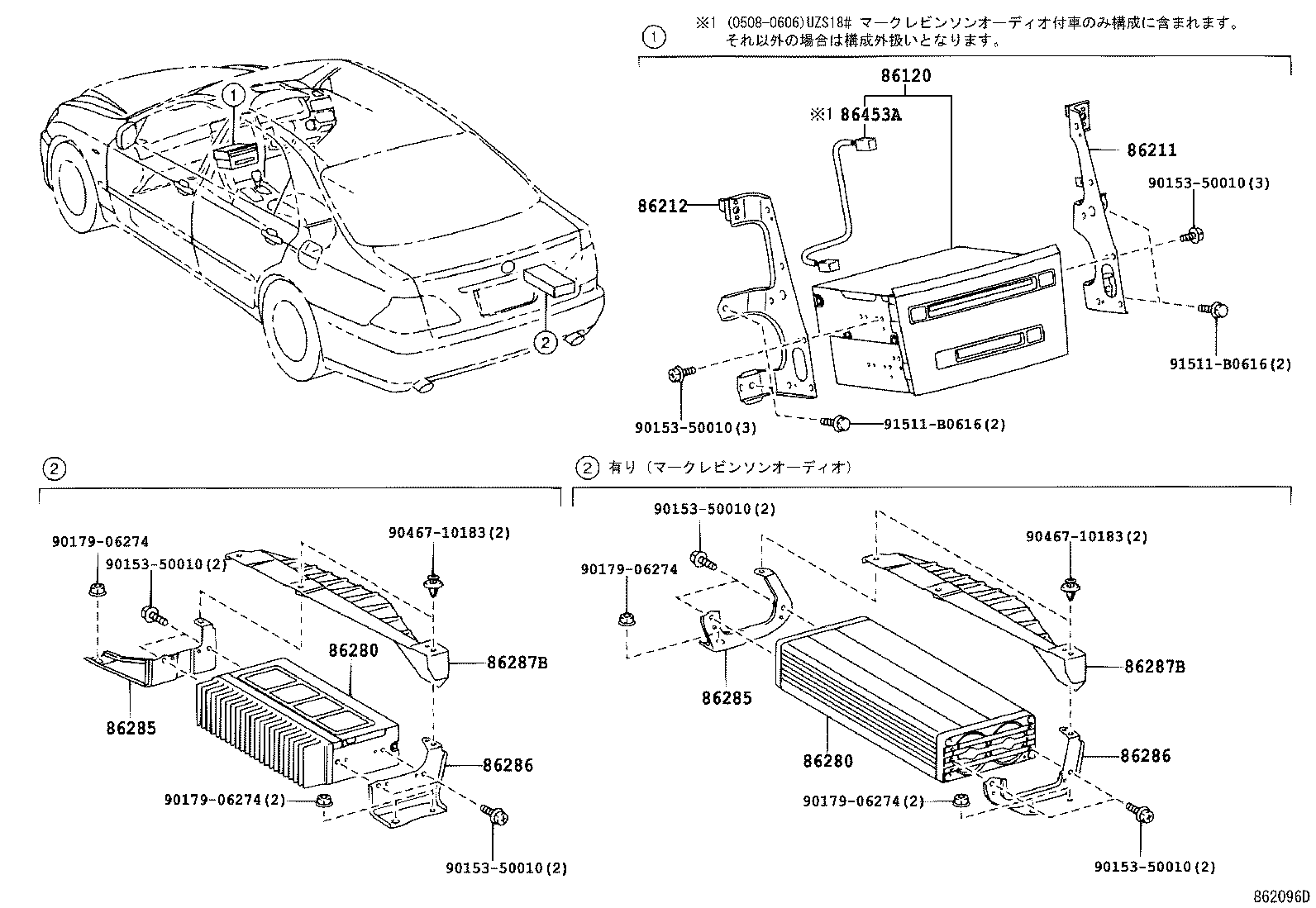

ILLUST NO. 1 OF 3(0312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-30E10E0 |

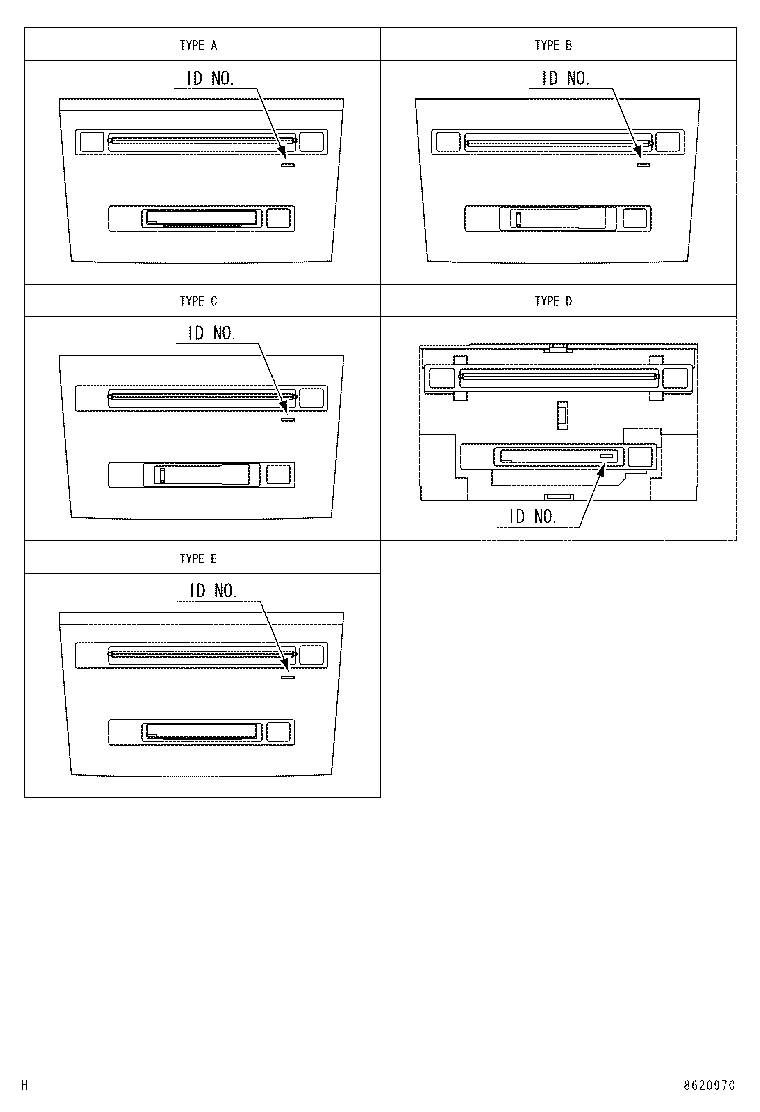

GRS180..ROY;GRS181..ROYEX FUJITSU TEN,ID=15870,ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,LT.BROWN,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30E20E0 |
GRS180,181..ROY,ROYEX MATSUSHITA,ID=50342,ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,LT.BROWN,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30E20B0 |
GRS180,181..ROY,ROYEX MATSUSHITA,ID=50342,ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30E10B0 |
GRS180..ROY;GRS181..ROYEX FUJITSU TEN,ID=15870,ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30E30B0 |
GRS180,181..ROY,ROYEX FUJITSU TEN,ID=15871,GRAY,TRIM1#,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 86120-30A50B0 |
GRS181..ROYEX FUJITSU TEN,ID=15875,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM12 |
1 | ||
| 86120-30E30E0 |
GRS180,181..ROY,ROYEX FUJITSU TEN,ID=15871,LT.BROWN,TRIM0#,TYPE E:ｲﾗｽﾄ参ﾆ |
1 | ||
| 86120-30A50E0 |
GRS181..ROYEX FUJITSU TEN,ID=15875,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),LT.BROWN,TRIM01 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30290 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30240 |
GRS18#,UZS18# |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30470 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 86280-30470 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30470 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 86280-30470 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30290 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 86285-30290 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30290 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 86285-30290 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30060 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 86286-30060 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30060 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 86286-30060 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-30010 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 86287-30010 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-30010 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 86287-30010 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 90467-10183 | ||||
| 91511-B0616 | ||||
ILLUST NO. 2 OF 3(0312- )
| Part # | Description | Qty | Price |
|---|

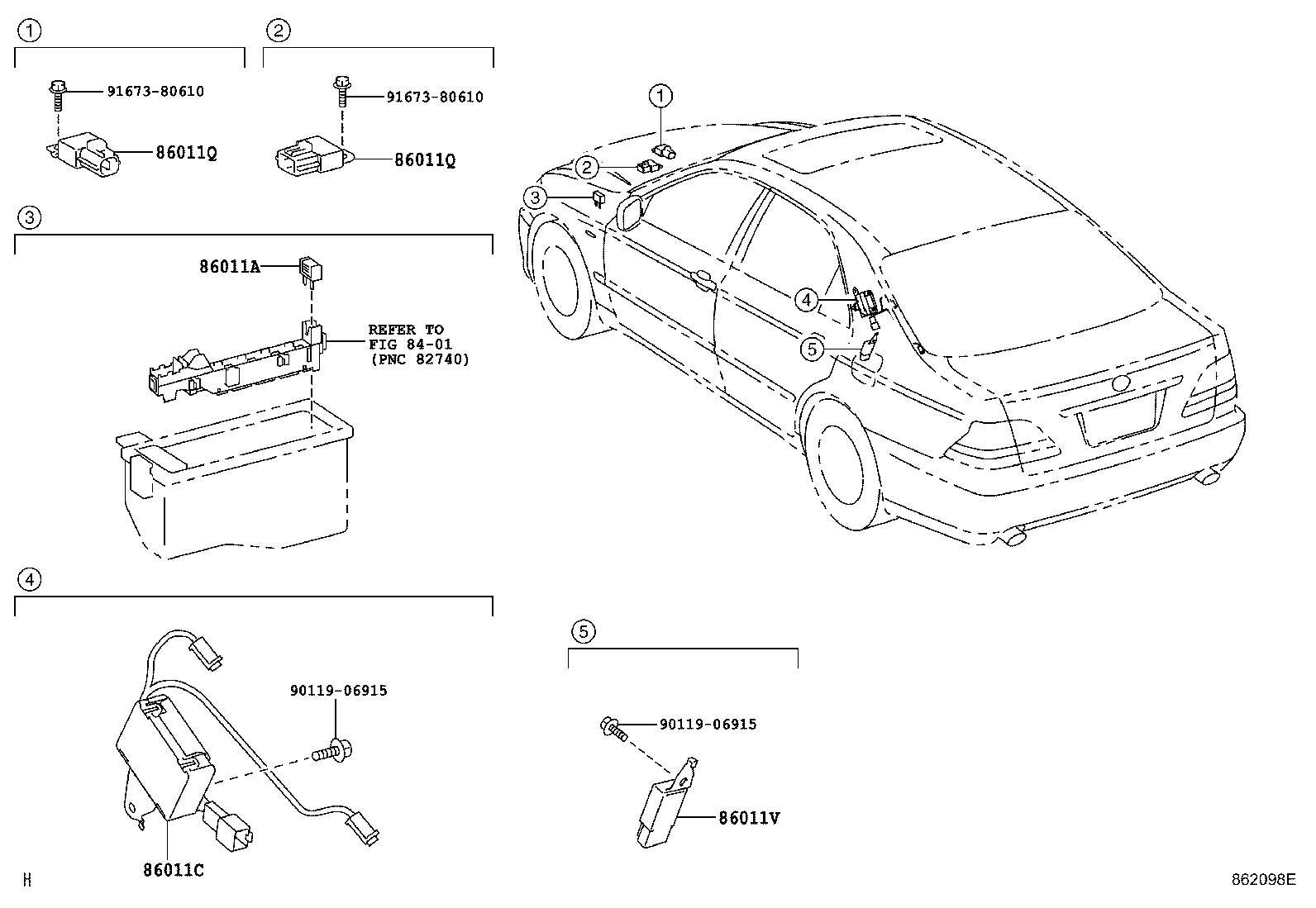

ILLUST NO. 3 OF 3(0312- )GRS18#
ｺﾝﾃﾞﾝｻ & ﾉｲｽﾞﾌｲﾙﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05363 |
GRS18# |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04177 |
GRS18# |
2 | ||
| 90980-04190 |
GRS18# |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04177 |
GRS18# |
2 | ||
| 90980-04190 |
GRS18# |
2 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04148 |
GRS18# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
