GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

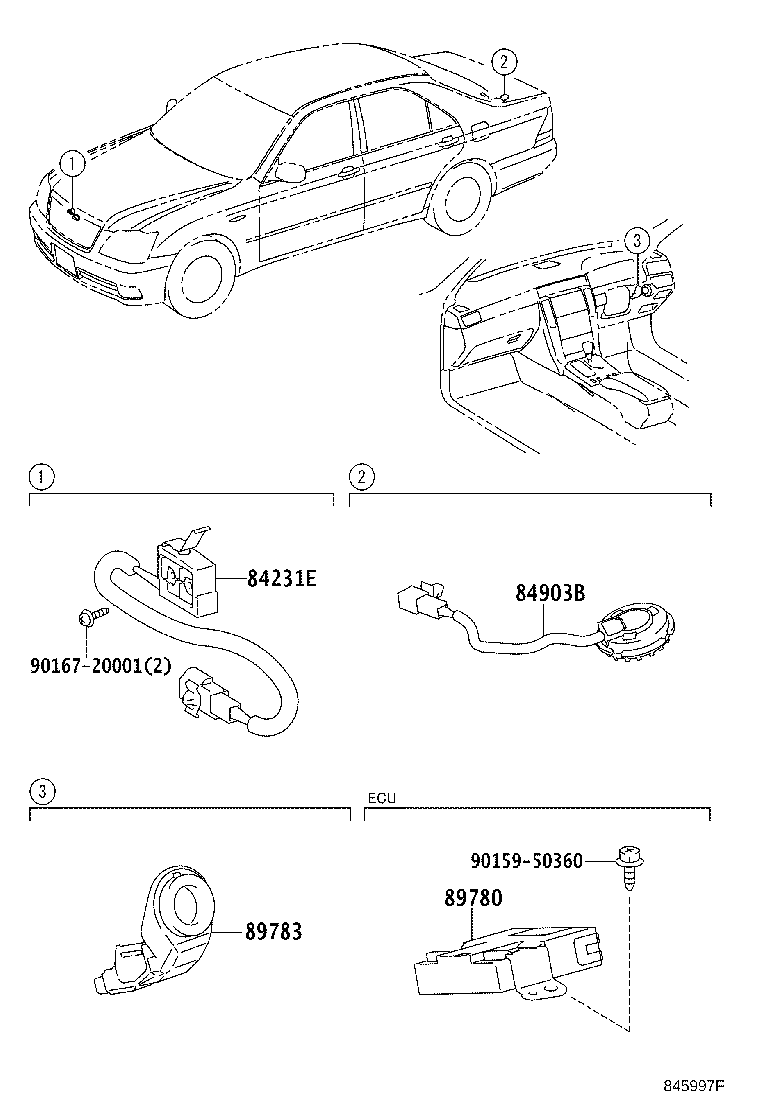

Click highlighted areas on diagram

diagram 84231E 84903B 89780 89783 9015950360 9016720001
Part # Description Qty Price
84903B - SWITCH SUB-ASSY, DOOR UNLOCK
84903-50210

GRS180,181..5FC;GRS182,183,UZS18#

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-30020

GRS18#..ATH,ROY,ROYG

 1
89780-30020

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ

 1
89780-30030

GRS180,181..ROYEX

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-35030

GRS180,181..ROYEX

 1
Common parts
90159-50360
90167-20001
