GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

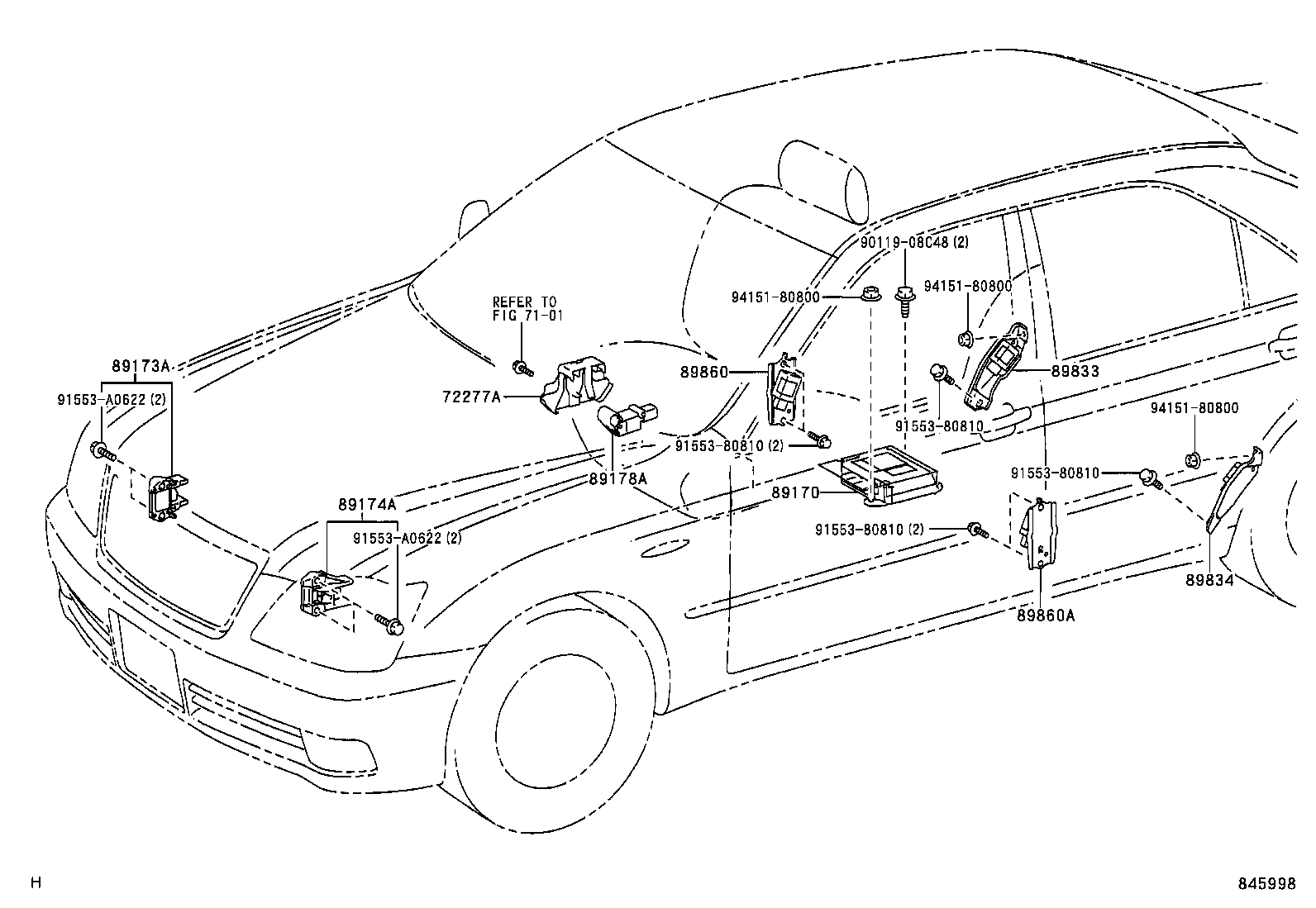

Click highlighted areas on diagram

diagram 7101 72277A 89170 89173A 89174A 89178A 89833 89834 89860 89860A 9011908C48 9155380810 9155380810 9155380810 9155380810 91553A0622 91553A0622 9415180800 9415180800 9415180800
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ

 1
72277-33021

GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG

 1
72277-33010

GRS180,181..ROYEX

 1
72277-33021

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49325

GRS18#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49325

GRS18#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33020

GRS180,181..ROYEX

SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
89178-33031

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ

 1
89178-33031

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
89178-33031

GRS18#,UZS18#..A,ATH,C,ROY,ROYG

 1
89178-33050

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ

 1
89178-33040

GRS180,181..ROYEX

 1
89178-33050

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
89833 - SENSOR, AIR BAG, REAR RH
89833-30010

GRS180,181

SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
89834 - SENSOR, AIR BAG, REAR LH
89834-30010

GRS180,181

SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-30120

GRS180,181

SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-30120

GRS180,181

SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
Common parts
90119-08C48
91553-80810
91553-A0622
94151-80800
Linked diagrams
7101
