GRS181-AEASH (2004)
Toyota Crown/Majesta

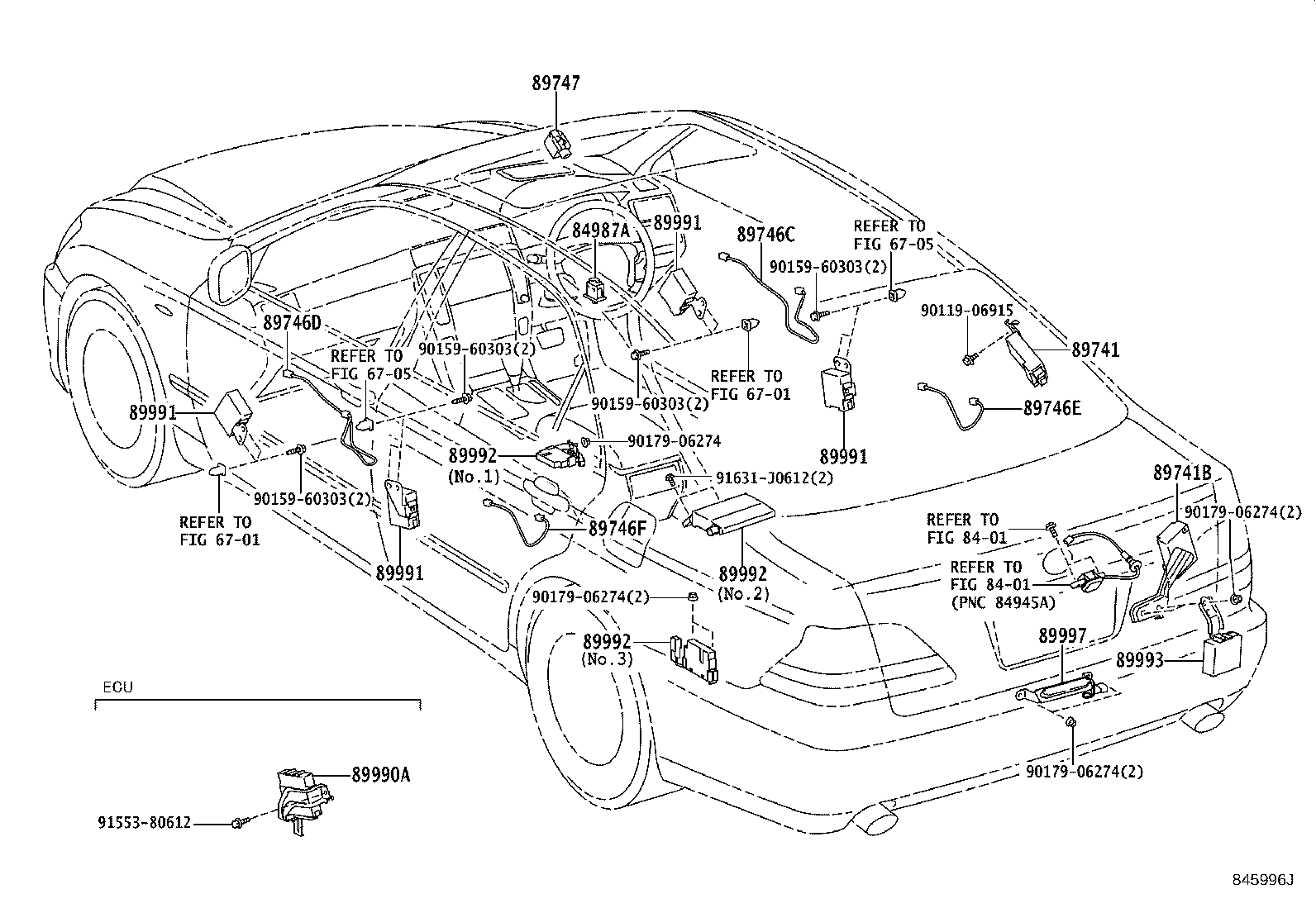

(0312-0509)GRS18#
ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84987A - SWITCH, KEYLESS ENTRY CANCEL | ||||
| 84987-50060 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 84987-50060 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 84987-50050 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-30010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89741-30310 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89740-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89741-30310 |
GRS180,181..ROYEX |
1 | ||
| 89741B - RECEIVER, DOOR CONTROL, NO.2 | ||||
| 89740-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89740-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89746-30010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89746E - HARNESS, ELECTRICAL KEY WIRE, NO.3 | ||||
| 89746-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89746-30030 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746F - HARNESS, ELECTRICAL KEY WIRE, NO.4 | ||||
| 89746-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89746-30030 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-48020 |
GRS18# |
1 | ||
| 89747-48020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89990-30010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30020 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30010 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30011 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30011 |
GRS18#..ATH,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30031 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾘﾔ |
2 | ||
| 89991-30021 |
GRS18#..ATH,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30030 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾘﾔ |
2 | ||
| 89991-30021 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾘﾔ |
2 | ||
| 89991-30031 |
GRS18#..ATH,ROY,ROYG ﾘﾔ |
2 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30020 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30010 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30011 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30011 |
GRS18#..ATH,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30031 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾘﾔ |
2 | ||
| 89991-30021 |
GRS18#..ATH,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30030 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾘﾔ |
2 | ||
| 89991-30021 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾘﾔ |
2 | ||
| 89991-30031 |
GRS18#..ATH,ROY,ROYG ﾘﾔ |
2 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30020 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30010 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30011 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30011 |
GRS18#..ATH,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30031 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾘﾔ |
2 | ||
| 89991-30021 |
GRS18#..ATH,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30030 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾘﾔ |
2 | ||
| 89991-30021 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾘﾔ |
2 | ||
| 89991-30031 |
GRS18#..ATH,ROY,ROYG ﾘﾔ |
2 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30020 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30010 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30011 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30011 |
GRS18#..ATH,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30031 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾘﾔ |
2 | ||
| 89991-30021 |
GRS18#..ATH,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30030 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾘﾔ |
2 | ||
| 89991-30021 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾘﾔ |
2 | ||
| 89991-30031 |
GRS18#..ATH,ROY,ROYG ﾘﾔ |
2 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-30010 |
GRS18#..ATH,ROY,ROYG NO.1 |
1 | ||
| 89992-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NO.1 |
1 | ||
| 89992-30020 |
GRS18#..ATH,ROY,ROYG NO.2 |
1 | ||
| 89992-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NO.2 |
1 | ||
| 89992-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NO.3 |
1 | ||
| 89992-30030 |
GRS18#..ATH,ROY,ROYG NO.3 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-30010 |
GRS18#..ATH,ROY,ROYG NO.1 |
1 | ||
| 89992-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NO.1 |
1 | ||
| 89992-30020 |
GRS18#..ATH,ROY,ROYG NO.2 |
1 | ||
| 89992-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NO.2 |
1 | ||
| 89992-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NO.3 |
1 | ||
| 89992-30030 |
GRS18#..ATH,ROY,ROYG NO.3 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-30010 |
GRS18#..ATH,ROY,ROYG NO.1 |
1 | ||
| 89992-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NO.1 |
1 | ||
| 89992-30020 |
GRS18#..ATH,ROY,ROYG NO.2 |
1 | ||
| 89992-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NO.2 |
1 | ||
| 89992-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NO.3 |
1 | ||
| 89992-30030 |
GRS18#..ATH,ROY,ROYG NO.3 |
1 | ||
| 89993 - OSCILLATOR, LUGGAGE ELECTRICAL KEY | ||||
| 89993-30011 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89993-30010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89993-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89993-30011 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89997-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60303 | ||||
| 90179-06274 | ||||
| 91553-80612 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 6705 | ||||
| 8401 | ||||

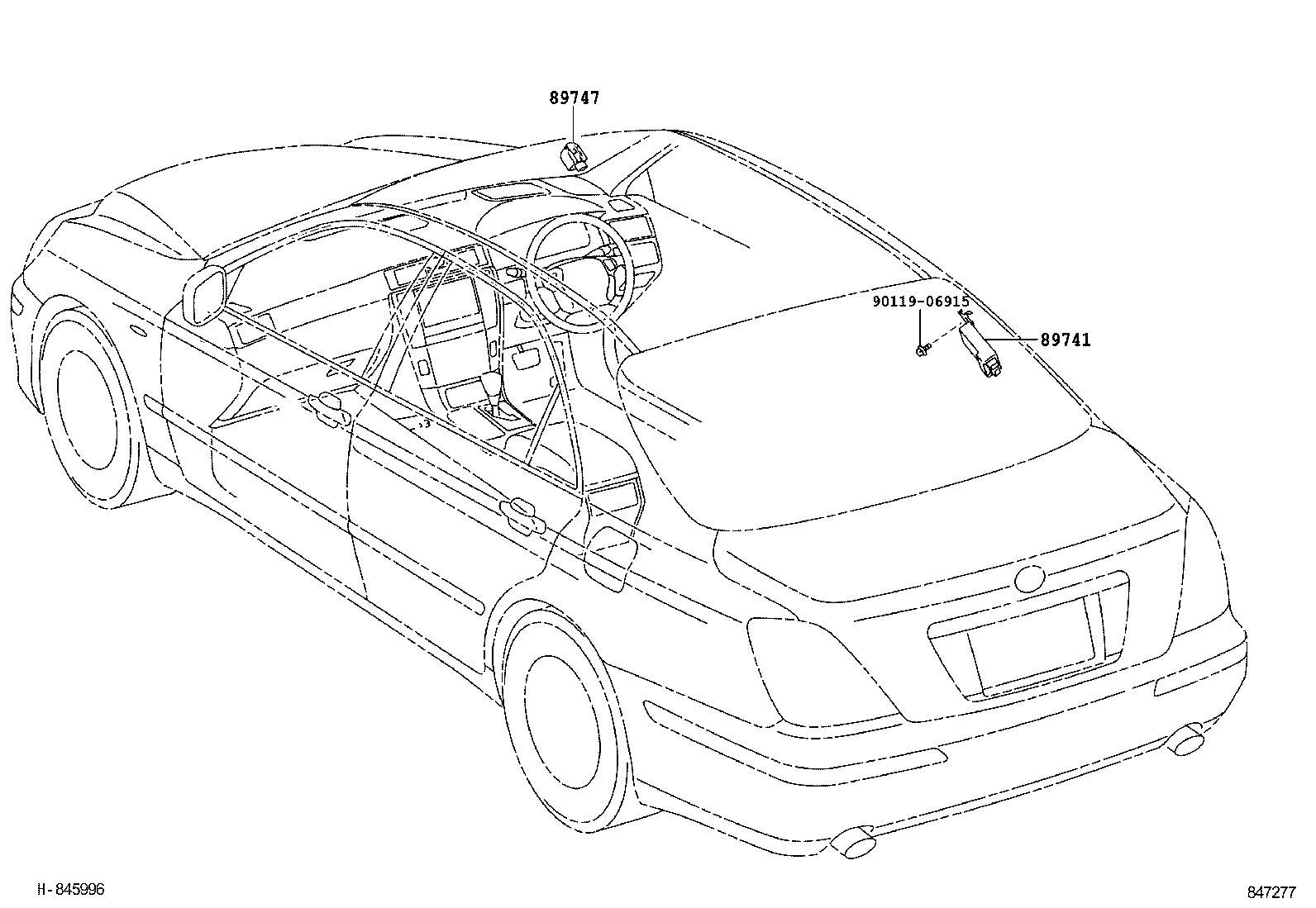

(0312-0802)GRS18#
ﾅｼ(ｽﾏ-ﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-30010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89741-30310 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89740-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89741-30310 |
GRS180,181..ROYEX |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-48020 |
GRS18# |
1 | ||
| 89747-48020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
