GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

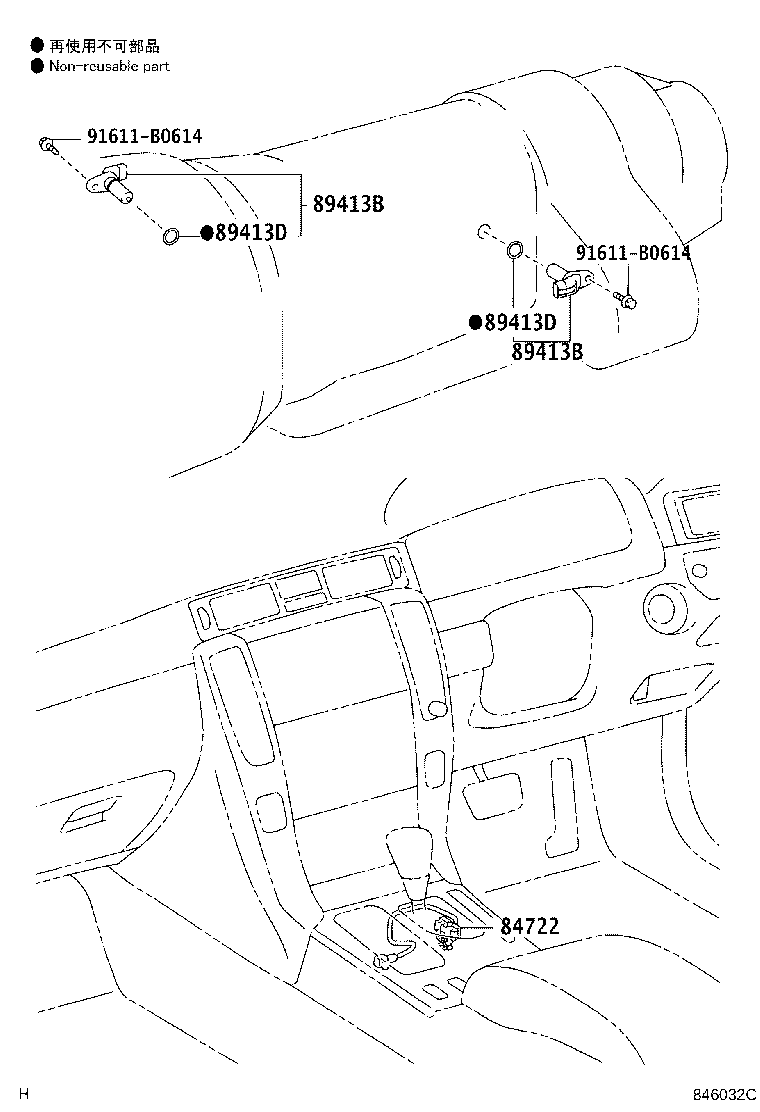

Click highlighted areas on diagram

diagram 84722 89413B 89413B 89413D 89413D 91611B0614 91611B0614
Part # Description Qty Price
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

GRS180,181..5FC;GRS182,183,UZS18#

 2
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

GRS180,181..5FC;GRS182,183,UZS18#

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

GRS18#

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

GRS18#

 2
Common parts
91611-B0614
