GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0802)GRS18#

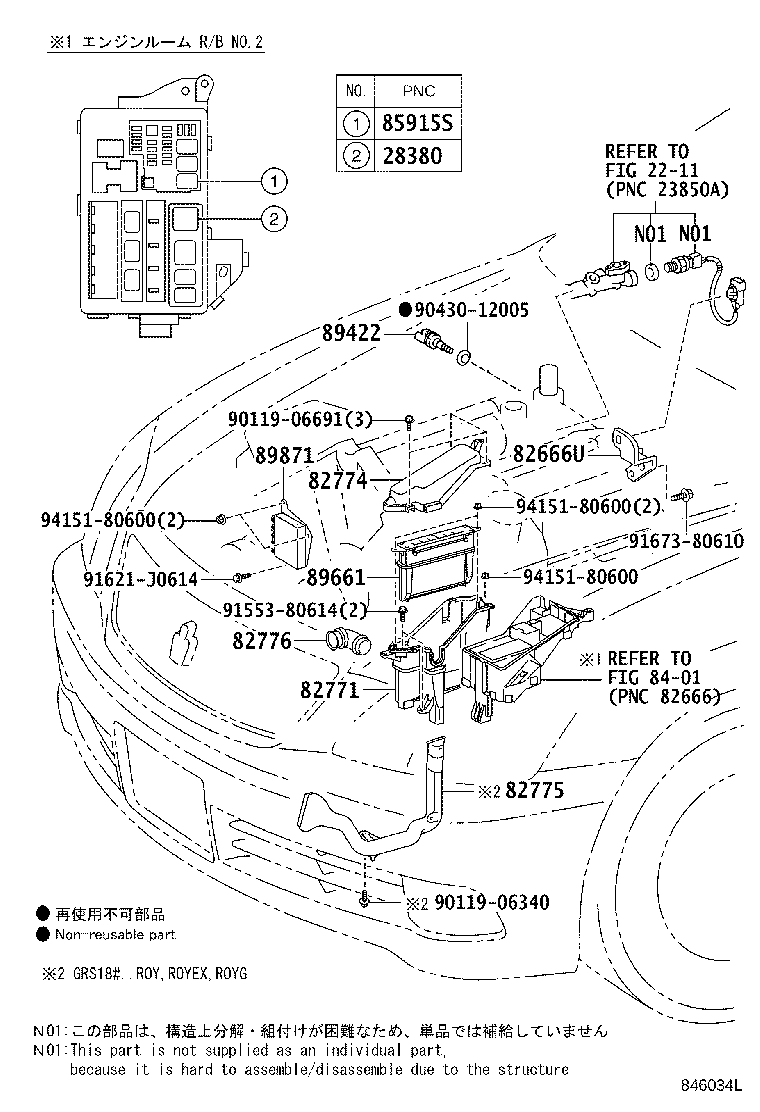

Click highlighted areas on diagram

diagram 2211 28380 82666U 82771 82774 82775 82776 8401 85915S 89422 89661 89871 9011906340 9011906691 9043012005 9155380614 91621J0614 9167380610 9415180600 9415180600 9415180600
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90987-03003

4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18#

 1
82666U - HOLDER, CONNECTOR
82666-30780

GRS18#

 1
82771 - BOX, ENGINE ROOM ECU
82771-30040

GRS180,181..5FC;GRS182,183,UZS18#

 1
82774 - COVER, ENGINE ROOM ECU
82774-30050

GRS18#

 1
82775 - DUCT, ENGINE ROOM ECU INLET
82775-30040

GRS18#..ROY,ROYEX,ROYG

 1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-30090

GRS18#

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02027

GRS18#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

GRS18#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3A390

GRS181

DENSO

 1
89871 - DRIVER, INJECTOR
89871-30030

GRS18#

 1
Common parts
90119-06340
90119-06691
90430-12005
91553-80614
91621-J0614
91673-80610
94151-80600
Linked diagrams
2211
8401
