GRS181-AEASH (2004)
Toyota Crown/Majesta
ILLUST NO. 1 OF 8(0312- )GRS18#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GRS18# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
GRS181 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30720 |
GRS181,183 ﾊﾞﾝｸ2 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30720 |
GRS181,183 ﾊﾞﾝｸ2 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-30710 |
GRS18# ﾊﾞﾝｸ1 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-30010 |
GRS18# ﾊﾞﾝｸ2 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-30020 |
GRS181,183 ﾊﾞﾝｸ1 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30070 |
GRS181,183 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
GRS18# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRS18# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRS18# |
2 | ||
| Common parts | ||||
| 91551-80830 | ||||
| 91621-B0616 | ||||
| 91651-40830 | ||||

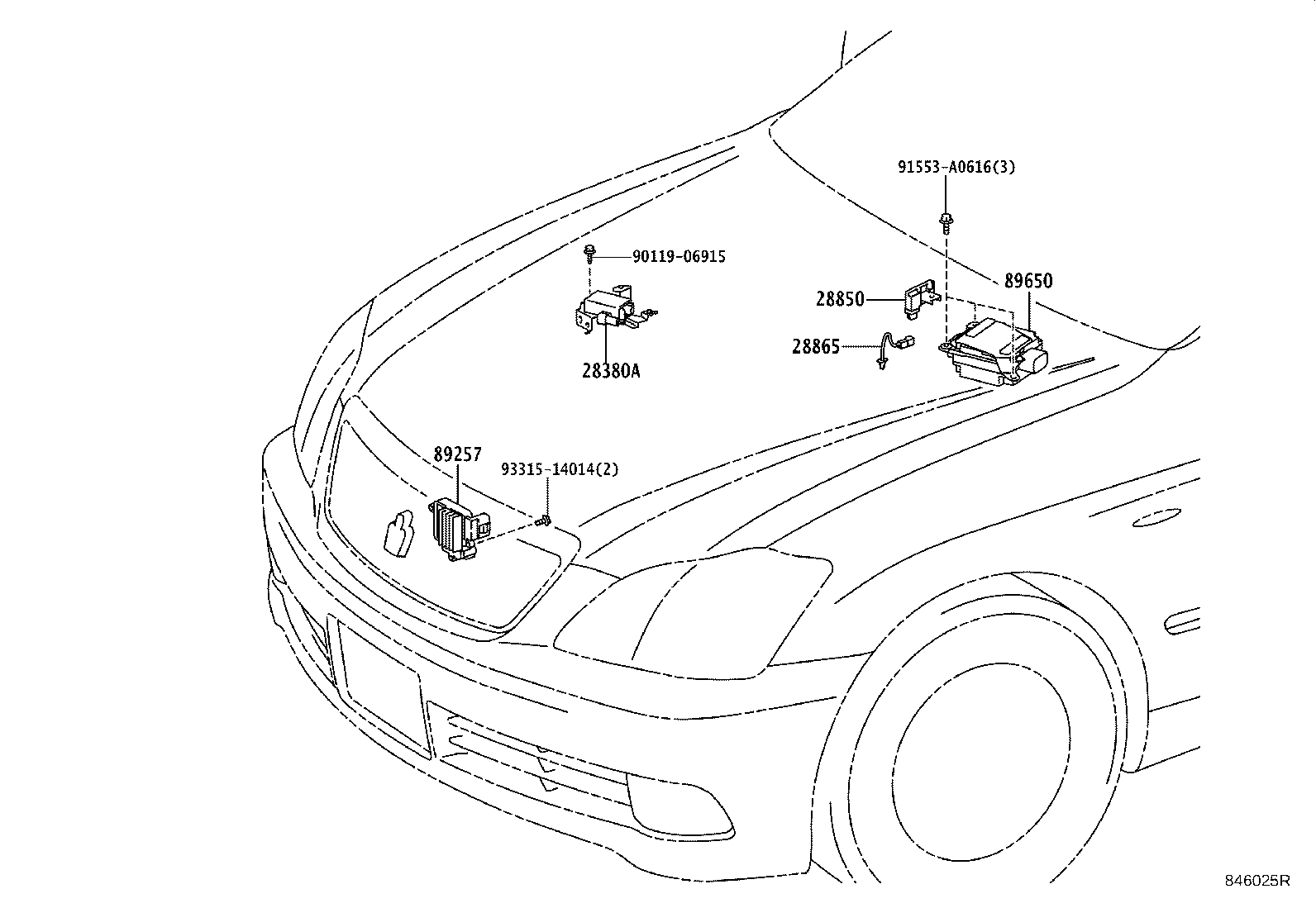

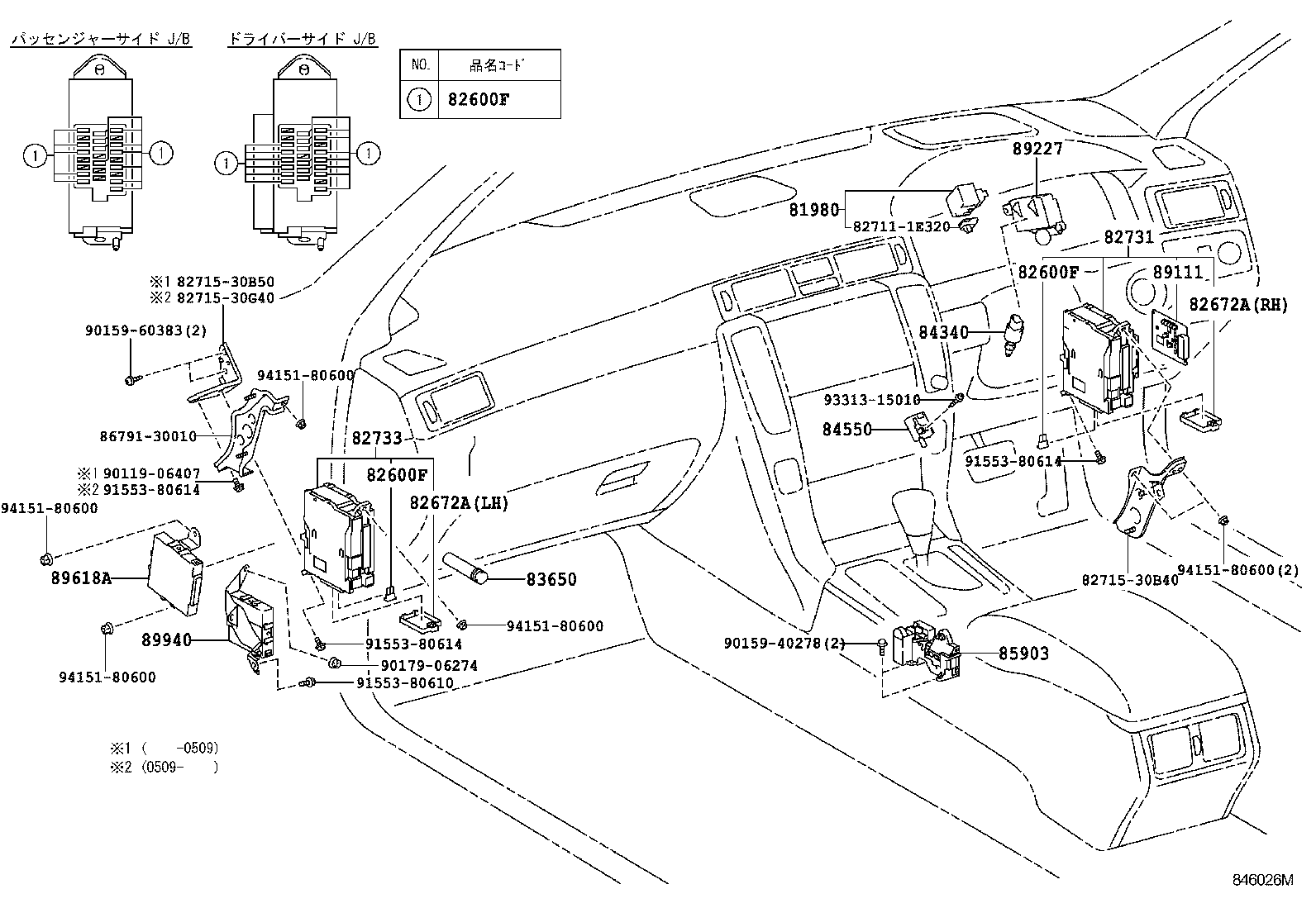

ILLUST NO. 2 OF 8(0312- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-50010 |
4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18# |
1 | ||
| 28865 - SENSOR, BATTERY THERMOMETER | ||||
| 28865-31010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30060 |
GRS18# |
1 | ||
| 89257-30050 |
GRS18# |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30623 |
GRS18#,UZS18# TOYOTA |
1 | ||
| 89650-30620 |
GRS18# TOYOTA |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-A0616 | ||||
| 93315-14014 | ||||
ILLUST NO. 4 OF 8(0312- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30170 |
GRS18# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS180,181..5FC;GRS182,183,UZS18# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
GRS180,181..5FC;GRS182,183,UZS18# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
GRS180,181..5FC;GRS182,183,UZS18# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS180,181..5FC;GRS182,183,UZS18# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
GRS180,181..5FC;GRS182,183,UZS18# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GRS180,181..5FC;GRS182,183,UZS18# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS180,181..5FC;GRS182,183,UZS18# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
GRS180,181..5FC;GRS182,183,UZS18# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
GRS180,181..5FC;GRS182,183,UZS18# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS180,181..5FC;GRS182,183,UZS18# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
GRS180,181..5FC;GRS182,183,UZS18# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GRS180,181..5FC;GRS182,183,UZS18# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS180,181..5FC;GRS182,183,UZS18# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
GRS180,181..5FC;GRS182,183,UZS18# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
GRS180,181..5FC;GRS182,183,UZS18# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS180,181..5FC;GRS182,183,UZS18# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
GRS180,181..5FC;GRS182,183,UZS18# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GRS180,181..5FC;GRS182,183,UZS18# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30080 |
GRS18# 左側 |
1 | ||
| 82672-30070 |
GRS18# 右側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30080 |
GRS18# 左側 |
1 | ||
| 82672-30070 |
GRS18# 右側 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-30160 |
GRS18# |
1 | ||
| 82733 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-30140 |
GRS18# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30110 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-30060 |
GRS180,181..ATH,ROY |
1 | ||
| 85903-30060 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 85903-60010 |
GRS180,181..ROYEX |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-30010 |
GRS180,181,183;GRS182..ATH,ROYG |
1 | ||
| 89618A - COMPUTER, POWER SOURCE CONTROL | ||||
| 89618-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89618-30010 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 89618-30010 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 89618-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89960-30110 |
GRS181,183..ROY,ROYEX |
1 | ||
| 89940-30030 |
GRS181,183..ROY,ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82715-30B40 | ||||
| 82715-30B50 | ||||
| 82715-30G40 | ||||
| 86791-30010 | ||||
| 90119-06407 | ||||
| 90159-40278 | ||||
| 90159-60383 | ||||
| 90179-06274 | ||||
| 91553-80610 | ||||
| 91553-80614 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||

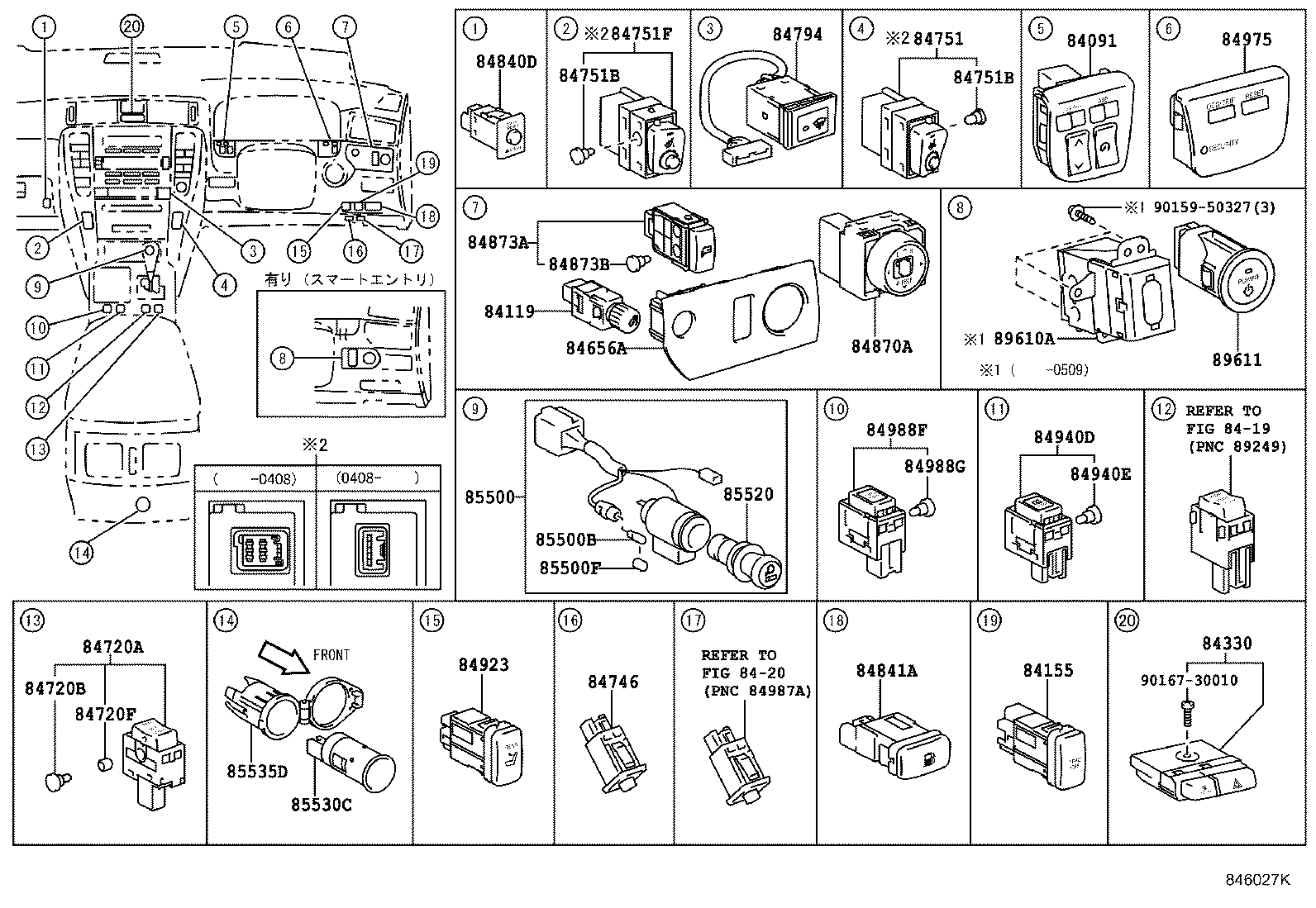

ILLUST NO. 5 OF 8(0312- )GRS18#
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30230 |
GRS18# |
1 | ||
| 84155 - SWITCH, HEADLAMP SWIVEL MAIN | ||||
| 84155-30010 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 55936-30040 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 55936-30040 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 55936-30030 |
GRS180,181..ROYEX |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-30090B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 84656-30090A0 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-30340 |
GRS18# |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 84999-10710 |
GRS18# 14V 0.56W |
1 | ||
| 84720F - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10670 |
GRS18# |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-50010 |
GRS18# |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-30010 |
GRS18# 寒冷地仕様 |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-24020 |
GRS18# |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-48010 |
GRS18# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-30030 |
GRS18# |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-30010 |
GRS18# |
1 | ||
| 84873B - BULB, RETRACTABLE OUTER MIRROR SWITCH | ||||
| 90010-01096 |
GRS18# 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 84940D - SWITCH ASSY, REAR SUN SHADE | ||||
| 84940-30020 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 84940E - BULB, REAR SUN SHADE | ||||
| 90010-01039 |
GRS181..ROYEX 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-30020 |
GRS18# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30510 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
GRS18# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
GRS18# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GRS18# |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-42010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-30020 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 89610A - HOLDER ASSY, ELECTRICAL KEY | ||||
| 89610-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89610-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89611-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 8419 | ||||
| 8420 | ||||

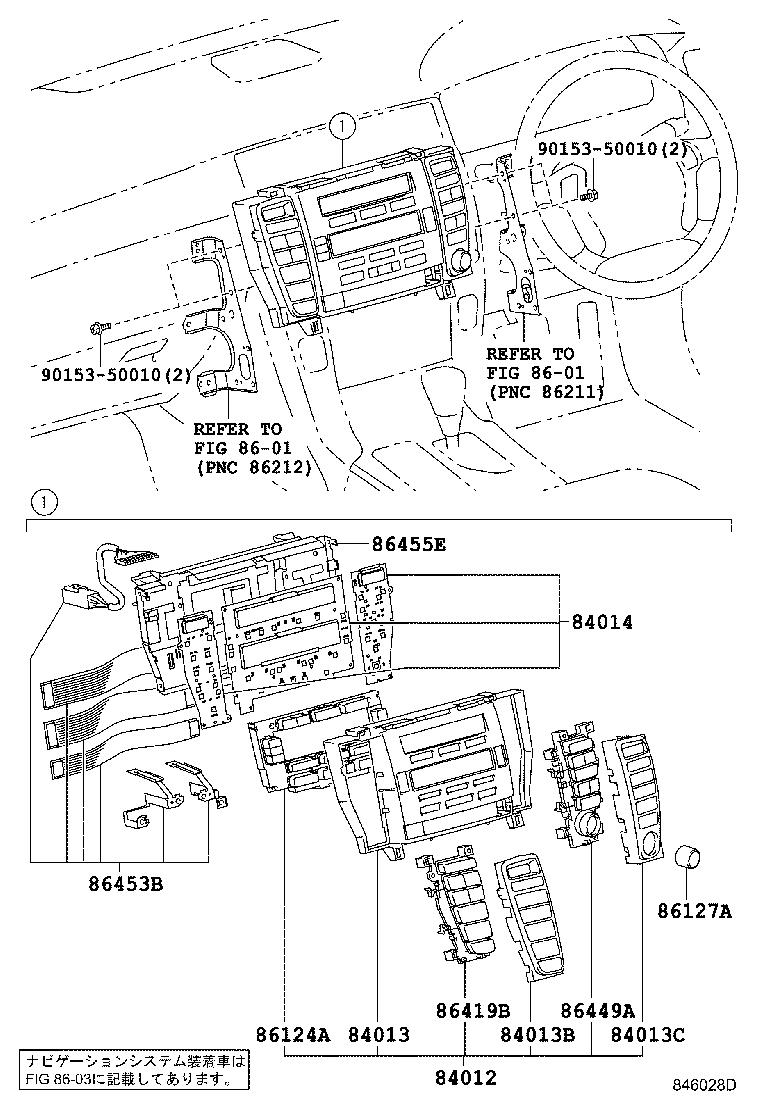

ILLUST NO. 5 OF 8(0408- )GRS18#
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-30090 |
GRS180,181 |
1 | ||
| 84013 - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-30070 |
GRS180,181 |
1 | ||
| 84013B - PANEL SUB-ASSY, INTEGRATION, NO.2 | ||||
| 84013-30050 |
GRS180,181 |
1 | ||
| 84013C - PANEL SUB-ASSY, INTEGRATION, NO.3 | ||||
| 84013-30060 |
GRS180,181 |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-30020 |
GRS180,181 |
1 | ||
| 86124A - KNOB, RADIO RECEIVER TONE CONTROL | ||||
| 86124-30060 |
GRS180,181 |
1 | ||
| 86127A - KNOB,RADIO RECEIVER, NO.1 | ||||
| 86127-30070 |
GRS180,181 |
1 | ||
| 86419B - KNOB, AUDIO MODULE | ||||
| 86419-30010 |
GRS180,181 |
1 | ||
| 86449A - KNOB,HEATER CONTROL MODULE | ||||
| 86449-30020 |
GRS180,181 |
1 | ||
| 86453B - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-30020 |
GRS180,181 |
1 | ||
| 86455E - CASE, MULTI-MEDIA MODULE | ||||
| 86455-30010 |
GRS180,181 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| Linked diagrams | ||||
| 8601 | ||||

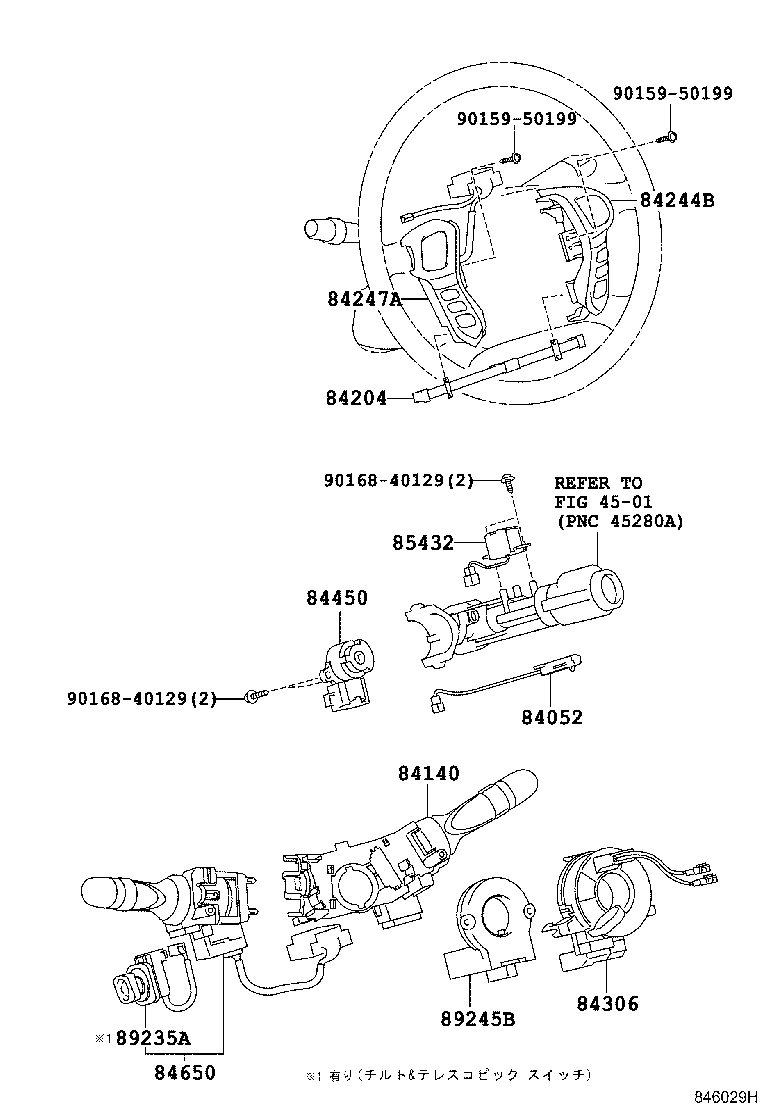

ILLUST NO. 6 OF 8(0312- )
ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22050 |
GRS180,181..ROYEX |
1 | ||
| 84052-22050 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-47040 |
GRS180,181..ROYEX |
1 | ||
| 84140-48030 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 84140-47050 |
GRS180,181..ROYEX 寒冷地仕様 |
1 | ||
| 84140-48060 |
GRS18#..ATH,ROY,ROYG 寒冷地仕様 |
1 | ||
| 84140-48030 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 84140-48060 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 84204 - CABLE SUB-ASSY, STEERING PAD SWITCH | ||||
| 84204-58010 |
GRS18# |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-30030C1 |
GRS180,181..ROY,ROYEX BLACK & GRAY,TRIM1# |
1 | ||
| 84244-30040C1 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,BLACK & GRAY,TRIM1# |
1 | ||
| 84244-30040E0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,ORCHID BROWN,TRIM0# |
1 | ||
| 84244-30030E0 |
GRS180,181..ROY,ROYEX ORCHID BROWN,TRIM0# |
1 | ||
| 84244-30040E0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,ORCHID BROWN,TRIM0# |
1 | ||
| 84244-30040C1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK & GRAY,TRIM1# |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-30010E0 |
GRS18#..ROY,ROYEX,ROYG ORCHID BROWN,TRIM0# |
1 | ||
| 84247-30010C1 |
GRS18#..ROY,ROYEX,ROYG BLACK & GRAY,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
GRS18# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 84450-12200 |
GRS180,181..ROYEX |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30520 |
GRS180,181 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-14040 |
GRS180,181..ROYEX |
1 | ||
| 85432-14040 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-48011 |
GRS18#,UZS18# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 8(0312- )
ｼ-ﾄ & ﾘﾔ ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30230 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 84660-30230 |
GRS18#..ATH,ROY |
1 | ||
| 84660-30240 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 84661C - KNOB, COOLER CONTROL SWITCH | ||||
| 84661-30010 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 84661-30010 |
GRS18#..ATH,ROY |
1 | ||
| 84661-30020 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 84662 - PANEL, COOLER CONTROL SWITCH | ||||
| 84662-30010 |
GRS18#..ATH,ROY |
1 | ||
| 84662-30010 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 84662-30020 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-30221C0 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),BLACK,TRIM2# |
1 | ||
| 84920-30221B3 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 84920-30221A2 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60110A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 84921-60110B5 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 84921-60110B5 |
GRS180,181..ATH,ROY GRAY,TRIM1# |
1 | ||
| 84921-60110C0 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),BLACK,TRIM2#,右側 |
1 | ||
| 84921-60110B5 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#,右側 |
1 | ||
| 84921-60120B7 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#,左側 |
1 | ||
| 84921-60120A1 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#,左側 |
1 | ||
| 84921-60110A1 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#,右側 |
1 | ||
| 84921-60120C0 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),BLACK,TRIM2#,左側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60110A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 84921-60110B5 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 84921-60110B5 |
GRS180,181..ATH,ROY GRAY,TRIM1# |
1 | ||
| 84921-60110C0 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),BLACK,TRIM2#,右側 |
1 | ||
| 84921-60110B5 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#,右側 |
1 | ||
| 84921-60120B7 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#,左側 |
1 | ||
| 84921-60120A1 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#,左側 |
1 | ||
| 84921-60110A1 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#,右側 |
1 | ||
| 84921-60120C0 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),BLACK,TRIM2#,左側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60100B5 |
GRS180,181..ATH,ROY GRAY,TRIM1# |
1 | ||
| 84921-60070B3 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#,左側 |
1 | ||
| 84921-60100A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 84921-60070C0 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),BLACK,TRIM2#,左側 |
1 | ||
| 84921-60100B5 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 84921-60100B5 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#,右側 |
1 | ||
| 84921-60100A1 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#,右側 |
1 | ||
| 84921-60070A1 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#,左側 |
1 | ||
| 84921-60100C0 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),BLACK,TRIM2#,右側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60100B5 |
GRS180,181..ATH,ROY GRAY,TRIM1# |
1 | ||
| 84921-60070B3 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#,左側 |
1 | ||
| 84921-60100A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 84921-60070C0 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),BLACK,TRIM2#,左側 |
1 | ||
| 84921-60100B5 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 84921-60100B5 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#,右側 |
1 | ||
| 84921-60100A1 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#,右側 |
1 | ||
| 84921-60070A1 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#,左側 |
1 | ||
| 84921-60100C0 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),BLACK,TRIM2#,右側 |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-30240A0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 84920-30240B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 84920-60040B7 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 84920-60040A1 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 84920-30240B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 84920-30240B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 84920-30240A0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 84920-30240C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-58010 |
GRS18#..ATH,ROY |
1 | ||
| 84922-58010 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 84922-58010 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60110 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90167-40044 | ||||

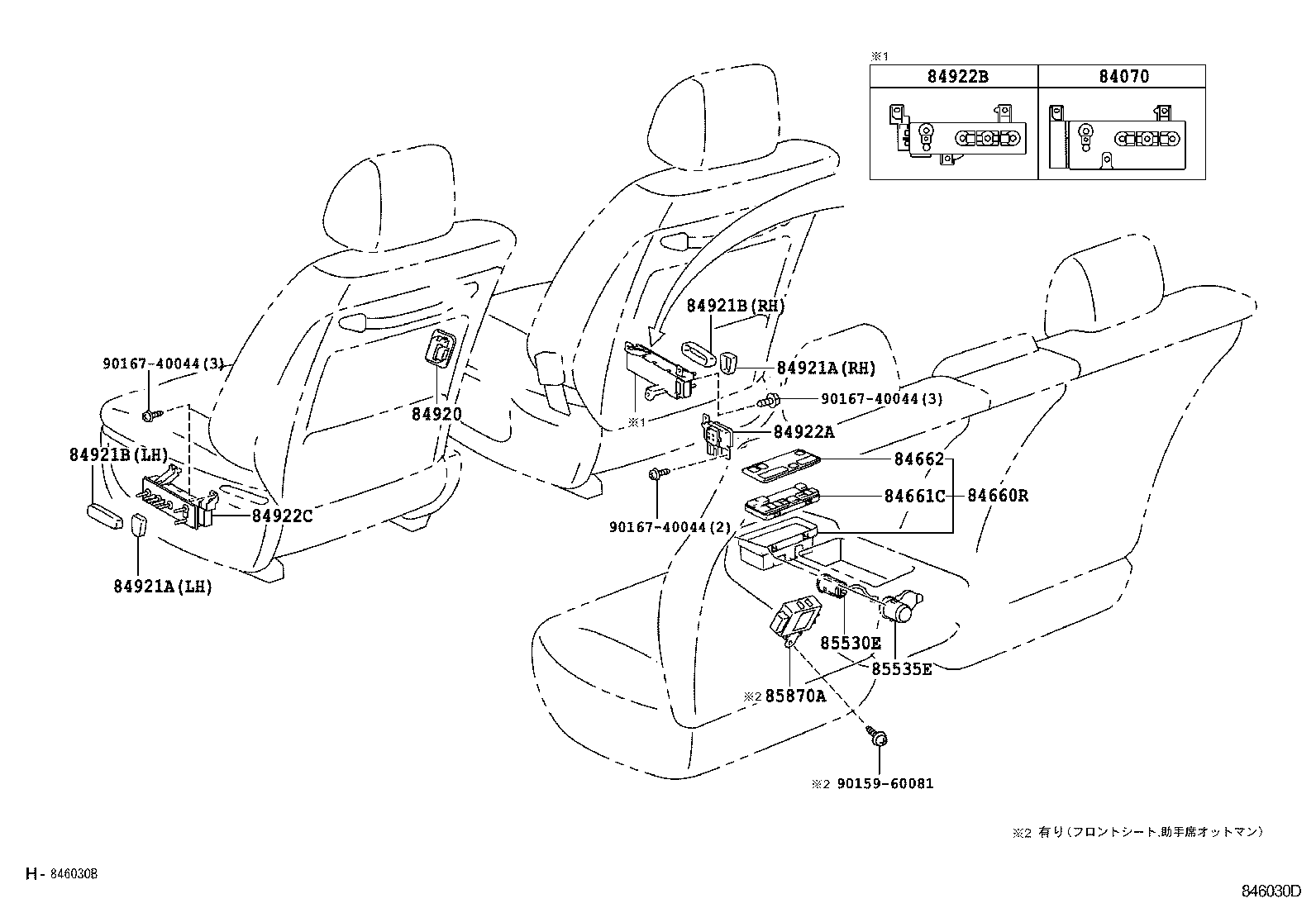

ILLUST NO. 8 OF 8(0312- )
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS180,181..5FC;GRS182,183,UZS18# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
GRS180,181..5FC;GRS182,183,UZS18# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
GRS180,181..5FC;GRS182,183,UZS18# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS180,181..5FC;GRS182,183,UZS18# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
GRS180,181..5FC;GRS182,183,UZS18# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GRS180,181..5FC;GRS182,183,UZS18# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS180,181..5FC;GRS182,183,UZS18# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
GRS180,181..5FC;GRS182,183,UZS18# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
GRS180,181..5FC;GRS182,183,UZS18# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS180,181..5FC;GRS182,183,UZS18# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
GRS180,181..5FC;GRS182,183,UZS18# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GRS180,181..5FC;GRS182,183,UZS18# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-30210 |
GRS18# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30530 |
GRS180,181..5FC;GRS182,183,UZS18# ﾒｲﾝ |
1 | ||
| 83320-30540 |
GRS180,181..5FC;GRS182,183,UZS18# ｻﾌﾞ |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30530 |
GRS180,181..5FC;GRS182,183,UZS18# ﾒｲﾝ |
1 | ||
| 83320-30540 |
GRS180,181..5FC;GRS182,183,UZS18# ｻﾌﾞ |
1 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30070 |
GRS180,181..5FC;GRS182,183,UZS18# |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30070 |
GRS180,181..5FC;GRS182,183,UZS18# |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30070 |
GRS180,181..5FC;GRS182,183,UZS18# |
3 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-30100 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRS18# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRS18# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
GRS18# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
GRS18# |
2 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30140B5 |
GRS18# GRAY,TRIM1# |
1 | ||
| 84840-30140C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 84840-30140A1 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30140B5 |
GRS18# GRAY,TRIM1# |
1 | ||
| 84840-30140C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 84840-30140A1 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-30010 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 84945-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 85911D - RELAY, REAR SUNSHADE | ||||
| 85911-30010 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89222-30080 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 89222-30090 |
GRS180,181..ROYEX |
1 | ||
| 89222-30081 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89222-30081 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89222-30080 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 89222-30081 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89222-30081 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89222-30090 |
GRS180,181..ROYEX |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-30040 |
GRS18# |
1 | ||
| 89224A - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89224-30040 |
GRS18# |
1 | ||
| Common parts | ||||
| 82712-30260 | ||||
| 82715-30B30 | ||||
| 90119-05019 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90467-10212 | ||||
| 90468-04160 | ||||
| 90901-48003 | ||||
| 94151-80600 | ||||

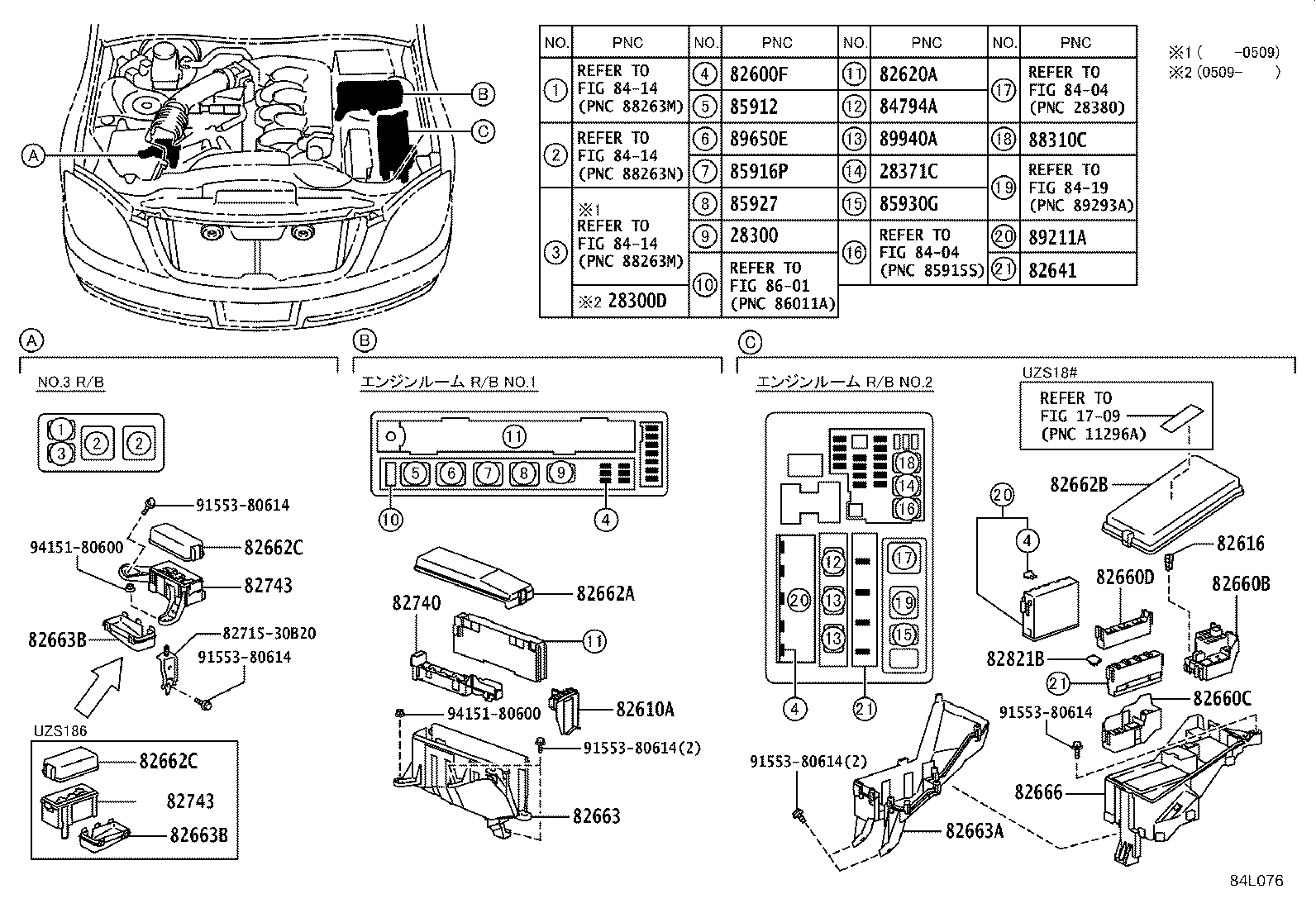

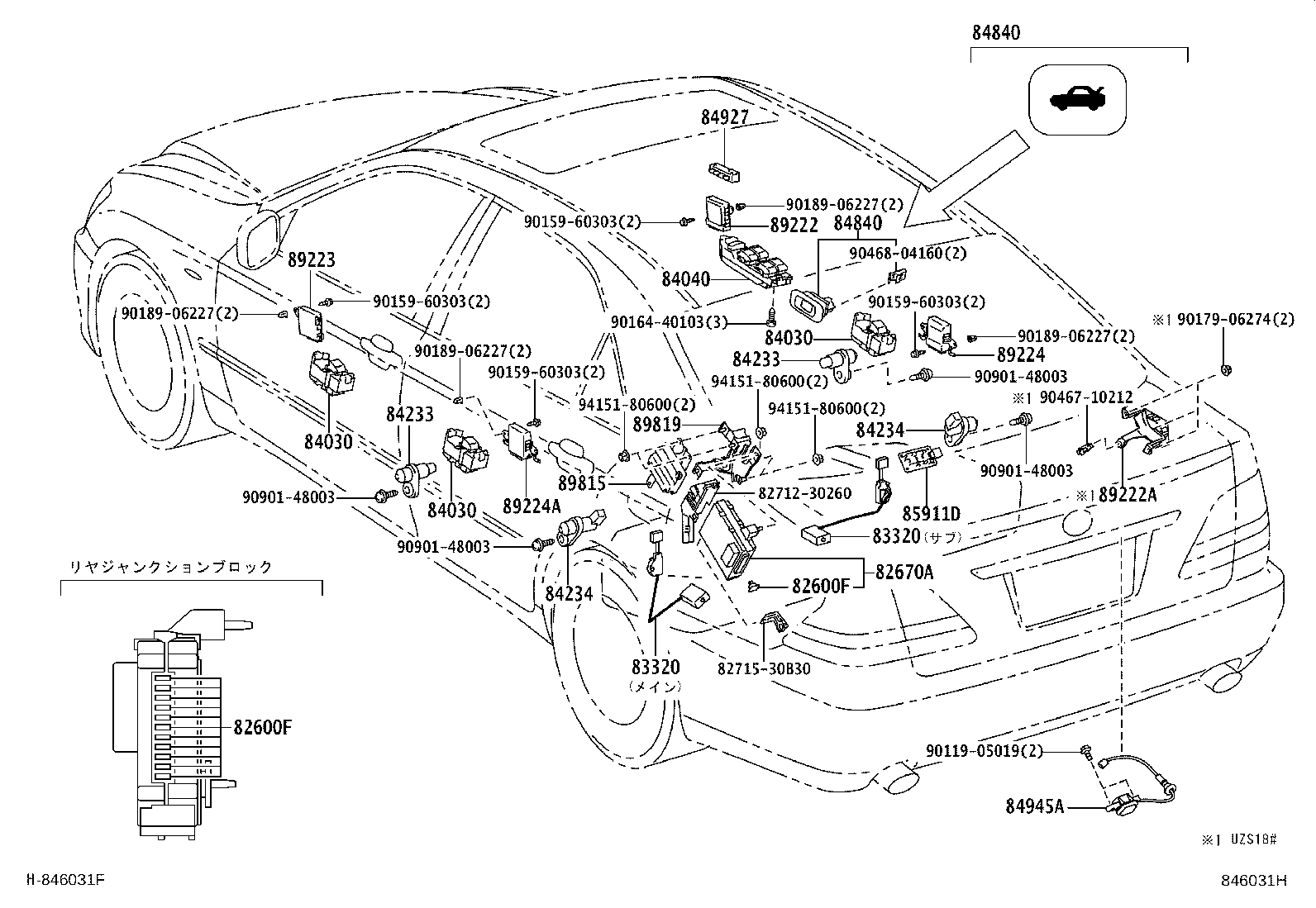

ILLUST NO. 3 OF 8(0312- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS180,181..5FC;GRS182,183,UZS18# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
GRS180,181..5FC;GRS182,183,UZS18# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
GRS180,181..5FC;GRS182,183,UZS18# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS180,181..5FC;GRS182,183,UZS18# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
GRS180,181..5FC;GRS182,183,UZS18# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GRS180,181..5FC;GRS182,183,UZS18# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-30130 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30160 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30250 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30A00 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-30A10 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-30A20 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30540 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30550 |
GRS18# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30560 |
GRS18# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30560 |
GRS18# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30200 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30210 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-30220 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-30220 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30730 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-30340 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-30020 |
GRS180,181..5FC;GRS182,183,UZS187 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-30020 |
GRS180,181..5FC;GRS182,183,UZS187 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-47090 |
GRS18# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
GRS18# 寒冷地仕様 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
GRS18# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRS18# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
GRS18# |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-04004 |
GRS180,181..ROYEX |
1 | ||
| 90987-04004 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 88310C - RELAY, AIR CONDITIONER COMPRESSOR | ||||
| 90987-02027 |
GRS18# |
1 | ||
| 89211A - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89211-30020 |
GRS18# |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90987-02025 |
GRS18# |
1 | ||
| 89940A - RELAY, HEADLAMP SWIVEL | ||||
| 90987-02027 |
GRS181,183..ROY,ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
2 | ||
| Common parts | ||||
| 82715-30B20 | ||||
| 91553-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
