GRS181-AEASH (2004)
Toyota Crown/Majesta

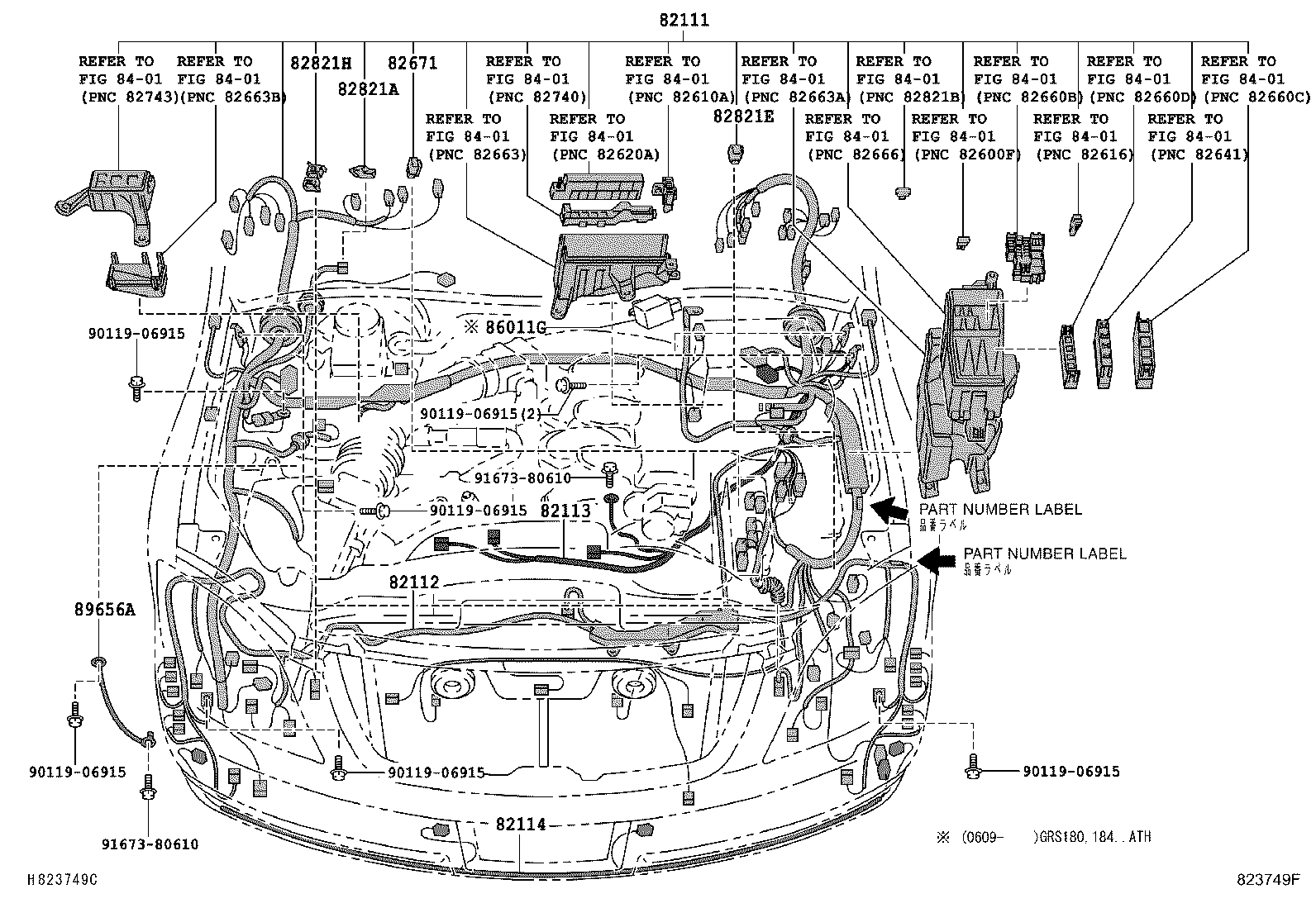

ILLUST NO. 1 OF 9(0312- )GRS18#
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3K870 |
GRS181,183..ROY,ROYEX |
1 | ||
| 82111-3K860 |
GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82111-3K851 |
GRS181,183..ROY,ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82111-3K860 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82111-3K870 |
GRS181,183..ROY,ROYEX 品番ﾗﾍﾞﾙ=82111−3K870 |
1 | ||
| 82111-3K860 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82111−3K860 |
1 | ||
| 82111-3K851 |
GRS181,183..ROY,ROYEX 品番ﾗﾍﾞﾙ=82111−3K851 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30790 |
GRS18#..ROY,ROYEX |
1 | ||
| 82112-30770 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30460 |
GRS181,183 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-30060 |
GRS18# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30350 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-22120 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-35040 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
GRS180,181..5FC;GRS182,183,UZS18# |
2 | ||
| 89656A - WIRE, POWER STEERING EARTH | ||||
| 89656-30020 |
GRS181,183 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||

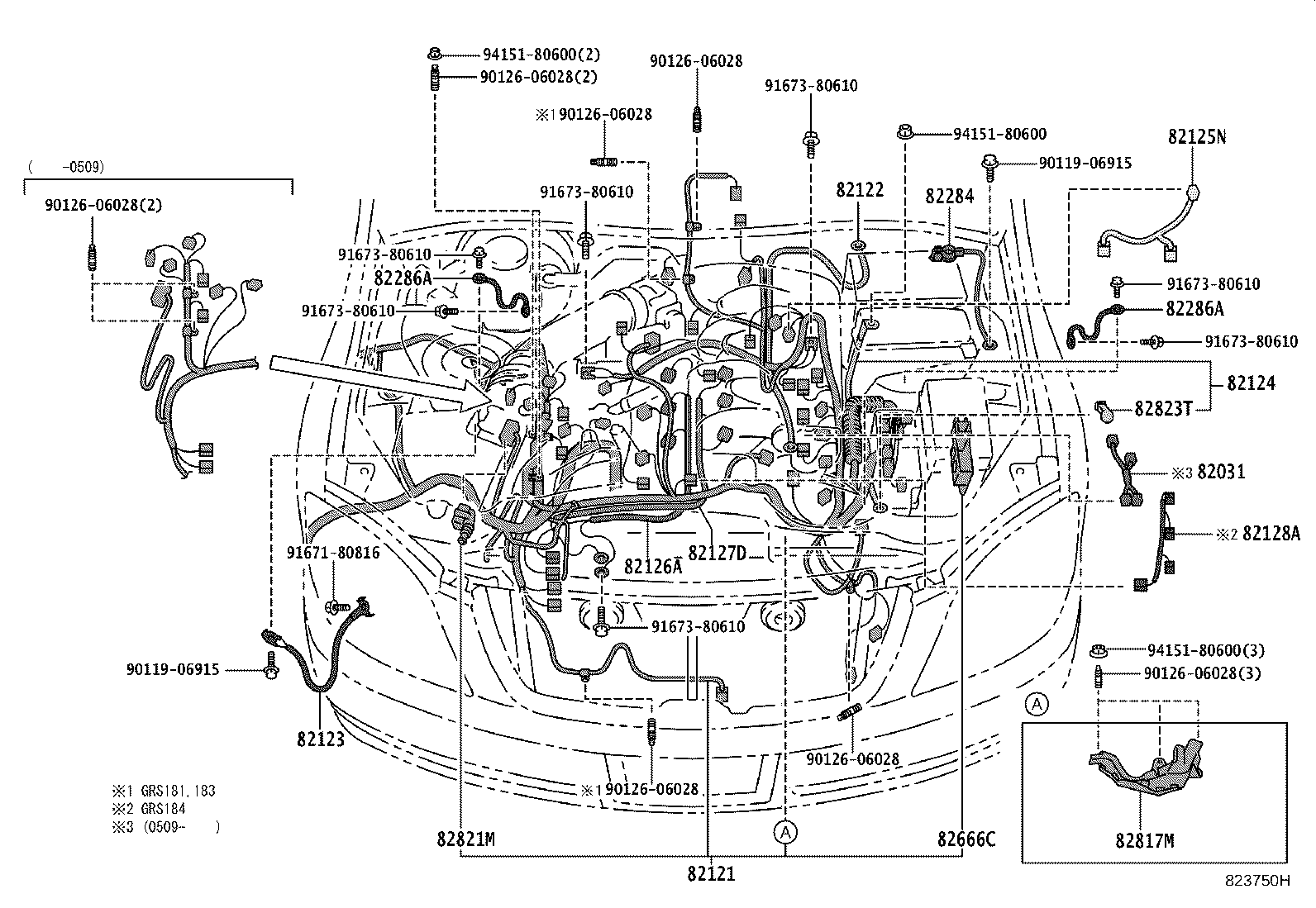

ILLUST NO. 2 OF 9(0312- )GRS18#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-30A60 |
GRS181 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30800 |
GRS18# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GRS18# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-30290 |
GRS18# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-30500 |
GRS18# |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-30010 |
GRS18# |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-30010 |
GRS18# |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30010 |
GRS18# |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30010 |
GRS18# |
2 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30010 |
GRS18# |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30740 |
GRS18# |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-30A80 |
GRS18# |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-30670 |
GRS18# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90126-06028 | ||||
| 91671-80816 | ||||
| 91673-80610 | ||||
| 94151-80600 | ||||

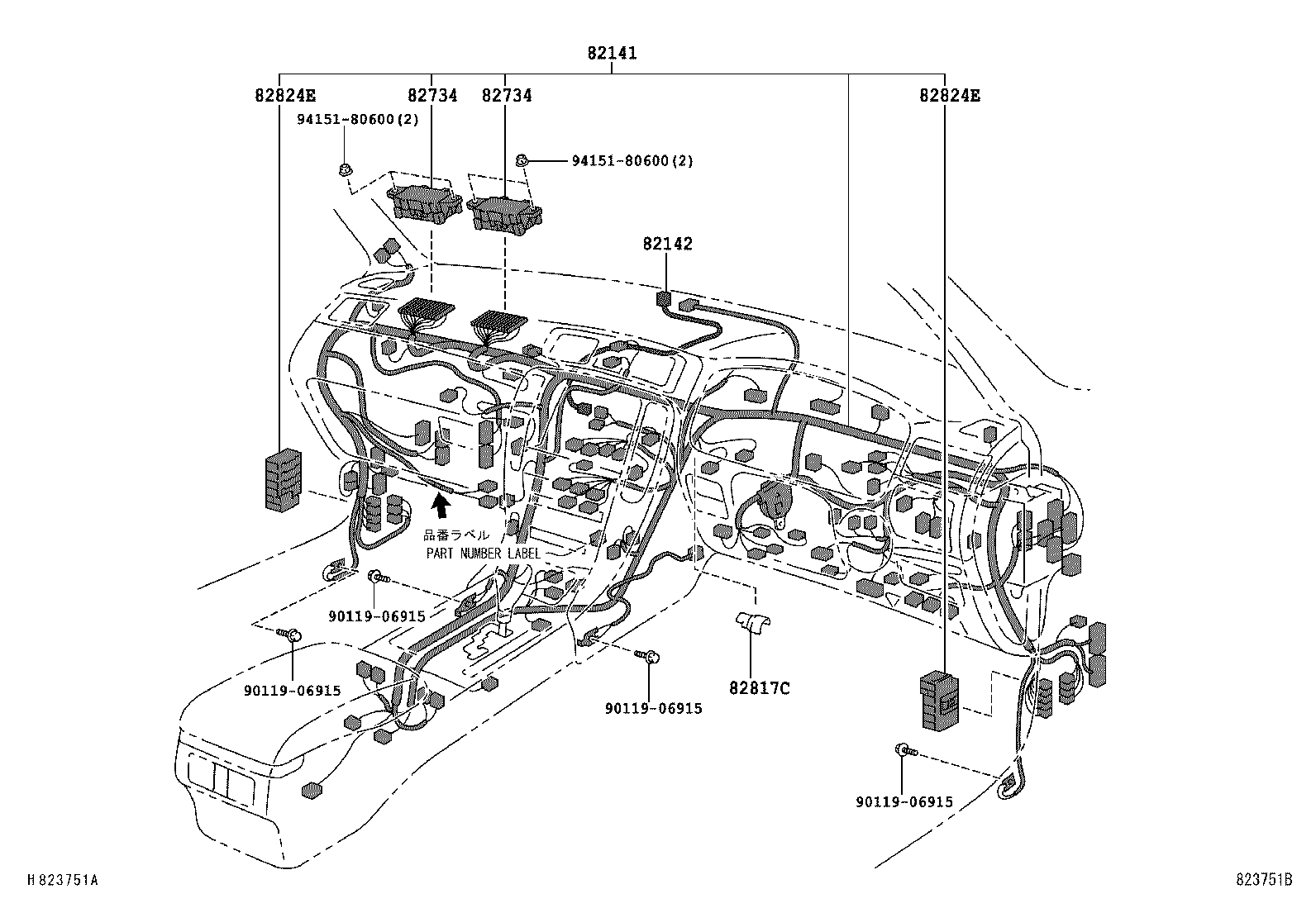

ILLUST NO. 3 OF 9(0312- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-30C80 |
GRS180,181..ROYEX |
1 | ||
| 82141-30C21 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82141-30C21 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82141-30C51 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 82141-30C61 |
GRS180,181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82141-30M70 |
GRS181;GRS180..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82141-30C80 |
GRS180,181..ROYEX 品番ﾗﾍﾞﾙ=82141−30C80 |
1 | ||
| 82141-30C51 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82141−30C51 |
1 | ||
| 82141-30C21 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82141−30C21 |
1 | ||
| 82141-30C61 |
GRS180,181..ROYEX 品番ﾗﾍﾞﾙ=82141−30C61 |
1 | ||
| 82141-30M70 |
GRS181;GRS180..ROY 品番ﾗﾍﾞﾙ=82141−30M70 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-30050 |
GRS18# |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-30030 |
GRS18#..ATH,ROY,ROYG 左側 |
1 | ||
| 82734-30020 |
GRS180..5FC..ROYEX;GRS181,UZS186..C,ROYEX 右側 |
1 | ||
| 82734-30030 |
GRS180,181..ROYEX 左側 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-30030 |
GRS18#..ATH,ROY,ROYG 左側 |
1 | ||
| 82734-30020 |
GRS180..5FC..ROYEX;GRS181,UZS186..C,ROYEX 右側 |
1 | ||
| 82734-30030 |
GRS180,181..ROYEX 左側 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33820 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GRS180..5FC..ROYEX;GRS181,UZS186..C,ROYEX |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GRS180..5FC..ROYEX;GRS181,UZS186..C,ROYEX |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||

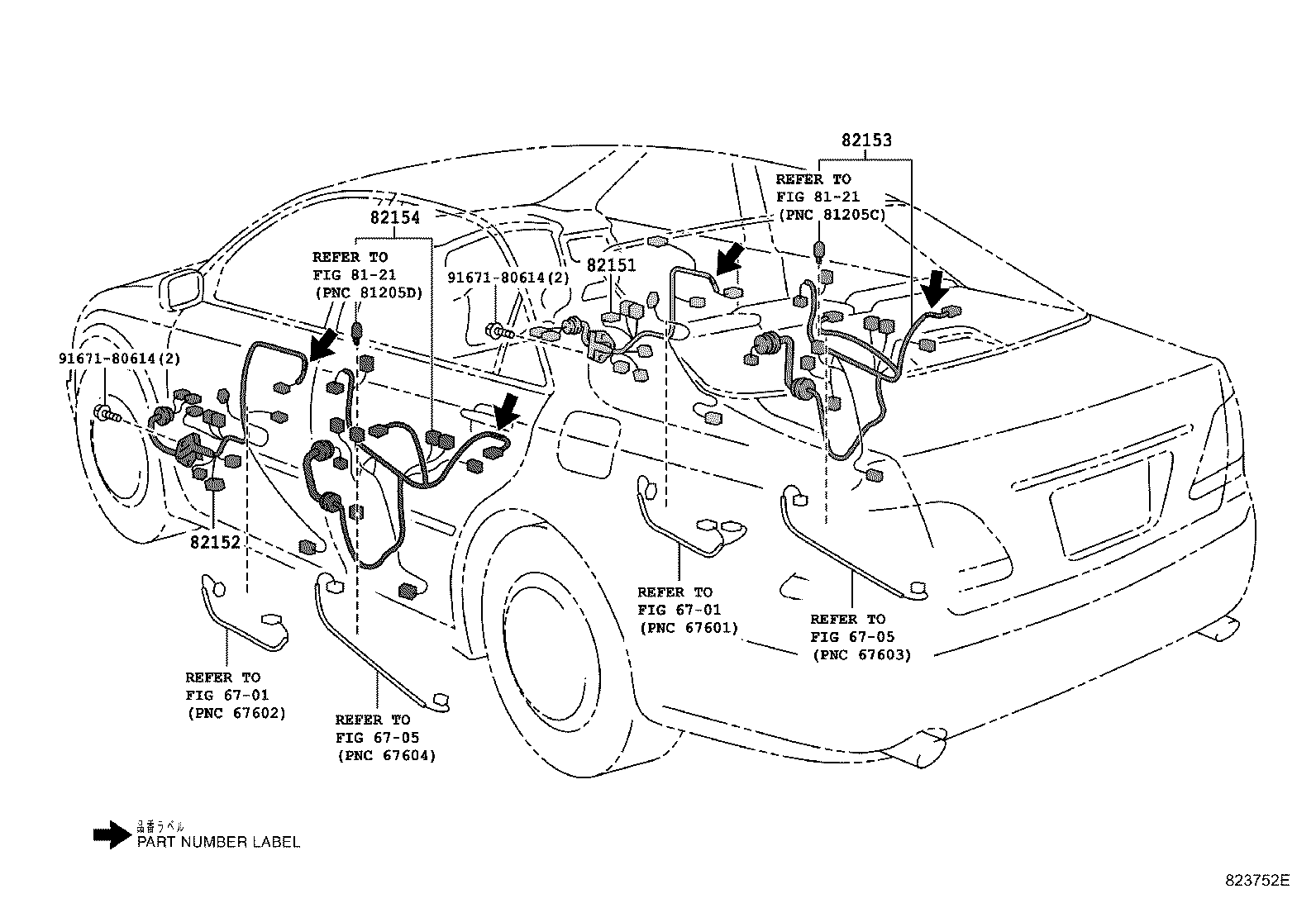

ILLUST NO. 4 OF 9(0312- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-30A40 |
GRS180,181..ROYEX |
1 | ||
| 82151-30A30 |
GRS18#..ATH,ROY |
1 | ||
| 82151-30A30 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82151-30A30 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30A00 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82152-30A00 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 82152-30A10 |
GRS180,181..ROYEX |
1 | ||
| 82152-30A00 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30540 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 82153-30540 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82153-30560 |
GRS180,181..ROYEX |
1 | ||
| 82153-30540 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30460 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82154-30460 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 82154-30460 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 82154-30480 |
GRS180,181..ROYEX |
1 | ||
| Common parts | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 6705 | ||||
| 8121 | ||||

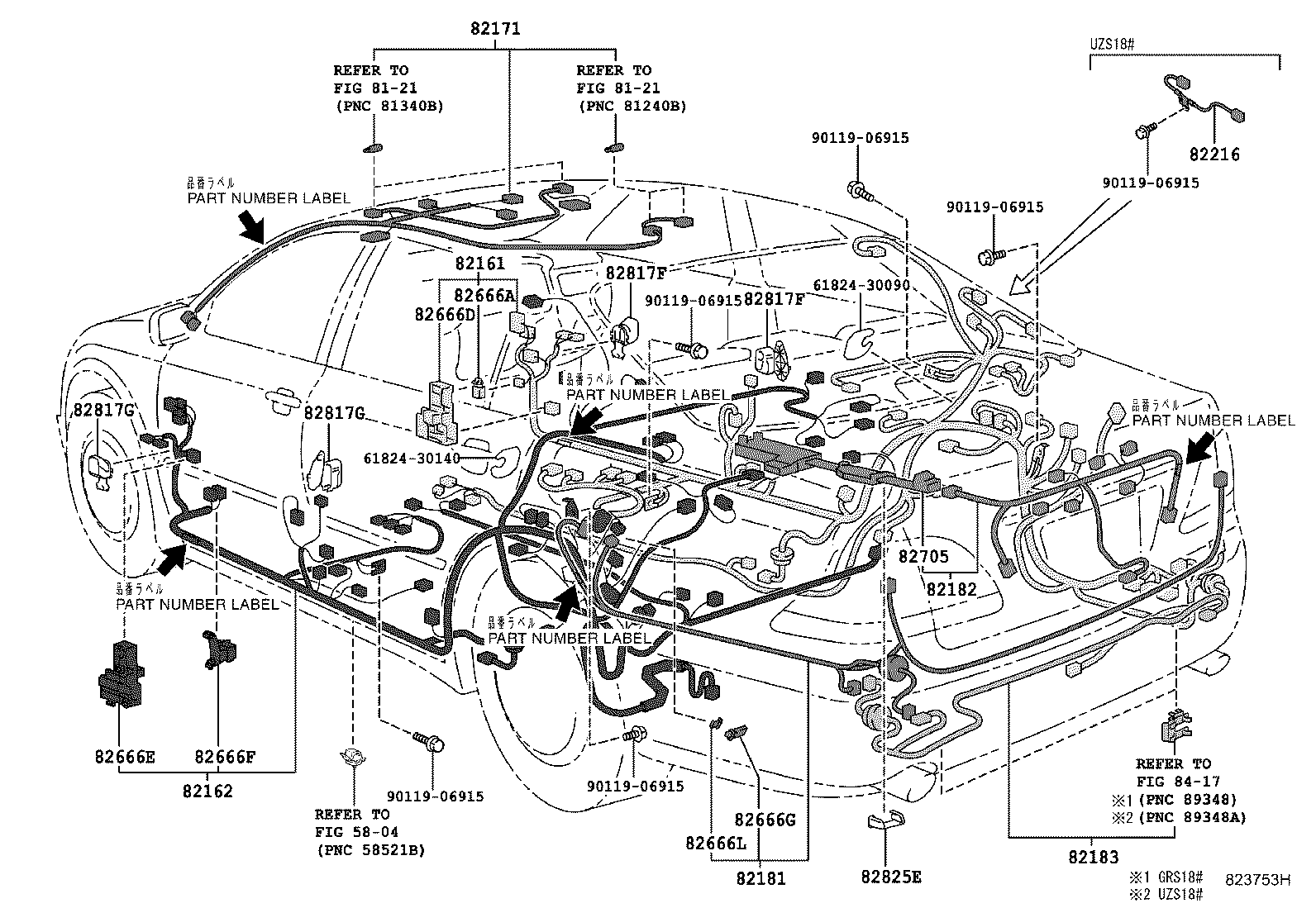

ILLUST NO. 5 OF 9(0312- )
ﾌﾛｱ & ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-30C20 |
GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 82161-30C00 |
GRS181..ROYEX SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 82161-30C30 |
GRS180,181..ROYEX |
1 | ||
| 82161-30C10 |
GRS180,181..ROYEX SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82161-30A30 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 82161-30A71 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82161-30A90 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 82161-30B20 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 82161-30A40 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 82161-30A90 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82161-30B00 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 82161-30C10 |
GRS180,181..ROYEX 品番ﾗﾍﾞﾙ=82161−30C10 |
1 | ||
| 82161-30C00 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82161−30C00 |
1 | ||
| 82161-30C30 |
GRS180,181..ROYEX 品番ﾗﾍﾞﾙ=82161−30C30 |
1 | ||
| 82161-30A40 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82161−30A40 |
1 | ||
| 82161-30A30 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82161−30A30 |
1 | ||
| 82161-30A90 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82161−30A90 |
1 | ||
| 82161-30A71 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82161−30A71 |
1 | ||
| 82161-30B20 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82161−30B20 |
1 | ||
| 82161-30C20 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82161−30C20 |
1 | ||
| 82161-30B00 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82161−30B00 |
1 | ||
| 82161-30A90 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82161−30A90 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30A80 |
GRS181;GRS180..ROY,ROYEX |
1 | ||
| 82162-30B30 |
GRS181;GRS180..ROY,ROYEX SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82162-30A70 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82162-30B30 |
GRS181;GRS180..ROY,ROYEX 品番ﾗﾍﾞﾙ=82162−30B30 |
1 | ||
| 82162-30A80 |
GRS181;GRS180..ROY,ROYEX 品番ﾗﾍﾞﾙ=82162−30A80 |
1 | ||
| 82162-30A70 |
GRS181..ROYEX 品番ﾗﾍﾞﾙ=82162−30A70 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30A50 |
GRS180,181..ATH,ROY 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 82171-30A50 |
GRS180,181..ATH,ROY 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 82171-30A90 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 82171-30A90 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 82171-30A60 |
GRS180,181..ATH,ROY 有り(ﾁﾙﾄ&ｽﾗｲﾄﾞ電動ﾑｰﾝﾙｰﾌ) |
1 | ||
| 82171-30B00 |
GRS180,181 |
1 | ||
| 82171-30A90 |
GRS181;GRS180..ATH,ROY SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 82171-30A80 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82171-30B00 |
GRS180,181 SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 82171-30A90 |
GRS180,181 SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 82171-30A60 |
GRS180,181..ATH,ROY 品番ﾗﾍﾞﾙ=82171−30A60 |
1 | ||
| 82171-30A50 |
GRS180,181..ATH,ROY 品番ﾗﾍﾞﾙ=82171−30A50 |
1 | ||
| 82171-30A90 |
GRS181;GRS180..ATH,ROY 品番ﾗﾍﾞﾙ=82171−30A90 |
1 | ||
| 82171-30B00 |
GRS180,181 品番ﾗﾍﾞﾙ=82171−30B00 |
1 | ||
| 82171-30A90 |
GRS180,181 品番ﾗﾍﾞﾙ=82171−30A90 |
1 | ||
| 82171-30A90 |
GRS180,181 品番ﾗﾍﾞﾙ=82171−30A90 |
1 | ||
| 82171-30A80 |
GRS181..ROYEX;GRS180,182,183..ROY 品番ﾗﾍﾞﾙ=82171−30A80 |
1 | ||
| 82171-30A90 |
GRS181;GRS180..ATH,ROY 品番ﾗﾍﾞﾙ=82171−30A90 |
1 | ||
| 82171-30B00 |
GRS180,181 品番ﾗﾍﾞﾙ=82171−30B00 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-30160 |
GRS18# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82181-30170 |
GRS18# |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-30070 |
GRS180,181 寒冷地仕様 |
1 | ||
| 82182-30070 |
GRS180,181 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82182-30080 |
GRS180,181 |
1 | ||
| 82182-30070 |
GRS180,181 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-30040 |
GRS18# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-16030 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-30750 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-30760 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-30770 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 82705 - SPOOL SUB-ASSY, WIRING HARNESS | ||||
| 82705-30020 |
GRS180,181 寒冷地仕様 |
1 | ||
| 82705-30010 |
GRS180,181 |
1 | ||
| 82705-30020 |
GRS180,181 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82705-30020 |
GRS180,181 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-48230 |
GRS180,181..5FC;GRS182,183,UZS18# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82817-30A10 |
GRS180,181..5FC;GRS182,183,UZS18# ｶｳﾙ側 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-48230 |
GRS180,181..5FC;GRS182,183,UZS18# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82817-30A10 |
GRS180,181..5FC;GRS182,183,UZS18# ｶｳﾙ側 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30A10 |
GRS180,181..5FC;GRS182,183,UZS18# ｶｳﾙ側 |
1 | ||
| 82817-48230 |
GRS180,181..5FC;GRS182,183,UZS18# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30A10 |
GRS180,181..5FC;GRS182,183,UZS18# ｶｳﾙ側 |
1 | ||
| 82817-48230 |
GRS180,181..5FC;GRS182,183,UZS18# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82825E - CONNECTOR, WIRING HARNESS | ||||
| 82817-30A70 |
GRS18# |
1 | ||
| Common parts | ||||
| 61824-30090 | ||||
| 61824-30140 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 8121 | ||||
| 8417 | ||||

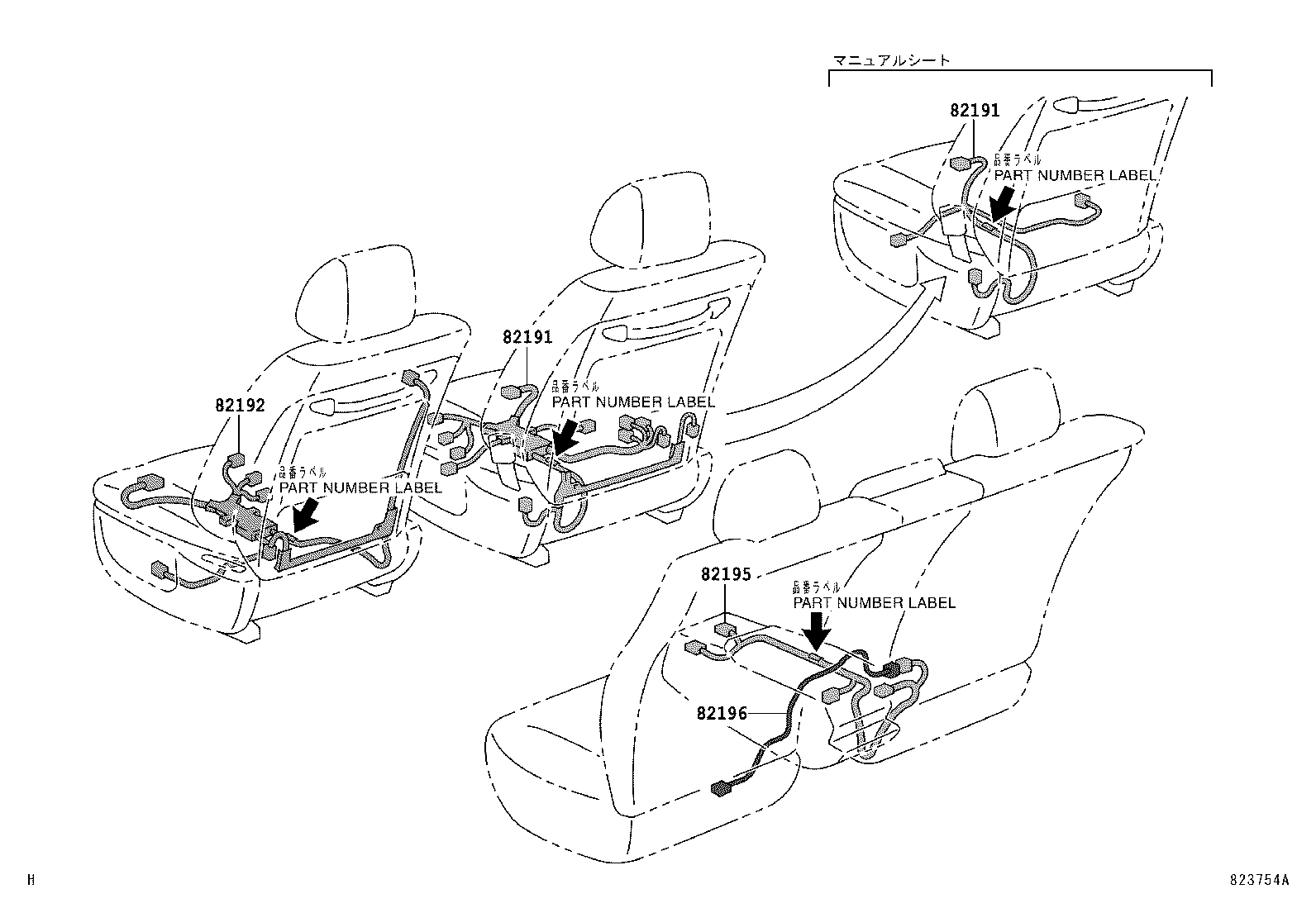

ILLUST NO. 6 OF 9(0312- )
ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-30180 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82191-30190 |
GRS180,181..ROYEX |
1 | ||
| 82191-30180 |
GRS18#..ATH,ROY |
1 | ||
| 82191-30150 |
GRS180..5FC..ATH;GRS181,182,UZS18#..ATH,C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 82191-30180 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-30180 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82191-30190 |
GRS180,181..ROYEX |
1 | ||
| 82191-30180 |
GRS18#..ATH,ROY |
1 | ||
| 82191-30150 |
GRS180..5FC..ATH;GRS181,182,UZS18#..ATH,C,ROYG ｼｰﾄ表皮−本皮 |
1 | ||
| 82191-30180 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-30160 |
GRS182;GRS180,181,UZS18#..ATH,C ｼｰﾄ表皮−本皮 |
1 | ||
| 82192-30170 |
GRS180..ROY;GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82195-30030 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 82195-30030 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 82195-30030 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS186..A,ATH,ROY |
1 | ||

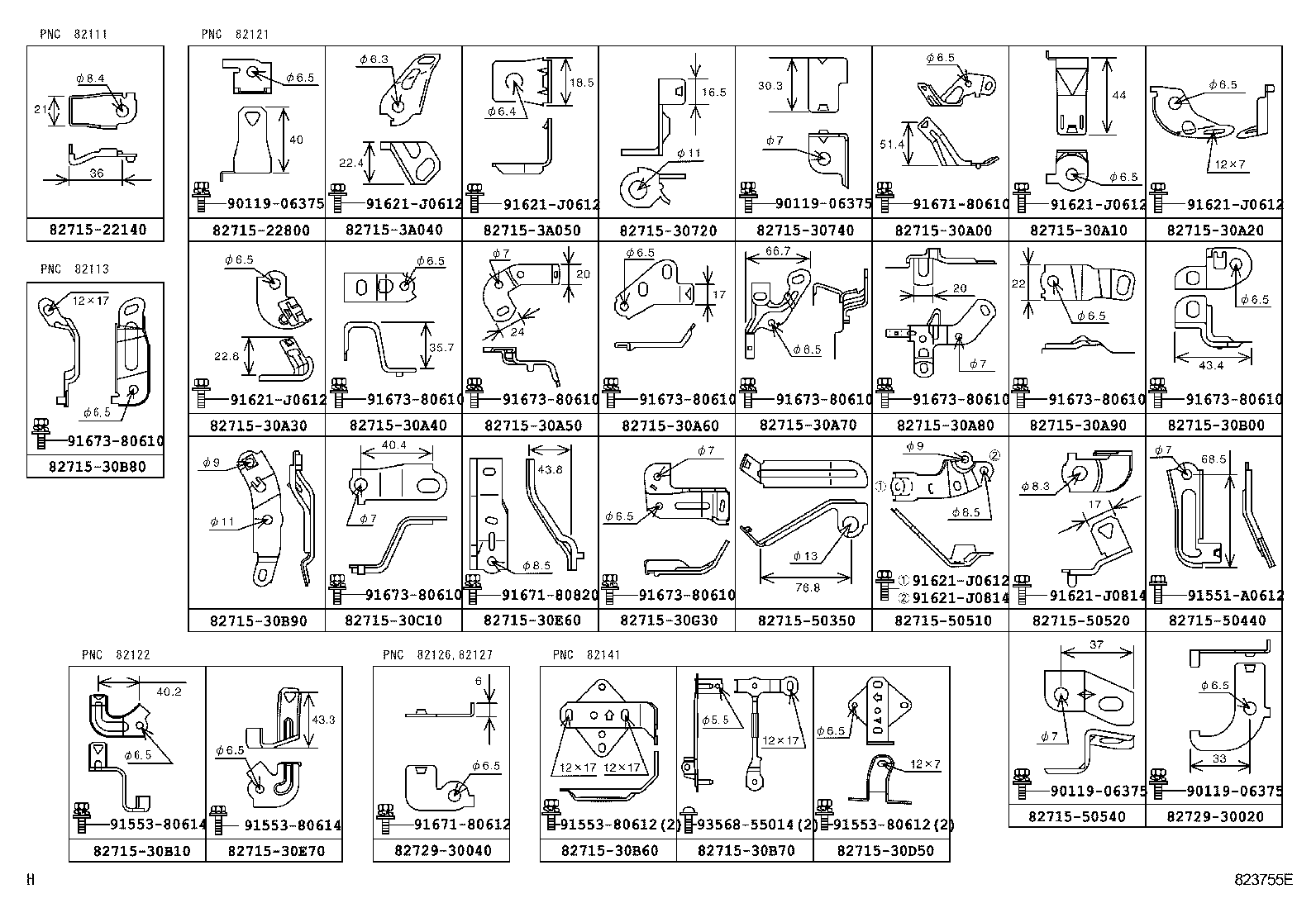

ILLUST NO. 7 OF 9(0312- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-22140 | ||||
| 82715-22800 | ||||
| 82715-30720 | ||||
| 82715-30740 | ||||
| 82715-30A00 | ||||
| 82715-30A10 | ||||
| 82715-30A20 | ||||
| 82715-30A30 | ||||
| 82715-30A40 | ||||
| 82715-30A50 | ||||
| 82715-30A60 | ||||
| 82715-30A70 | ||||
| 82715-30A80 | ||||
| 82715-30A90 | ||||
| 82715-30B00 | ||||
| 82715-30B10 | ||||
| 82715-30B60 | ||||
| 82715-30B70 | ||||
| 82715-30B80 | ||||
| 82715-30B90 | ||||
| 82715-30C10 | ||||
| 82715-30D50 | ||||
| 82715-30E60 | ||||
| 82715-30E70 | ||||
| 82715-30G30 | ||||
| 82715-3A040 | ||||
| 82715-3A050 | ||||
| 82715-50350 | ||||
| 82715-50440 | ||||
| 82715-50510 | ||||
| 82715-50520 | ||||
| 82715-50540 | ||||
| 82729-30020 | ||||
| 82729-30040 | ||||
| 90119-06375 | ||||
| 91551-A0612 | ||||
| 91553-80612 | ||||
| 91553-80614 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 91673-80610 | ||||
| 93568-55014 | ||||

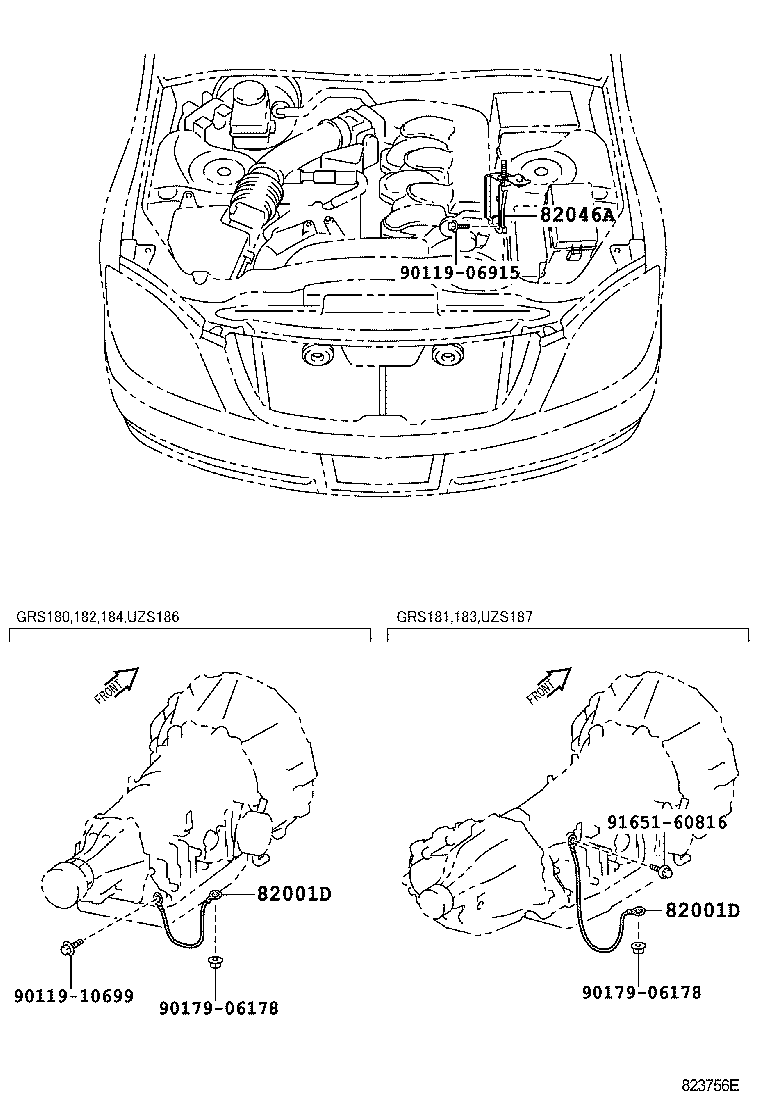

ILLUST NO. 8 OF 9(0312- )
ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07418 |
GRS18# |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07418 |
GRS18# |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30100 |
GRS18# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-10699 | ||||
| 90179-06178 | ||||
| 91651-60816 | ||||

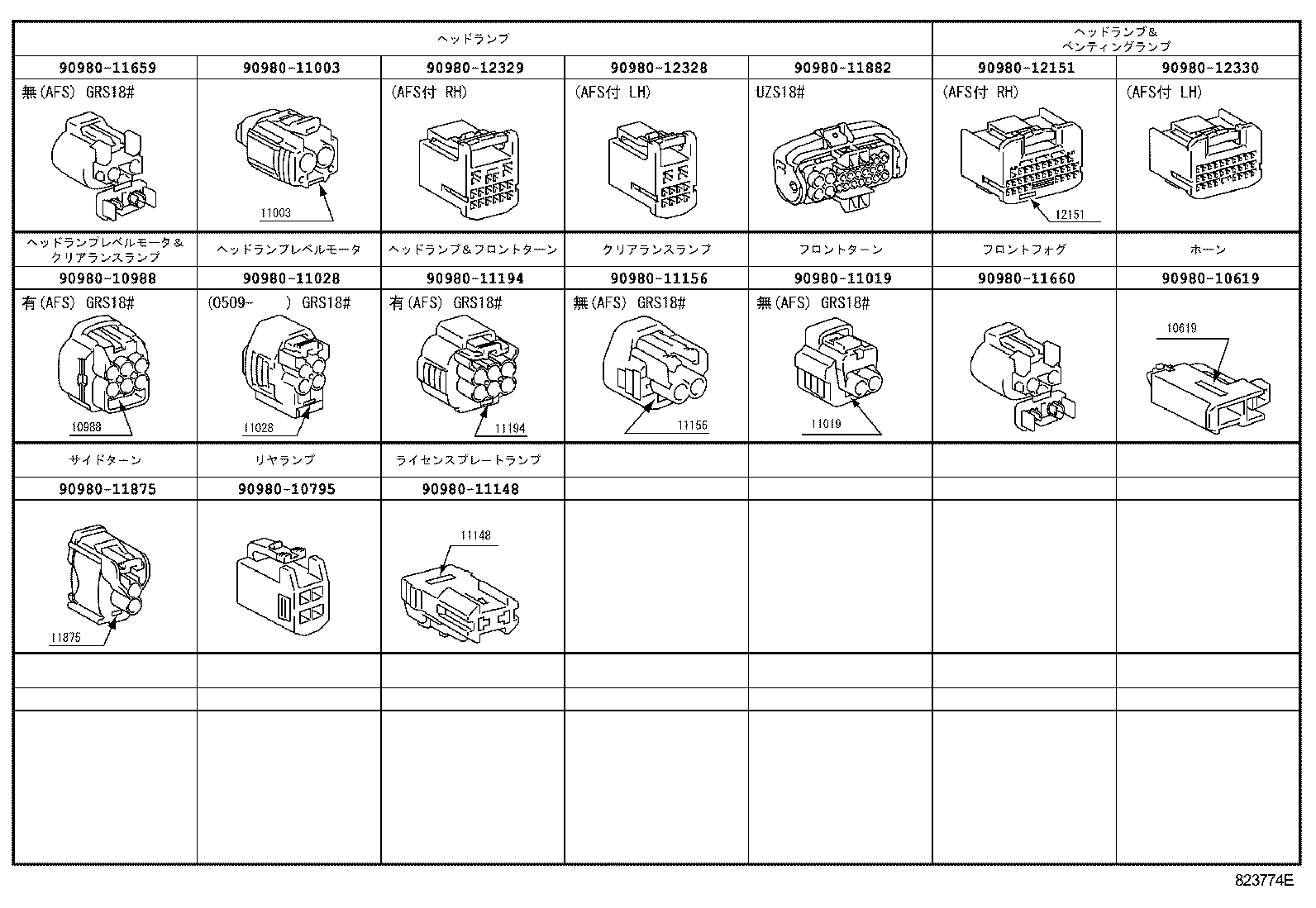

ILLUST NO. 9 OF 9(0312- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10988 | ||||
| 90980-11003 | ||||
| 90980-11019 | ||||
| 90980-11028 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-11875 | ||||
| 90980-11882 | ||||
| 90980-12151 | ||||
| 90980-12328 | ||||
| 90980-12329 | ||||
| 90980-12330 | ||||

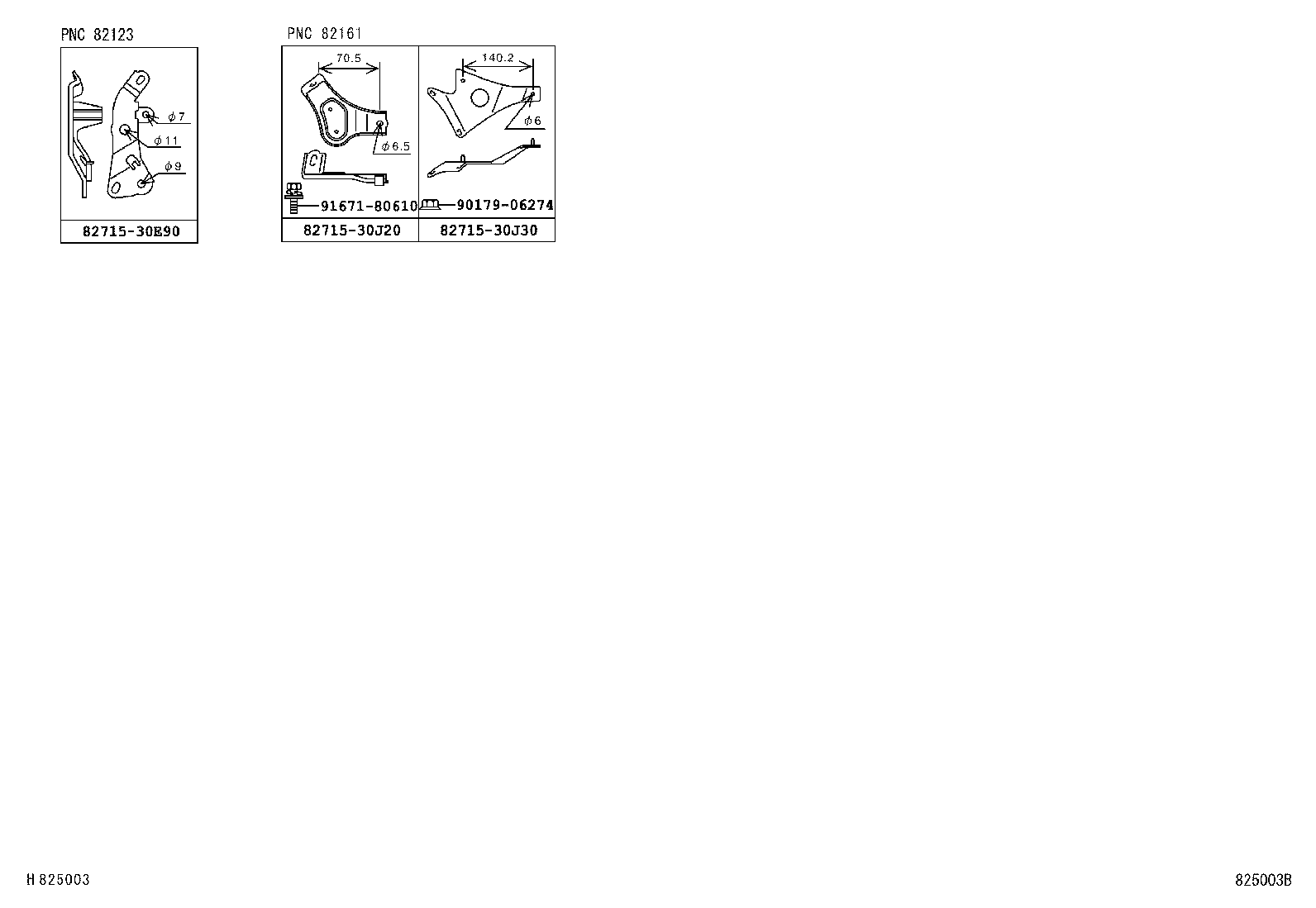

ILLUST NO. 7 OF 9(0312- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-30E90 | ||||
| 82715-30J20 | ||||
| 82715-30J30 | ||||
| 90179-06274 | ||||
| 91671-80610 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
