GRS181-AEASH (2004)
Toyota Crown/Majesta

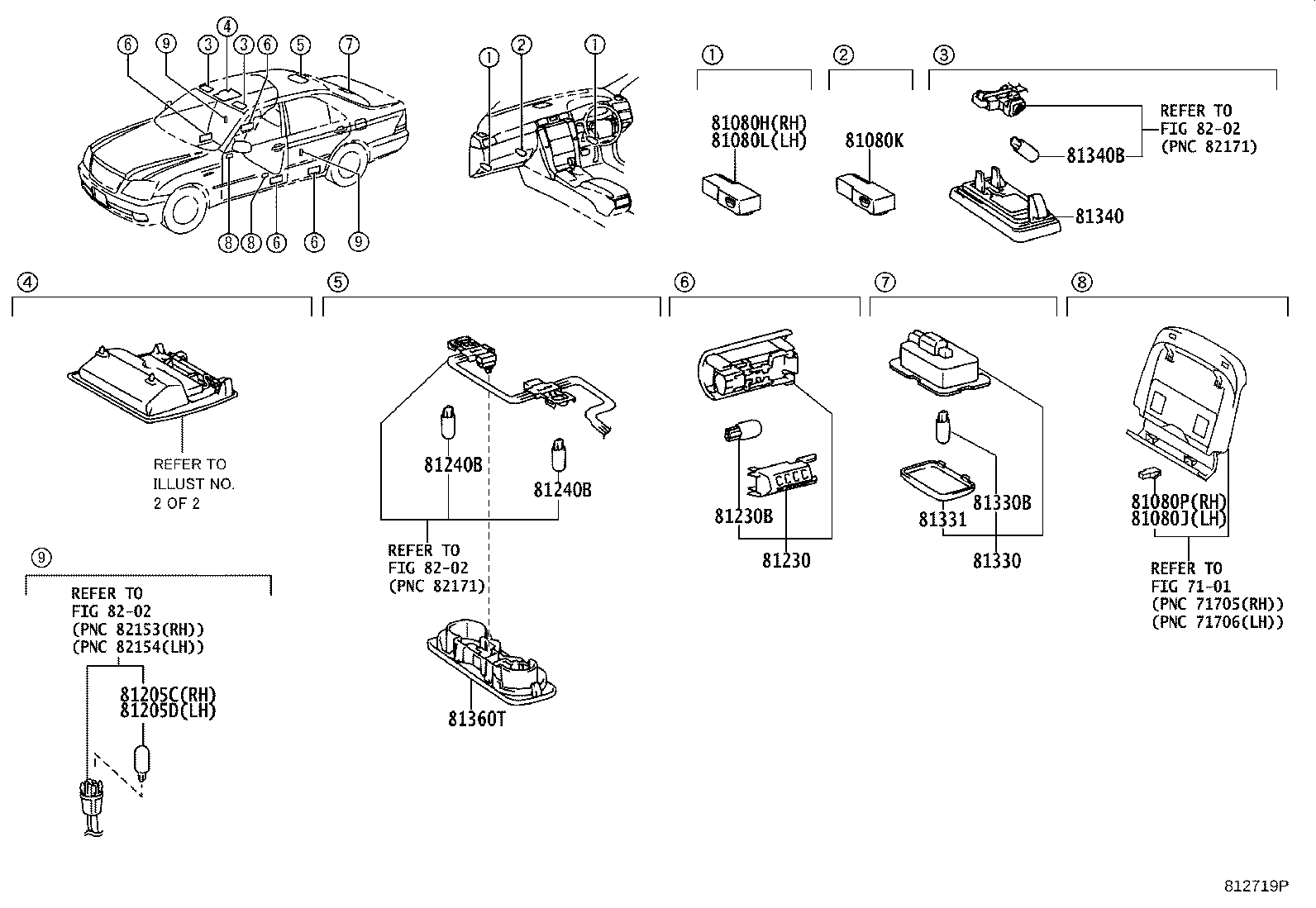

ILLUST NO. 1 OF 2(0312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-48010 |
GRS18# |
1 | ||
| 81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION | ||||
| 81080-48010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-48010 |
GRS18# |
1 | ||
| 81205C - BULB, ASH RECEPTACLE LAMP, REAR RH | ||||
| 90981-11041 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 81205D - BULB, ASH RECEPTACLE LAMP, REAR LH | ||||
| 90981-11041 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-47010 |
GRS18# |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
GRS18# 12V 5W |
4 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
GRS180,181..5FC;GRS182,183,UZS18# 12V 8W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
GRS180,181..5FC;GRS182,183,UZS18# 12V 8W |
2 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-50021 |
GRS18# |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
GRS18# 12V 3.8W |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-50010 |
GRS18# |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100A0 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 81340-30100B0 |
GRS18#..ROY,ROYEX,ROYG LT.GRAY,TRIM1# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
GRS180,181..5FC;GRS182,183,UZS18# 12V 8W |
2 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-30040B0 |
GRS18#..ROY,ROYEX,ROYG LT.GRAY,TRIM1# |
1 | ||
| 81360-30040A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| Linked diagrams | ||||
| 7101 | ||||
| 8202 | ||||

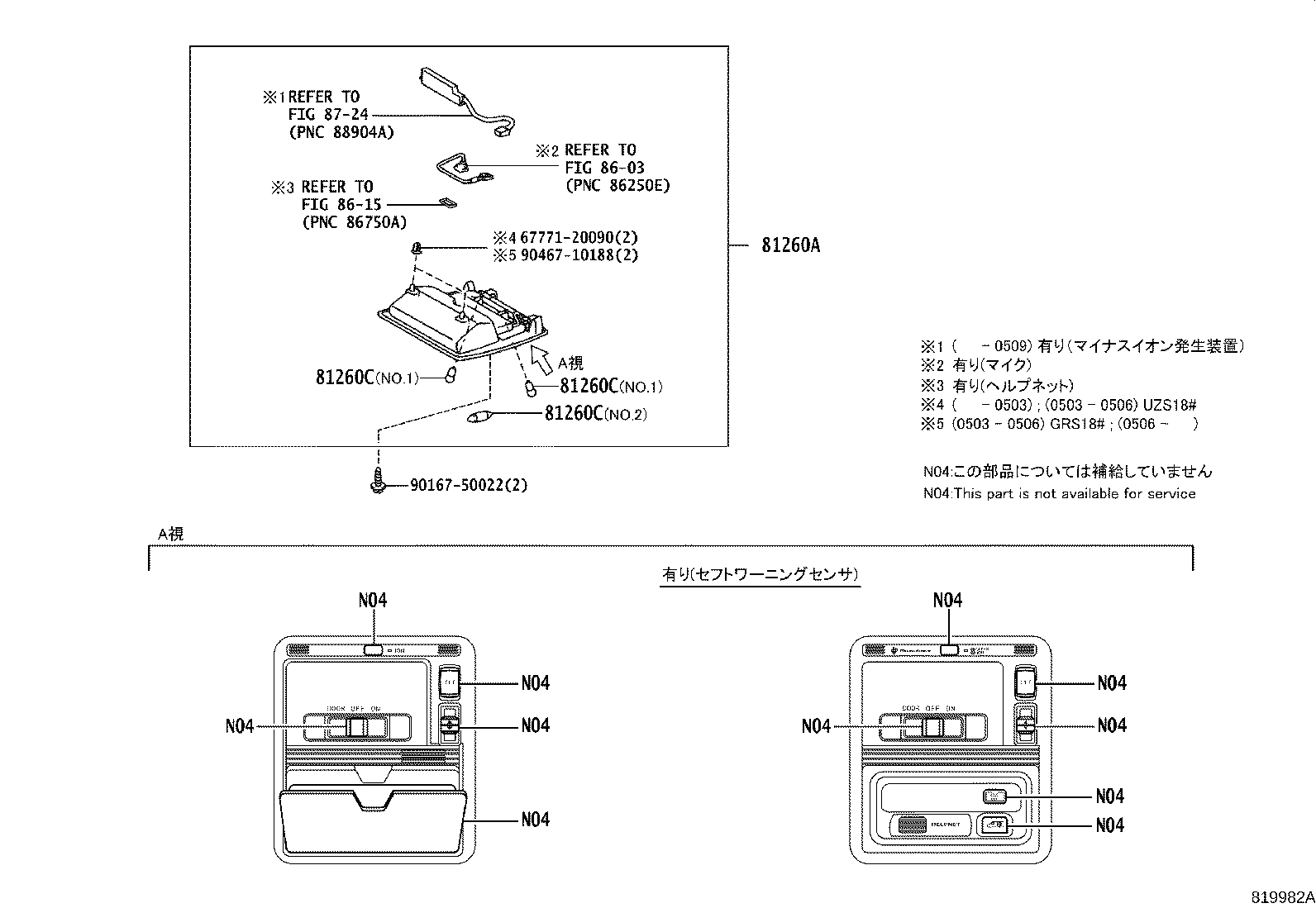

ILLUST NO. 2 OF 2(0312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-30260A0 |
GRS180,181..ROY,ROYEX NEW IVORY,TRIM0# |
1 | ||
| 81260-30270A0 |
GRS180,181..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,NEW IVORY,TRIM0# |
1 | ||
| 81260-30270A0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,NEW IVORY,TRIM0# |
1 | ||
| 81260-30270B0 |
GRS180,181..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,LT.GRAY,TRIM1# |
1 | ||
| 81260-30260B0 |
GRS180,181..ROY,ROYEX LT.GRAY,TRIM1# |
1 | ||
| 81260-30270B0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,LT.GRAY,TRIM1# |
1 | ||
| 81260-30800A0 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 81260-30800B0 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),LT,GRAY,TRIM1#,2# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
GRS18# 12V 8W,NO.1 |
2 | ||
| 90981-14011 |
GRS181..ROYEX;GRS180,182,183..ROY 12V 8W,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NO.1 |
1 | ||
| 90981-14011 |
GRS182,183;GRS180,181..5FC 12V 8W,NO.2 |
1 | ||
| 99132-12050 |
GRS181..ROYEX;GRS180,182,183..ROY 12V 5W,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NO.1 |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
GRS18# 12V 8W,NO.1 |
2 | ||
| 90981-14011 |
GRS181..ROYEX;GRS180,182,183..ROY 12V 8W,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NO.1 |
1 | ||
| 90981-14011 |
GRS182,183;GRS180,181..5FC 12V 8W,NO.2 |
1 | ||
| 99132-12050 |
GRS181..ROYEX;GRS180,182,183..ROY 12V 5W,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NO.1 |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
GRS18# 12V 8W,NO.1 |
2 | ||
| 90981-14011 |
GRS181..ROYEX;GRS180,182,183..ROY 12V 8W,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NO.1 |
1 | ||
| 90981-14011 |
GRS182,183;GRS180,181..5FC 12V 8W,NO.2 |
1 | ||
| 99132-12050 |
GRS181..ROYEX;GRS180,182,183..ROY 12V 5W,ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NO.1 |
2 | ||
| Common parts | ||||
| 67771-20090 | ||||
| 90167-50022 | ||||
| 90467-10188 | ||||
| Linked diagrams | ||||
| 8603 | ||||
| 8615 | ||||
| 8724 | ||||
