GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )GRS18#

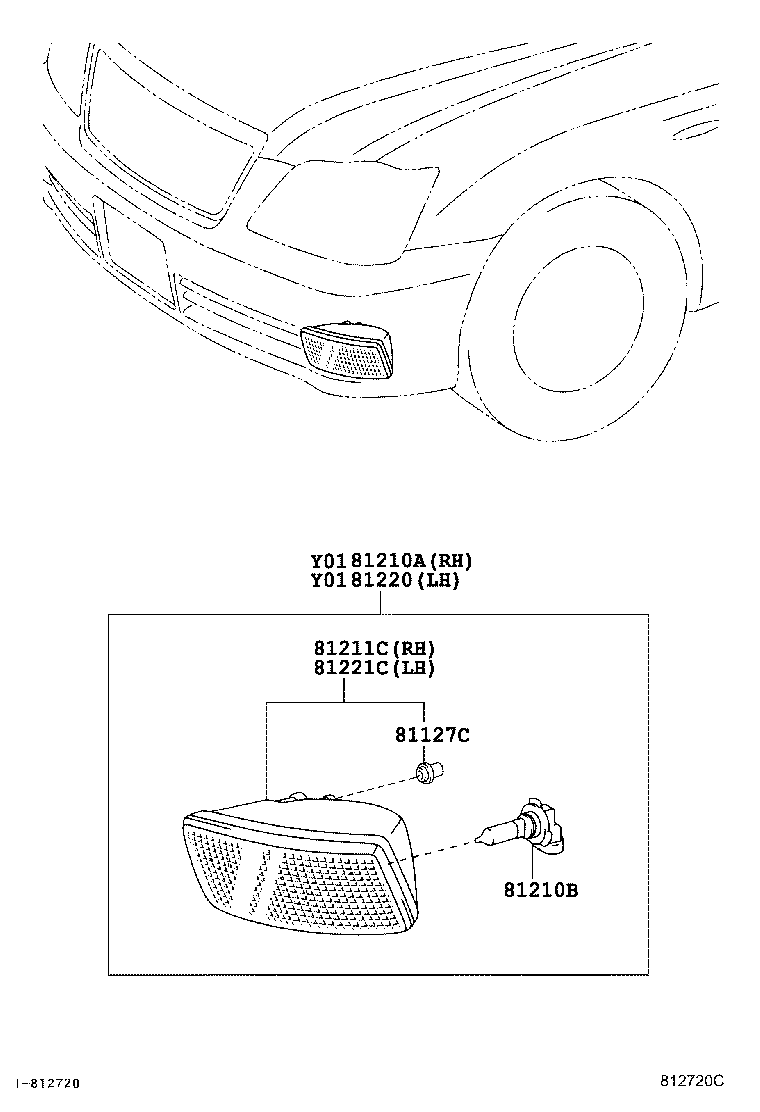

Click highlighted areas on diagram

diagram 81127C 81210A 81210B 81211C 81220 81221C
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

GRS18#

 2
81210A - LAMP ASSY, FOG, RH
81210-30290

GRS18#

 1
81210B - BULB, FOG LAMP
90981-13047

GRS180,181..5FC;GRS182,183,UZS18#

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-30290

GRS18#

 1
81220 - LAMP ASSY, FOG, LH
81220-30260

GRS18#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-30260

GRS18#

 1
