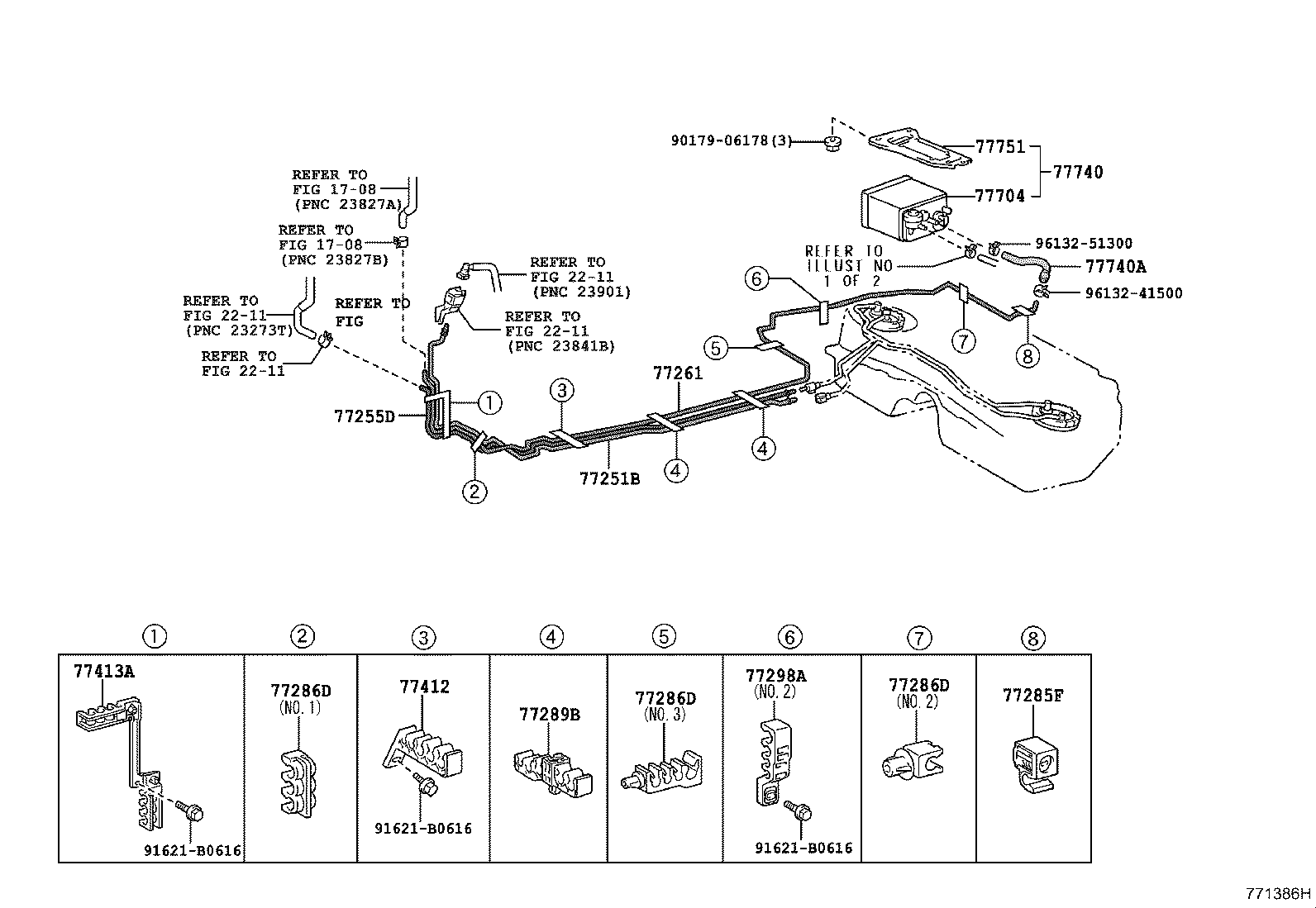

GRS181-AEASH (2004)
Toyota Crown/Majesta
ILLUST NO. 2 OF 2(0312- )GRS180,181,182,183
ﾌﾕ-ｴﾙﾁﾕ-ﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-22540 |
GRS18# |
1 | ||
| 77251-30440 |
GRS18# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-22430 |
GRS18# |
1 | ||
| 77255-30180 |
GRS18# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-30310 |
GRS18# |
1 | ||
| 77261-30310 |
GRS18# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50030 |
GRS18# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30110 |
GRS18# NO.3 |
1 | ||
| 77286-20170 |
GRS180,181..5FC;GRS182,183,UZS18# NO.1 |
1 | ||
| 77286-30120 |
GRS180,181..5FC;GRS182,183,UZS18# NO.2 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30110 |
GRS18# NO.3 |
1 | ||
| 77286-20170 |
GRS180,181..5FC;GRS182,183,UZS18# NO.1 |
1 | ||
| 77286-30120 |
GRS180,181..5FC;GRS182,183,UZS18# NO.2 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30110 |
GRS18# NO.3 |
1 | ||
| 77286-20170 |
GRS180,181..5FC;GRS182,183,UZS18# NO.1 |
1 | ||
| 77286-30120 |
GRS180,181..5FC;GRS182,183,UZS18# NO.2 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-30060 |
GRS18# |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30150 |
GRS18# NO.2 |
1 | ||
| 77298-12010 |
GRS18# NO.1 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-30060 |
GRS18# |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-30070 |
GRS18# |
1 | ||
| 77413-30070 |
GRS18# |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-30200 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30340 |
GRS18# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-46290 |
GRS18# 長さ=185 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-22140 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 91621-B0616 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

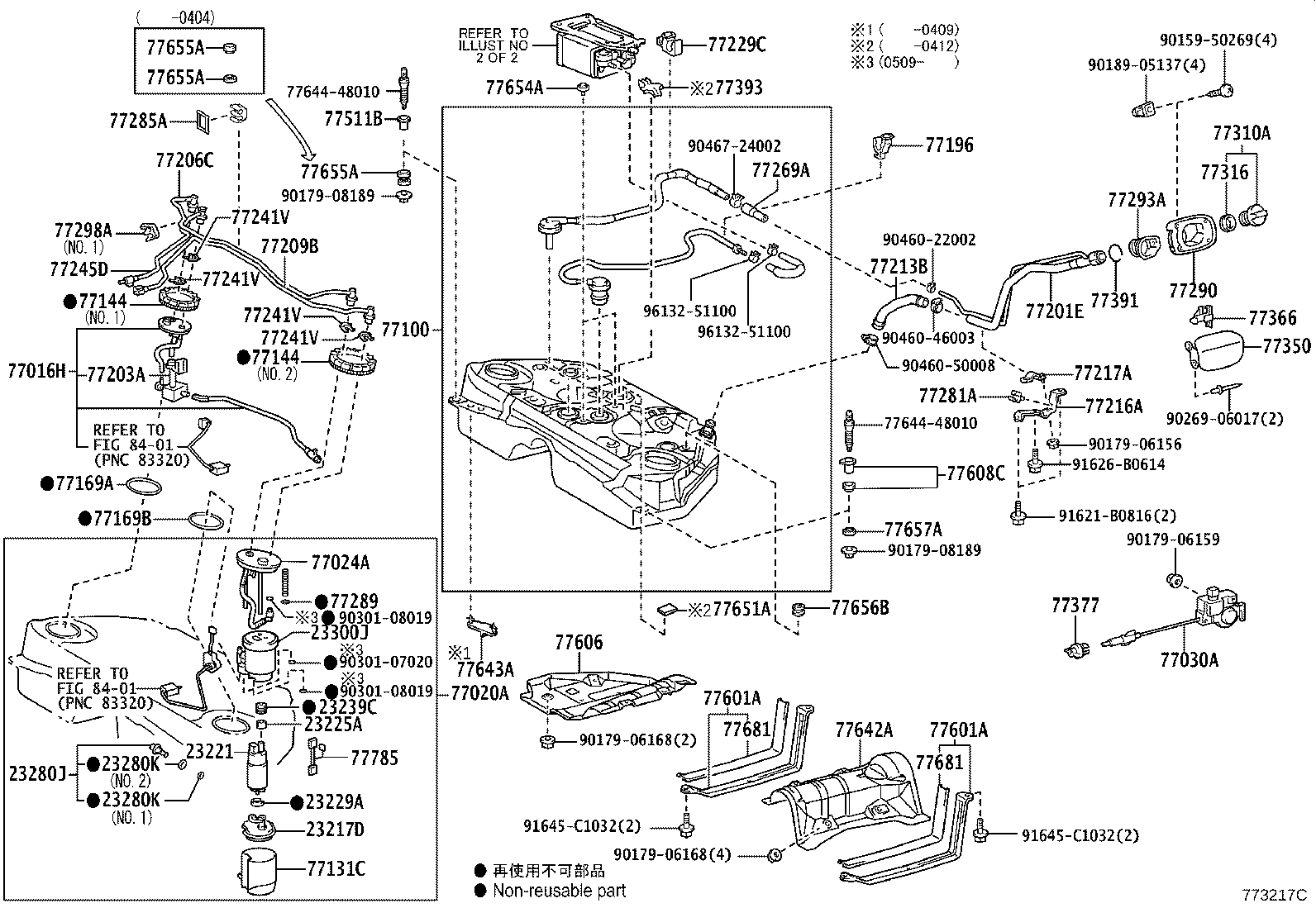

ILLUST NO. 1 OF 2(0312-0608)GRS180,181,182,183
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18# |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18# NO.2 |
1 | ||
| 90301-04013 |
4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18# NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18# NO.2 |
1 | ||
| 90301-04013 |
4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18# NO.1 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-31110 |
4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18# |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-30040 |
GRS18# |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-30130 |
GRS18# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30080 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-30140 |
GRS18# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30560 |
GRS18# |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-30050 |
GRS18# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-47020 |
GRS18# NO.2 |
1 | ||
| 77144-30020 |
GRS18# NO.1 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-47020 |
GRS18# NO.2 |
1 | ||
| 77144-30020 |
GRS18# NO.1 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-30010 |
GRS18# |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-47030 |
GRS18# |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-30050 |
GRS18# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-30420 |
GRS18# |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-30180 |
GRS18# |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-30030 |
GRS18# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-30100 |
GRS18# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30190 |
GRS18#,UZS18# |
1 | ||
| 77213-30191 |
GRS18# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-30050 |
GRS18# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-30130 |
GRS18# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-30050 |
GRS18# |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-60320 |
GRS18# |
4 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-60320 |
GRS18# |
4 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-60320 |
GRS18# |
4 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-60320 |
GRS18# |
4 | ||
| 77245D - TUBE, FUEL TANK RETURN VENT | ||||
| 77245-30170 |
GRS18# |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-30060 |
GRS18# |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-50020 |
GRS18# |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
GRS18# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-30100 |
GRS18# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-30060 |
GRS18# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30150 |
GRS18# NO.2 |
1 | ||
| 77298-12010 |
GRS18# NO.1 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
GRS18# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GRS18# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30360 |
GRS18# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12030 |
GRS18# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
GRS18# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GRS18# |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-30030 |
GRS18#,UZS18# |
1 | ||
| 77511B - BRACKET, FUEL TANK | ||||
| 77511-48030 |
GRS18# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30170 |
GRS18# |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30170 |
GRS18# |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-30190 |
GRS18# |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48010 |
GRS18# |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-30030 |
GRS18# |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-30020 |
GRS18#,UZS18# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-30080 |
GRS18#,UZS18# |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-30020 |
GRS18# |
2 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-30050 |
GRS18# |
2 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-30050 |
GRS18# |
2 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-30050 |
GRS18# |
2 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
GRS18# |
4 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48010 |
GRS18# |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-30010 |
GRS18# |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-30010 |
GRS18# |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-30040 |
GRS18# |
1 | ||
| Common parts | ||||
| 77644-48010 | ||||
| 90159-50269 | ||||
| 90179-06156 | ||||
| 90179-06159 | ||||
| 90179-06168 | ||||
| 90179-08189 | ||||
| 90189-05137 | ||||
| 90269-06017 | ||||
| 90301-07020 | ||||
| 90301-08019 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-50008 | ||||
| 90467-24002 | ||||
| 91621-B0816 | ||||
| 91626-B0614 | ||||
| 91645-C1032 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
